APC Automatic Transfer Switch AP4423A – (8x) C13 + (1x) C19, 3680W, Rack mountable, 1U. Input operation voltage (min): 207 V, Input operation voltage (max): 253 V, AC input frequency: 50 – 60 Hz. Form factor: Rackmount, Rack capacity: 1U, Product colour: Black. AC outlets quantity: 9 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Width: 432 mm, Depth: 236 mm, Height: 44 mm. Package width: 600 mm, Package depth: 356 mm, Package height: 114 mm
An APC Rack Automatic Transfer Switch makes it possible to connect single-powered hardware to two different power sources, in order to increase the availability of this connected hardware and prevent costly downtime. Because an APC Rack ATS uses two input power cords (not included), it can be connected to two different power sources at the same time. By then connecting single-powered hardware to the Rack ATS, this hardware can have access to 2 separate power sources. If one source fails, the Rack ATS immediately switches to the second feed, without the connected hardware being affected.
Easy to use

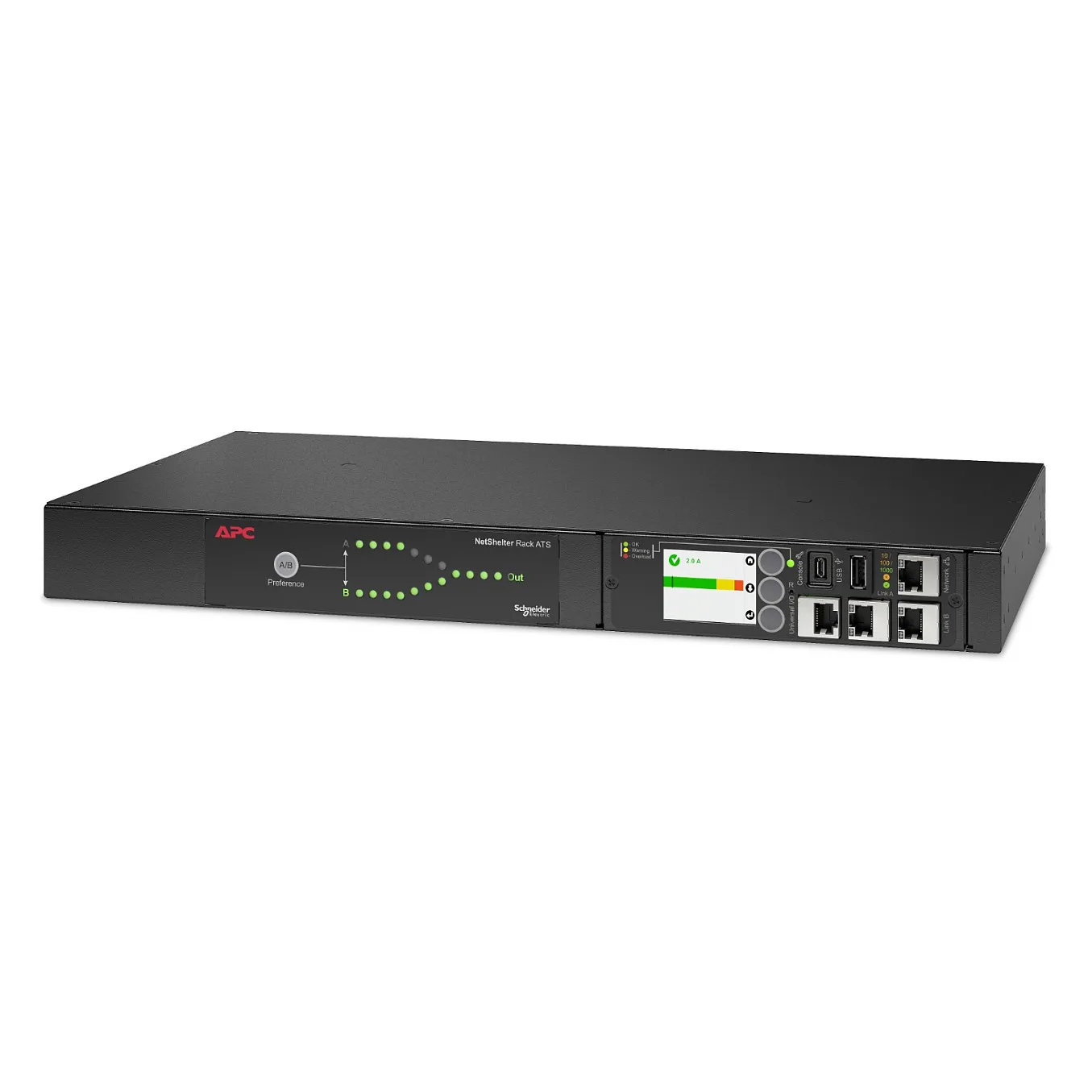

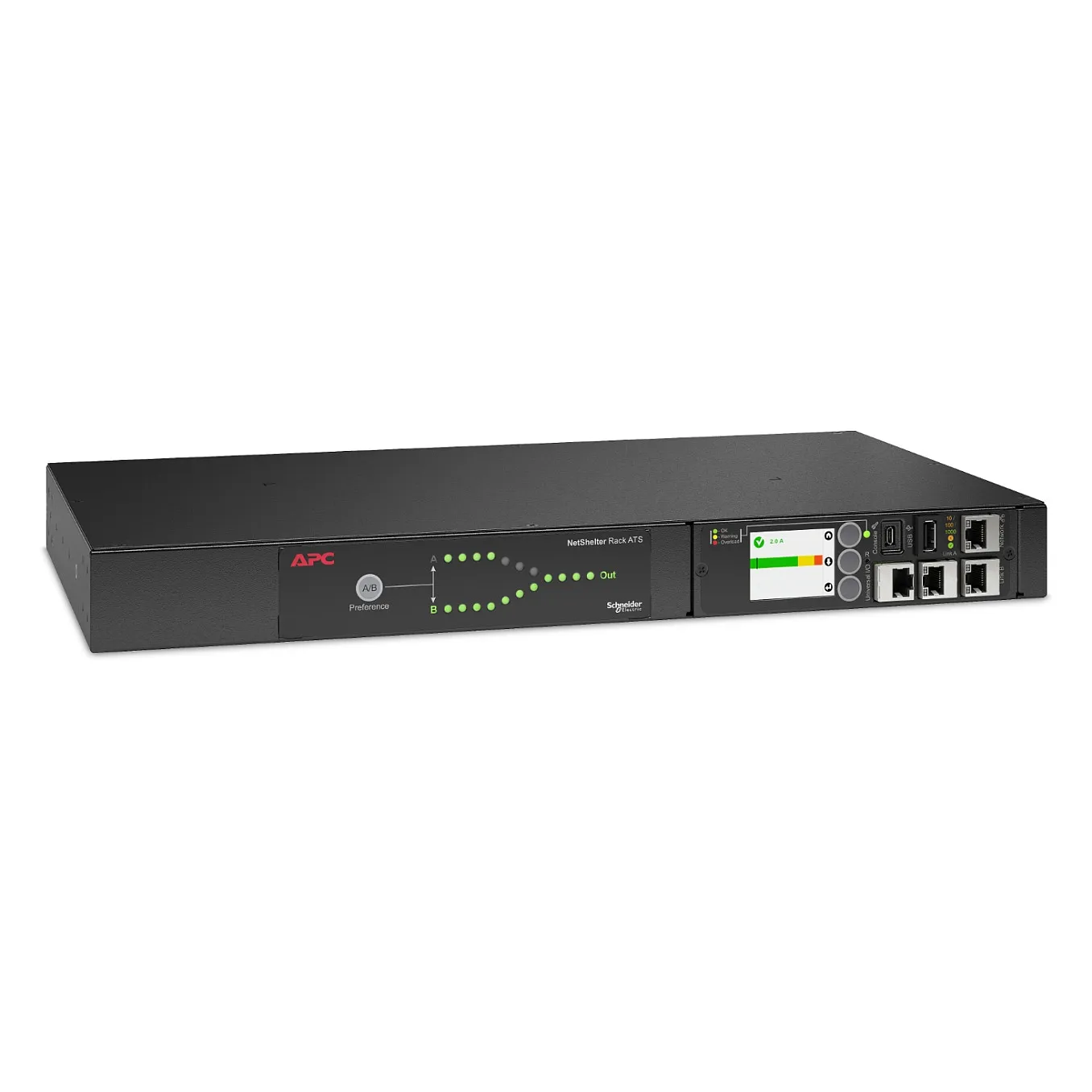

You can read the status of the APC Rack ATS at a glance via the front panel interface, but you can also manage it remotely thanks to its built-in network management functionality.
Convenience
Because this Rack ATS is equipped with multiple outputs, multiple single-powered devices can be connected to the ATS at the same time, so that all benefit from the security of two feeds.
Safety
The built-in intelligent interface allows this APC rack ATS to monitor both input power sources, detect deviations in voltage or frequency and then take a user-defined action, such as sending an alarm or switching.
Accessories
Connect the APC ATS using 2x the AP9875, (C19-Schuko), AP9876 (C19-IEC309 16A) or AP9877 (C19-C20) and provide the ATS with a temperature and humidity sensor (AP9335TH). You can prevent loose power cords with a retention bracket the AP7769.
Warranty extension
The factory warranty of this APC Rackmount Automatic Transfer Switch is 2 years and can be extended to 3 years using WBEXTWAR1YR-AC-03.
Features
APC Rack Automatic Transfer Switch AP4423A

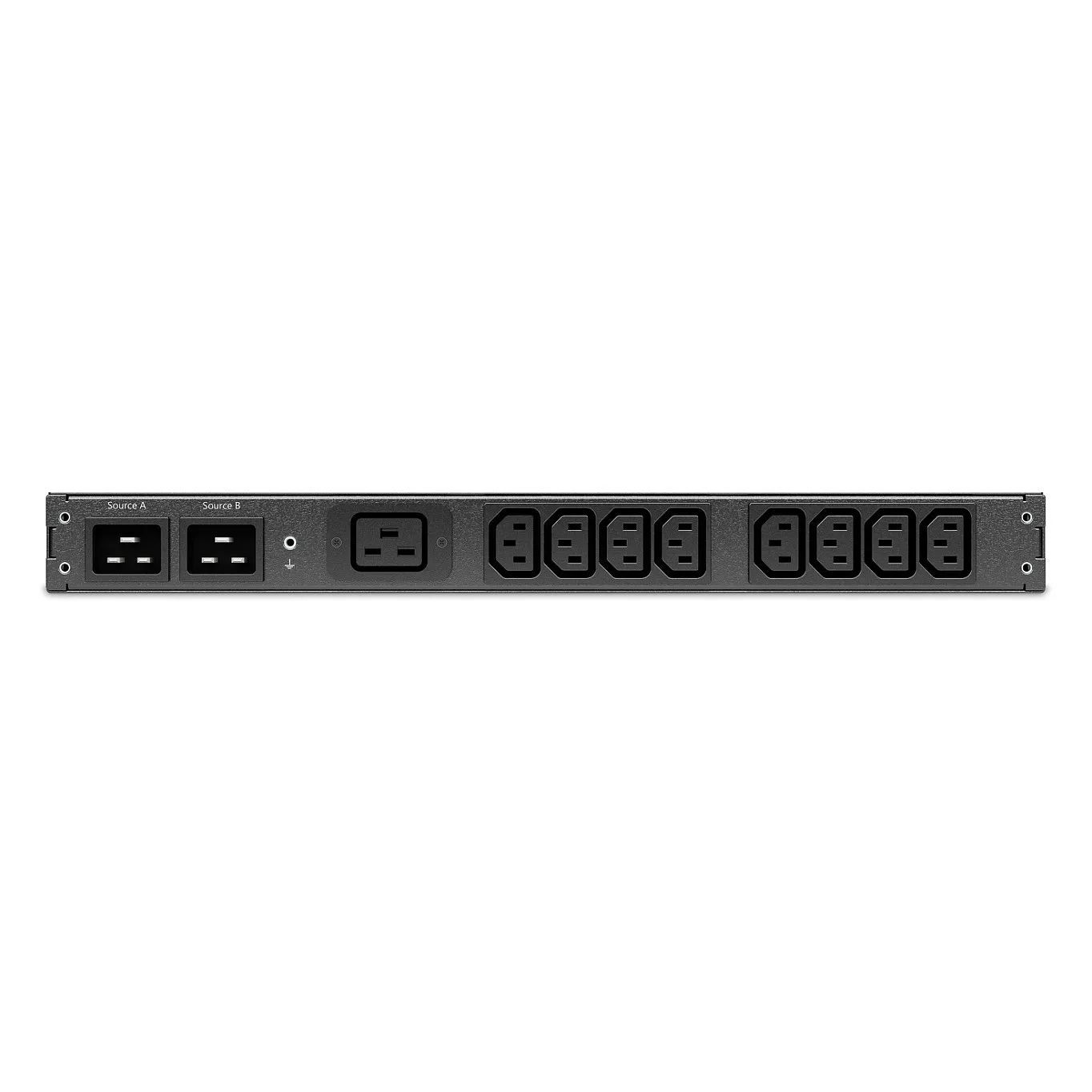

Input: 230V, input connection type: C20 (2x)
Output 230V, output connection type: C13 (8x) + C19 (1x)
Max power: 3680Watt
Includes: Rack mounting brackets, Serial Communication cable – RJ12 to female DB-9
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4423A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4423A is single phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3700VA load capacity. It comes with 2 IEC C20 inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Input operation voltage (min): 207 V
Input operation voltage (max): 253 V
AC input frequency: 50 – 60 Hz
Input current: 16 A
Output current: 16 A
Design
Form factor: Rackmount
Rack capacity: 1U
Product colour: Black
Certification: CE, cUL listed, EN 55022 class A, FCC part 15 class A, UL listed
Ports & interfaces
AC outlets quantity: 9 AC outlet(s)
AC outlet types: C13 coupler, C19 coupler
Operational conditions
Operating temperature (T-T): -5 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Technical details
Total carbon footprint (kg of CO2e): 432.5
Weight & dimensions
Width: 432 mm
Depth: 236 mm
Height: 44 mm
Weight: 3.74 kg
Packaging data
Package width: 600 mm
Package depth: 356 mm
Package height: 114 mm
Package weight: 5.51 kg
