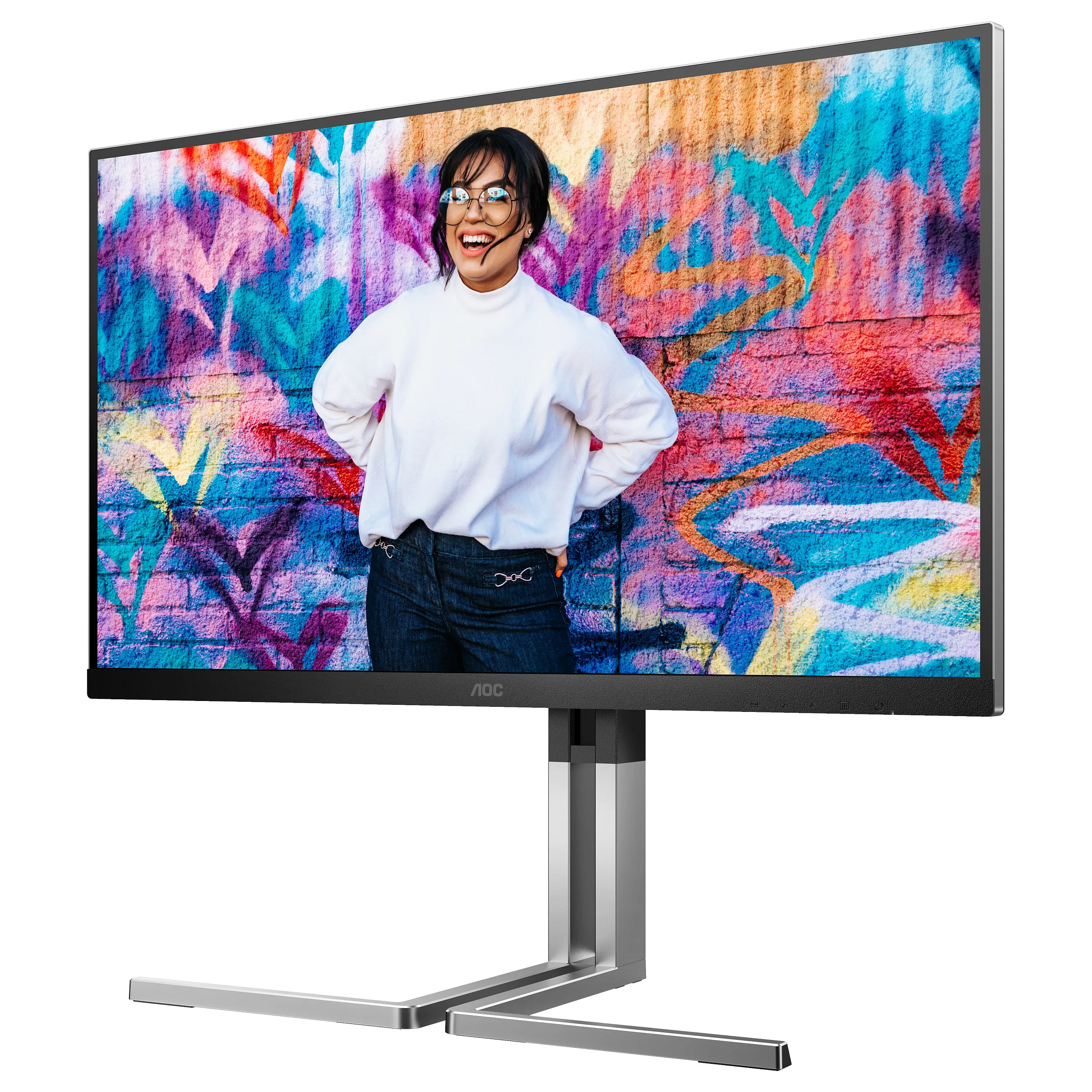

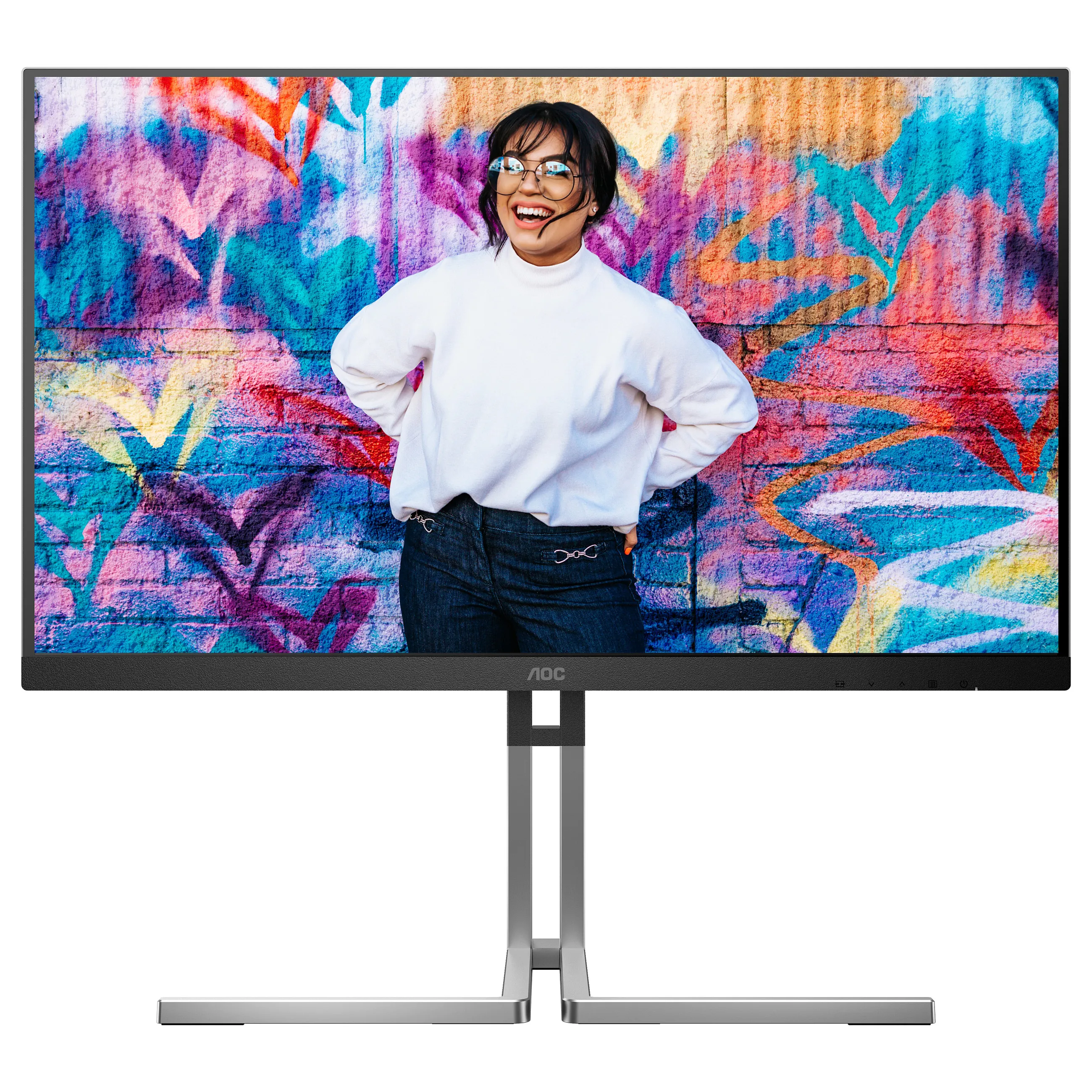

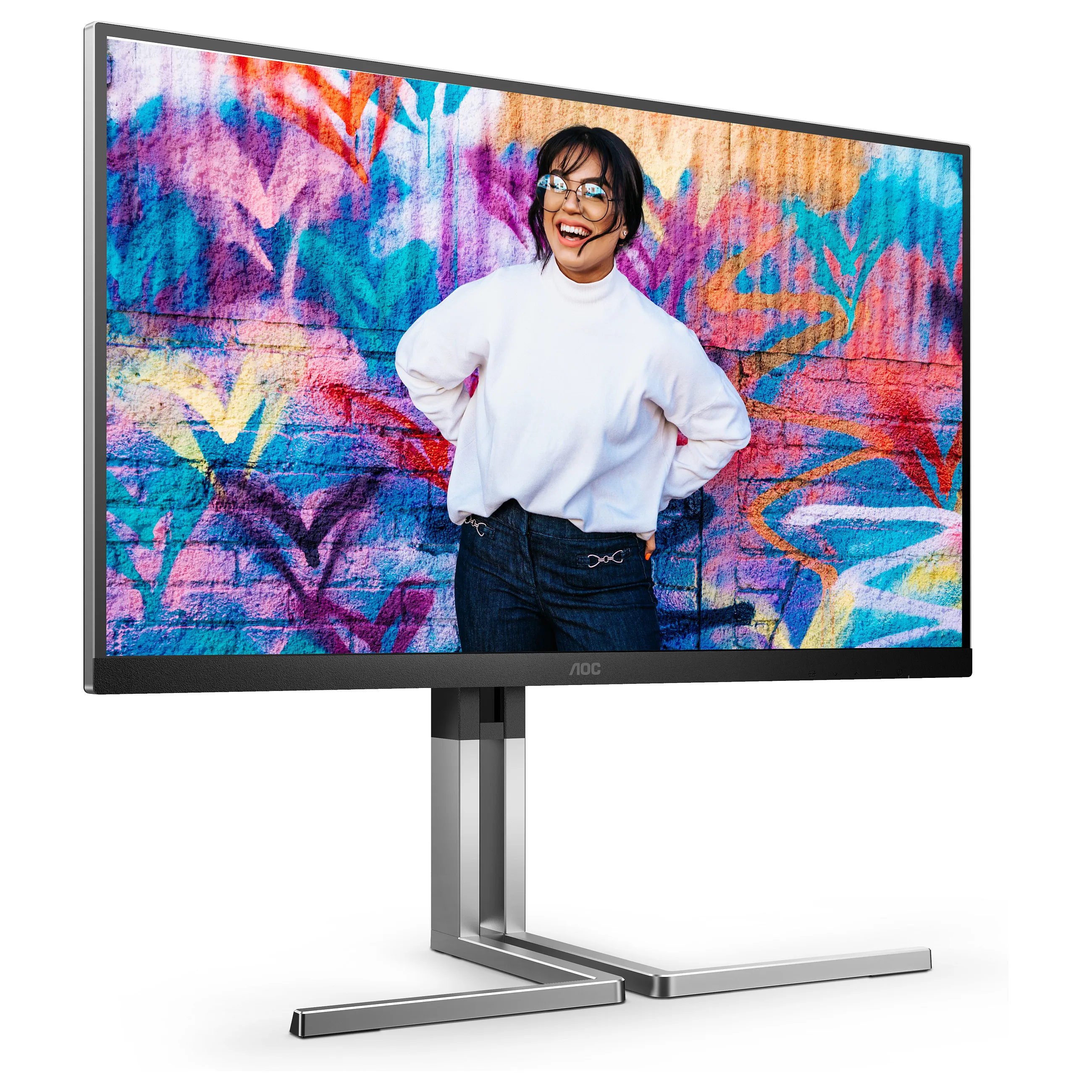

AOC Q27U3CV. Display diagonal: 68.6 cm (27"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LCD, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

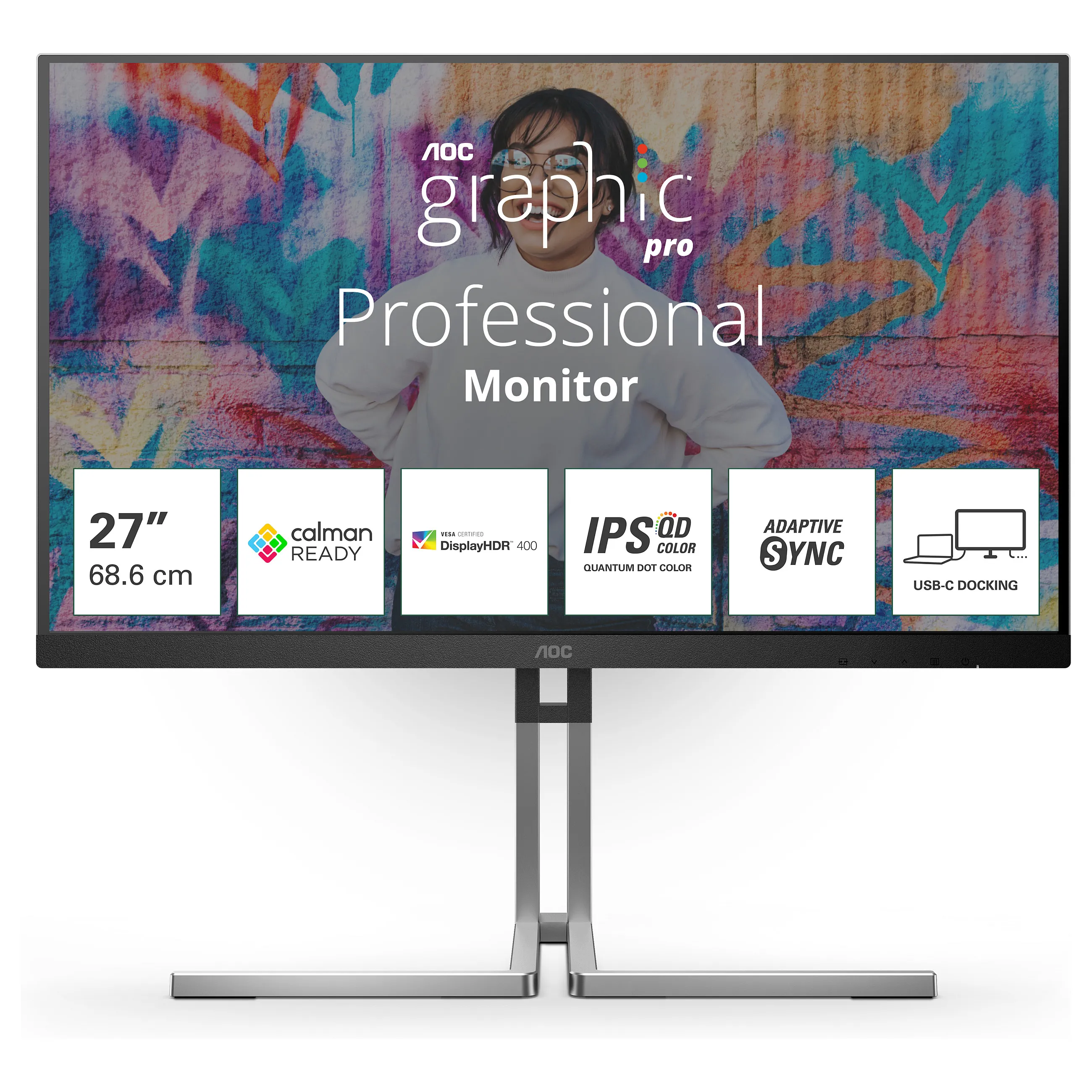

Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and stunning IPS QD panel
The AOC Graphic Pro Q27U3CV ensures incredibly accurate colors right out of the box, thanks to its hardware calibration, which achieves a Delta E<2 (sRGB). With the Calman Ready feature, you can easily fine-tune the settings for optimal performance. Covering 98% of the DCI P3 color space, as well as 100% of sRGB and Rec 709, it’s perfect for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E<2 accuracy guarantees precise color rendering, even beyond what the human eye can perceive. Combined with its IPS QD panel, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it’s the top choice for professionals.
The AOC Graphic Pro Q27U3CV ensures incredibly accurate colors right out of the box, thanks to its hardware calibration, which achieves a Delta E<2 (sRGB). With the Calman Ready feature, you can easily fine-tune the settings for optimal performance. Covering 98% of the DCI P3 color space, as well as 100% of sRGB and Rec 709, it’s perfect for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E<2 accuracy guarantees precise color rendering, even beyond what the human eye can perceive. Combined with its IPS QD panel, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it’s the top choice for professionals.
Display
Display diagonal: 68.6 cm (27″)
Display resolution: 2560 x 1440 pixels
HD type: Quad HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS Quantum Dot
Feature: LED backlight
Backlight type: W-LED
Display brightness (peak): 420 cd/m²
Response time: 4 ms
Response time measurement type: GTG (Gray to Gray)
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 50000000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.2331 x 0.2331 mm
Pixel density: 109 ppi
Horizontal scan range: 30 – 140 kHz
Vertical scan range: 48 – 75 Hz
Viewable size, horizontal: 59.7 cm
Viewable size, vertical: 33.6 cm
Digital vertical frequency: 48 – 75 Hz
Display diagonal (metric): 68.6 cm
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: DisplayHDR 400
Feature: DDC/CI
Surface hardness: 3H
Colour gamut standard: sRGB
Colour gamut: 98%
sRGB coverage (typical): 144.5%
NTSC coverage (typical): 119.3%
Adobe RGB coverage: 117.3%
BT.2020 coverage: 79.4%
Performance
Feature: Fast charging
Feature: VESA Adaptive Sync support
Feature: Flicker-free technology
Multimedia
Number of speakers: 2
RMS rated power: 6 W
Feature: Built-in speaker(s)
Design
Market positioning: Graphics design
Product colour: Black
Feature: Frameless design
Front bezel colour: Black/Silver
Feature: Detachable stand
Feet colour: Grey

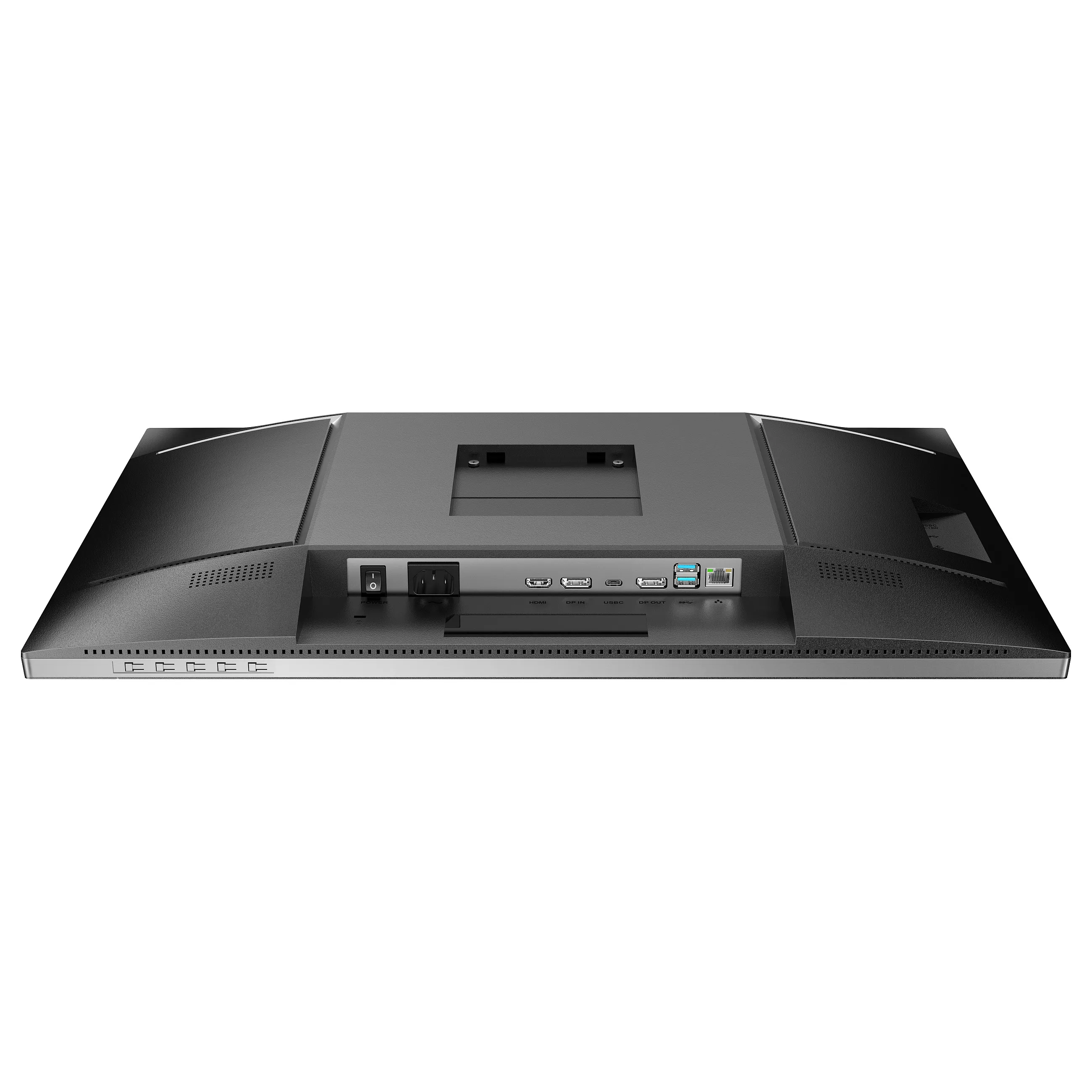

Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-C
Number of upstream ports: 1
USB Type-A downstream ports quantity: 4
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 96 W
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort out quantity: 1
DisplayPort version: 1.2
Audio output: Yes
Feature: Headphone out
Headphone outputs: 1
Feature: HDCP
HDCP version: 2.2
Feature: AC (power) in
Network
Feature: Ethernet LAN
Ergonomics

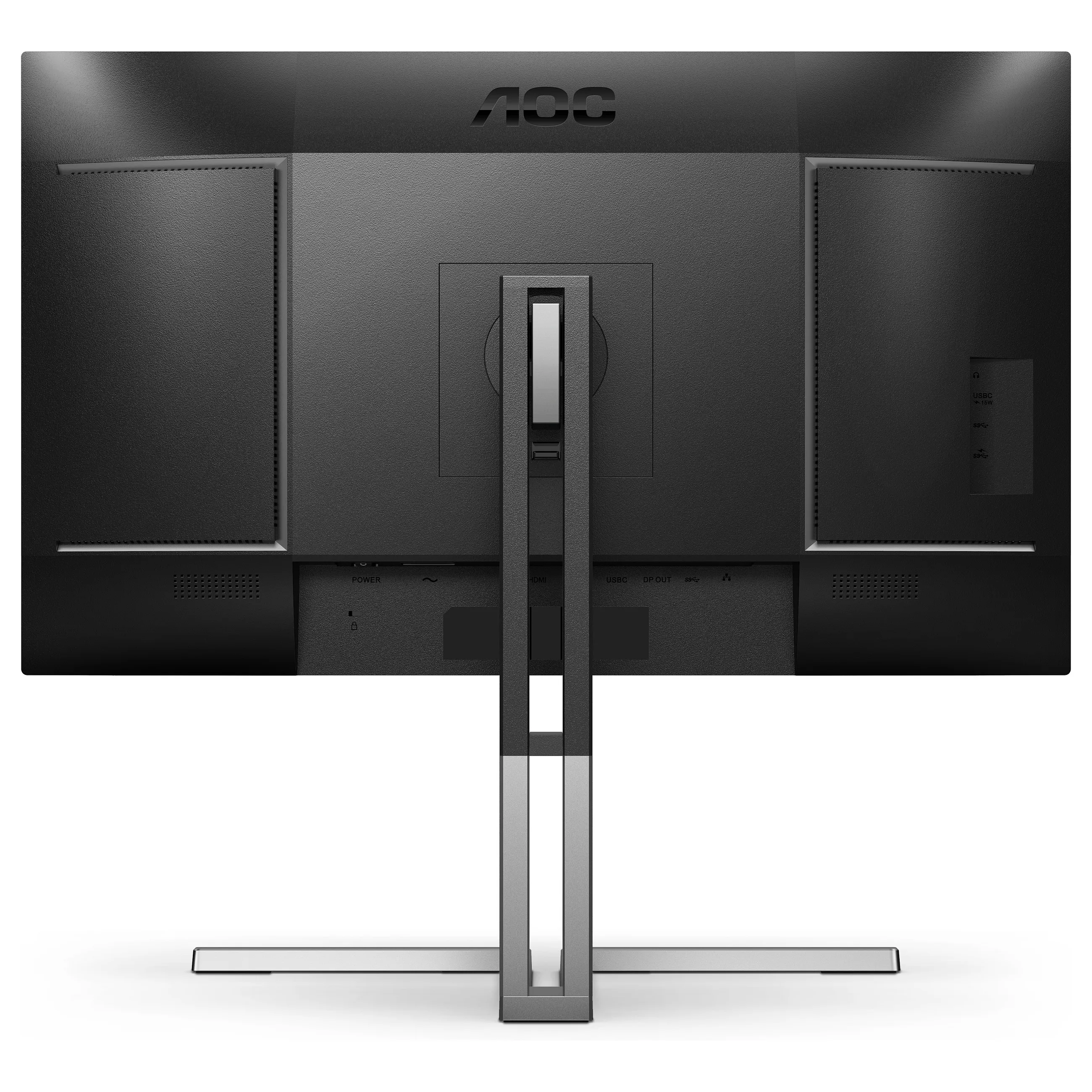

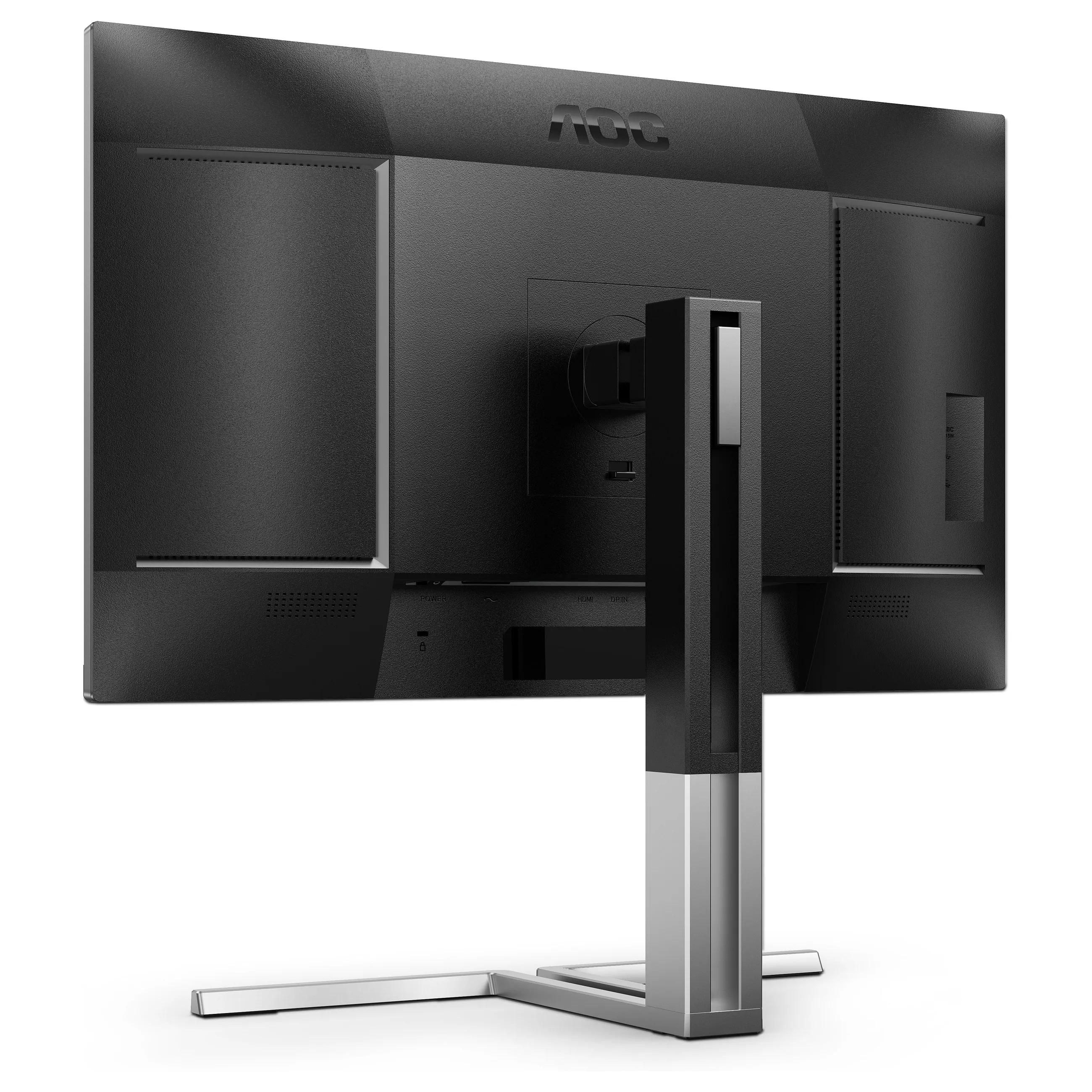

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15 cm

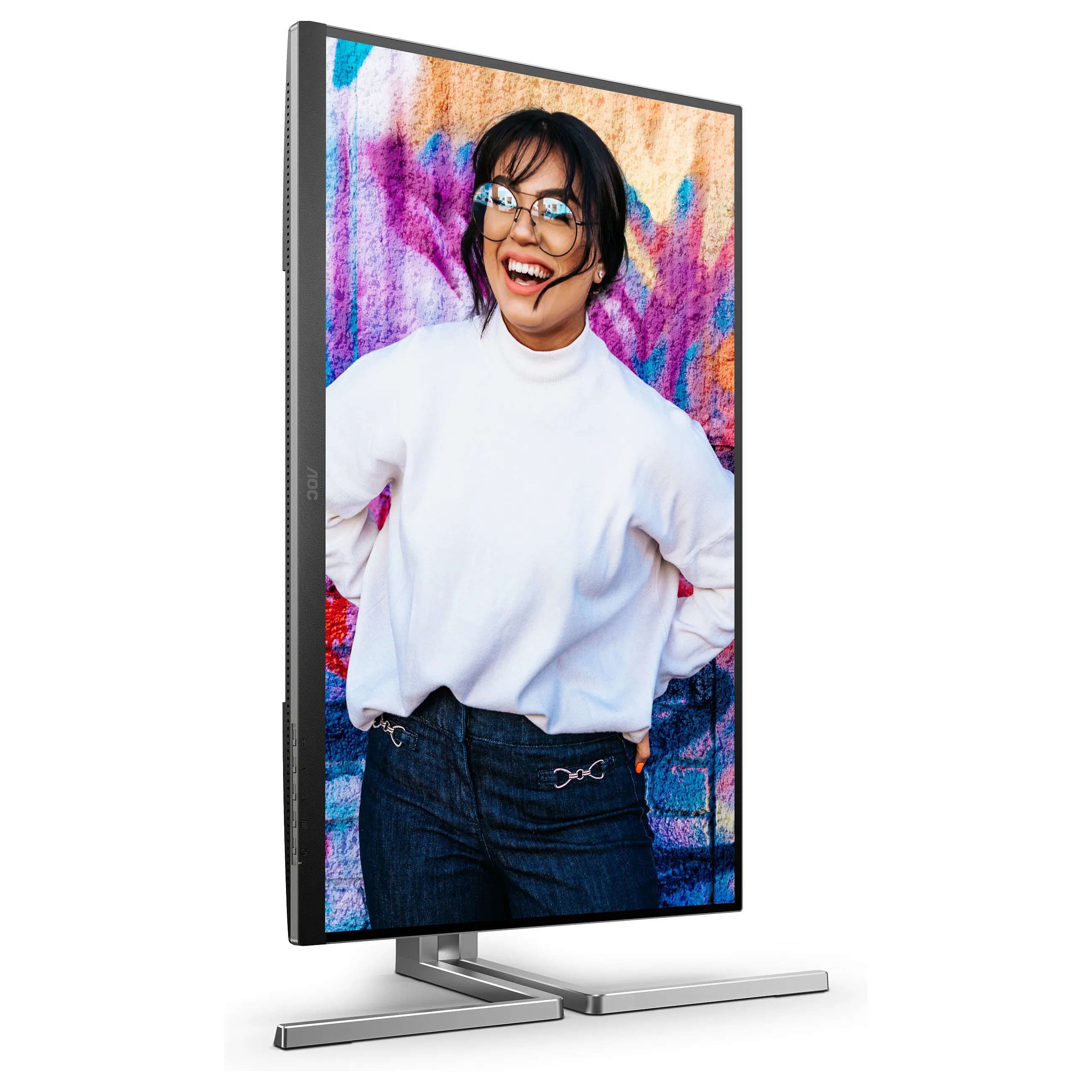

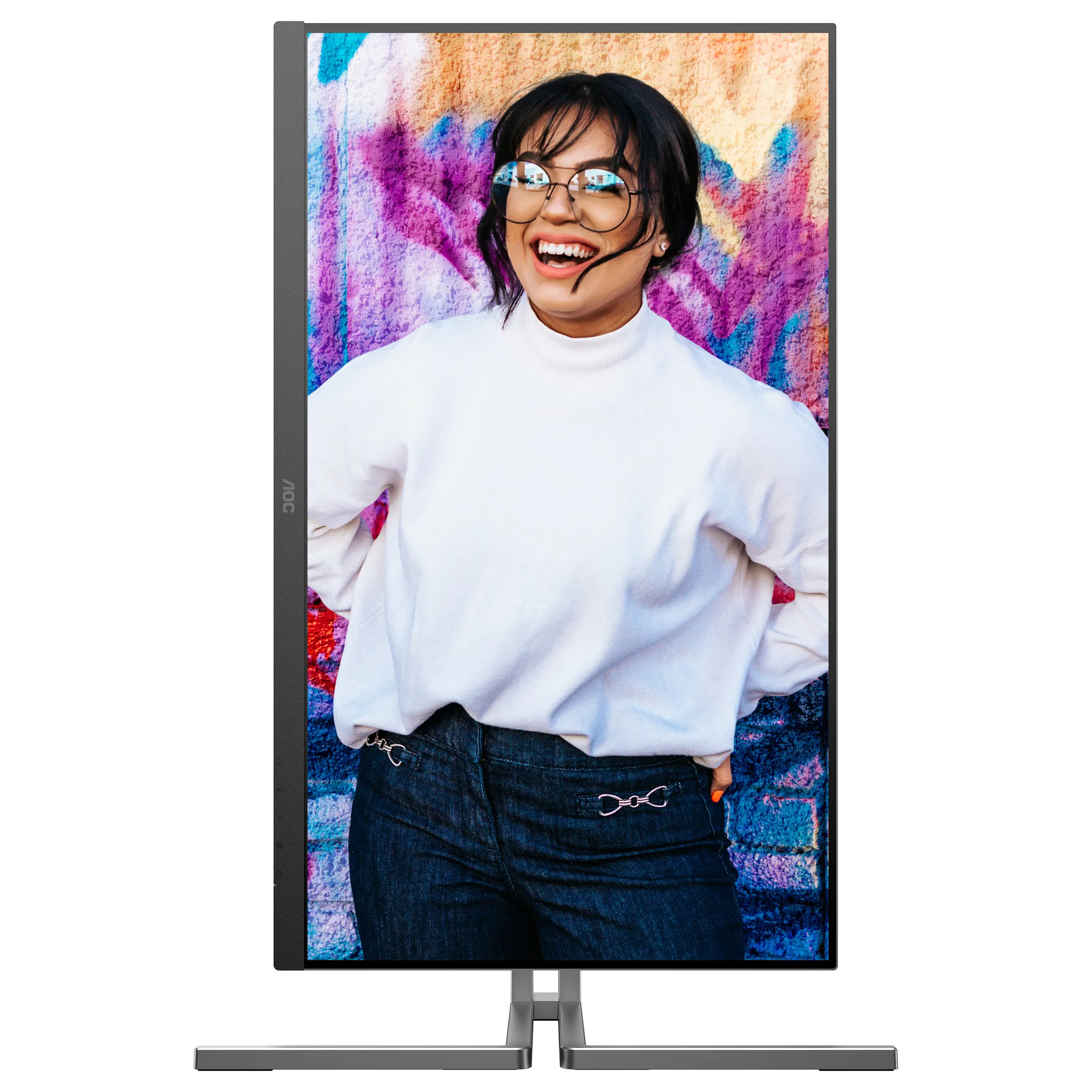

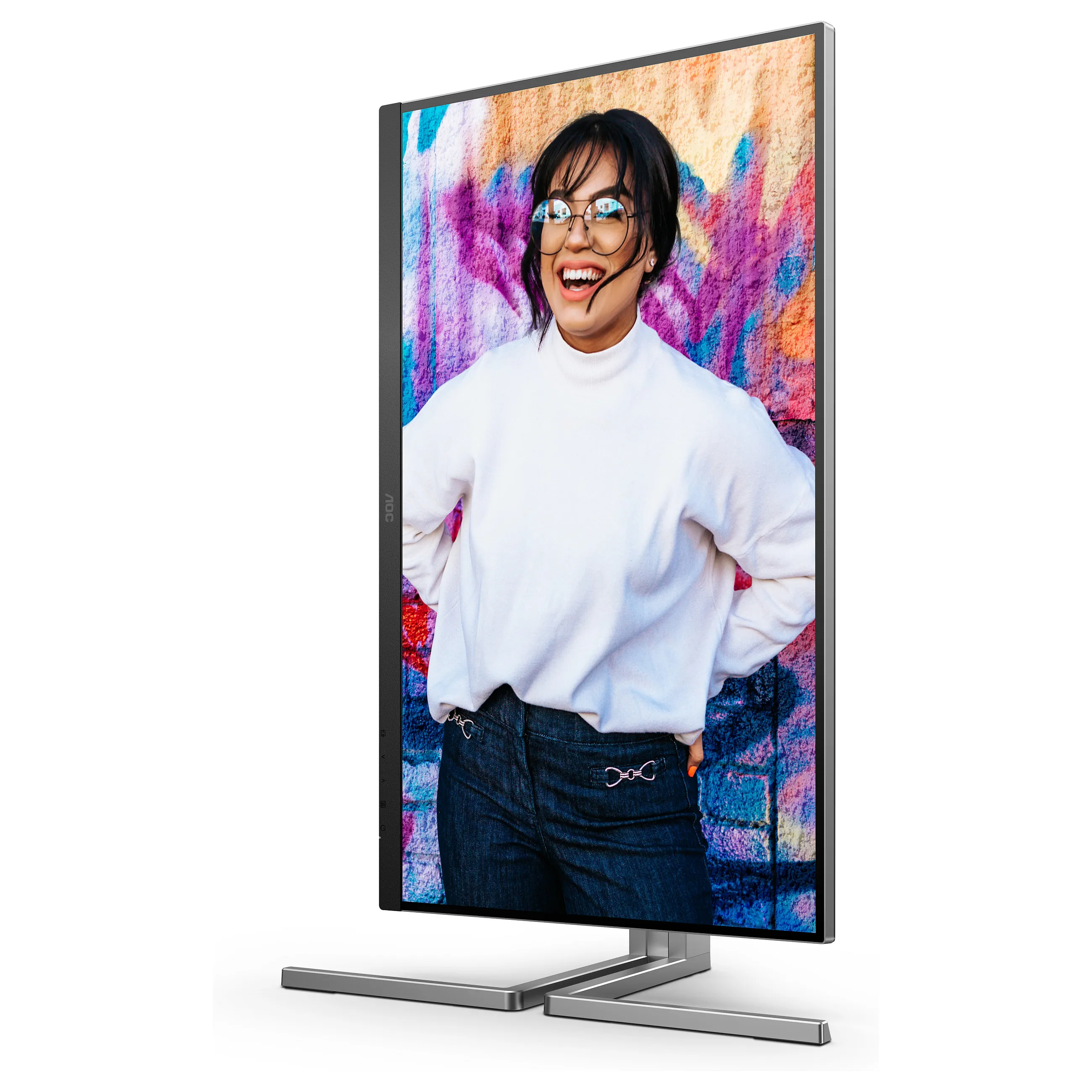

Feature: Pivot
Pivot angle: -90 – 90°
Feature: Swivelling
Swivel angle range: -30 – 30°
Feature: Tilt adjustment
Tilt angle range: 6.5 – 23°
Feature: Plug and Play
LED indicators: Yes
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 21 kWh
Energy consumption (HDR) per 1000 hours: 42 kWh
Power consumption (typical): 20.25 W
Power consumption (standby): 0.3 W
Power consumption (max): 185 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 3 A
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -25 – 55 °C
Operating relative humidity (H-H): 10 – 85%
Storage relative humidity (H-H): 5 – 93%
Operating altitude: 0 – 5000 m
Non-operating altitude: 0 – 12192 m
Weight & dimensions
Width (with stand): 613.8 mm
Depth (with stand): 238.4 mm
Height (with stand): 547.7 mm
Weight (with stand): 4.8 kg
Width (without stand): 365 mm
Depth (without stand): 52.5 mm
Height (without stand): 365 mm
Weight (without stand): 6.5 kg
Packaging data
Package width: 825 mm
Package depth: 162 mm
Package height: 480 mm
Package weight: 9.99 kg
Package type: Box
USB cable length: 1.2 m
Packaging content
Feature: Stand included
Cables included: AC, HDMI, DisplayPort, USB Type-C
Feature: Quick start guide
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Feature: Sustainability compliance
Sustainability certificates: EPEAT Gold, TCO
Doesn’t contain: Mercury, PVC/BFR
Other features
Compatible operating systems: Windows 8.1/10/11
Feature: Local dimming
Warranty period: 3 year(s)
Bezel thickness type: Frameless
Compliance certificates: CE
Mean time between failures (MTBF): 30000 h
Certification: WEEE,REACH compliant,RoHs compliant,HF,CB,TUV-GS-Mark,ISO 9241-307,EAC,FCC
Recycling data
Product post-consumer recycled plastic: 85%
Packaging recycled content: 80%
Technical details
Native refresh rate: 60 Hz
Display diagonal: 68.6 cm (27″)
Display resolution: 2560 x 1440 pixels
HD type: Quad HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS Quantum Dot
Feature: LED backlight
Backlight type: W-LED
Display brightness (peak): 420 cd/m²
Response time: 4 ms
Response time measurement type: GTG (Gray to Gray)
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 50000000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.2331 x 0.2331 mm
Pixel density: 109 ppi
Horizontal scan range: 30 – 140 kHz
Vertical scan range: 48 – 75 Hz
Viewable size, horizontal: 59.7 cm
Viewable size, vertical: 33.6 cm
Digital vertical frequency: 48 – 75 Hz
Display diagonal (metric): 68.6 cm
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: DisplayHDR 400
Feature: DDC/CI
Surface hardness: 3H
Colour gamut standard: sRGB
Colour gamut: 98%
sRGB coverage (typical): 144.5%
NTSC coverage (typical): 119.3%
Adobe RGB coverage: 117.3%
BT.2020 coverage: 79.4%
Performance
Feature: Fast charging
Feature: VESA Adaptive Sync support
Feature: Flicker-free technology
Multimedia
Number of speakers: 2
RMS rated power: 6 W
Feature: Built-in speaker(s)
Design
Market positioning: Graphics design
Product colour: Black
Feature: Frameless design
Front bezel colour: Black/Silver
Feature: Detachable stand
Feet colour: Grey
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-C
Number of upstream ports: 1
USB Type-A downstream ports quantity: 4
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 96 W
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort out quantity: 1
DisplayPort version: 1.2
Audio output: Yes
Feature: Headphone out
Headphone outputs: 1
Feature: HDCP
HDCP version: 2.2
Feature: AC (power) in
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15 cm
Feature: Pivot
Pivot angle: -90 – 90°
Feature: Swivelling
Swivel angle range: -30 – 30°
Feature: Tilt adjustment
Tilt angle range: 6.5 – 23°
Feature: Plug and Play
LED indicators: Yes
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 21 kWh
Energy consumption (HDR) per 1000 hours: 42 kWh
Power consumption (typical): 20.25 W
Power consumption (standby): 0.3 W
Power consumption (max): 185 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 3 A
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -25 – 55 °C
Operating relative humidity (H-H): 10 – 85%
Storage relative humidity (H-H): 5 – 93%
Operating altitude: 0 – 5000 m
Non-operating altitude: 0 – 12192 m
Weight & dimensions
Width (with stand): 613.8 mm
Depth (with stand): 238.4 mm
Height (with stand): 547.7 mm
Weight (with stand): 4.8 kg
Width (without stand): 365 mm
Depth (without stand): 52.5 mm
Height (without stand): 365 mm
Weight (without stand): 6.5 kg
Packaging data
Package width: 825 mm
Package depth: 162 mm
Package height: 480 mm
Package weight: 9.99 kg
Package type: Box
USB cable length: 1.2 m
Packaging content
Feature: Stand included
Cables included: AC, HDMI, DisplayPort, USB Type-C
Feature: Quick start guide
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Feature: Sustainability compliance
Sustainability certificates: EPEAT Gold, TCO
Doesn’t contain: Mercury, PVC/BFR
Other features
Compatible operating systems: Windows 8.1/10/11
Feature: Local dimming
Warranty period: 3 year(s)
Bezel thickness type: Frameless
Compliance certificates: CE
Mean time between failures (MTBF): 30000 h
Certification: WEEE,REACH compliant,RoHs compliant,HF,CB,TUV-GS-Mark,ISO 9241-307,EAC,FCC
Recycling data
Product post-consumer recycled plastic: 85%
Packaging recycled content: 80%
Technical details
Native refresh rate: 60 Hz
