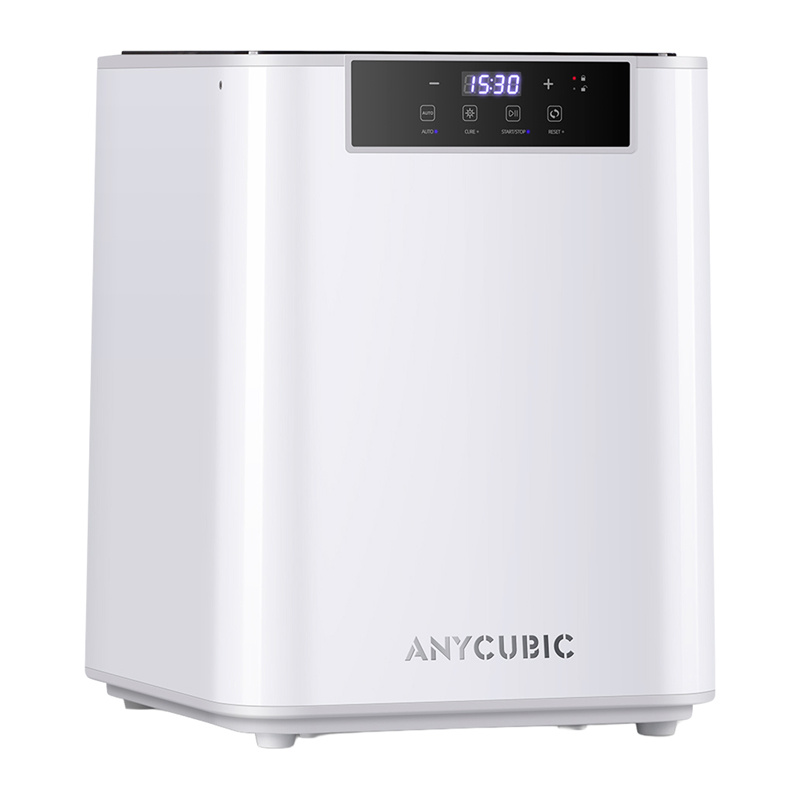

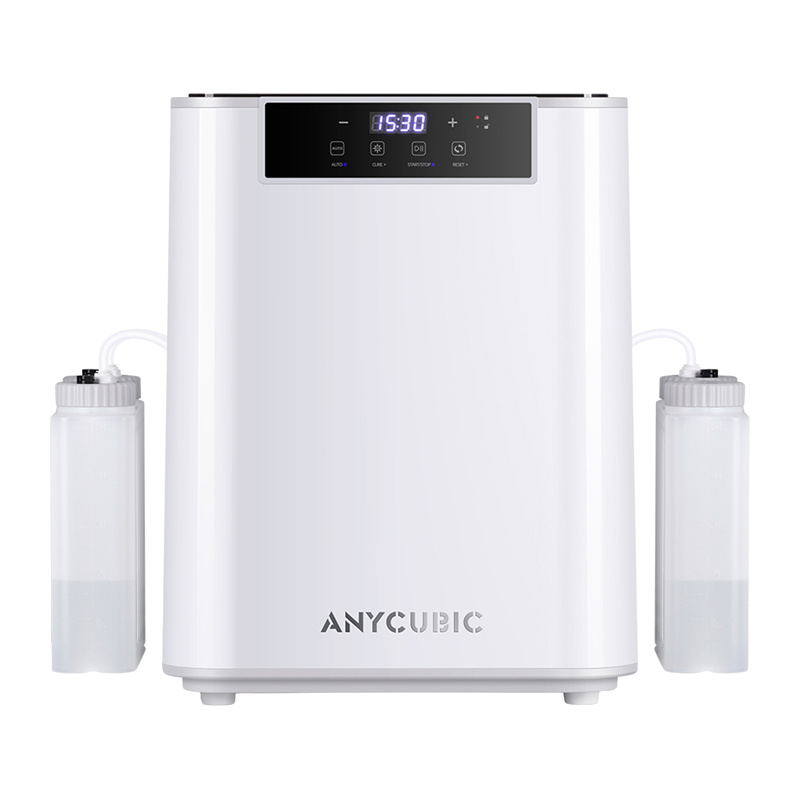

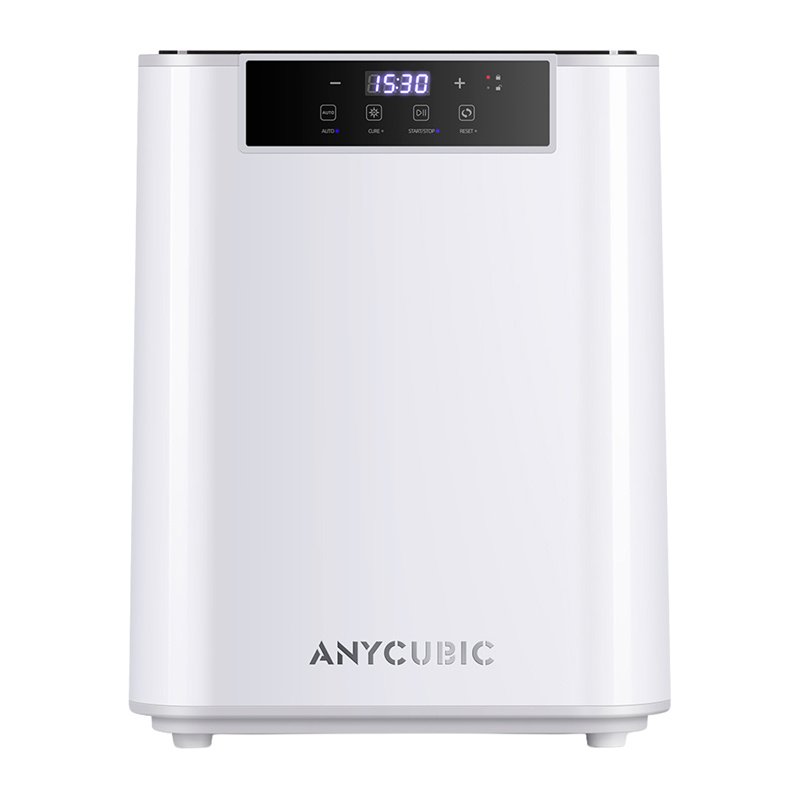

Anycubic Wash & Cure 3 Max: A Device for Washing and Curing 3D Prints
The Anycubic Wash & Cure 3 Max is an advanced device that combines washing and curing functions into a single process. It offers a large working capacity of up to 14.9 liters and a maximum cleaning area of 300 × 165 × 300 mm, allowing it to easily handle large models and most resin printers with a diagonal of up to 13.6 inches. With alcohol consumption of less than 50 ml per cycle and the ability to clean up to 20 models using a single 5-liter container, the device significantly reduces operating costs and streamlines the entire process.
Effective cleaning thanks to a dual-wash system
The use of two modes—spray and immersion—allows for the thorough removal of resin residue from both the model’s surface and hard-to-reach details. Mechanical liquid jets effectively reach every part of the print, while additional immersion rinsing removes residues trapped in recesses. This combination of methods results in more thorough cleaning while reducing alcohol consumption by over 50% compared to traditional solutions.
High compatibility and workspace
The device features a large 14.9-liter working chamber. It supports models up to 300 × 165 × 300 mm and build platforms up to 12 inches in size and weighing up to 2.2 kg. This makes it suitable for both large projects and batch processing of prints.
360° Curing
The automatically rotating curing platform ensures uniform exposure of models from all sides. A high curing energy of 25,000 µW/cm² and a wider exposure range allow for the effective and precise curing of even the most complex structures.
Process Automation
Device operation has been simplified to the maximum thanks to the One-click Washing and Curing feature. A single button press initiates the entire process, eliminating the need for manual handling of multiple steps. This solution significantly reduces processing time and minimizes user involvement, especially when printing large volumes.
Alcohol savings and lower operating costs
The device is designed for efficient use of isopropyl alcohol. Cleaning large models requires only about 4 liters of liquid, whereas traditional devices require up to 8.5 liters. Additionally, a single cycle consumes less than 50 ml of alcohol, significantly reducing costs and the frequency of cleaning solution replacement.
Convenient operation and error detection

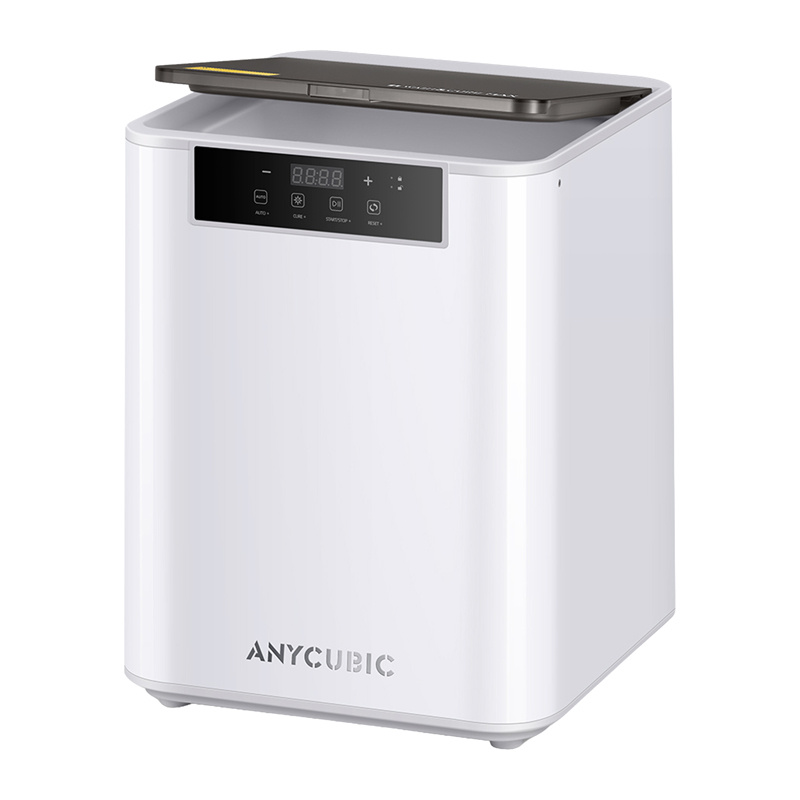

The integrated flip-top lid allows for quick opening and closing, and the intuitive control panel ensures convenient operation at every stage of the process. The smart diagnostics system continuously monitors the device’s operation and alerts you to potential issues. The device signals, among other things, an open lid, low liquid levels, or a blocked drain.
Included
- Device for washing and curing prints
- Tray
- Detergent container x1
- Tank x1
- Water container x1
- Hoses x4
- Set of Allen wrenches
- Plastic scraper
- Replacement filter for the container
- User manual x1
- Power supply with power cord
| Manufacturer | Anycubic |
|---|---|
| Product name | Anycubic Wash & Cure 3 Max |
| Product code | WC3M-IP-O |
| Capacity | 14.9 L |
| Maximum model size | 300 × 165 × 300 mm |
| Alcohol consumption per cycle | <50 ml |
| Curing power | 25,000 µW/cm² |
| Device weight | 13.5 kg |
| Device dimensions | 434 x 434 x 556 mm |
