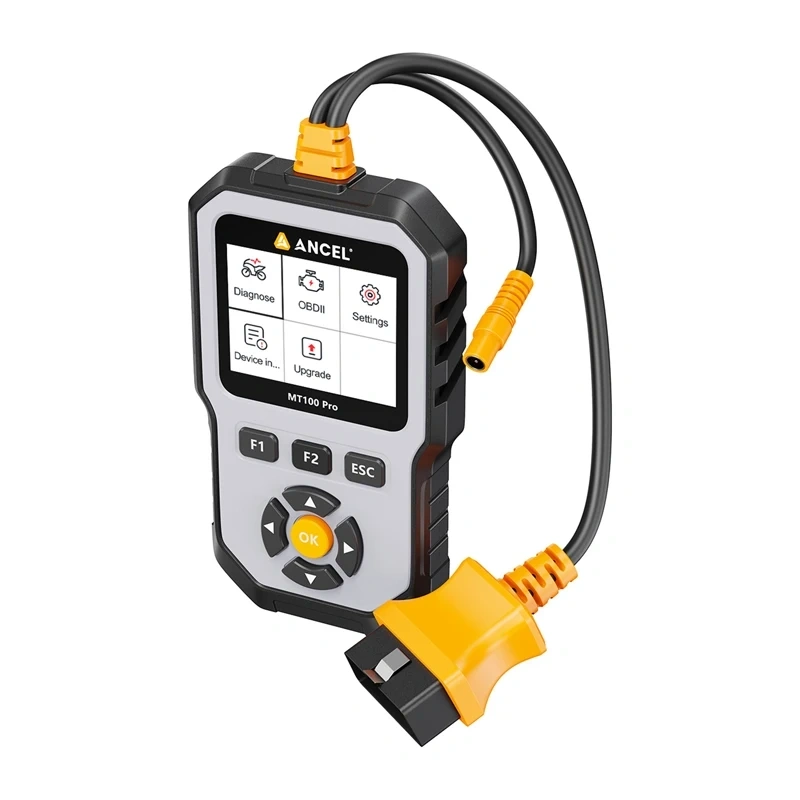

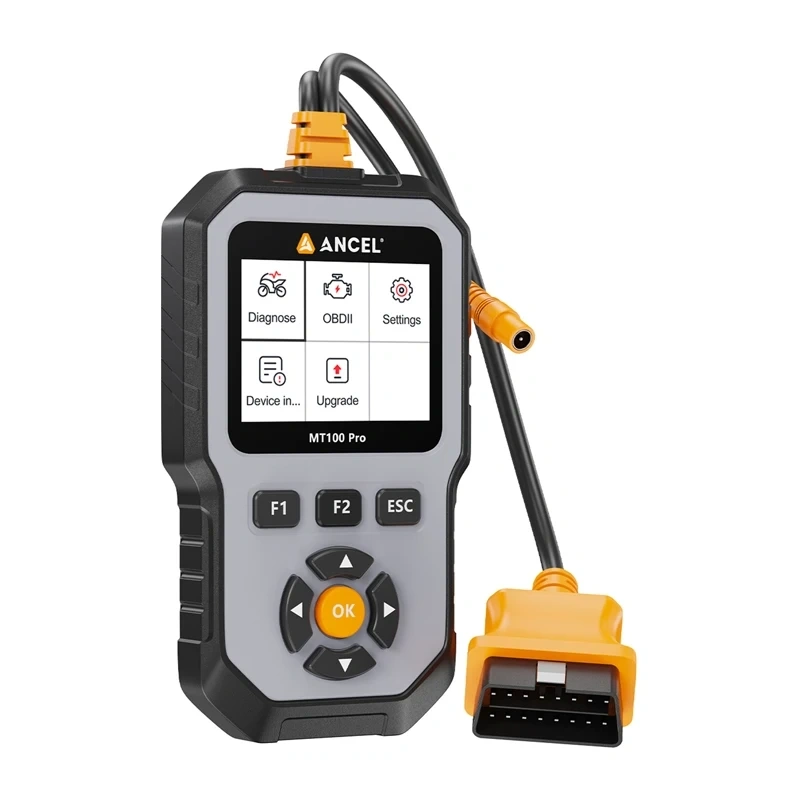

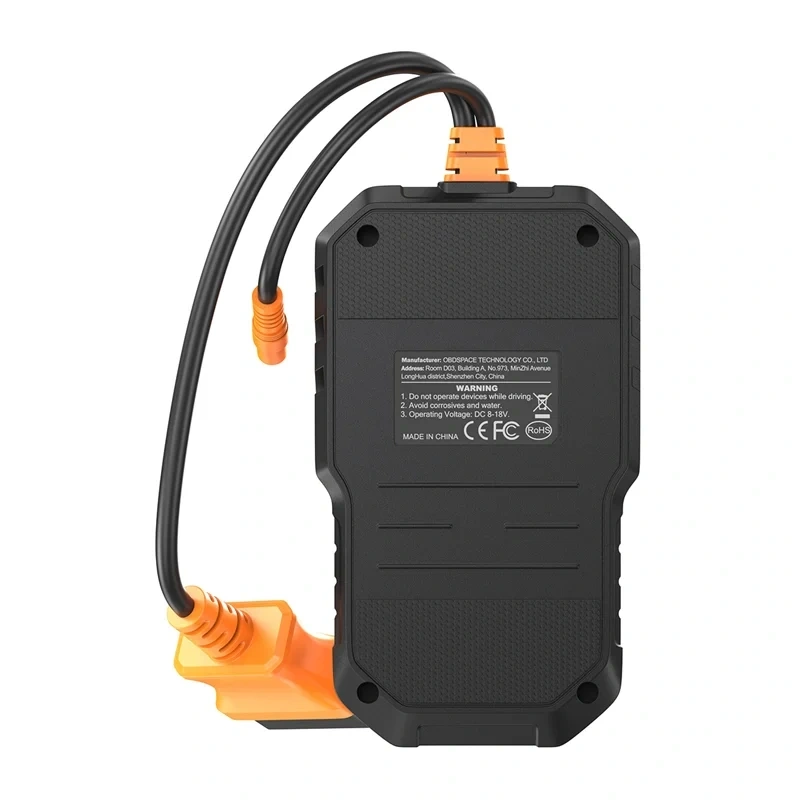

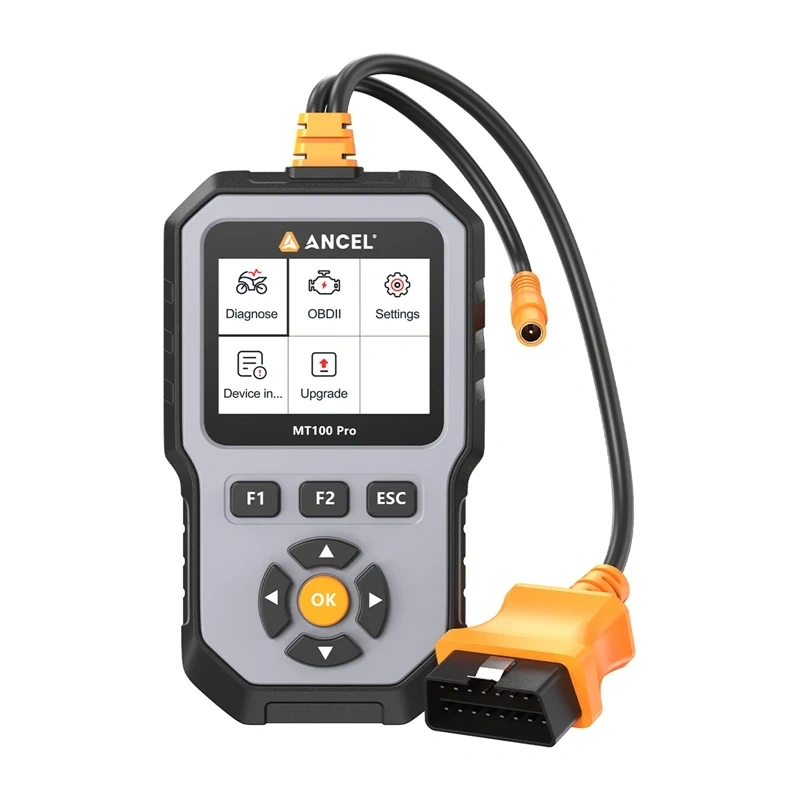

ANCEL MT100 PRO Motorcycle Diagnostic Scanner
The ANCEL MT100 PRO is a diagnostic scanner designed for motorcycles from brands such as Hero, Honda, Kymco, Suzuki, Sym, and Yamaha. It allows you to read and clear engine and ABS fault codes, and also supports OBDII functions for vehicles equipped with the OBDII standard (manufactured since 2000). The device features a 2.8-inch color TFT display, which makes it easy to use. Feature availability may vary depending on the motorcycle’s make, model, and model year.
Engine and ABS diagnostics, OBDII support
The device allows for the diagnosis of various motorcycle systems, including reading and clearing engine and ABS fault codes. Additionally, it supports all major OBDII protocols, including CAN, J1850 PWM, J1850 VPW, ISO9141, and KWP2000. Upon launching the OBDII app, the scanner automatically detects the communication protocol and displays the available functions for the identified vehicle. In this mode, you can, among other things, read and clear codes, view the data stream, perform a status dump, test the O2 sensor, monitor on-board systems, and test the evaporative emission system. You can also view vehicle and software information.
Customizable Settings and Convenient Updates
The MT100 PRO model allows you to configure the language, beep tone, units of measurement, background, and custom shortcut keys. This lets you tailor the device’s operation to your preferences and use your most frequently used diagnostic functions more conveniently. You can also update the scanner’s software—simply connect it to a computer via a USB cable and download the appropriate tool from the official website.
Color Screen and User-Friendly Operation
The 2.8-inch color TFT display provides a clear view of diagnostic data and allows for convenient navigation of the device’s menus. The scanner is also equipped with function buttons that allow you to quickly navigate the menu, switch between data screens, and perform key diagnostic operations.
Included in the set
- Main unit of the motorcycle diagnostic device
- USB cable
- User manual
- Carrying case for the device and accessories
| Manufacturer | ANCEL |
|---|---|
| Model | MT100 PRO |
| Device type | Motorcycle diagnostic scanner |
| Display | 2.8" color TFT display |
| Power supply voltage | 8–18 V DC |
| Operating temperature | 0°C to 60°C |
| Storage temperature | –20°C to 70°C |
| Supported motorcycle brands | Hero, Honda, Kymco, Suzuki, Sym, Yamaha |
| Supported OBDII protocols | CAN, J1850 PWM, J1850 VPW, ISO9141, KWP2000 |
| Updates | USB |
| Languages | German, English, Spanish, French, Portuguese |
| Number of buttons | 8 |
