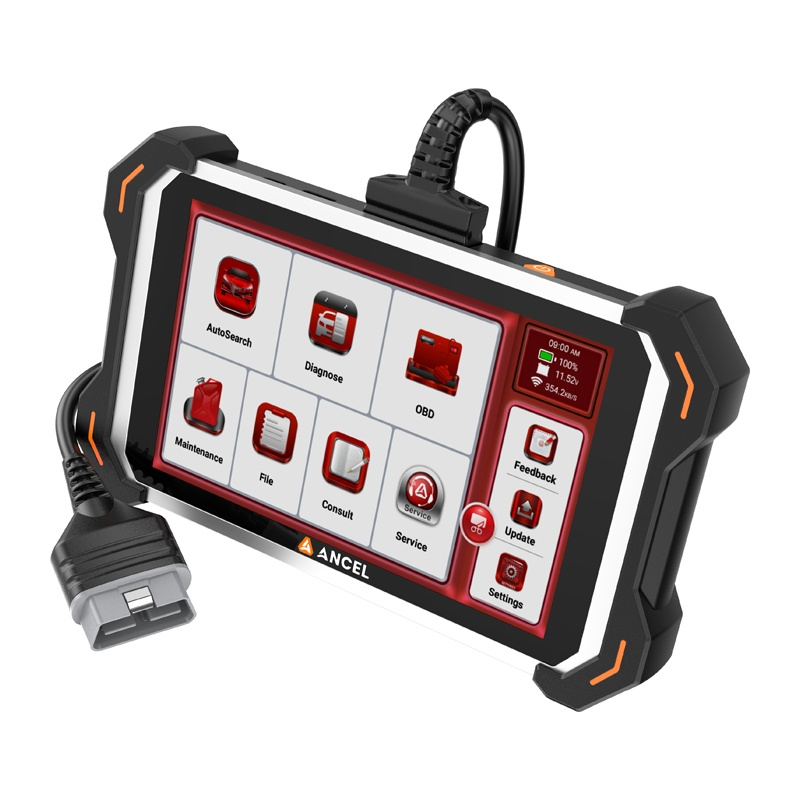

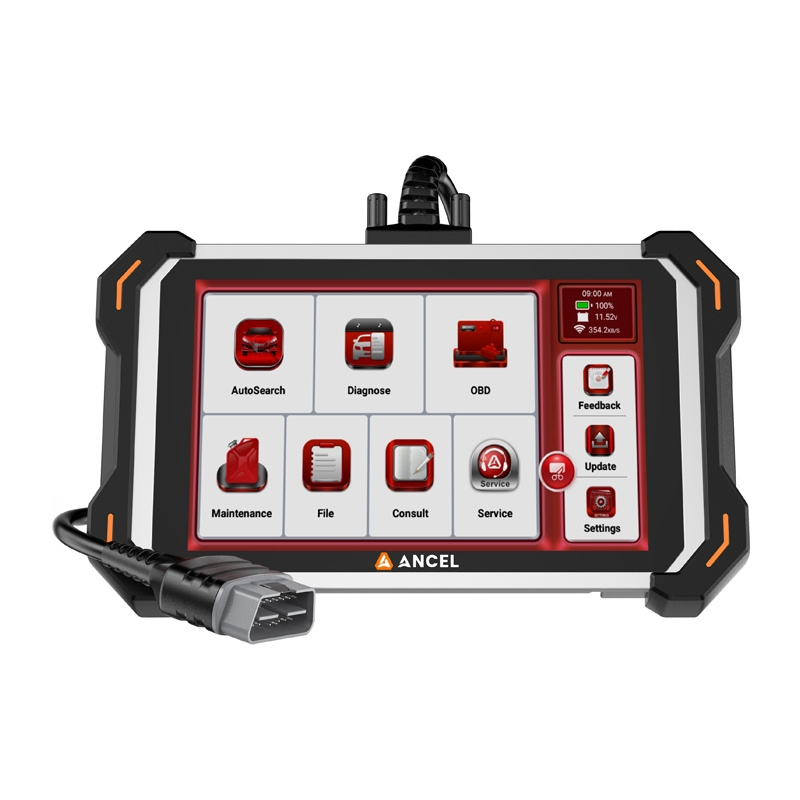

ANCEL DS600 ELITE OBD2 Diagnostic Scanner
The ANCEL DS600 ELITE is an advanced OBD2 diagnostic scanner equipped with an 8-inch touchscreen, Android 10.0, and a wired OBD connection. It offers comprehensive vehicle system diagnostics, DTC reading and clearing, real-time parameter monitoring, actuator tests, and coding and reset functions. What’s more, with 4 GB of RAM and 64 GB of ROM, it ensures smooth app performance and fast processing of diagnostic data.
AutoSearch – automatic vehicle recognition
The AutoSearch feature automatically reads the vehicle’s VIN and identifies its make, model, and model year. This allows you to quickly access diagnostic functions directly—without having to enter vehicle data manually. If automatic reading is not possible, the device also allows you to manually enter the information and continue with diagnostics.
OBD Diagnostics and Real-Time Data
The ANCEL DS600 ELITE supports OBD functionality, which allows you to monitor the operation of various vehicle components and analyze parameters in real time. The device displays information regarding, among other things, engine operation, fuel efficiency, emission levels, and sensor readings. The system also detects and displays trouble codes, allowing for faster problem identification and streamlining the diagnostic process.
Saving Reports and the Service Information Database
The File function allows you to save diagnostic data, reports, data streams, and images for later analysis and archiving. This is a convenient solution for workshop operations, especially when comparing previous diagnostic results. The Consult feature, on the other hand, provides access to the Repair Info database, which includes DTC libraries, lists of compatible vehicles, and instructions.
Stable Wired OBD Connection
The DS600 ELITE communicates with the vehicle via a wired OBD connection, ensuring stable data transmission during diagnostics. This solution works well for everyday workshop tasks and allows you to quickly establish communication with the vehicle.

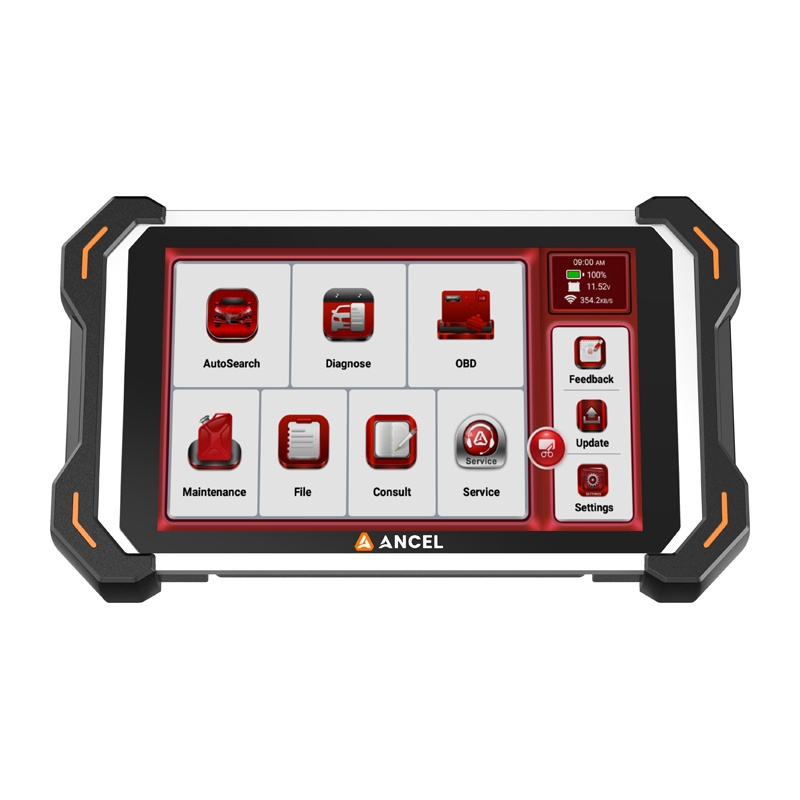

Large Screen and High-Performance Components
The 8-inch color touchscreen ensures convenient operation and a clear display of diagnostic data. The Android 10.0 system guarantees smooth interface operation, and the powerful hardware configuration with 4 GB of RAM and 64 GB of ROM enables comfortable operation even during more demanding diagnostics. Also noteworthy is the high-capacity 4150 mAh battery, which allows for extended use of the device.
Wide compatibility with modern protocols
The ANCEL DS600 ELITE supports many popular diagnostic protocols used in modern vehicles. This allows it to work with a wide range of car models. The device supports, among others, SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN, CAN-FD, and DOIP. Such broad compatibility expands the device’s range of applications, both in professional workshops and during routine diagnostics of various vehicle brands.
| Manufacturer | ANCEL |
|---|---|
| Model | DS600 ELITE |
| Device Type | OBD2 diagnostic scanner |
| Screen | 8-inch color touchscreen, 1280×800 px |
| Operating System | Android 10.0 |
| RAM | 4 GB |
| ROM | 64 GB |
| Battery Capacity | 4150 mAh |
| Bluetooth | 5.0 |
| Wi-Fi | 2.4 GHz / 5.0 GHz |
| USB-C Input | 5 V DC / 2.5 A |
| OBD Input | 9–18 V DC / 1.2 A |
| Connection Type | Wired OBD connection |
| Number of Supported Languages | 28 |
| Diagnostics | Full system diagnostics |
| Supported Protocols | SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN, CAN-FD, DOIP |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 60°C |
