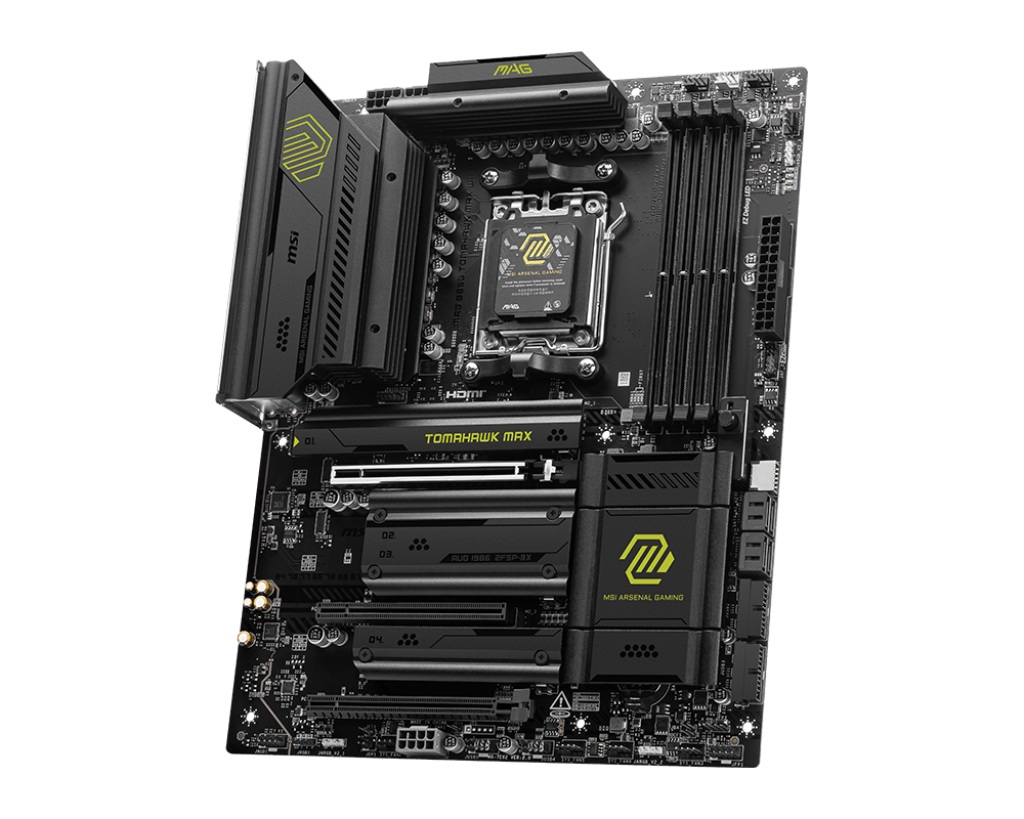

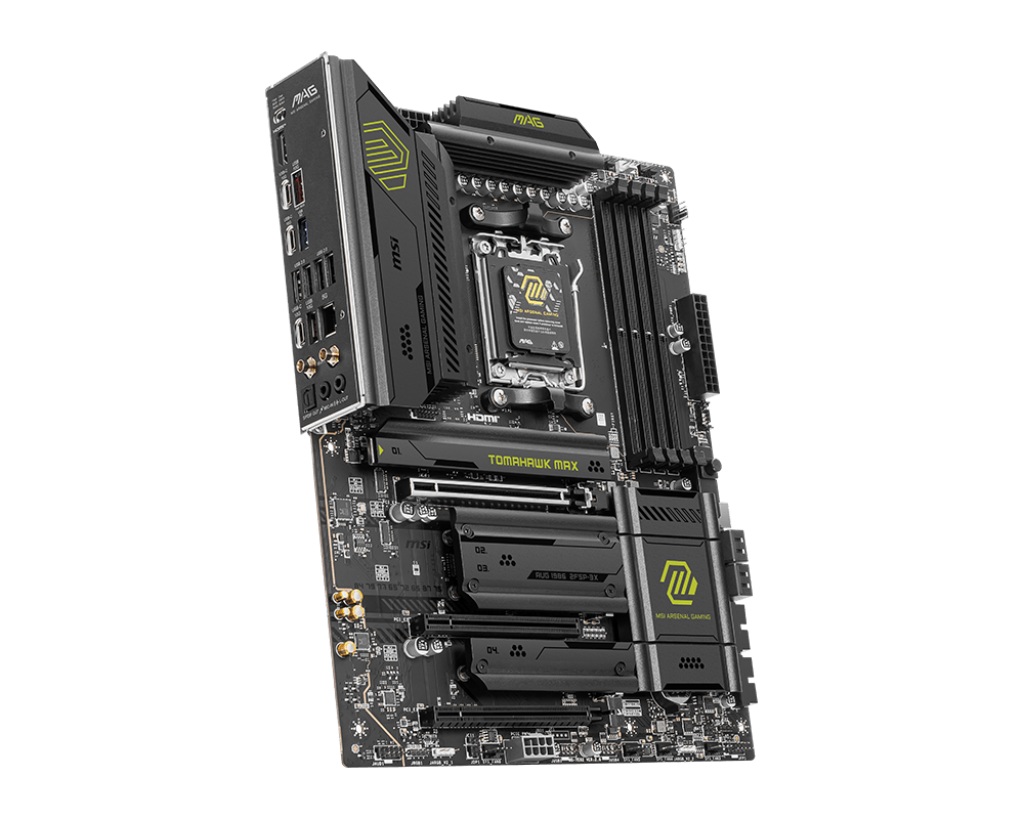

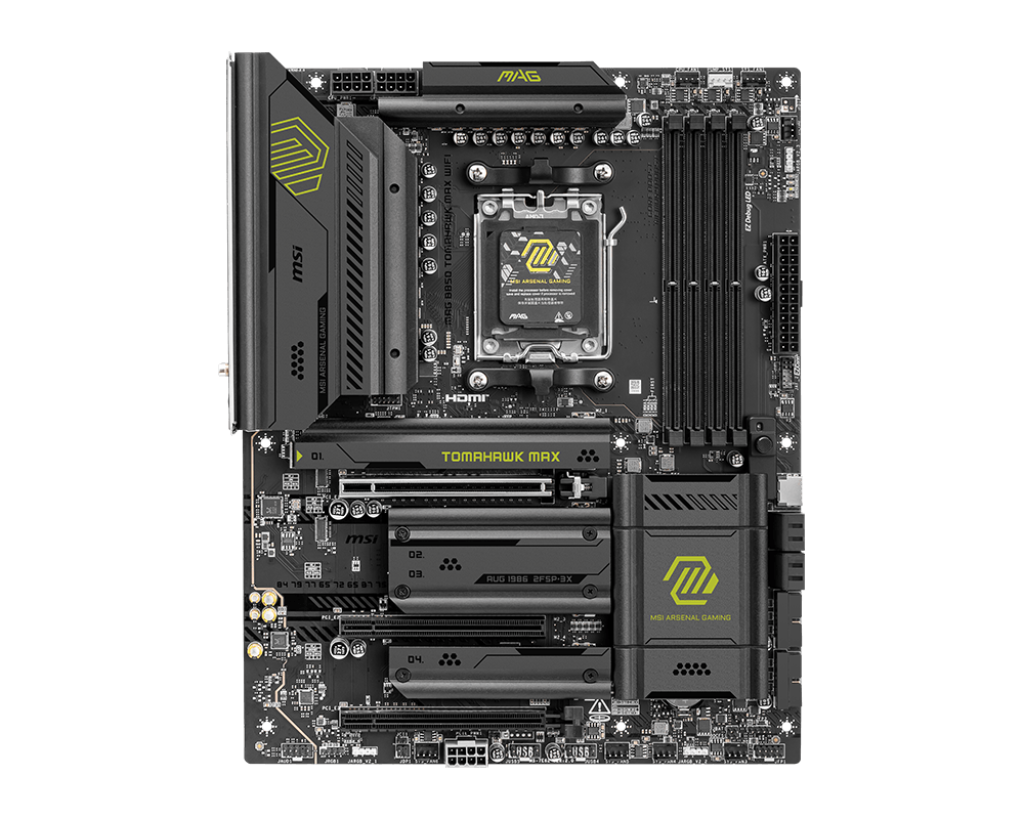

MSI MAG B850 TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it’s ready for the battlefield of AMD Ryzen™ 9000 series processors.
MSI’s mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+2+1 Duet Rail Power System
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG B850 TOMAHAWK MAX WIFI is ready for the challenge of high-end processors.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 256 GB
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,5600,8400 MHz
Supported memory clock speed (max): 8400 MHz
Maximum internal memory: 256 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, Micro SATA III
Number of HDDs supported: 4
Number of storage drives supported: 8
RAID support: Yes
RAID levels: 0, 1, 10
Graphics
On-board graphics card: No
Internal I/O
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
CPU fan connector: Yes
Number of CPU fan connectors: 6
Number of water pump connectors: 1
RGB LED pin header: Yes
Number of RGB LED pin headers: 3

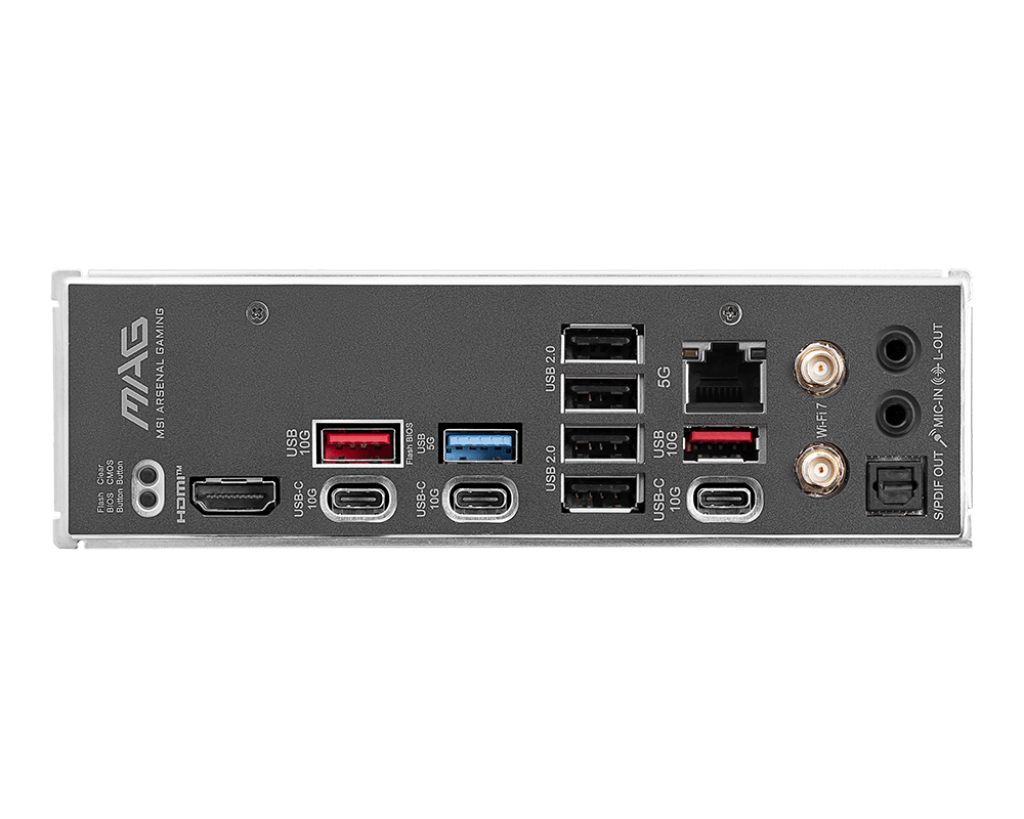

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Network
Ethernet LAN: Yes
Ethernet interface type: 5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4
Features
Motherboard chipset: AMD B850
Audio chip: Realtek ALC4080
Audio output channels: 7.1 channels
Product colour: White
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
1st M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0
Weight & dimensions
Width: 243.8 mm
Depth: 304.8 mm
