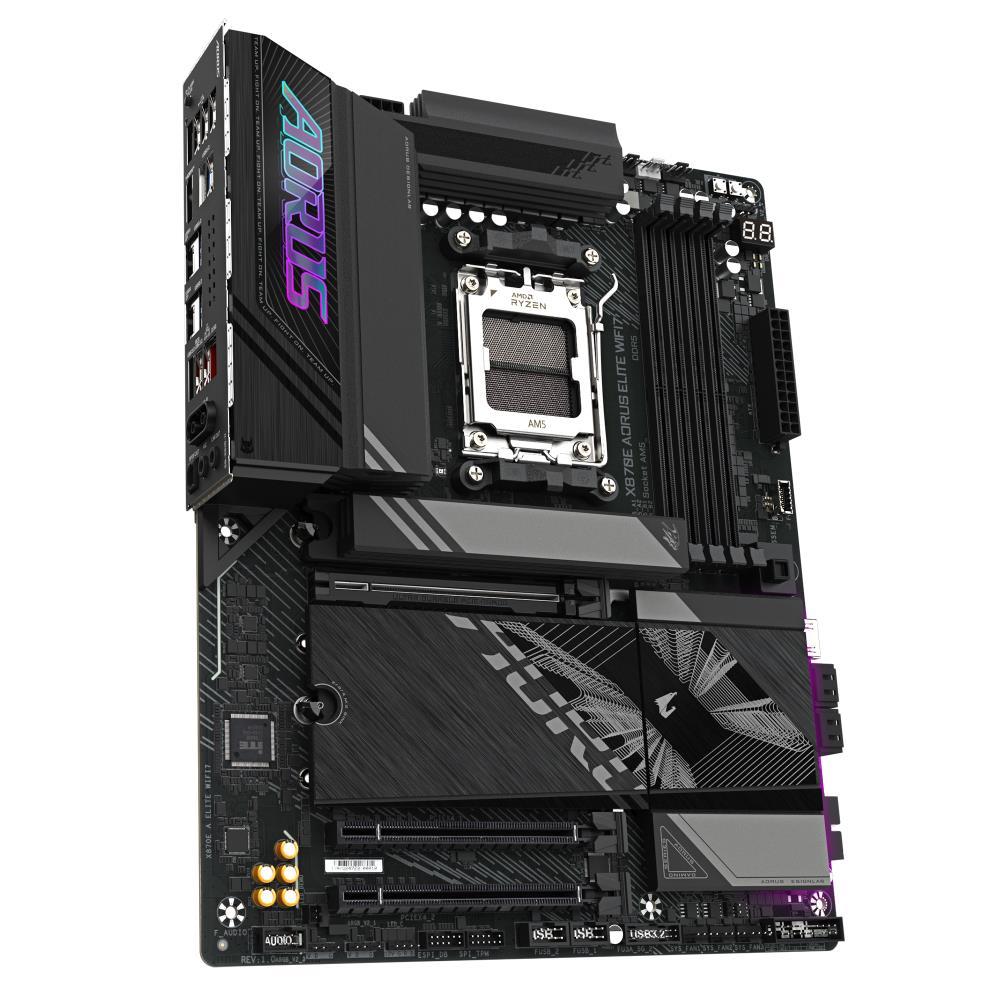

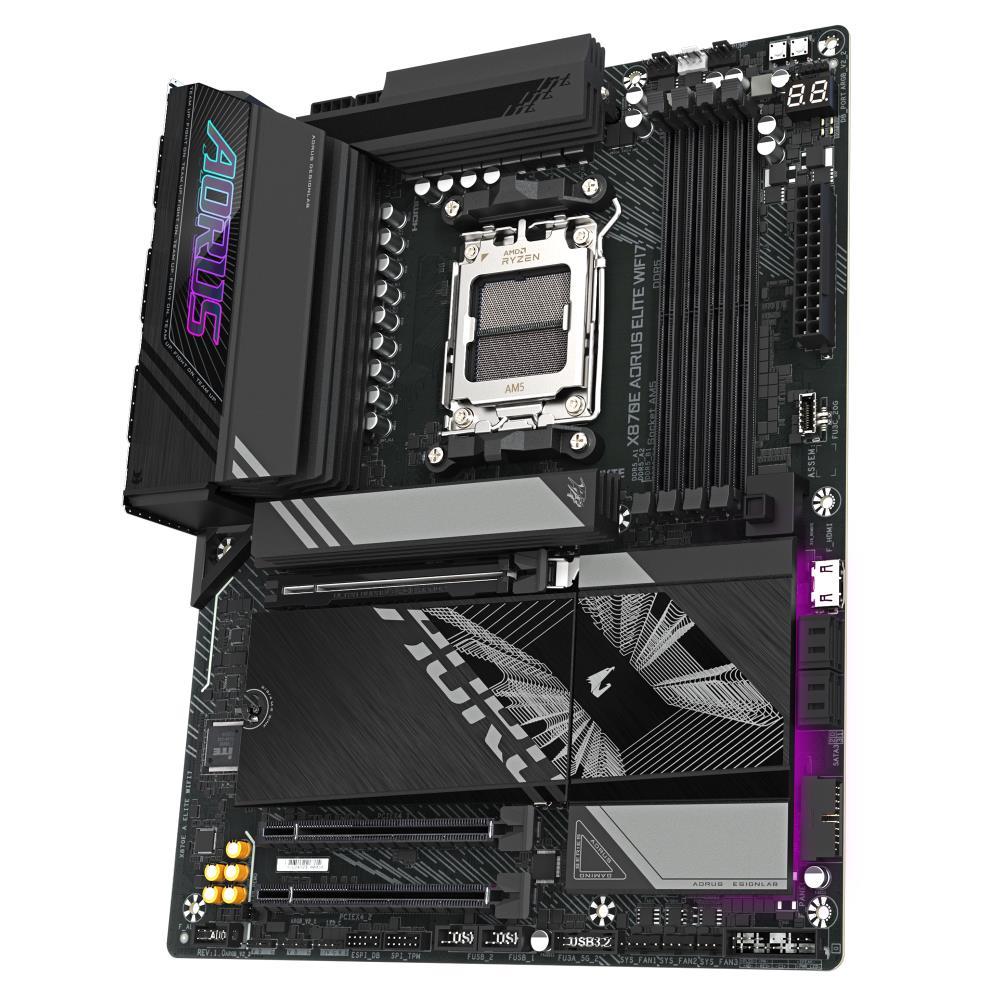

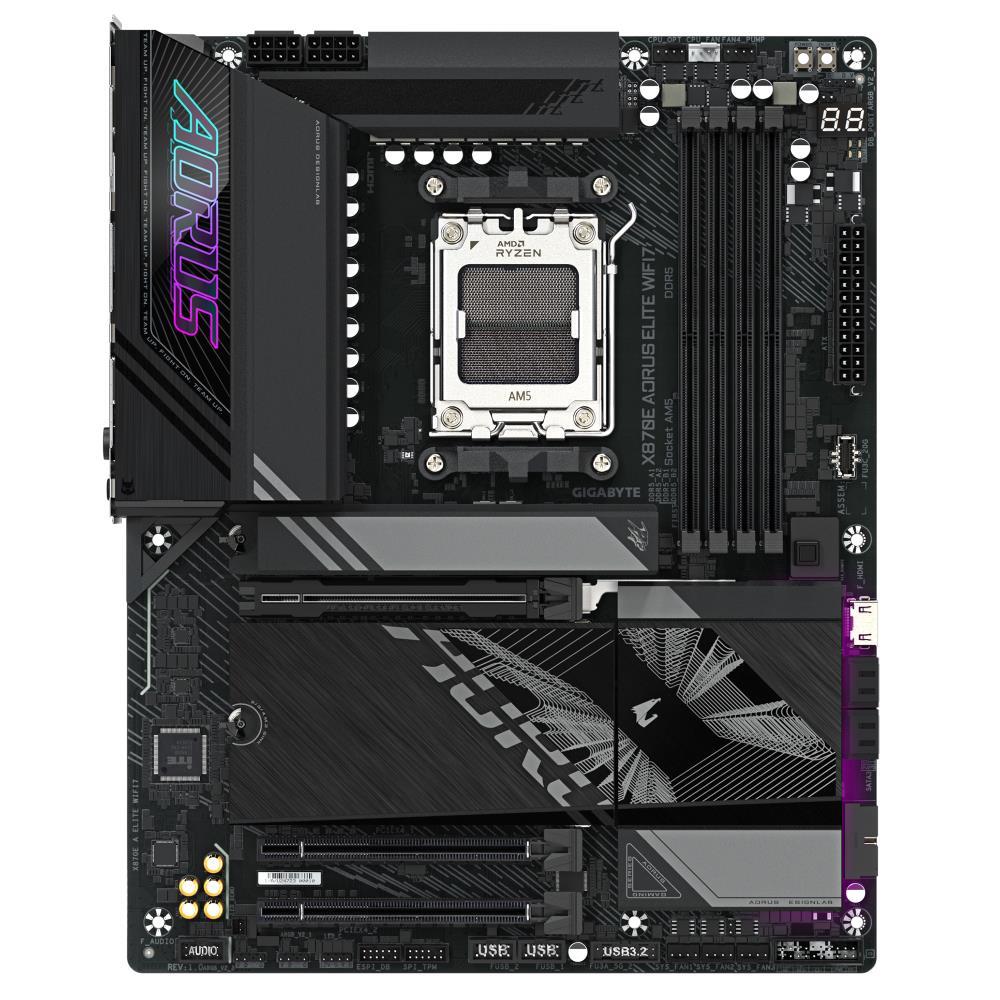

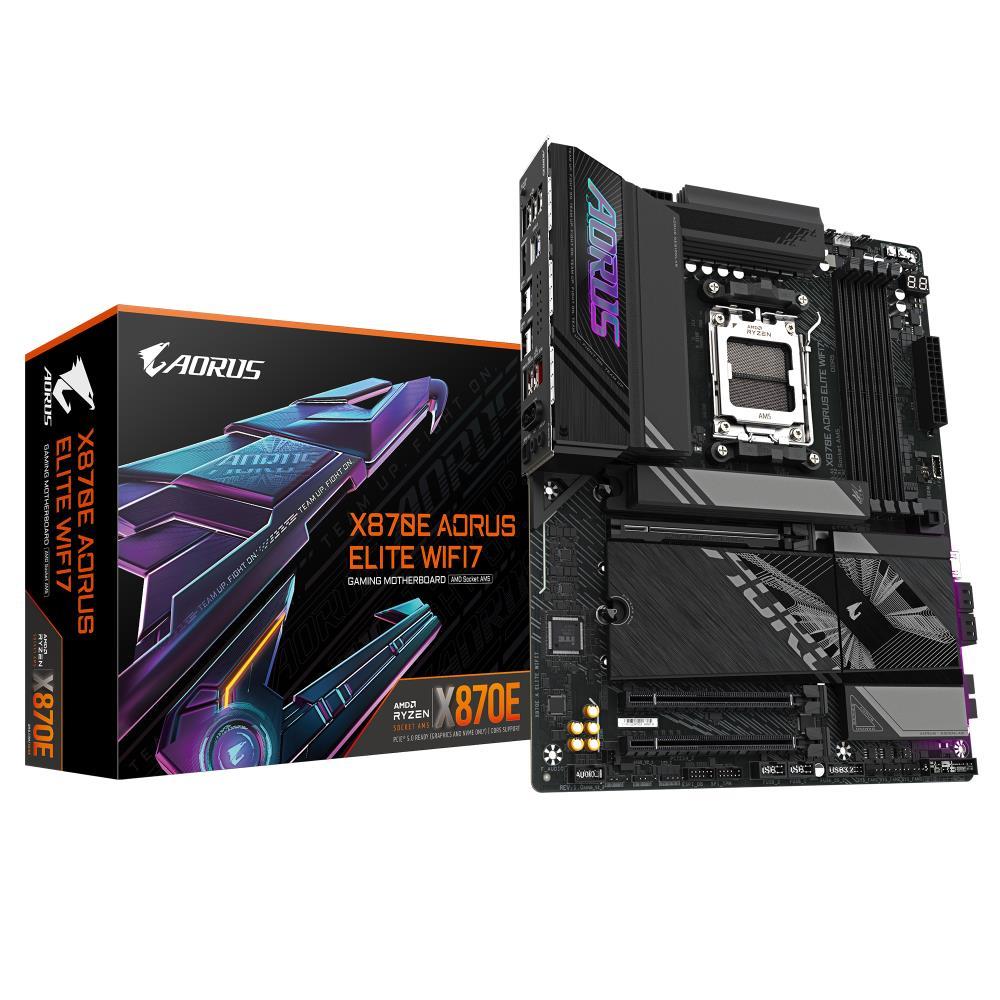

GIGABYTE X870E AORUS ELITE WIFI7 Motherboard – Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 256 GB
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory clock speed (max): 8200 MHz
Maximum internal memory: 256 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
Unbuffered memory: Yes
Maximum internal memory per slot: 64 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 8
RAID support: Yes
RAID levels: 0, 1, 10
Graphics
Parallel processing technology support: Not supported
On-board graphics card: No
DirectX version: 12.0
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2×2 connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes
Number of EPS power connectors (8-pin): 2
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
Number of RGB LED pin headers: 4

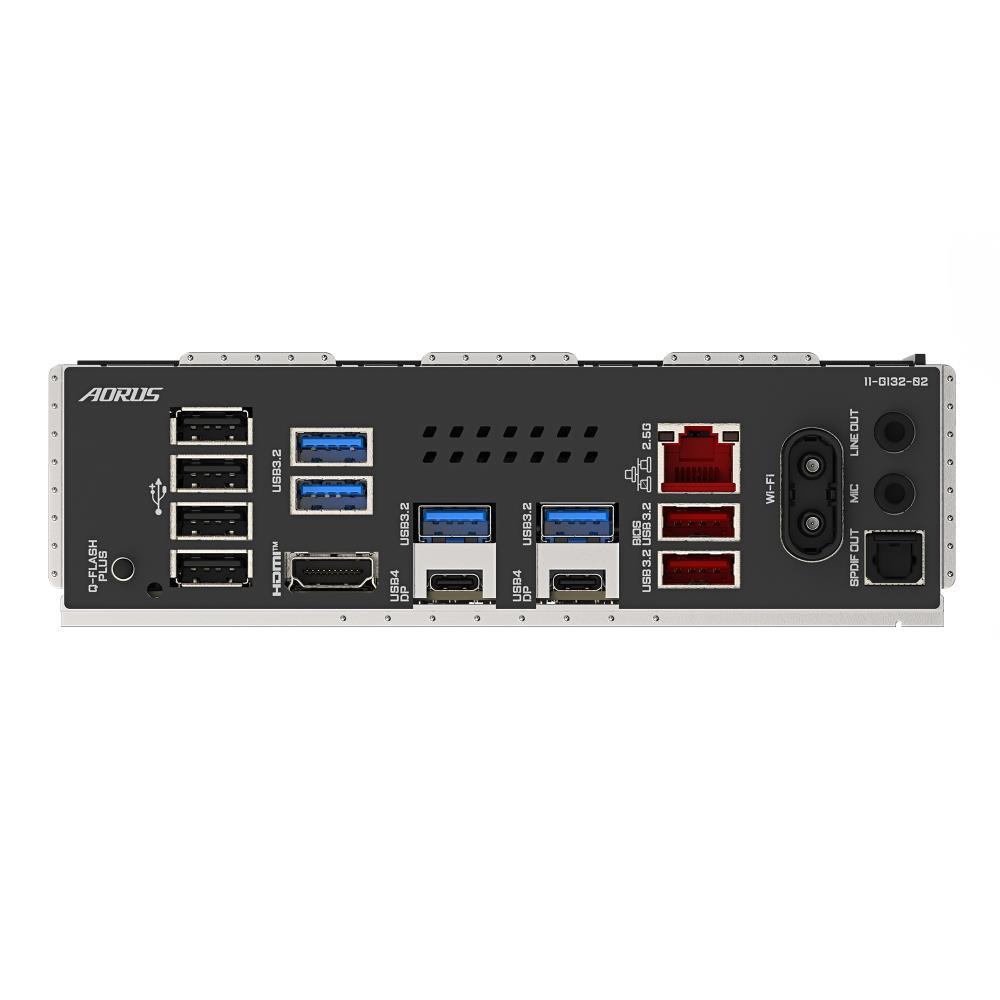

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB4 Gen 2×2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPort version: 1.4
Headphone outputs: 1
Microphone in: Yes
S/PDIF out port: Yes
WiFi-AP antenna jack: 2
Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: MediaTek MT7925
Bluetooth: Yes
Bluetooth version: 5.4
Features
Motherboard chipset: AMD X870E
Audio chip: Realtek ALC1220
Audio output channels: 7.1 channels
Product colour: Black
PC health monitoring: CPU, Fan, Temperature, Voltage
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x4 slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
4th M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Clear CMOS button: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 345 mm
Package depth: 294 mm
Package height: 80 mm
Package weight: 2.74 kg
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Packaging content
Batteries included: Yes
Antenna included: Yes
Screws included: Yes
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Other features
Weight: 2.4 kg
Technical details
Warranty period: 3 year(s)
