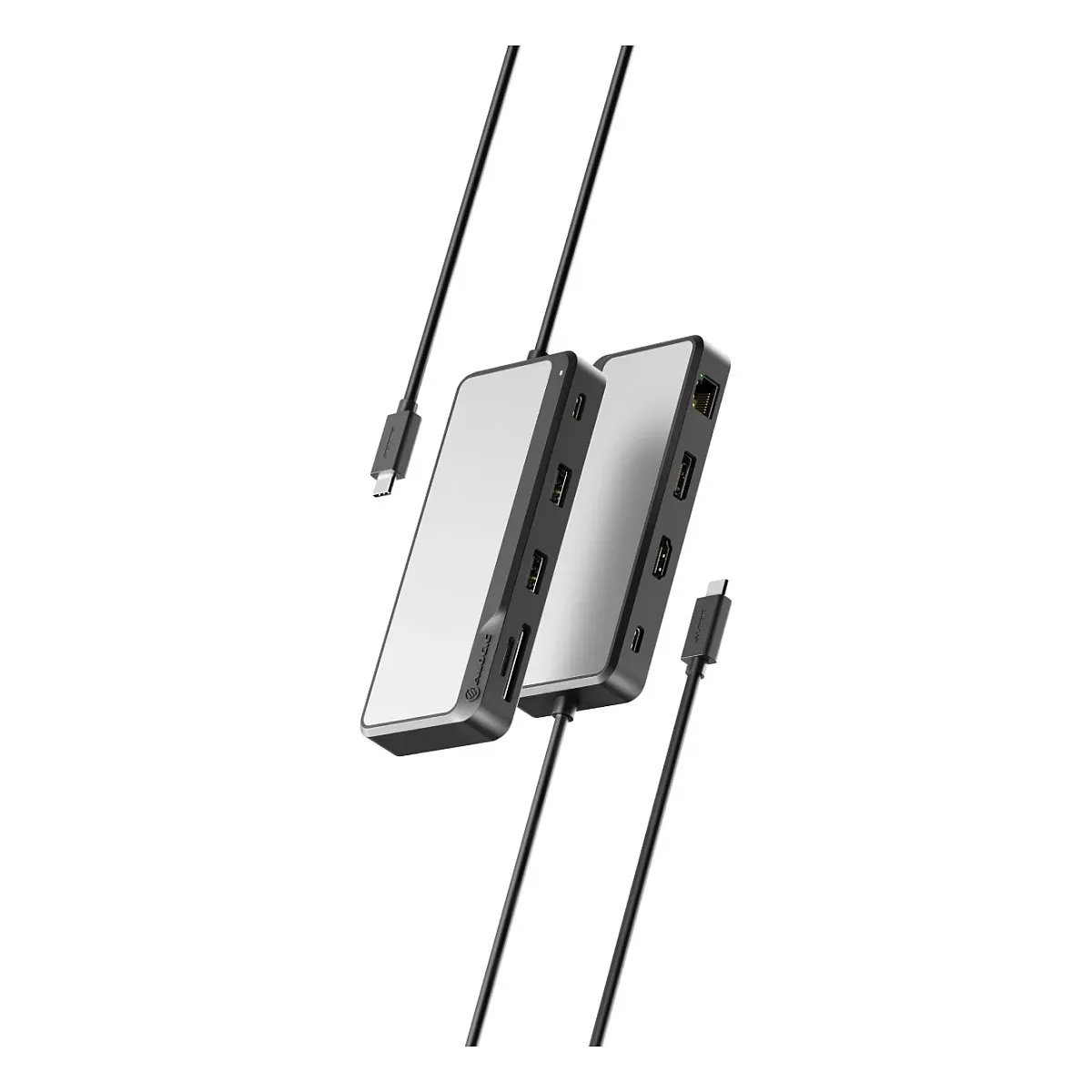

ALOGIC Fusion Pro AXIS USB-C Dual Display Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC, HD type: 4K Ultra HD. Power source type: USB, USB cable length: 0.23 m. Other operating systems supported: ChromeOS
USB-C Dual Display Dock
Compact 9-in-1 Dock for Portable Connectivity.
Workspaces Made Simple
This dock does the job of a large format desktop dock while doing away with the bulky box and power adapter.

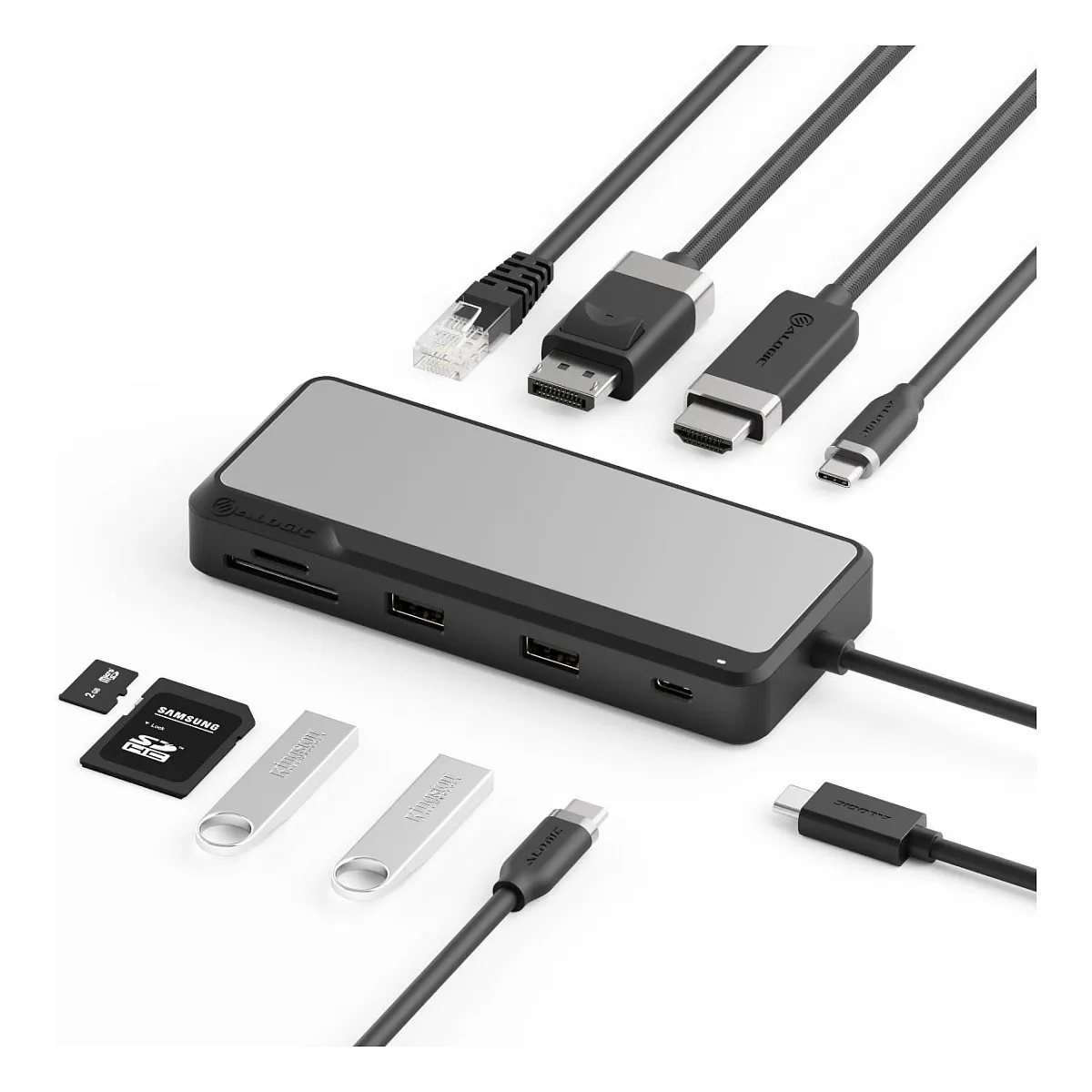

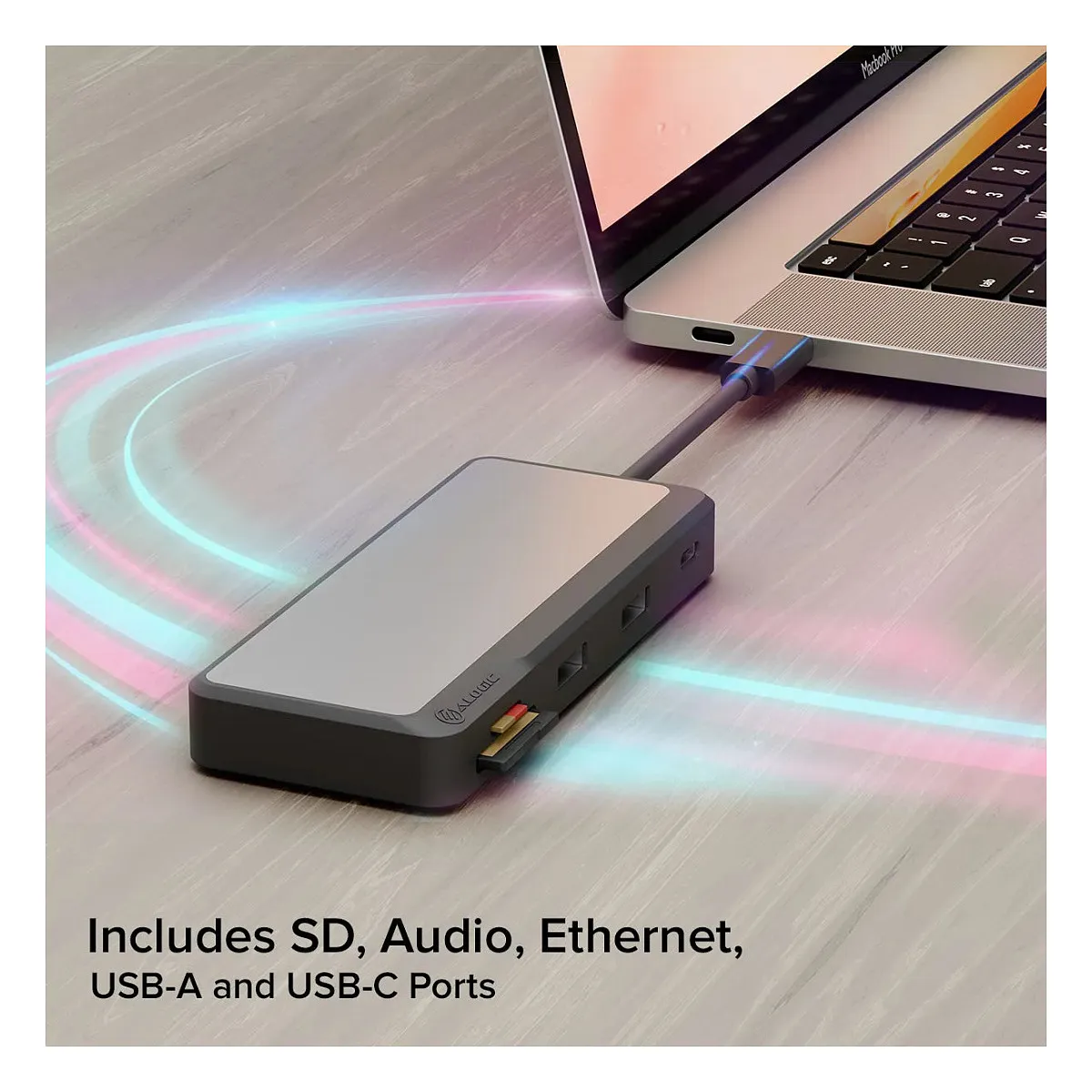

The dock has the ability to connect two monitors, up to four USB peripherals and Gigabit Ethernet. SD and micro SD card readers gives the added flexibility of managing photos and files on memory cards.

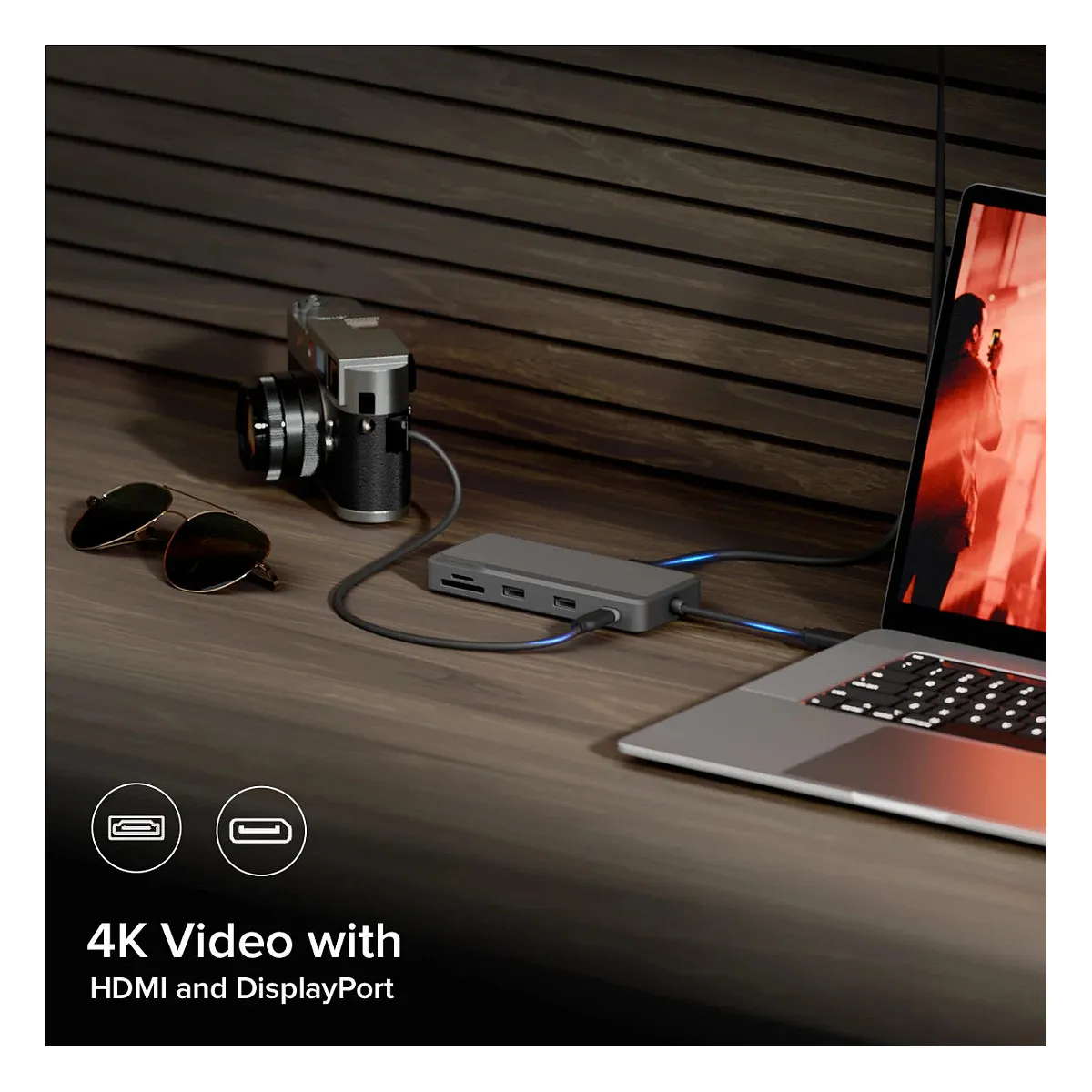

Stunning 4K Video
Small but powerful, the Axis Dock can extend a laptop’s display to two external monitors significantly expanding the computer’s capabilities.
Supporting resolutions up to 4K, this dock provides vivid high resolution visualization for increased visual fidelity.
Small and Robust
ALOGIC is redefining docking stations by packing the same features of a traditional large format dock into compact devices that are just as at home on a desk or on the road.
A robust and elegant mix of Aluminium and impact resistant ABS ensure the hub is strong so it can live in a laptop bag while taking up minimum space and without fear of being damaged.

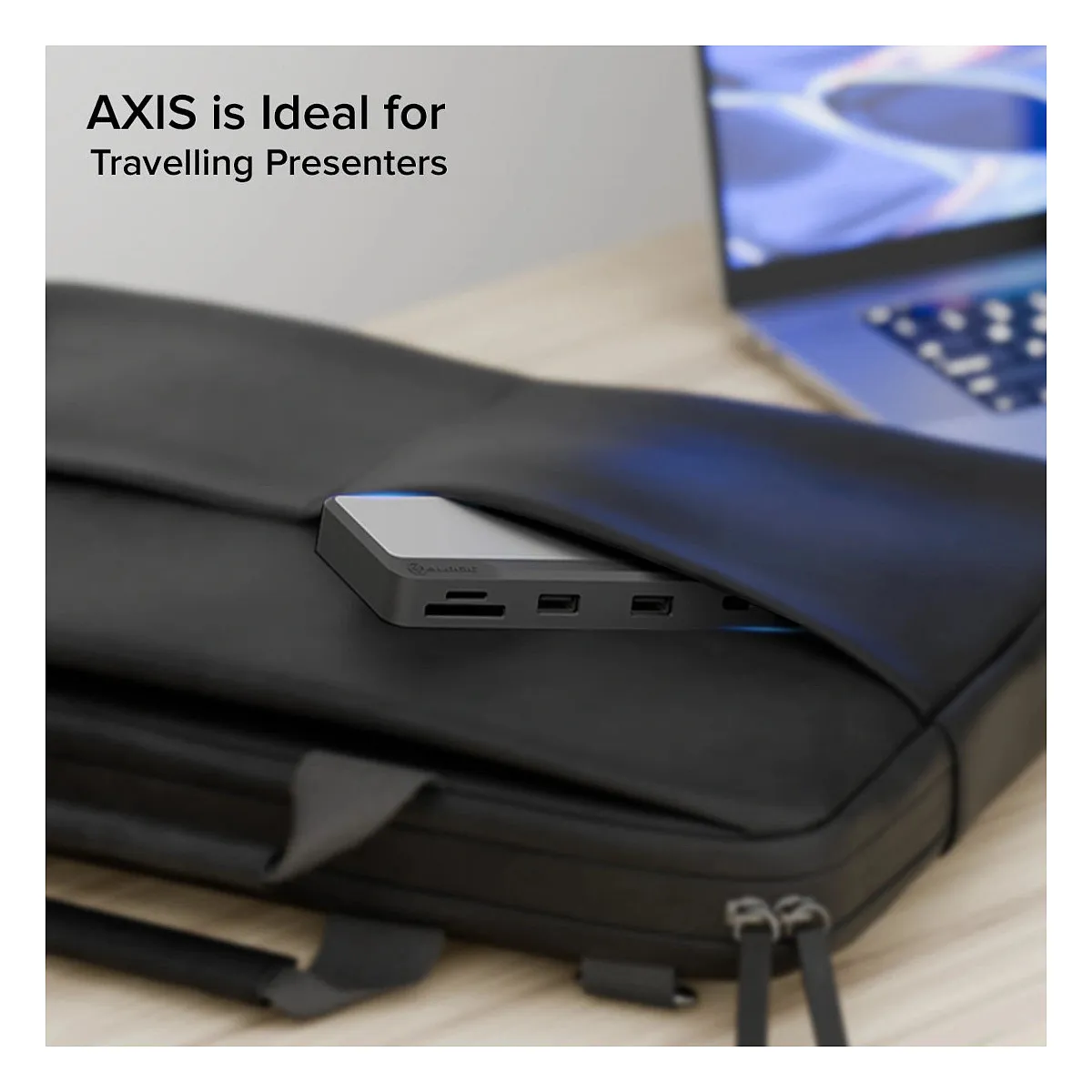

Compact Design
This dock’s compact design is perfect when space is at a premium and makes it a logical choice for mobile users – road warriors, educators, students and professionals who work between the office and home.
Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.4
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Performance
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 2
Maximum refresh rate: 60 Hz
Product colour: Grey
Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium
Power
Power source type: USB
USB cable length: 0.23 m
Software
Windows operating systems supported: Yes
Mac operating systems supported: Yes
Other operating systems supported: ChromeOS
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Operating relative humidity (H-H): 10 – 85%
Weight & dimensions
Width: 55 mm
Depth: 130 mm
Height: 17.5 mm
Weight: 133 g
Packaging content
Feature: Manual
Technical details
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA
