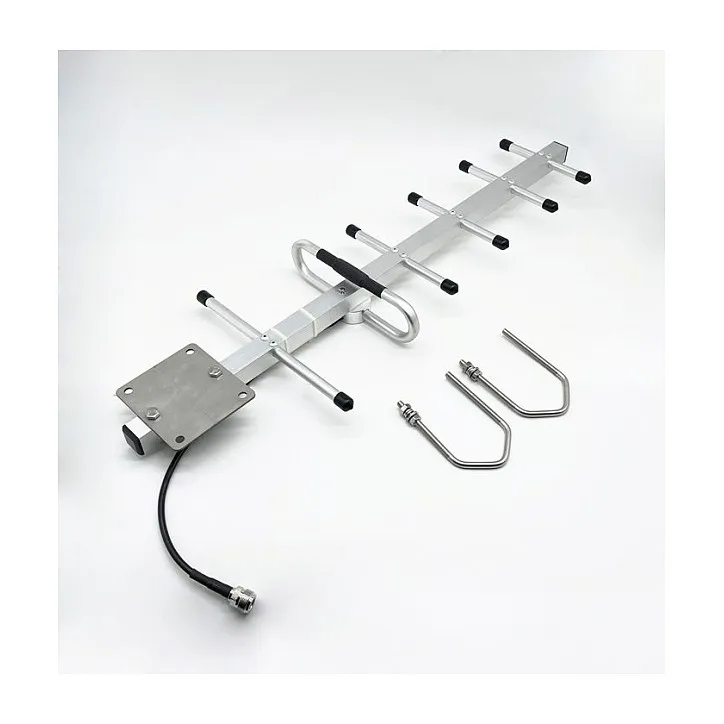

ALLNET ANT-868-12.5dbi-Yagi. Antenna gain level (max): 12.5 dBi, Frequency band: 0.806–0.896, Gain: 12.5 dBi. Connector gender: Female, Voltage Standing Wave Ratio (VSWR): <=1.4, Product colour: White. Width: 941 mm, Depth: 55 mm, Height: 202 mm
Performance
Frequency band: 0.806–0.896
Gain: 12.5 dBi
Impedance: 50 Ω
Horizontal beam width: 42°
Vertical beam width: 39°
Antenna gain level (max): 12.5 dBi
Features
Connector gender: Female
Voltage Standing Wave Ratio (VSWR): <=1.4
Product colour: White
Survival wind speed: 200 km/h
Front to back ratio: 17 dB
Operational conditions
Operating temperature (T-T): -45 – 75 °C
Storage temperature (T-T): -50 – 75 °C
Weight & dimensions
Width: 941 mm
Depth: 55 mm
Height: 202 mm
Diameter: 2 cm
Weight: 900 g
Frequency band: 0.806–0.896
Gain: 12.5 dBi
Impedance: 50 Ω
Horizontal beam width: 42°
Vertical beam width: 39°
Antenna gain level (max): 12.5 dBi
Features
Connector gender: Female
Voltage Standing Wave Ratio (VSWR): <=1.4
Product colour: White
Survival wind speed: 200 km/h
Front to back ratio: 17 dB
Operational conditions
Operating temperature (T-T): -45 – 75 °C
Storage temperature (T-T): -50 – 75 °C
Weight & dimensions
Width: 941 mm
Depth: 55 mm
Height: 202 mm
Diameter: 2 cm
Weight: 900 g
