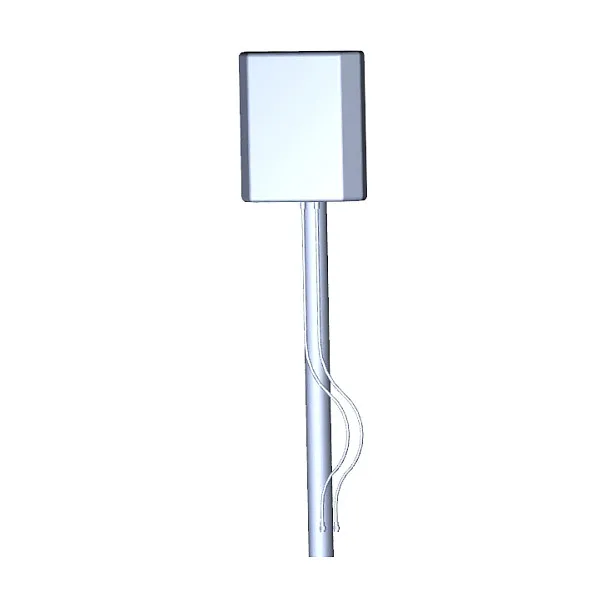

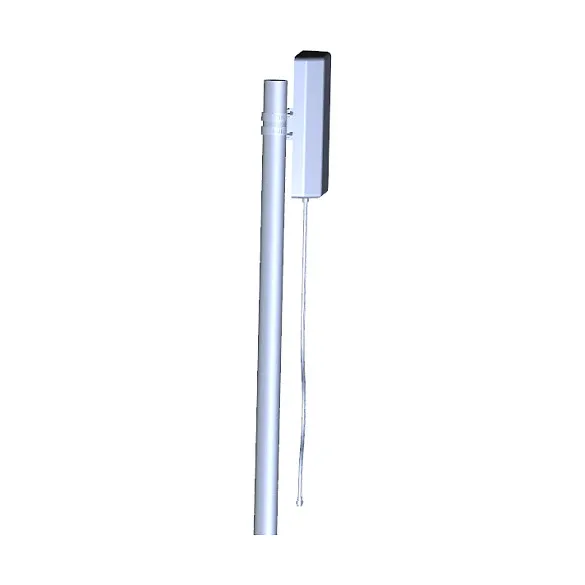

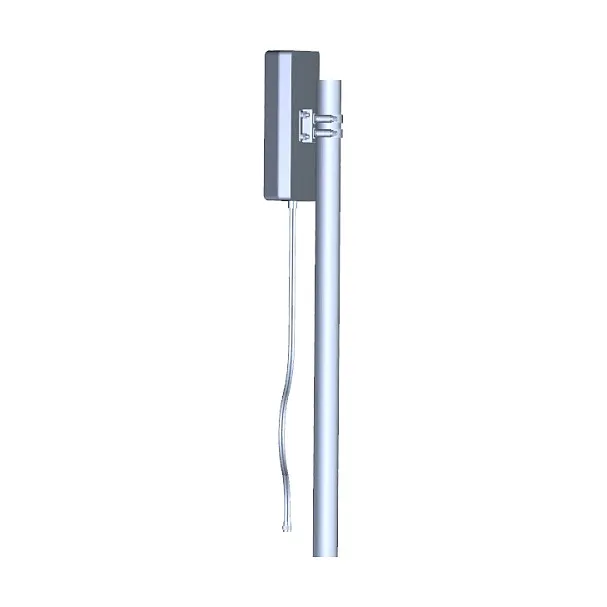

ALLNET ALL19103. Antenna gain level (max): 5 dBi, Frequency band: 0.698-0.96/1.71-2.7 GHz. Antenna type: MIMO directional antenna, Antenna connector type: SMA, Connector gender: Male. Power consumption (max): 50 W. Width: 207 mm, Depth: 177 mm, Height: 45 mm. Package weight: 1.3 kg
Performance
Frequency band: 0.698-0.96/1.71-2.7 GHz
Antenna gain level (max): 5 dBi
Features
Antenna type: MIMO directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Dual polarization
Voltage Standing Wave Ratio (VSWR): 1.5 – 2
Product colour: Grey
Survival wind speed: 216 km/h
Cable length: 7 m
Isolation: 20 dB
Power
Power consumption (max): 50 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 207 mm
Depth: 177 mm
Height: 45 mm
Weight: 1 kg
Packaging data
Package weight: 1.3 kg
Frequency band: 0.698-0.96/1.71-2.7 GHz
Antenna gain level (max): 5 dBi
Features
Antenna type: MIMO directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Dual polarization
Voltage Standing Wave Ratio (VSWR): 1.5 – 2
Product colour: Grey
Survival wind speed: 216 km/h
Cable length: 7 m
Isolation: 20 dB
Power
Power consumption (max): 50 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 207 mm
Depth: 177 mm
Height: 45 mm
Weight: 1 kg
Packaging data
Package weight: 1.3 kg
