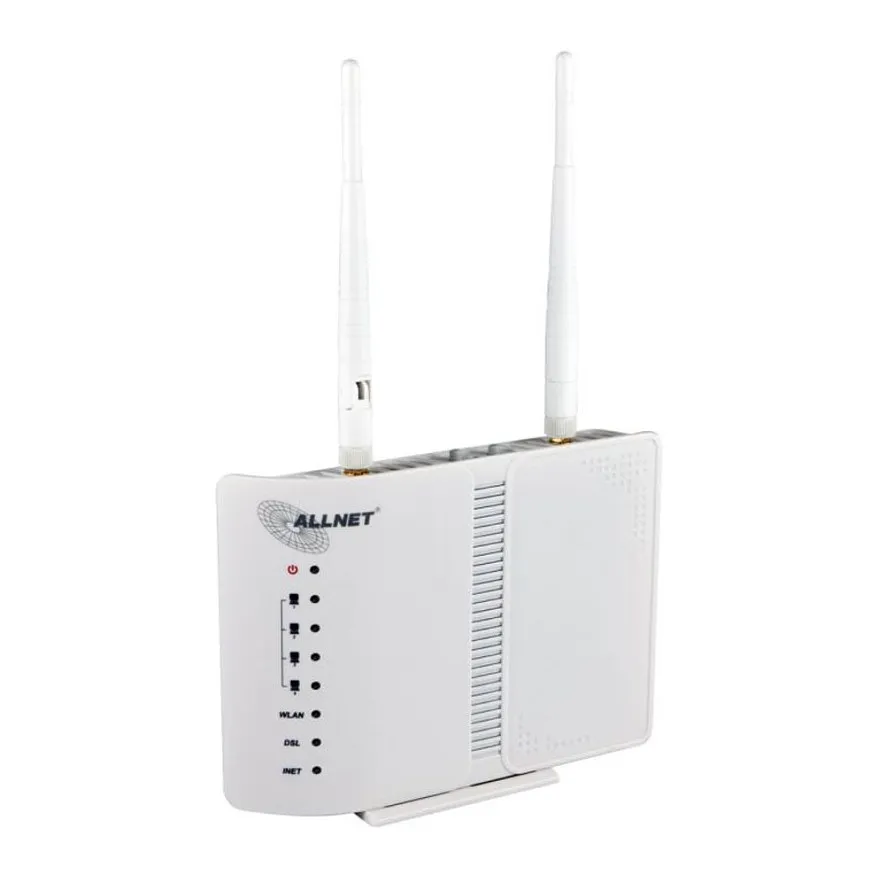

ALLNET ALL-WR02400N. Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: 128-bit WEP, 64-bit WEP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK, WPA2-TKIP, WPS, Authentication method: PAP, CHAP. Management protocols: DNS, SNMP,, Data link protocols: PPP, Supported network protocols: IGMP, DHCP. Product colour: White
– Ultra Fast Internet thanks to integrated ADSL2+ modem
– New: supports Annex B & J (splitter-free Operations e.g. „Telekom Call & Surf IP”
– Up to 24 Mbps Download rate for ultra-fast downloads, IP-TV, gaming, etc. (depending on provider)
– Up to 3,5Mbps Upload (with Annex J enabled)
– Latest wireless N technology for transfers of up to 300 Mbit/s
– Powerful SPI firewall with DoS (Denial of Service) Protection, Built-in NAT, MAC and packet filter, DMZ and many more
With the ALL-WR02400N brings ALLNET the modem router on the market, which is suitable for ADSL2 + broadband connections. An external modem is not necessary.
By supporting ADSL2 + technology, the speed advantages of modern high-speed connections can be utilized perfectly and achieve download speeds of up to 24Mbit/s depending on the provider. In addition, the router also achieved thanks to the latest Wireless-N technology transfer rates up to 300 Mbps and is perfect for online gaming, IPTV, HD video and audio streaming and voice over IP compatible. The two antennas contained ensure a long-range transmission of the wireless signal. To ensure full functionality with maximum flexibility, the router still has four additional LAN ports.
In addition, the router has the latest WPA2 encryption technology, allowing secure data transmission within the network. Due to the integrated SPI firewall with DoS protection, Built-in NAT, MAC and packet filters, and DMZ maximum safety is achieved, which promises to provide additional safety especially for the discerning consumer.
The configuration of the ALL-WR02400N can quickly and easily perform the intuitive web interface and can therefore be administered across operating systems from any device. With a power consumption of only 5 watts, the router modem combination is perfect for continuous use. At the front of the unit LED for visual indication of the number of operating conditions are attached.
Feature: Ethernet WAN
Wireless LAN features
Wi-Fi band: No
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Modulation: 16-QAM, 64-QAM, BPSK, OFDM, QPSK
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
VPN support: IPSEC, PPTP, L2TP
DSL features
Feature: ADSL2+
Ports & interfaces

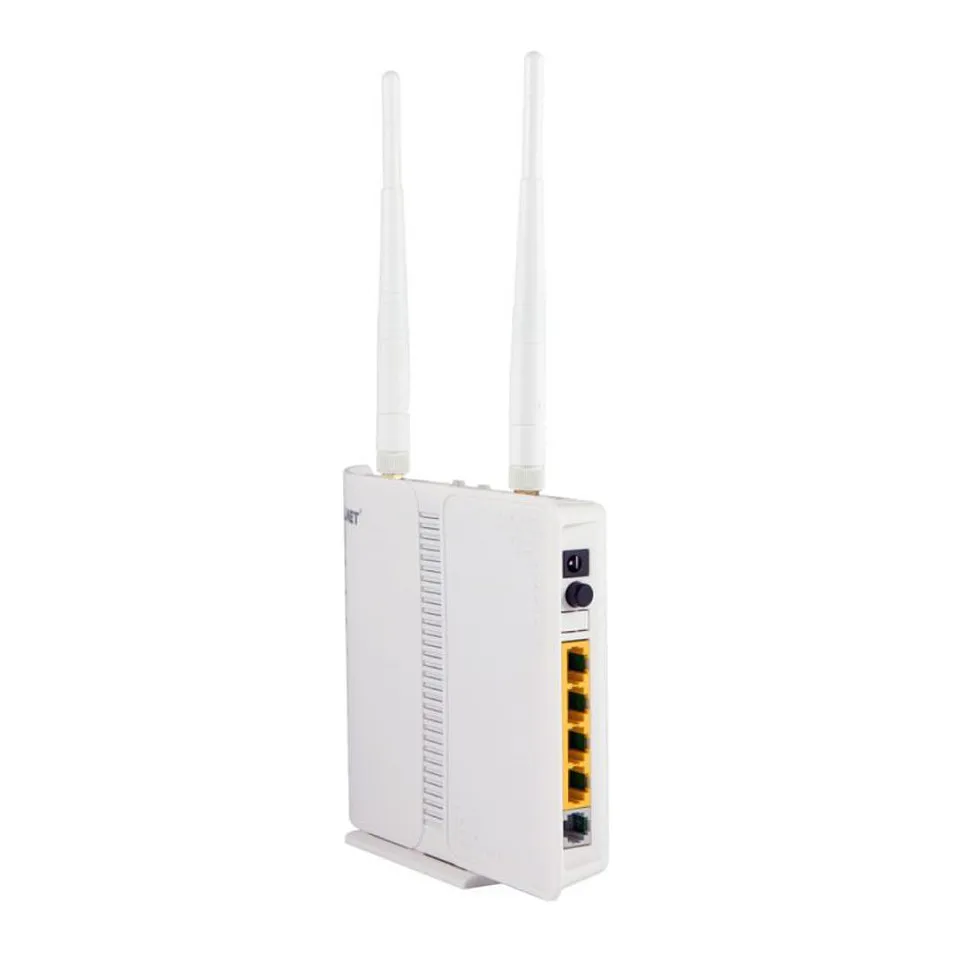

Ethernet LAN (RJ-45) ports: 4
Management features
Feature: Web-based management
Feature: Quality of Service (QoS) support
Security
Security algorithms: 128-bit WEP, 64-bit WEP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK, WPA2-TKIP, WPS
Authentication method: PAP, CHAP
Feature: Stateful Packet Inspection (SPI)
Feature: DoS attack prevention
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: DMZ support
Feature: Network address translation (NAT)
Protocols
Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Management protocols: DNS, SNMP,
Data link protocols: PPP
Supported network protocols: IGMP, DHCP
Design
Product colour: White
LED indicators: Yes
Feature: On/off switch
Antenna
Antenna design: External
Antennas quantity: 2
Power
Power consumption (typical): 5 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): 10 – 90 °C
Operating relative humidity (H-H): -20 – 65%
Storage relative humidity (H-H): 30 – 95%
Weight & dimensions
Width: 95 mm
Depth: 110 mm
Height: 27 mm
Weight: 465 g
Other features
WLAN data transfer rates supported: 1,2,5.5,6,9,12,18,24,36,48,300 Mbit/s
Feature: xDSL connection
