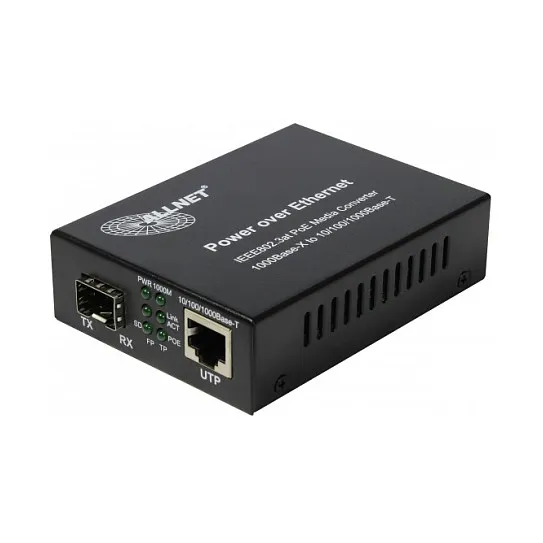

ALLNET ALL-MC202P-SFP1-POE. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Fiber mode structure: Multi-mode, Single-mode, Fiber cable diameters supported (core/cladding): 9/125,50/125,62.5/125 µm. Product colour: Black. Fiber optic connector: MiniGBIC, Connectivity technology: Wired. Output voltage: 52 V, Output current: 1.25 A
Network
Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
Converter output interface: 1000Base-LX, 1000Base-SX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Duplex system: Full, Half
Cable types supported: Cat5, Cat5e, Cat6, Fiber
Performance
Fiber mode structure: Multi-mode, Single-mode
Fiber cable diameters supported (core/cladding): 9/125,50/125,62.5/125 µm
Features
LED indicators: Yes
Product colour: Black
Ports & interfaces
Connectivity technology: Wired

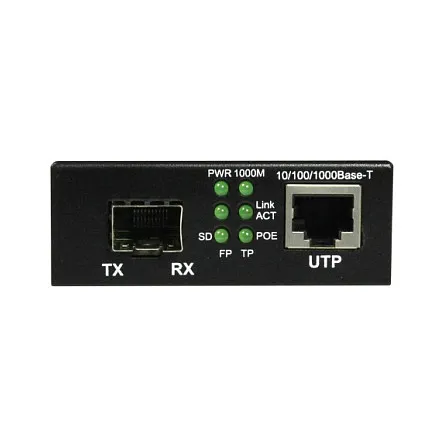

Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: MiniGBIC

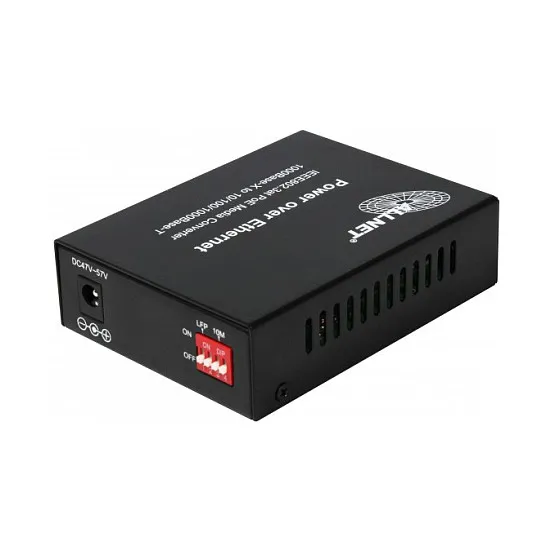

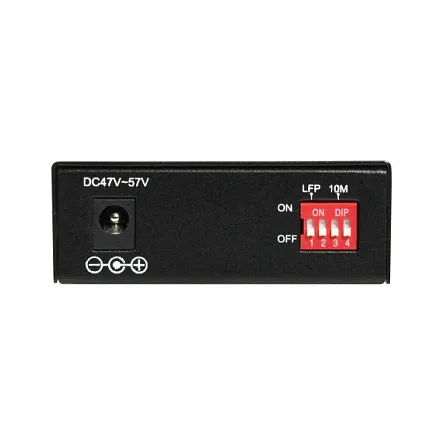

Feature: DC-in jack
Power
Output voltage: 52 V
Output current: 1.25 A
Feature: Power over Ethernet (PoE)
Feature: External power adapter
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 185 mm
Depth: 134 mm
Height: 35 mm
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Packaging content
Feature: AC adapter included
Certificates
Compliance certificates: CE
Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
Converter output interface: 1000Base-LX, 1000Base-SX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Duplex system: Full, Half
Cable types supported: Cat5, Cat5e, Cat6, Fiber
Performance
Fiber mode structure: Multi-mode, Single-mode
Fiber cable diameters supported (core/cladding): 9/125,50/125,62.5/125 µm
Features
LED indicators: Yes
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: MiniGBIC
Feature: DC-in jack
Power
Output voltage: 52 V
Output current: 1.25 A
Feature: Power over Ethernet (PoE)
Feature: External power adapter
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 185 mm
Depth: 134 mm
Height: 35 mm
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Packaging content
Feature: AC adapter included
Certificates
Compliance certificates: CE
