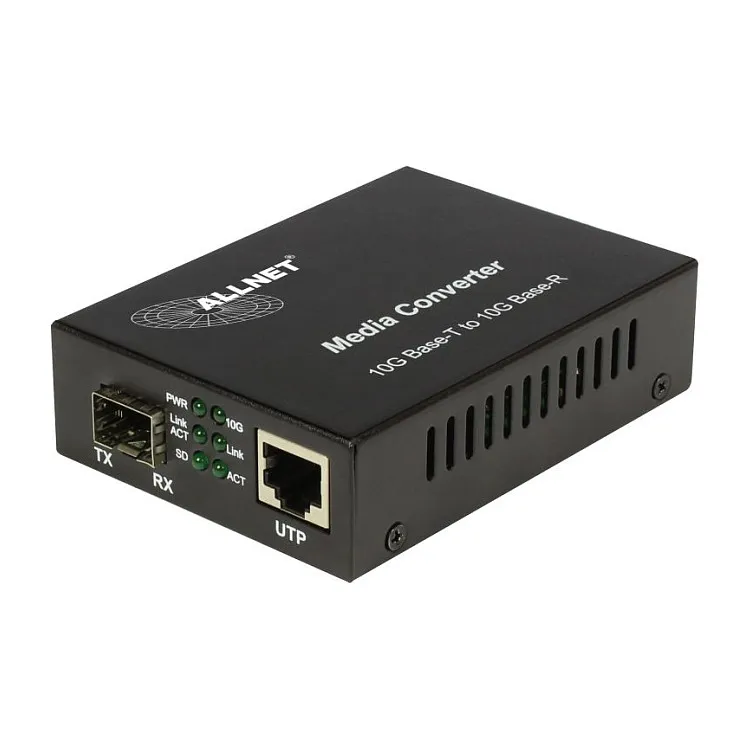

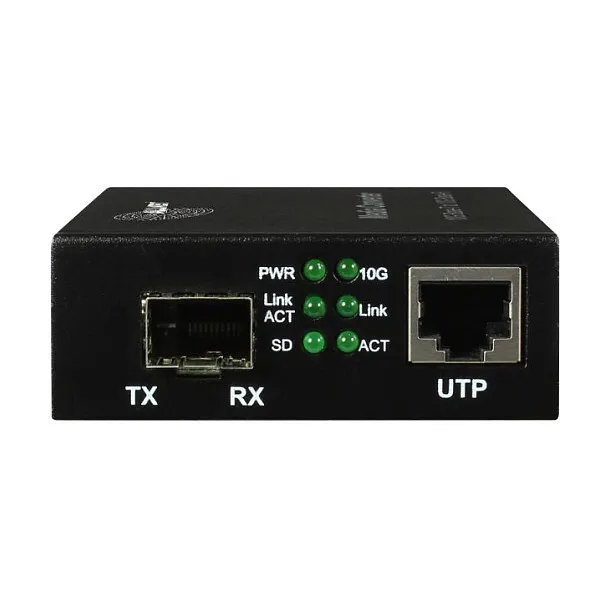

ALLNET ALL-MC109-SFP+. Maximum data transfer rate: 10000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 100 m. LED indicators: Power, Product colour: Black. Fiber optic connector: SFP+, Connectivity technology: Wired. Output voltage: 5 V, Output current: 2 A, Power consumption (max): 10 W
Network
Maximum data transfer rate: 10000 Mbit/s
Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
Ethernet interface type: Gigabit Ethernet
Copper ethernet cabling technology: 10GBASE-T
Fiber ethernet cabling technology: 10GBASE-R, 1000BASE-X
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Duplex system: Full
Cable types supported: Cat5, Cat5e, Cat6a
Performance
Maximum transfer distance: 100 m
Features
LED indicators: Power
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP+
Power
Output voltage: 5 V
Output current: 2 A
Power consumption (max): 10 W
Weight & dimensions
Width: 71 mm
Depth: 94 mm
Height: 26 mm
Weight: 230 g
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Certificates
Certification: CE
Maximum data transfer rate: 10000 Mbit/s
Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
Ethernet interface type: Gigabit Ethernet
Copper ethernet cabling technology: 10GBASE-T
Fiber ethernet cabling technology: 10GBASE-R, 1000BASE-X
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Duplex system: Full
Cable types supported: Cat5, Cat5e, Cat6a
Performance
Maximum transfer distance: 100 m
Features
LED indicators: Power
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP+
Power
Output voltage: 5 V
Output current: 2 A
Power consumption (max): 10 W
Weight & dimensions
Width: 71 mm
Depth: 94 mm
Height: 26 mm
Weight: 230 g
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Certificates
Certification: CE
