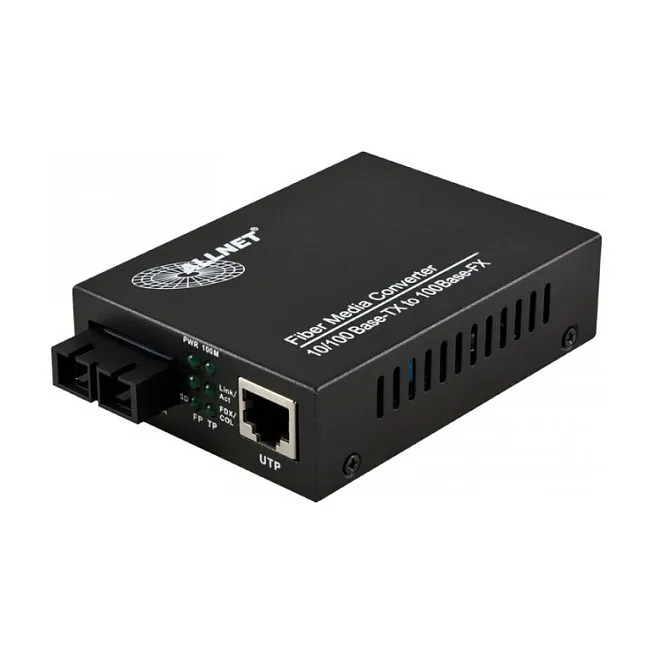

ALLNET ALL-MC102-SC-MM. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Fast Ethernet. Maximum transfer distance: 2000 m, Fiber mode structure: Multi-mode. LED indicators: Link, Power, Speed, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 2.5 W
Network
Maximum data transfer rate: 100 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Fiber ethernet cabling technology: 100BASE-FX
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Duplex system: Full, Half
Cable types supported: Cat3, Cat4, Cat5
Performance
Maximum transfer distance: 2000 m
Fiber mode structure: Multi-mode
Features
LED indicators: Link, Power, Speed
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Feature: DC-in jack
Power
Power consumption (max): 2.5 W
Feature: External power adapter
Weight & dimensions
Width: 71 mm
Depth: 94 mm
Height: 26 mm
Weight: 230 g
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Certificates
Certification: CE
Maximum data transfer rate: 100 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Fiber ethernet cabling technology: 100BASE-FX
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Duplex system: Full, Half
Cable types supported: Cat3, Cat4, Cat5
Performance
Maximum transfer distance: 2000 m
Fiber mode structure: Multi-mode
Features
LED indicators: Link, Power, Speed
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Feature: DC-in jack
Power
Power consumption (max): 2.5 W
Feature: External power adapter
Weight & dimensions
Width: 71 mm
Depth: 94 mm
Height: 26 mm
Weight: 230 g
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Certificates
Certification: CE
