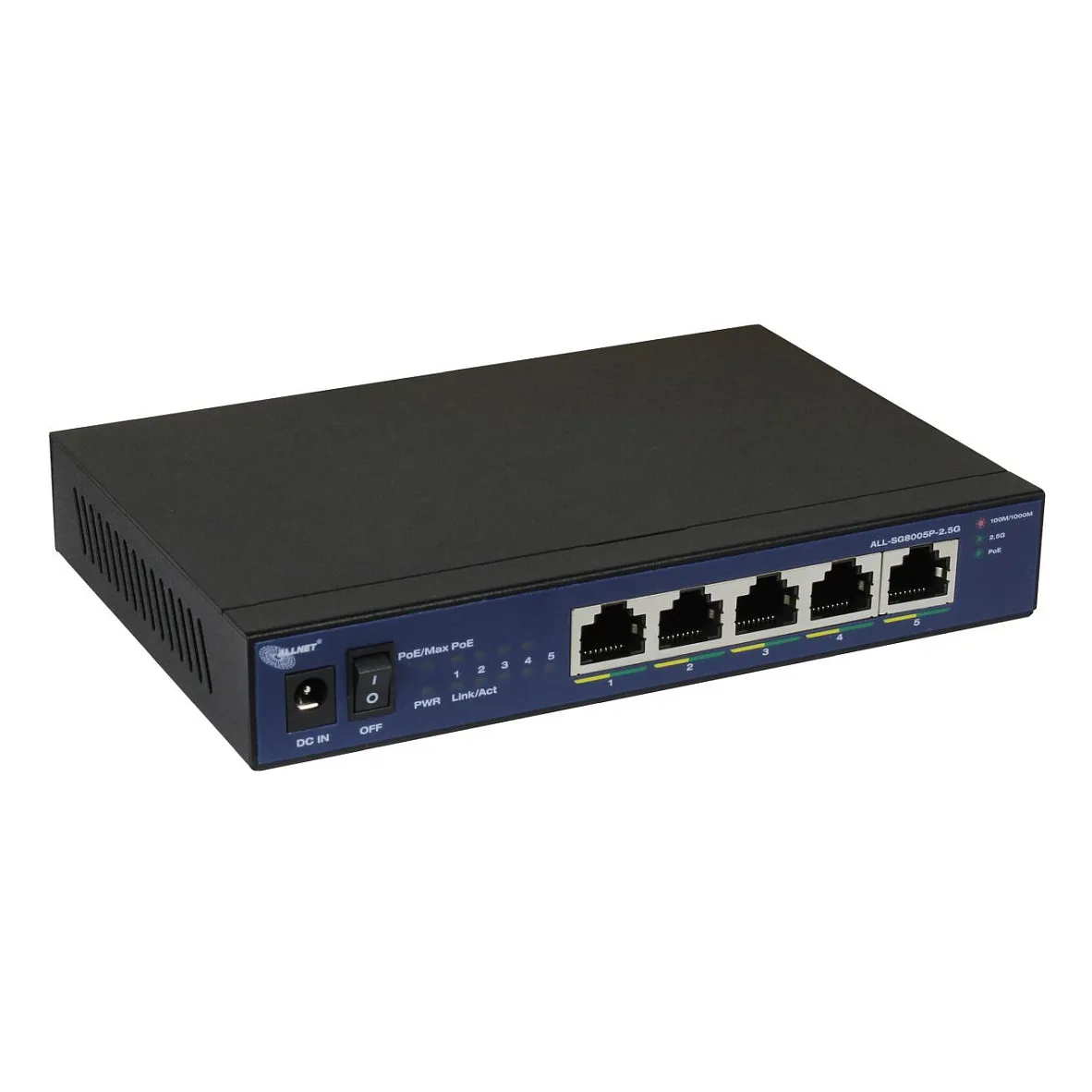

ALLNET 215400

Management features
Switch type: Unmanaged
Switch layer: L2
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
Power connector: DC-in jack
Network
Networking standards: IEEE 802.3x
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Optical fiber
Transmission distance (max): 0.1 km
Data transmission
Switching capacity: 10 Gbit/s
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14800 pps
Protocols
Feature: GARP VLAN Registration Protocol (GVRP)
Design
Form factor: Desktop/Wall-Mounting
Product colour: Black
LED indicators: Link, PoE, Power

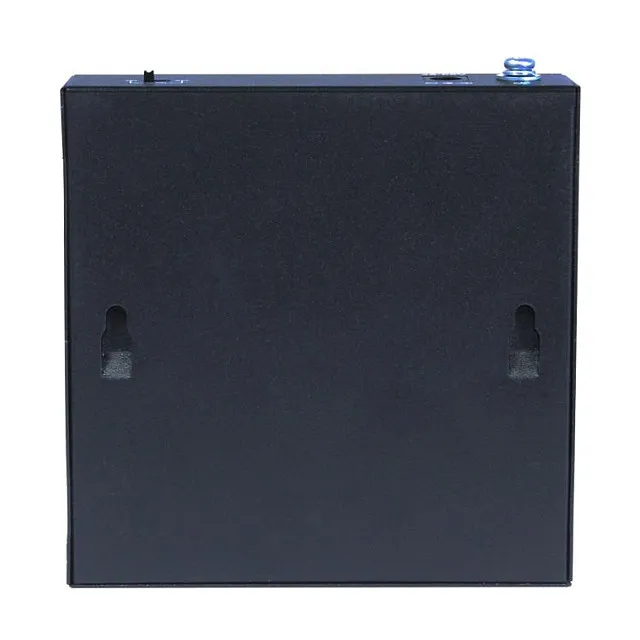

Feature: Wall mountable
Performance
Feature: Built-in processor
Feature: Fanless
Power
Power source: DC

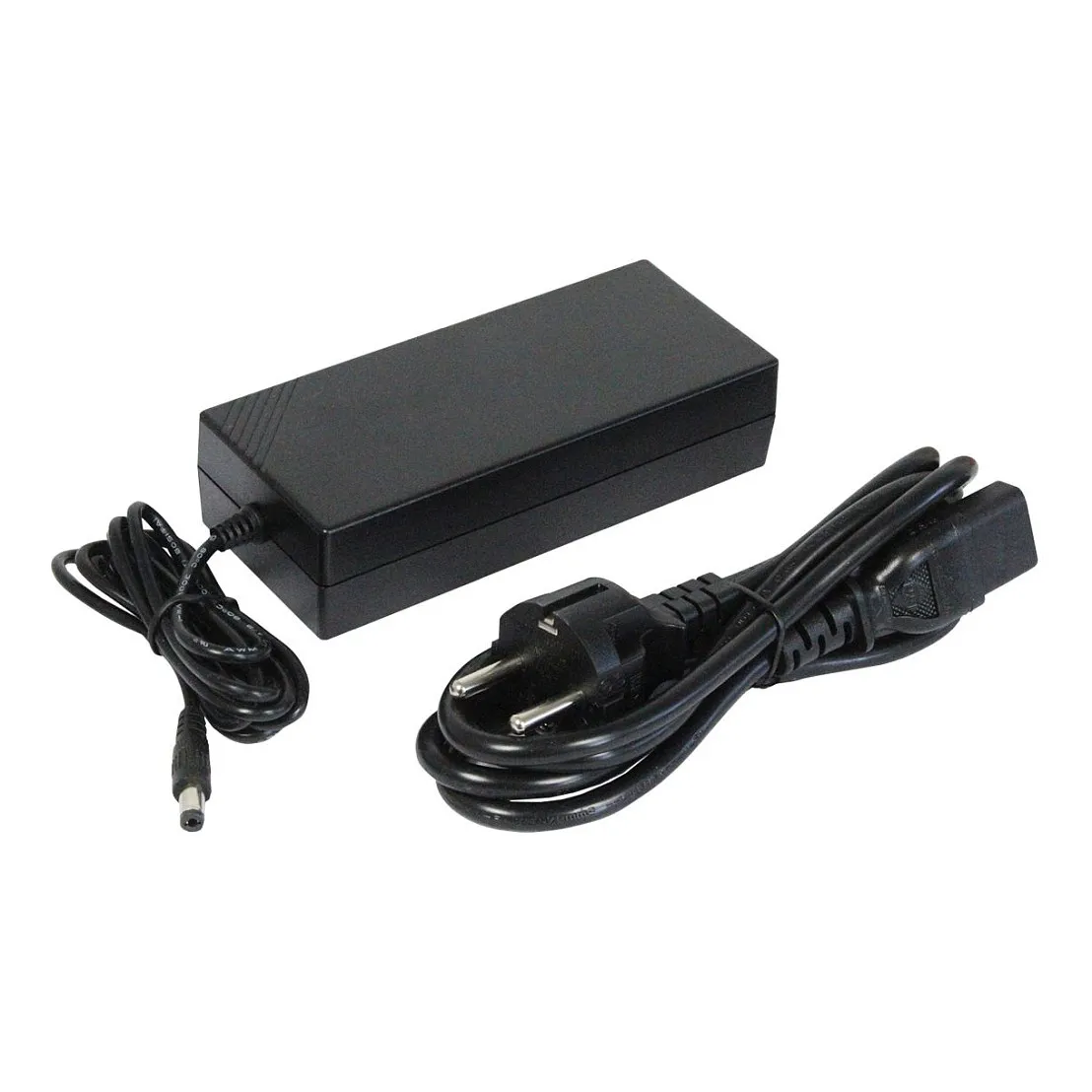

Feature: Power supply included
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
DC input voltage: 55 V
Input current: 1.3 A
Input voltage: 55 V
Power protection features: Surge protection
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 52 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -10 – 70 °C
Operating relative humidity (H-H): 10 – 85%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 100 mm
Depth: 99.4 mm
Height: 26 mm
Weight: 199.5 g
