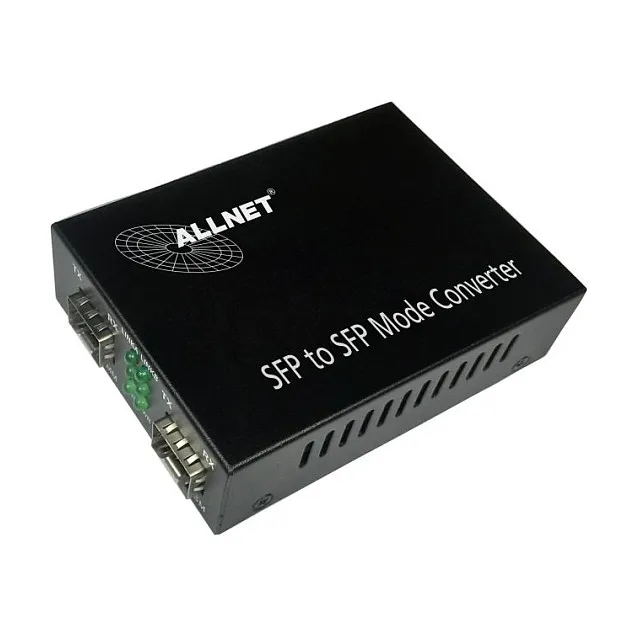

ALLNET 134409. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-LX, 1000Base-SX, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 550 m, Fiber mode structure: Multi-mode, Single-mode, Fiber cable diameters supported (core/cladding): 62.5/125 µm. LED indicators: Link, Power, Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Output voltage: 5 V, Output current: 1 A, Power consumption (max): 3 W
– Supporting IEEE802.3z 1000Base-SX/LX standards
– Supporting full-duplex/half-duplex transmission mode
– Supporting conversion between 850nm multi-mode fiber and 1310/1550nm single mode fiber
– Supporting direct and transparent transmission of packets at different lengths
Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-LX, 1000Base-SX
Converter output interface: 1000Base-LX, 1000Base-SX
Networking standards: IEEE 802.3bz, IEEE 802.3x
Ethernet interface type: Gigabit Ethernet
Feature: Flow control support
Duplex system: Full, Half
Performance
Maximum transfer distance: 550 m
Fiber mode structure: Multi-mode, Single-mode
Fiber cable diameters supported (core/cladding): 62.5/125 µm
Features
LED indicators: Link, Power
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Fiber ports quantity: 2
Fiber optic connector: SFP
Power
Output voltage: 5 V
Output current: 1 A
Power consumption (max): 3 W
Weight & dimensions
Width: 71 mm
Depth: 94 mm
Height: 26 mm
Weight: 280 g
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Certificates
Certification: CE
