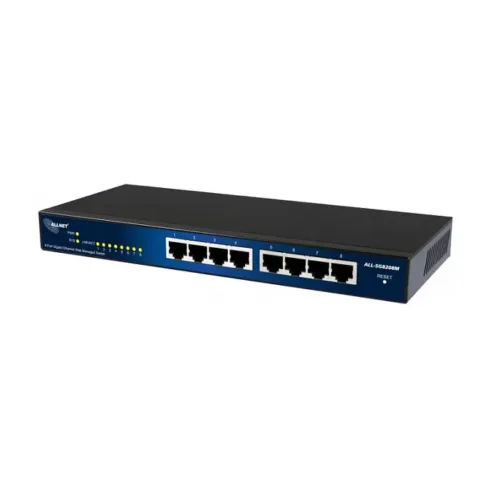

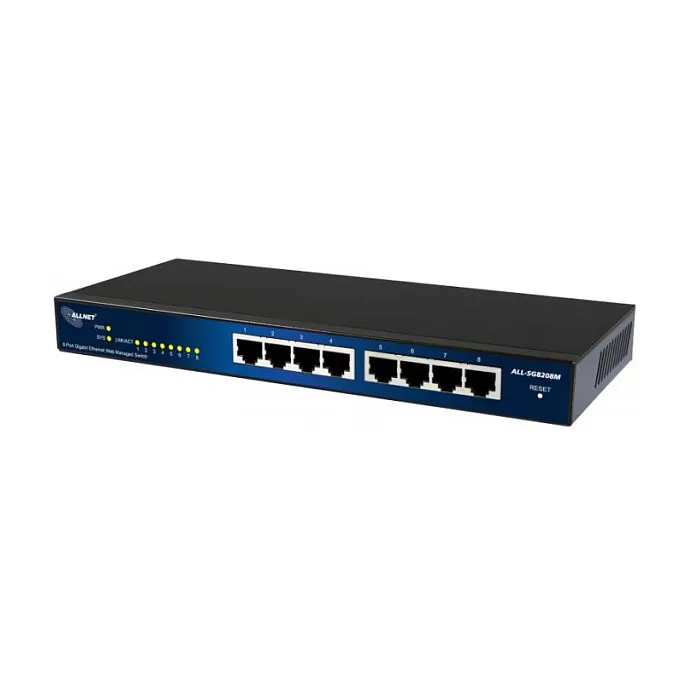

ALLNET 112533. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE…. Wall mountable
– support 10/100/1000Mbps and Duplexmodus (half/full) auto-detection
– support back-pressure (half duplex), flow control (IEEE 802.3x und IEEE 802.3az Energy Efficient Ethernet
– VLAN „64 Static / Port-Based / Tagged Based
– Link Aggregation ( IEEE802.3ad LACP & Static Trunk)
– IGMP Snooping (v1/v2/v3)
– QoS (Port Based, Flow, 802.1p, IP-TOS, IP DSCP)
– Stormcontrol (Broadcast, Multicast, Unicast)
– FANLESS Solution
– Wall-Mount option
The ALL-SG88208M provides 8x 10/100/1000Mbps ports. The switch provides performance, QoS, advanced security strategies and rich layer 2 management features. This Gigabit managed switch is cost-effective for the ideal small and medium business solution.
ALL-SG88208M Switch have robust security and management features. The ALL-SG88208M Switch support a lot of features like Flow Control, Spanning Tree, VLAN, Link Aggregation IGMP Snooping & QoS. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch and gigabit capability, ALLNET managed Switch ALL-SG88208M provides you the ideal access-edge solution.
Secure Networking
The ALL-SG88208M switch provides IP-MAC-Port-VID Binding, Port Security, Storm control which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID.
Advanced QoS features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on different options like 8 Priority Queues, Class of Service, Queue Scheduling and Rate Limit. Voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.
Abundant Layer 2 features
For more application of layer 2 switches, ALL-SG88208M supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Mirroring, Spanning Tree STP/RSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management Features
ALL-SG88208M is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI), either administration traffic can be protected through HTTPS encryptions. SNMP (v1/2) support enables the switch to be polled for valuable status information and send traps on abnormal events.
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Data transmission
Switching capacity: 32 Gbit/s
MAC address table: 8000 entries
Number of queues: 8
Jumbo frames: 10000
Security
DHCP features: DHCP client
Feature: IGMP snooping
Security algorithms: HTTPS, SNMP, SSL/TLS
Feature: MAC address filtering
Multicast features
Feature: Multicast support
Design
Product colour: Black
Feature: Reset button
LED indicators: Yes
Feature: Cable management
Feature: Wall mountable
Safety: EN60950-1
Performance
Buffer size: 524.8 KB
Power
Feature: Power supply included
AC input voltage: 100 – 240 V
Input voltage: 24 – 56 V
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Certificates
Certification: EMC/FCC, CE Class B
