Alcasa HDMI Switcher. Video port type: HDMI. Material: Metal, Product colour: Black, Supported graphics resolutions: 7680 x 4320. AC input voltage: 5 V, Power plug type: Type B. Width: 70 mm, Depth: 52 mm, Height: 13 mm. Cables included: USB Type-A to Micro USB-B, Packaging content: Switch; operating instructions
With the compact HDMI 2.1 switch from Good Connections®, you always have the right solution for connecting two HDMI devices to one screen. The switch is directional and therefore only suitable for the following application scenario:

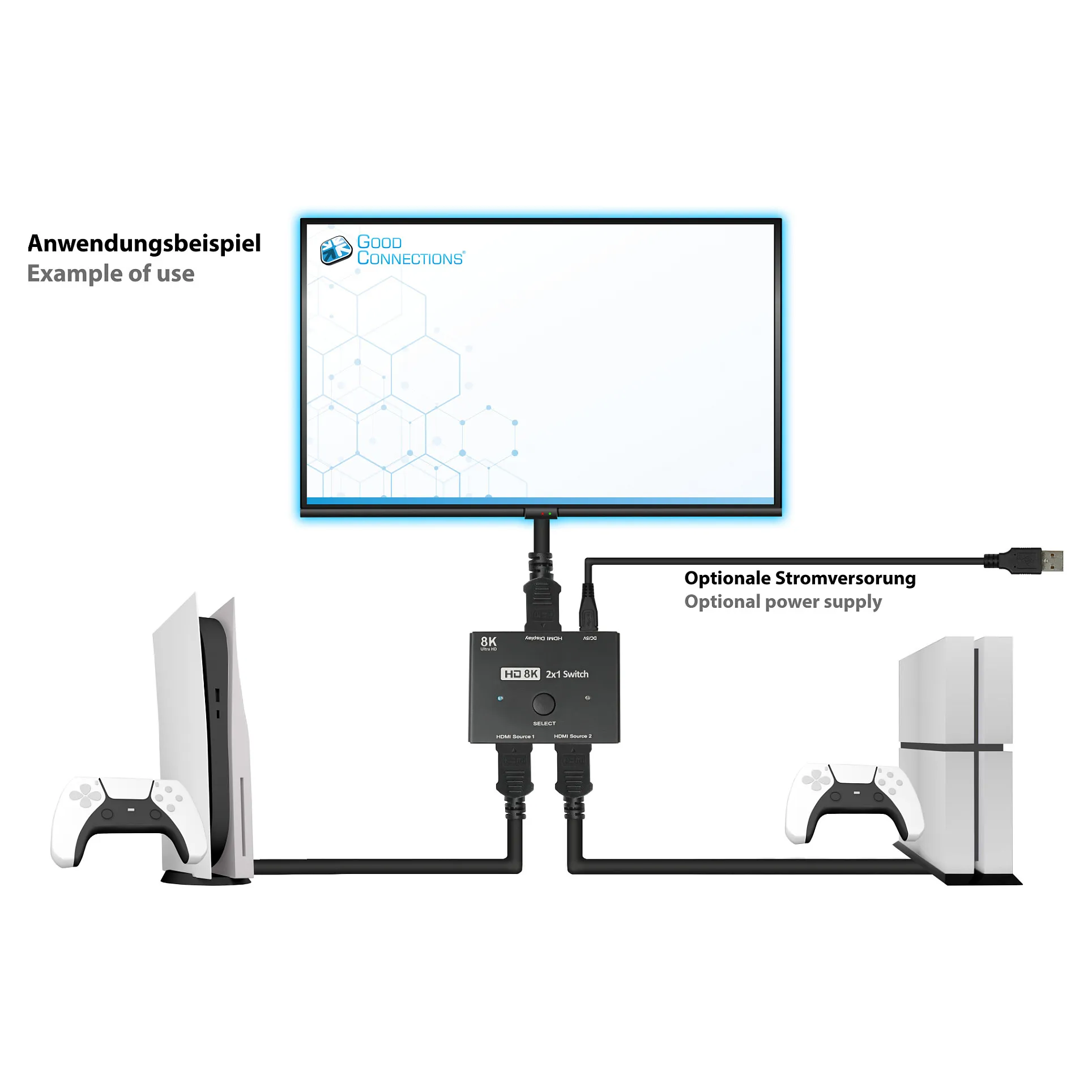

Application scenario – 2 in / 1 out
Two devices can be connected to one screen. The desired input signal can be selected by pressing the „Select” button. The selected input is represented by a blue LED.
Plug & Play
Connect and get started! Connect the HDMI cables of the signal source(s) and signal sink(s) to the HDMI ports of the switch. Drivers are not required. Normally, no external power supply is necessary. If your existing HDMI devices do not provide enough power to operate the switch, the power supply can be ensured using the USB cable provided.
Video port type: HDMI
HDMI ports quantity: 3
HDMI version: 2.1
HDMI in: 2
Number of HDMI outputs: 1
Features
Material: Metal
Product colour: Black
Feature: Plug and Play
Feature: HDCP
Supported graphics resolutions: 7680 x 4320
LED indicators: Data
Feature: External power adapter
Connector contacts plating: Gold
HD type: 8K Ultra HD
HDCP version: 2.3
Power
AC input voltage: 5 V
Power plug type: Type B
Weight & dimensions

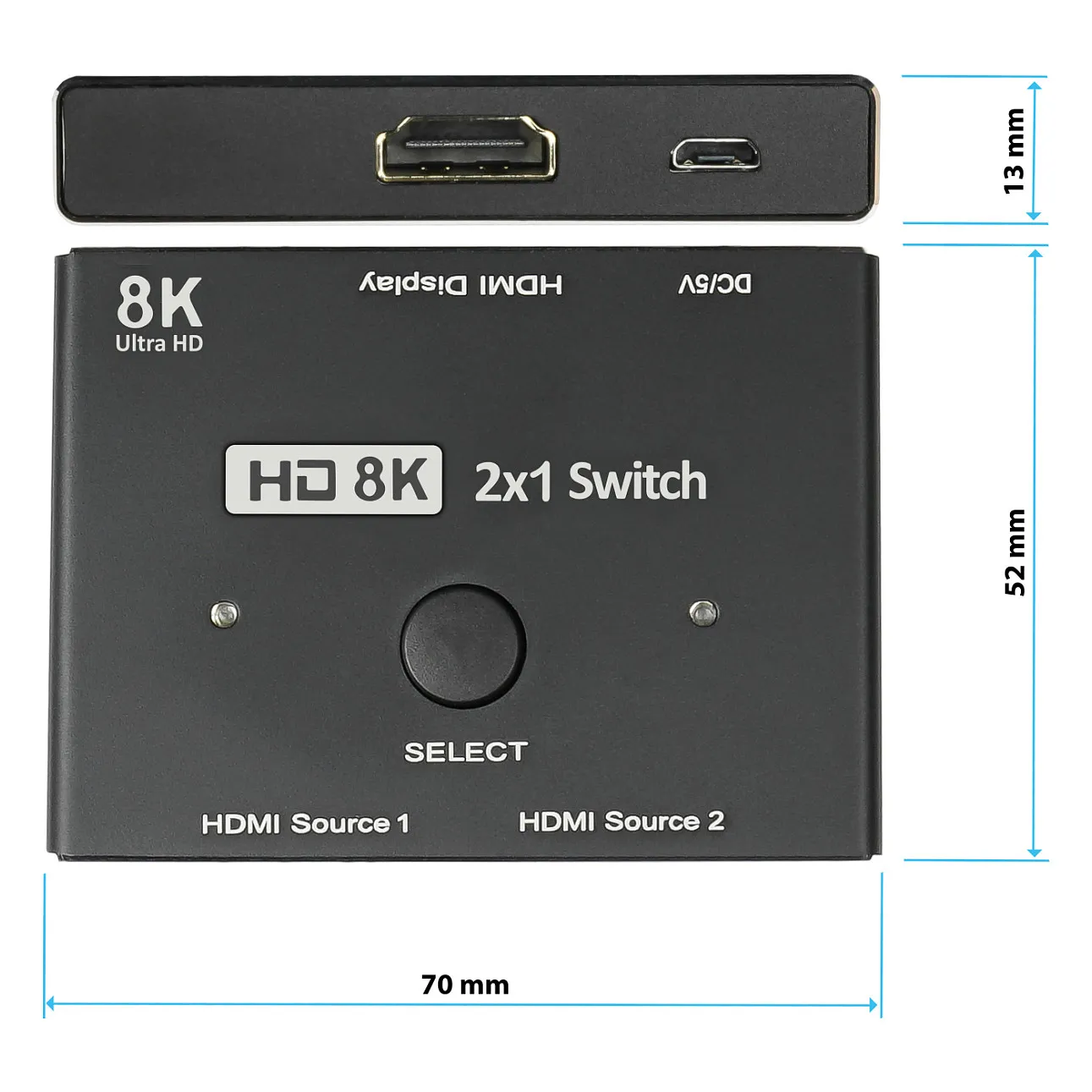

Width: 70 mm
Depth: 52 mm
Height: 13 mm
Weight: 38 g
Packaging content
Feature: Power cord included

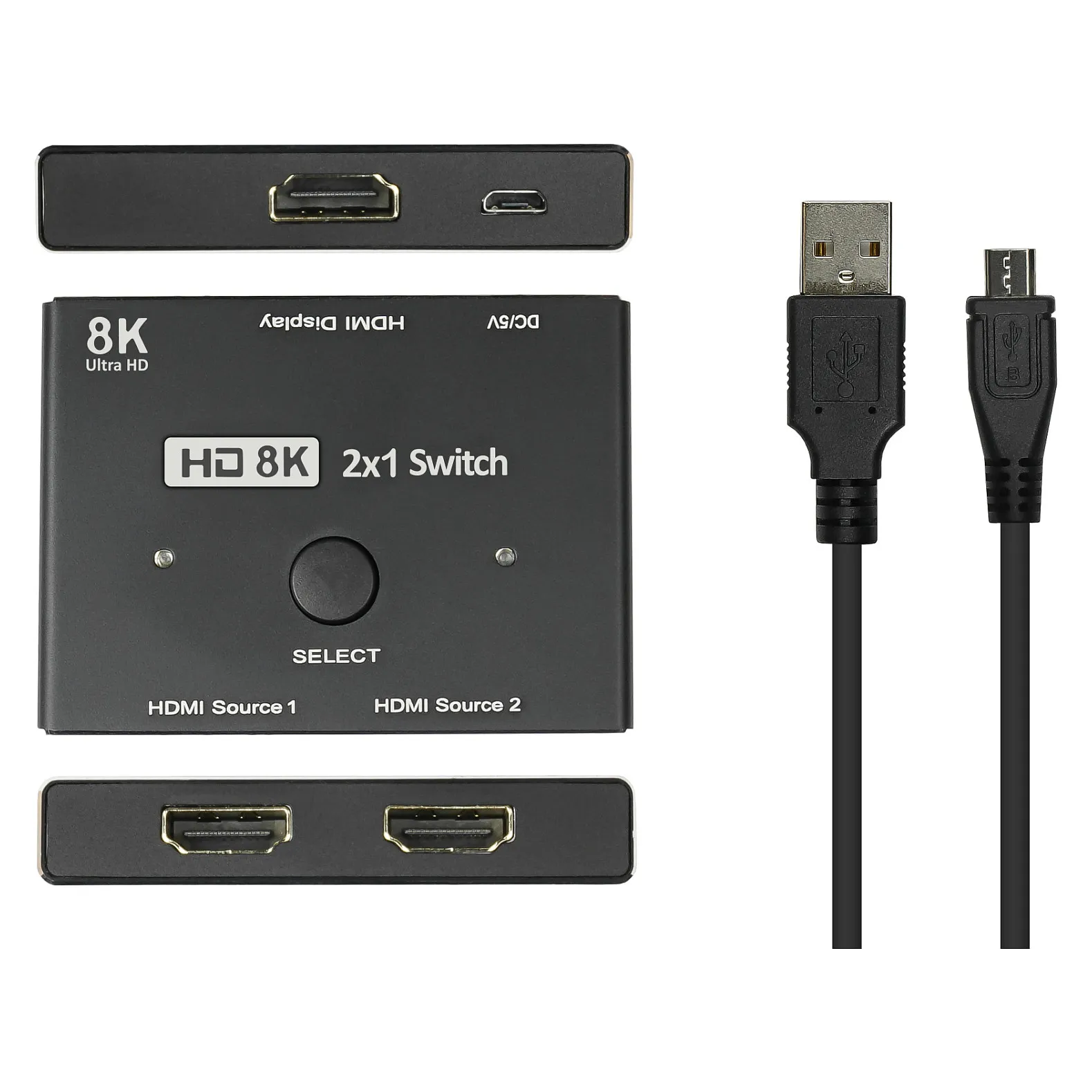

Cables included: USB Type-A to Micro USB-B
Packaging content: Switch; operating instructions
Technical details
Technical features: Signal Direction: Directional
