AirLancer IN-Q180+. Antenna gain level (max): 5 dBi, Frequency band: 2.4 – 5.9 GHz, Networking standards: IEEE 802.11ac, IEEE 802.11ax. Antenna type: MIMO directional antenna, Antenna connector type: RP-SMA, Polarization: Dual polarization. Width: 130 mm, Depth: 130 mm, Height: 45 mm. Package weight: 400 g. Quantity per pack: 1 pc(s), Cables included: RG-178

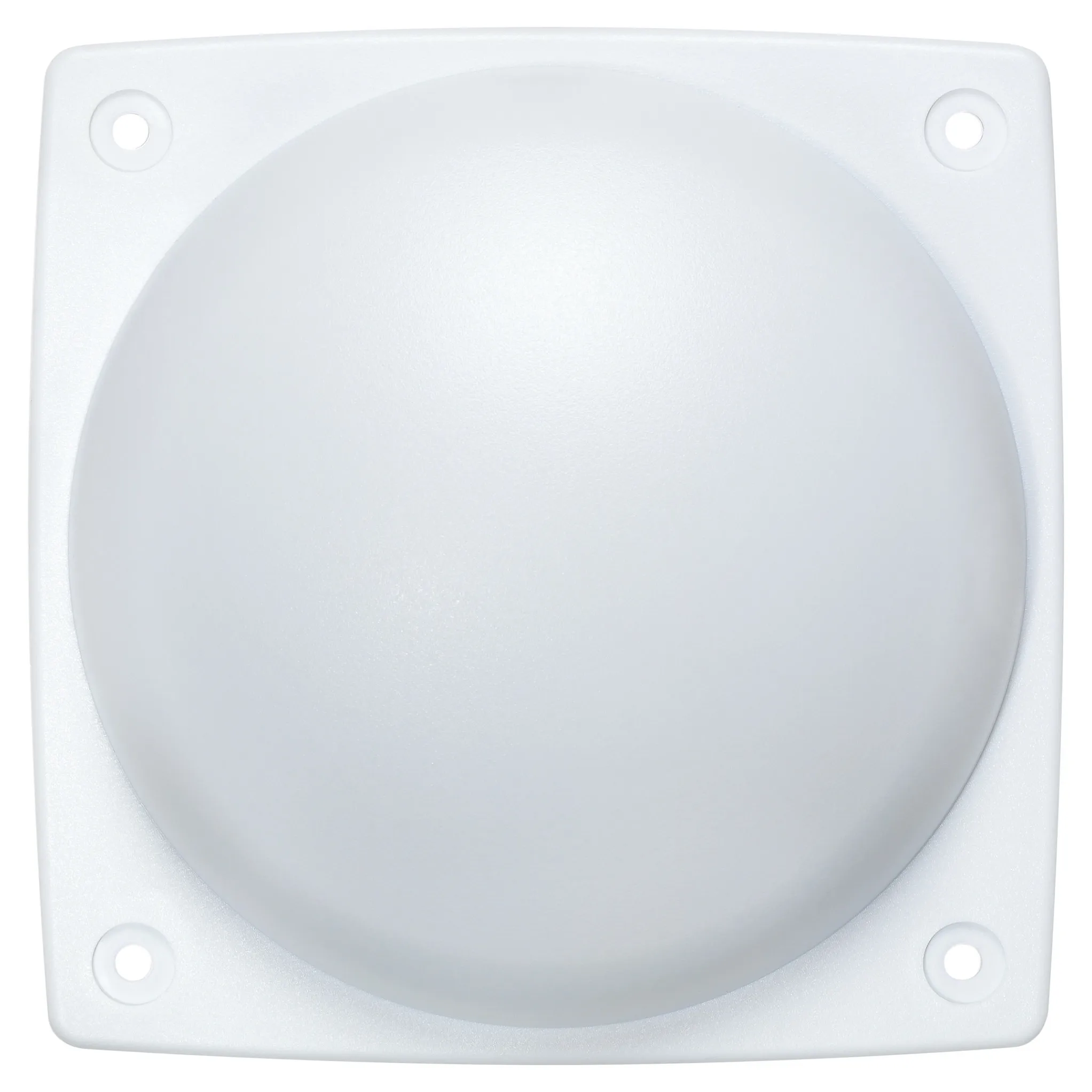

180° indoor Wi-Fi ceiling antenna with 4×4 MIMO
The LANCOM AirLancer IN-Q180+ ceiling antenna combines a discreet look with the best possible Wi-Fi coverage in modern buildings. When installed under a suspended ceiling the antenna fits inconspicuously into the surroundings, making it perfect for businesses, hospitals, schools and hotels. With four connectors it is ideal for operating at 5 GHz and 2.4 GHz with 4×4 MIMO in parallel.
The LANCOM AirLancer IN-Q180+ ceiling antenna combines a discreet look with the best possible Wi-Fi coverage in modern buildings. When installed under a suspended ceiling the antenna fits inconspicuously into the surroundings, making it perfect for businesses, hospitals, schools and hotels. With four connectors it is ideal for operating at 5 GHz and 2.4 GHz with 4×4 MIMO in parallel.
Scenario
Installation on suspended ceilings
Installing the LANCOM Airlancer IN-Q180+ under a suspended ceiling is the ideal solution for preserving a discreet interior design. Installed directly below the access point, it provides optimal Wi-Fi coverage. The antenna fits perfectly to any room with its modern and minimalist design.
Performance
Frequency band: 2.4 – 5.9 GHz
Networking standards: IEEE 802.11ac, IEEE 802.11ax
Antenna gain (2.4 GHz): 3 dBi
Antenna gain (5 GHz): 5 dBi
Impedance: 50 Ω
Horizontal beam width (2.4 GHz): 360°
Vertical beam width (2.4 GHz): 55°
Horizontal beam width (5 GHz): 220°
Vertical beam width (5 GHz): 40°
Antenna gain level (max): 5 dBi
Features
Antenna type: MIMO directional antenna
Antenna connector type: RP-SMA
Polarization: Dual polarization
Voltage Standing Wave Ratio (VSWR): 1,5:1 – 2,5:1
Product colour: White
Housing material: Plastic
Mounting: Ceiling/wall
Purpose: Indoor
Operational conditions
Operating temperature (T-T): -20 – 65 °C
Weight & dimensions
Width: 130 mm
Depth: 130 mm
Height: 45 mm
Weight: 208 g
Packaging data
Package weight: 400 g
Packaging content
Quantity per pack: 1 pc(s)
Cables included: RG-178
Feature: Mounting kit
Logistics data
Customs product code (TARIC): 85177000
Harmonized System (HS) code: 85177100
Country of origin: Taiwan
Frequency band: 2.4 – 5.9 GHz
Networking standards: IEEE 802.11ac, IEEE 802.11ax
Antenna gain (2.4 GHz): 3 dBi
Antenna gain (5 GHz): 5 dBi
Impedance: 50 Ω
Horizontal beam width (2.4 GHz): 360°
Vertical beam width (2.4 GHz): 55°
Horizontal beam width (5 GHz): 220°
Vertical beam width (5 GHz): 40°
Antenna gain level (max): 5 dBi
Features
Antenna type: MIMO directional antenna
Antenna connector type: RP-SMA
Polarization: Dual polarization
Voltage Standing Wave Ratio (VSWR): 1,5:1 – 2,5:1
Product colour: White
Housing material: Plastic
Mounting: Ceiling/wall
Purpose: Indoor
Operational conditions
Operating temperature (T-T): -20 – 65 °C
Weight & dimensions
Width: 130 mm
Depth: 130 mm
Height: 45 mm
Weight: 208 g
Packaging data
Package weight: 400 g
Packaging content
Quantity per pack: 1 pc(s)
Cables included: RG-178
Feature: Mounting kit
Logistics data
Customs product code (TARIC): 85177000
Harmonized System (HS) code: 85177100
Country of origin: Taiwan
