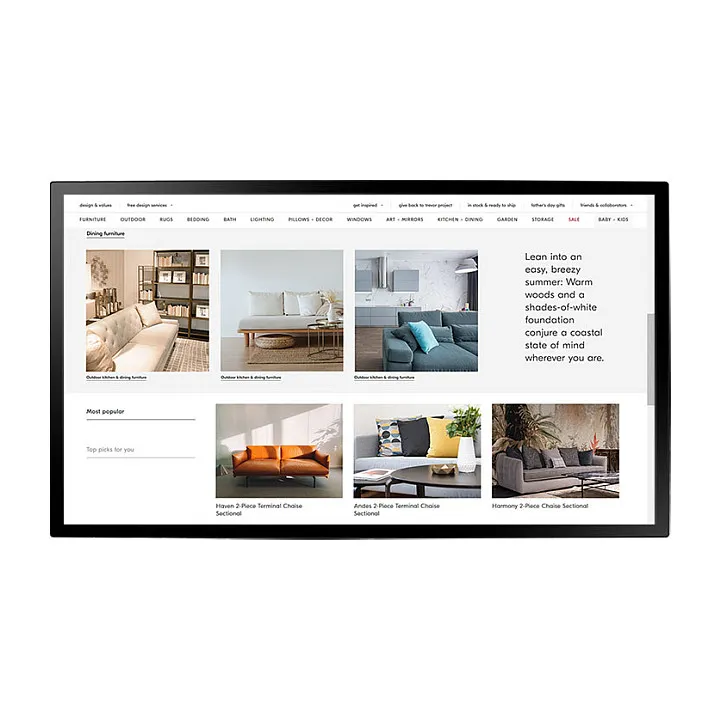

AG Neovo TX-4302. Product design: Digital signage flat panel. Display diagonal: 109.2 cm (43"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD, Touchscreen. Operating hours (hours/days): 24/7. Operating system installed: Windows 10. Product colour: Black
PREMIUM PCAP MULTI TOUCH SCREEN
With PCAP multi-touch technology, the TX-4302 can register up to 40 touchpoints simultaneously. You can scroll, swipe or zoom on the multi-touch display and feel comfortable using the same gestures they would on smartphones.
THROUGH-GLASS INTERACTIVE TOUCH SCREEN TECHNOLOGY
For extra security or protection, the TX-4302 touch screen can be mounted behind a glass layer to create a through-glass experience. The through-glass mode can be applied to a store window, tabletop or glass sheet. Visitors can control the screen through up to 6 millimetres of glass on top of the touch screen, giving it the same functionality whether visitors are touching the screen or using it through the glass.
GLOVE-FRIENDLY TOUCH SCREENS
The TX-4302 interactive touch screen can be used with bare fingers or with gloves, including gloves made from cotton, latex or leather. This is especially convenient to customers and visitors who prefer to keep their gloves on because of personal and cleanliness preferences. The interactive screen also works with a stylus pen creating a wide range of options for customer and visitor interaction.
EASY INTEGRATION
Specially designed holes on all sides of the touch screen display make mounting the screen easy, whether on a wall, tabletop or kiosk in landscape or portrait orientation. For safety and protection while mounting, the outer edge of the touch screen has a plastic resin bezel to protect against collisions during transportation and installation. Whether flush mounted or encased behind glass, our TX-4302 touch screens can seamlessly be integrated into any application.
IP65 DUST AND WATER PROTECTION
The TX-4302 front IP65 touch screen functions perfectly in high-use and high-traffic public locations, giving complete protection as it resists dust and liquid spills.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
AG Neovo uses 7H tempered glass displays for high durability and scratch resistance levels without compromising touch sensitivity for 24/7 operation in demanding public settings. The touch screen glass passed the UL60950 ball-drop test (IK08 rating) for high impact resistance.
CROSS-PLATFORM TOUCH CAPABILITY
The TX-4302 works seamlessly with many operating systems and is compatible with Windows, Linux, macOS, and certain Android versions. It also offers a plug-and-play touch screen for Windows 10.
INTEL SDM-COMPATIBLE INTERACTIVE SCREEN
Built-in with Intel SDM slot to integrate with a CPU or processor-based media player for simplifying installation and management of the digital signage system. Allowing easy updates and simple maintenance.
POWER YOUR DIGITAL SIGNAGE PLAYER
With the 5V DC output port, you can flexibly power a PC or digital signage player to implement interactive digital signage or self-service kiosks, such as interactive menu boards, digital advertisement, real-time information to your visitors.
VERSATILE CONNECTIVITY

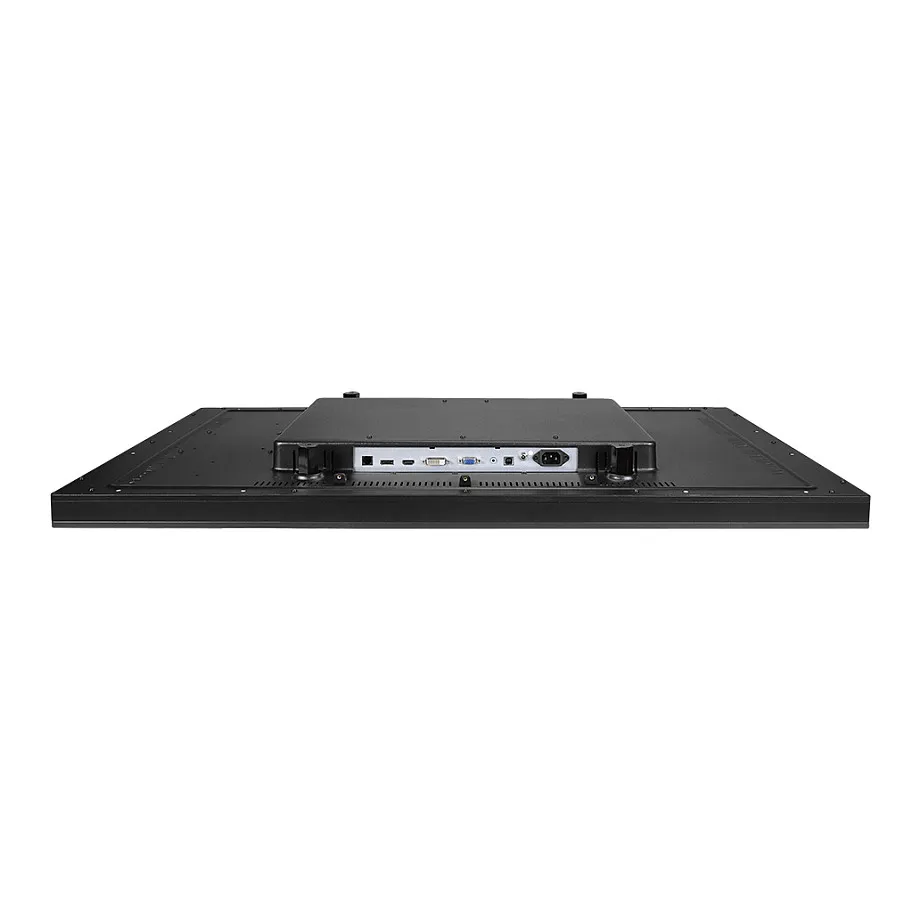

The TX-4302 displays provide analogue (VGA) and digital (DisplayPort and HDMI) interfaces allowing users to connect multiple devices and enhance their functionality. It has a protective cable cover that hides the connector and avoids cable clutter providing a refined appearance.
Panel type: VA
Display diagonal: 109.2 cm (43″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 400 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 40
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 5 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.49 x 0.49 mm
Display diagonal (metric): 109.2 cm
Native refresh rate: 60 Hz
Surface hardness: 7H
Ports & interfaces
HDMI ports quantity: 1
HDMI version: 1.3
Feature: DVI port
DVI-I ports quantity: 1
VGA (D-Sub) input ports: 1
DisplayPorts quantity: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 16 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Feature: Anti-glare screen
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
International Protection (IP) code: IP65
Power
Power consumption (typical): 42 W
Power consumption (standby): 1.2 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 42 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Energy efficiency scale: A to G
Computer system
Operating system installed: Windows 10
Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows CE, Windows Vista, Windows XP
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Weight & dimensions
Display width: 983.2 mm
Display depth: 82.3 mm
Display height: 571.4 mm
Display weight: 19.5 kg
Packaging data
Package width: 1130 mm
Package depth: 710 mm
Package height: 190 mm
Package weight: 25 kg
Packaging content
Cables included: AC, Audio (3.5mm), DisplayPort, HDMI, USB, VGA
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 20 – 90%
Logistics data
Harmonized System (HS) code: 85285210
Features
Feature: Wall mountable
Technical details
Feature: Sustainability compliance
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Other features
Audio input: 1
Backlight type: LED
Feature: Cable lock slot
Digital horizontal frequency: 30 – 73 kHz
Digital vertical frequency: 47 – 63 Hz
Cable lock slot type: Kensington
Power supply type: Internal
Feature: Plug and Play
