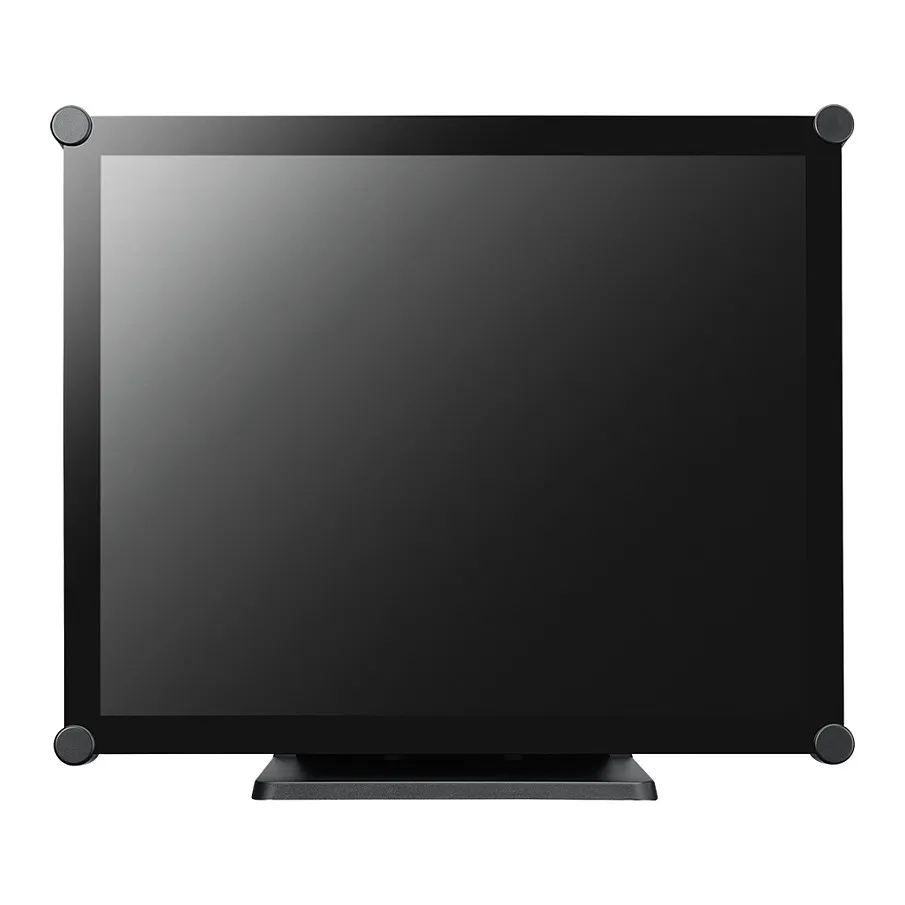

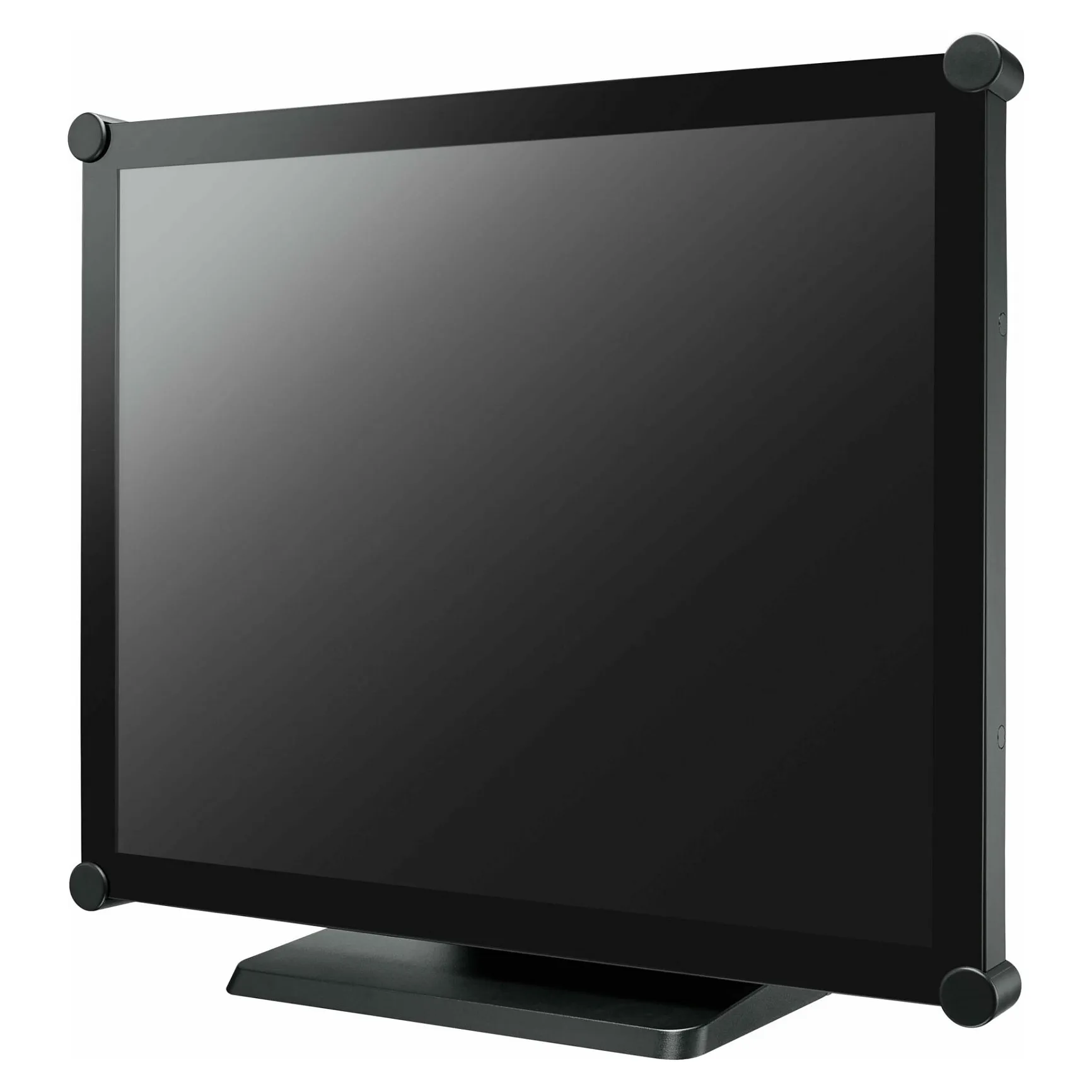

AG Neovo TX-1902. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black
PREMIUM PCAP MULTI TOUCH SCREEN
Based on PCAP touch screen technology, the TX-1902 touch screen monitor can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch responses. These seamless touch senses are identical to those used in smartphones and tablets.
CROSS-PLATFORM TOUCH CAPABILITY
Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.
IP65 DUST AND WATER PROTECTION
The TX-1902 front IP65 touch screen monitor is designed to protect against dust and liquid spills. This makes the TX-1902 a durable touch monitor ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.
CONSISTENT FORM FACTOR DESIGN
Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, the TX-1902 uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.
ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING

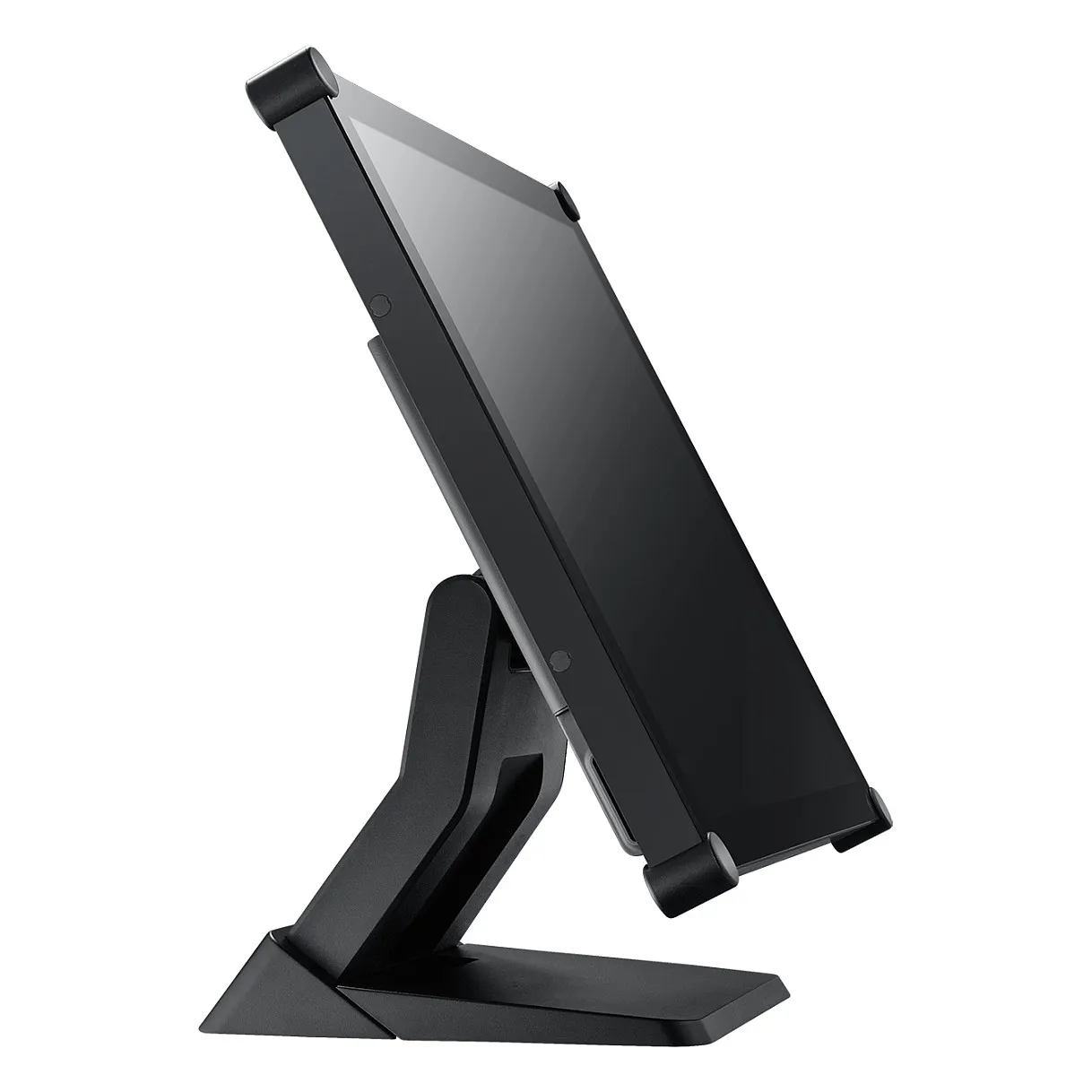

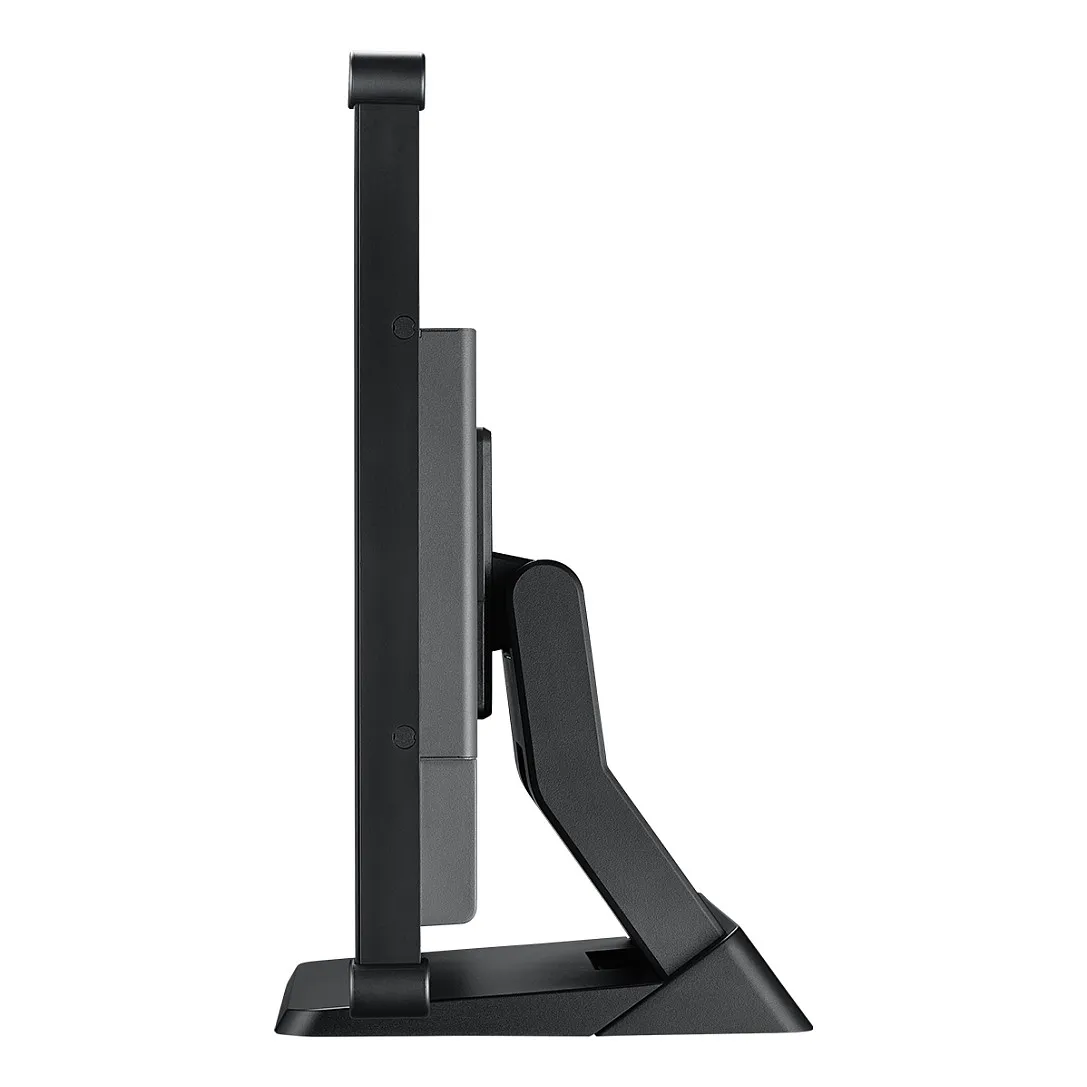

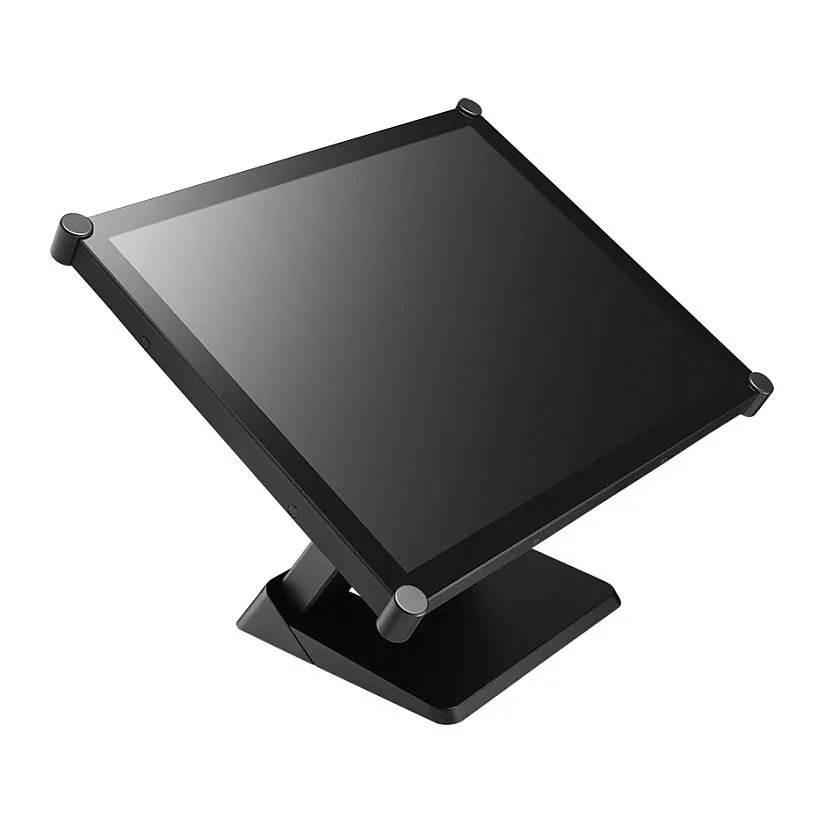

The TX-1902 touch monitor offers flexible mounting options, from the adjustable stand that come with the monitor to desk mounts, wall mounts, and all monitor mounts feature VESA mounting patterns. The TX-1902 features adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees, users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.
VERSATILE CONNECTIVITY

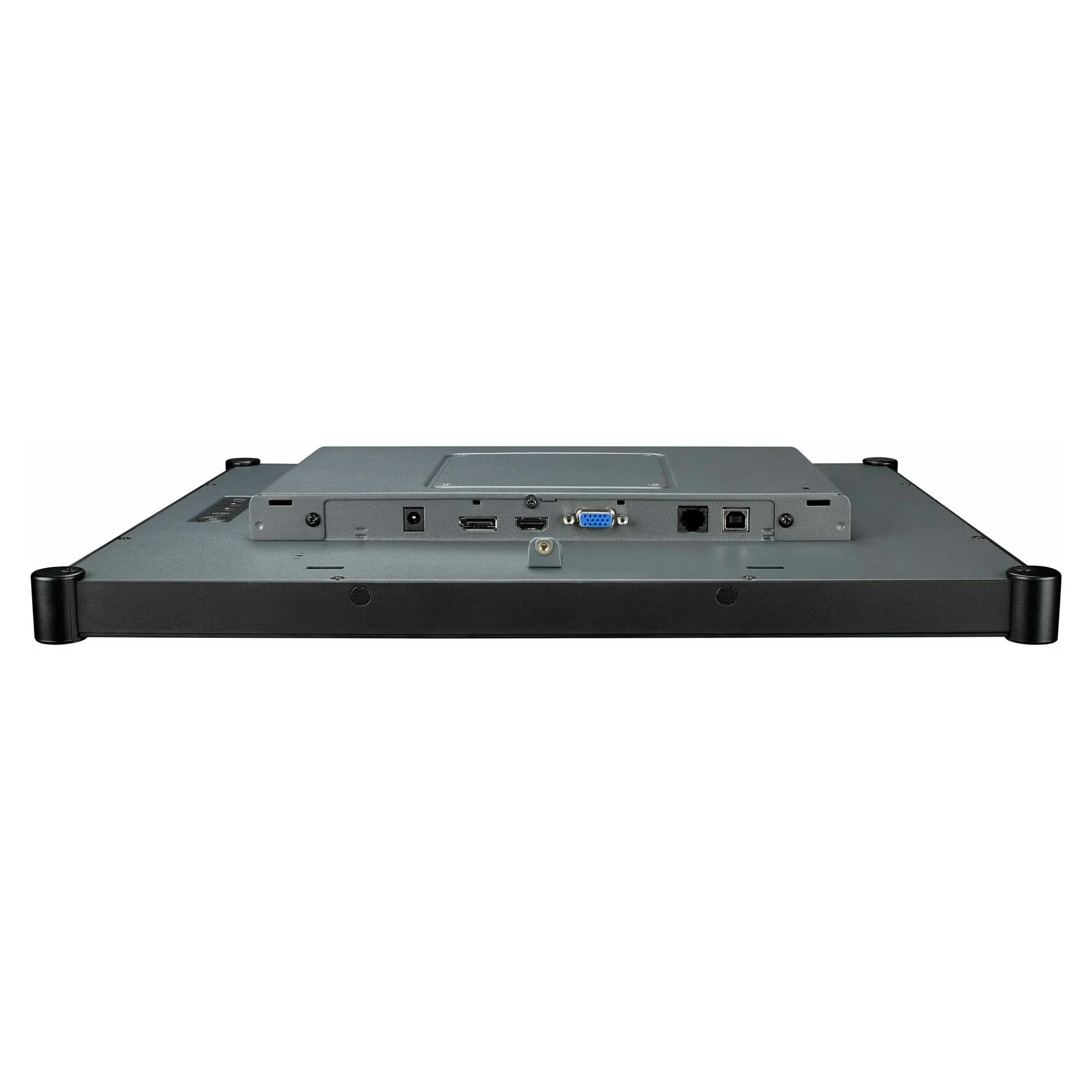

The TX-1902 provides new and legacy systems the best of both worlds since it has both analogue (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.
Display diagonal: 48.3 cm (19″)
Display resolution: 1280 x 1024 pixels
HD type: SXGA
Native aspect ratio: 4:3
Display technology: LCD
Panel type: TN
Backlight type: LED
Feature: Touchscreen
Touchscreen type: Tabletop
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Pixel pitch: 0.294 x 0.294 mm
Digital horizontal frequency: 31 – 80 kHz
Digital vertical frequency: 50 – 75 Hz
Display diagonal (metric): 48.2 cm
Haze rate: 25%
Surface hardness: 7H
Colour gamut standard: NTSC
NTSC coverage (typical): 72%
Performance
Operating hours (hours/days): 24/7
Operating system installed: Windows 10
Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows CE, Windows Vista, Windows XP
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Design
Market positioning: Business
Product colour: Black
Housing material: Metal
Glass thickness: 3.1 mm
Ports & interfaces
USB upstream port type: USB Type-B
Number of upstream ports: 1
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
Ergonomics

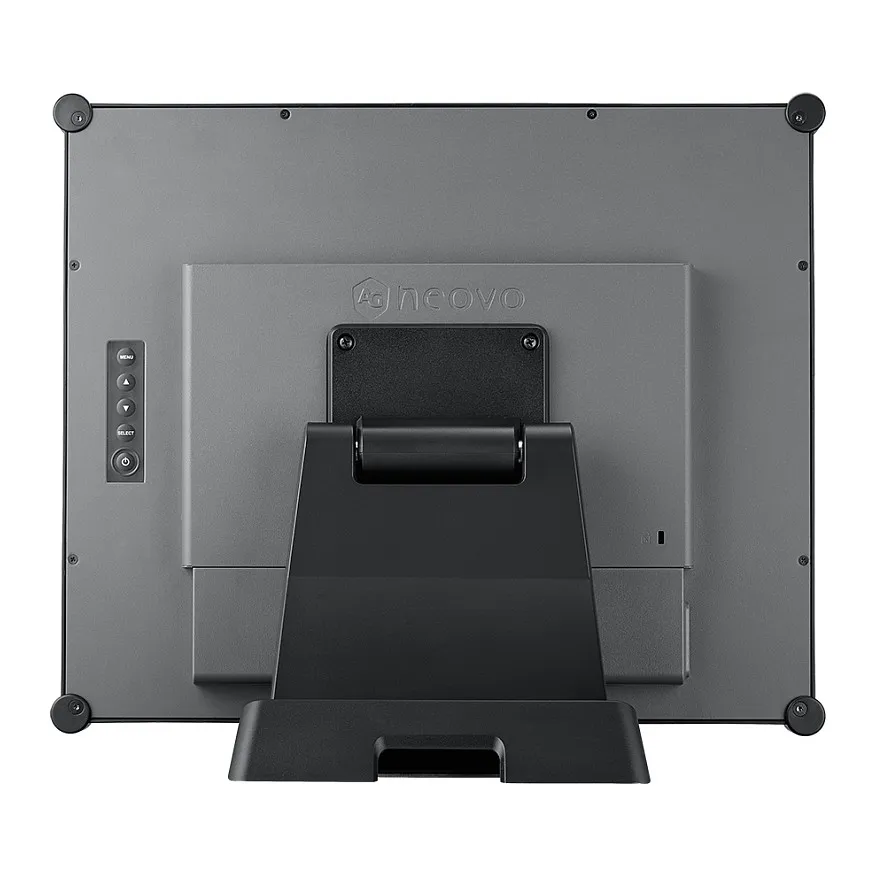

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: -5 – 90°
Feature: Plug and Play
Power
Energy efficiency class (SDR): D
Energy efficiency class (HDR): Not available
Power consumption (typical): 12 W
Power consumption (standby): 0.8 W
Power consumption (off): 0.3 W
Power supply type: External
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width (with stand): 427 mm
Depth (with stand): 214.2 mm
Height (with stand): 374.6 mm
Weight (with stand): 6.5 kg
Width (without stand): 427 mm
Depth (without stand): 48.8 mm
Height (without stand): 355 mm
Weight (without stand): 4.5 kg
Packaging data
Package width: 500 mm
Package depth: 300 mm
Package height: 460 mm
Package weight: 8.3 kg
Packaging content
Feature: Stand included
Cables included: AC, HDMI, USB, VGA
Other features
International Protection (IP) code: IP65
Mobile operating systems supported: Android
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Certification: CE, LVD, WEEE, RoHS, REACH, EAC
Technical details
Native refresh rate: 60 Hz
