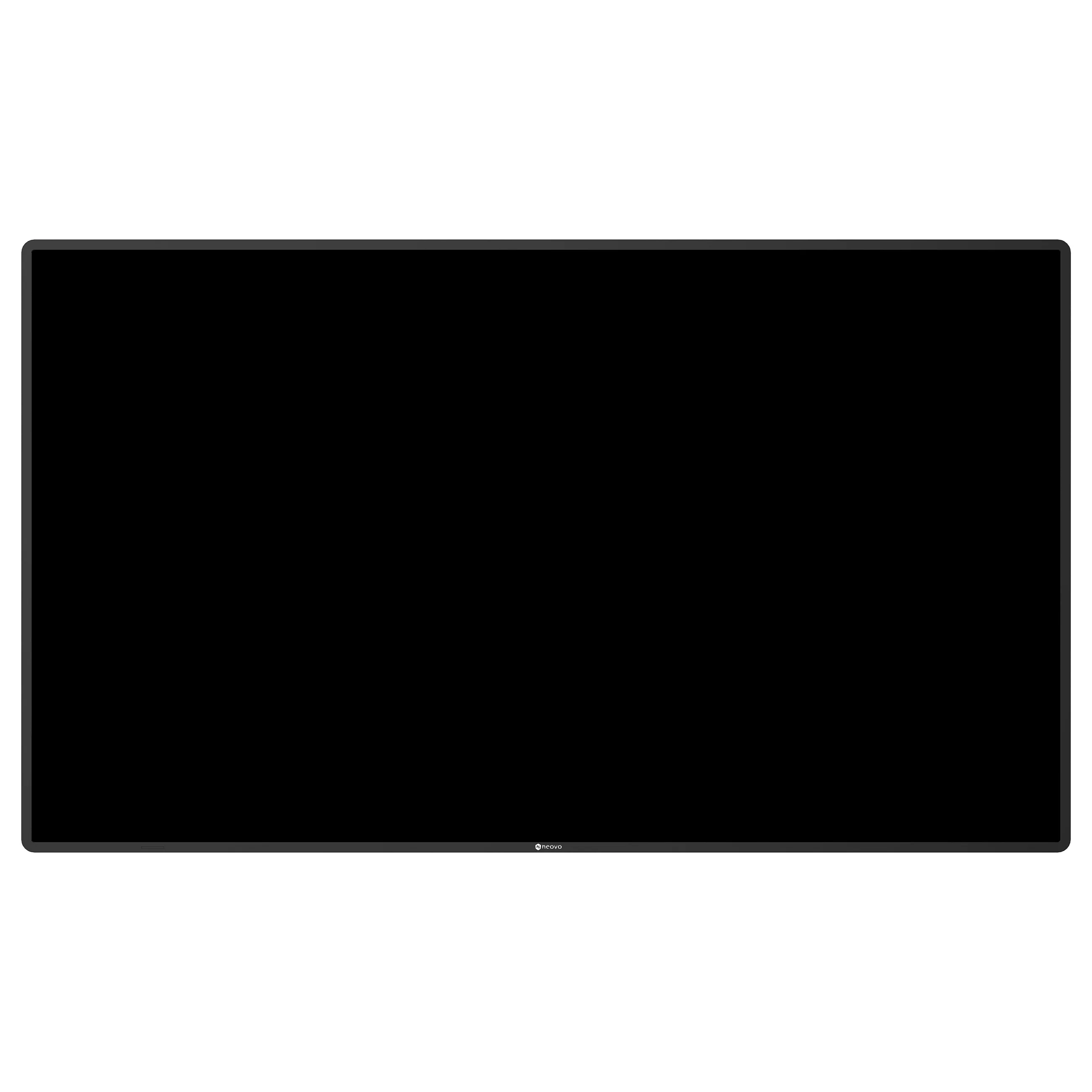

AG Neovo TTN-5501. Display diagonal: 139.7 cm (55"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD. Product colour: Black

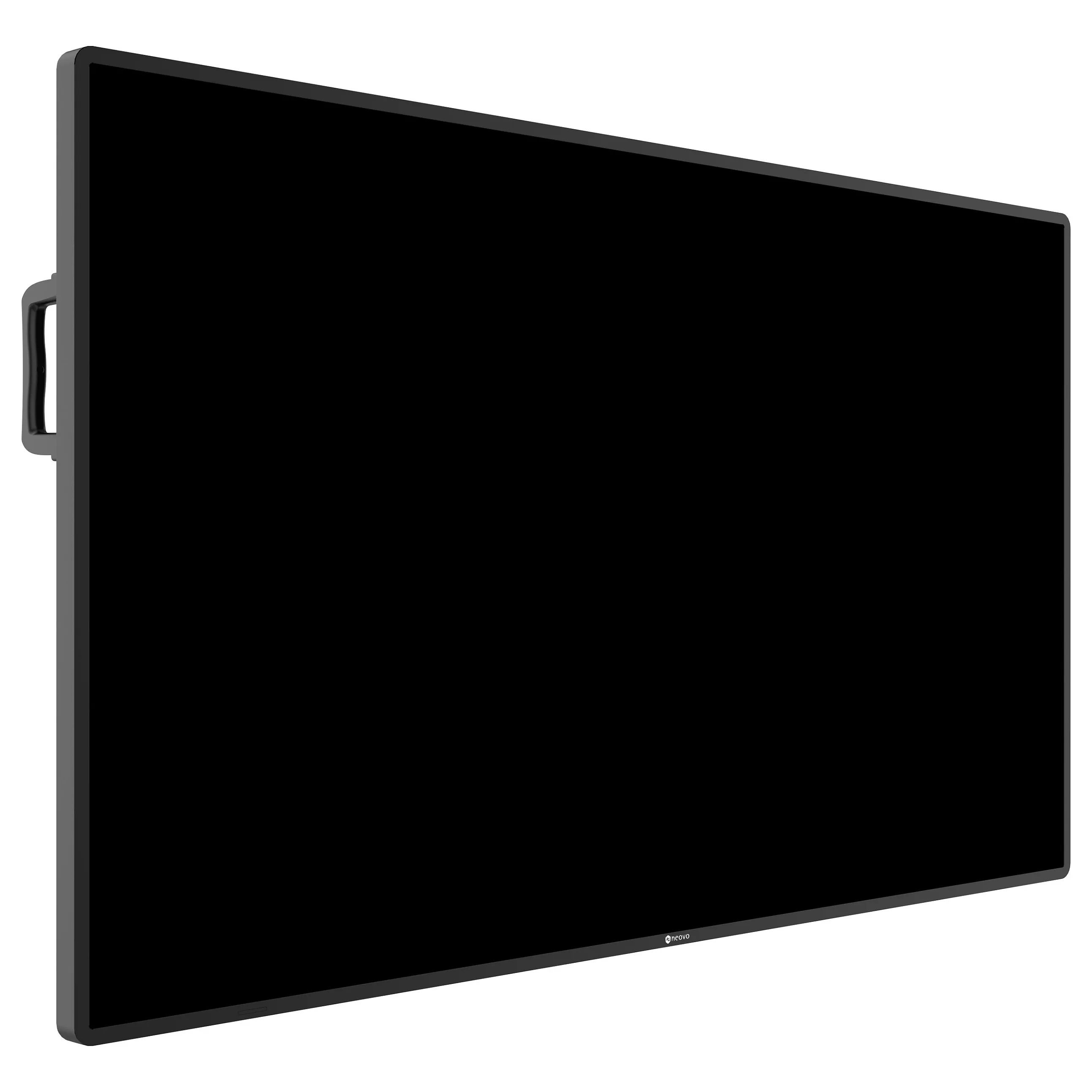

The TTN-5501 55″ LCD display is engineered for critical surveillance in environments like transportation hubs, retail stores, and manufacturing sites, offering exceptional operational excellence 24/7. Its robust construction ensures longevity, and its comprehensive connectivity alongside advanced remote management capabilities streamline operations. Designed specifically for crucial surveillance and property security, the TTN-5501 delivers crystal-clear, detailed video footage with 4K resolution, boosting security efficacy in demanding conditions.
Unyielding Reliability and Durability
Exceptional Front Protection
Experience outstanding durability with our IP22-rated LCD display, crafted to withstand dust and water. The front panel is enhanced with IK08 hardness glass, providing superior scratch resistance and maintaining clarity and resilience over time.
Superior Backside Endurance

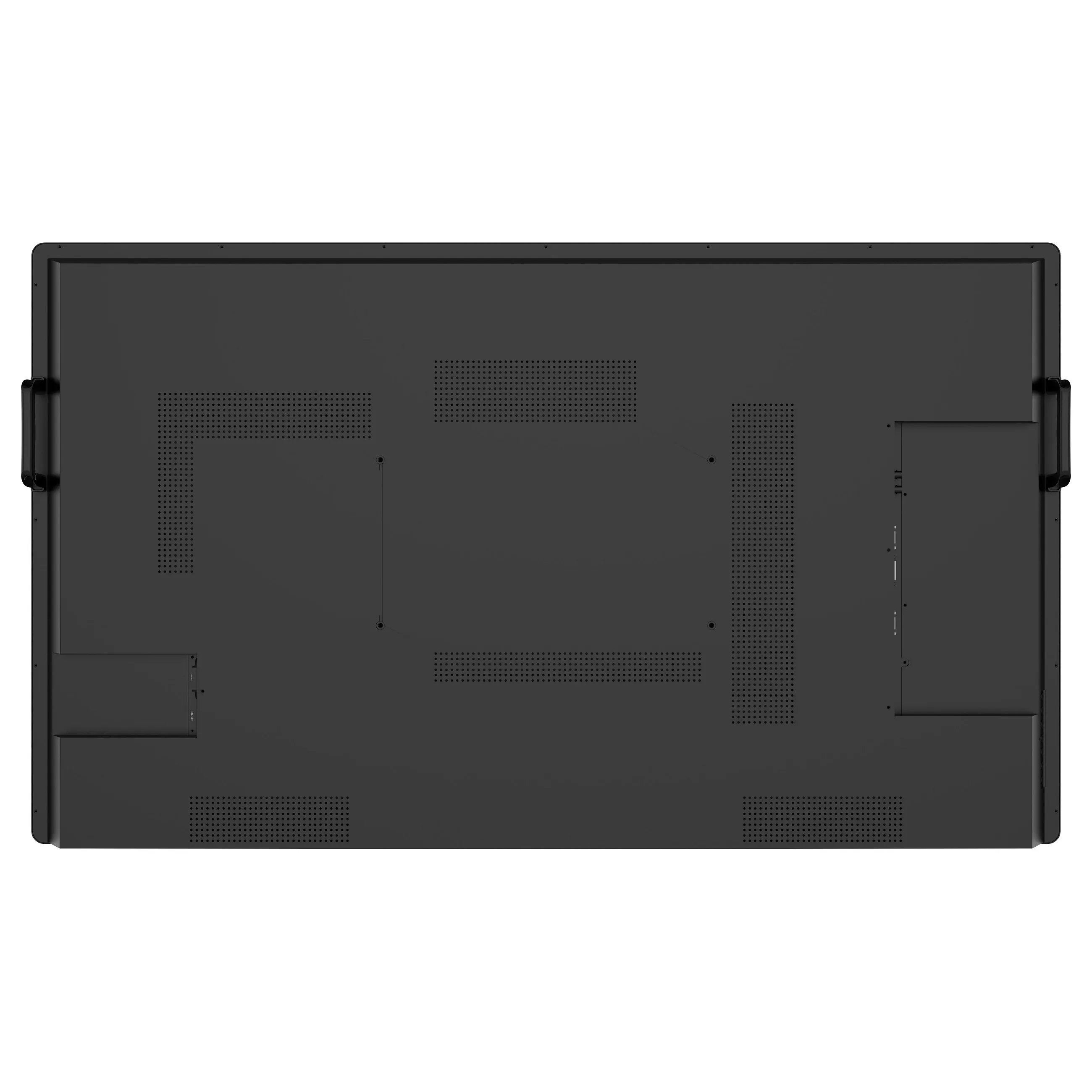

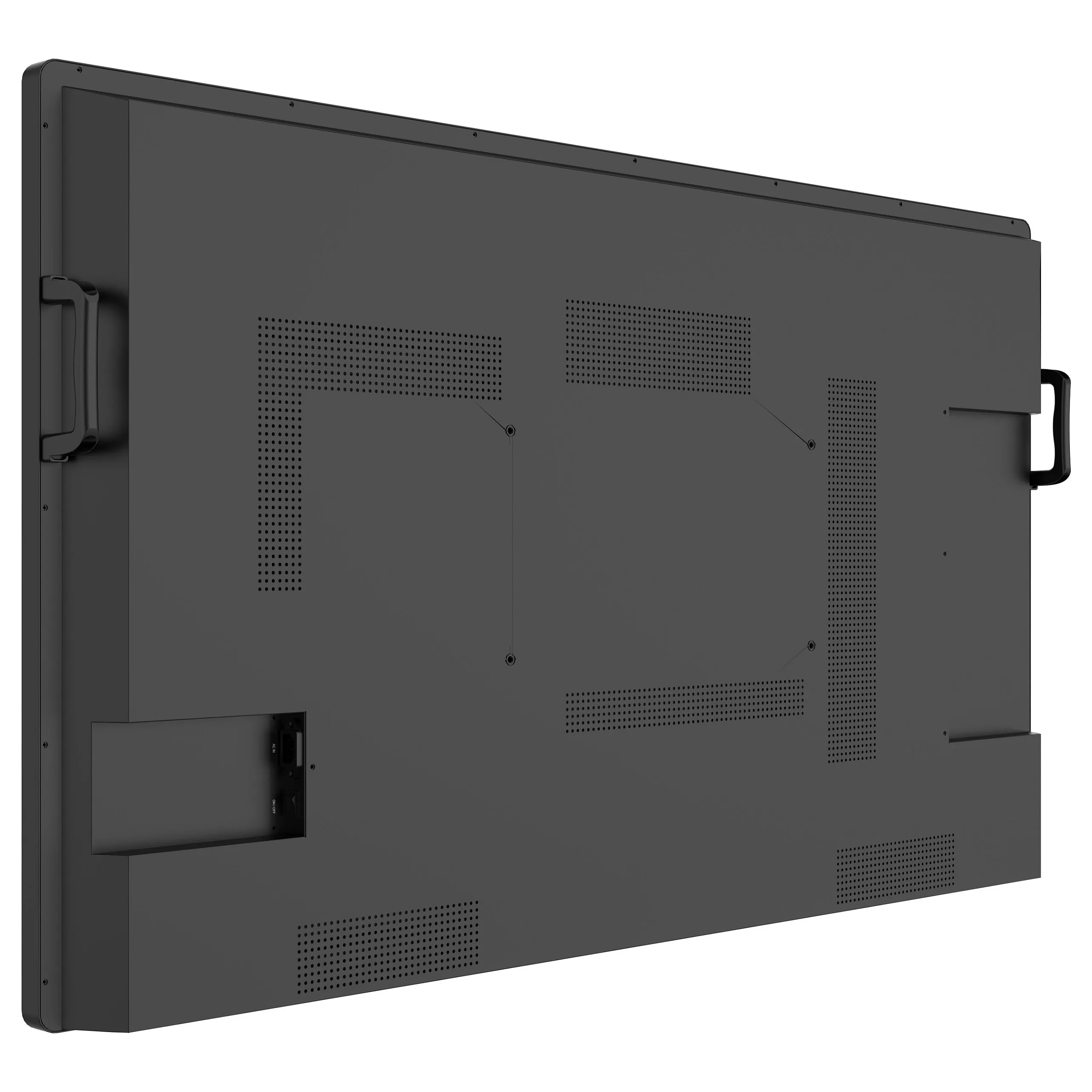

Fortified with an IK10-rated housing, the LCD display offers unrivaled protection against vandalism, ideal for use in public spaces and areas without supervision. Its durable metal casing supports effective heat dissipation, ensuring consistent performance under continuous operation.
Designed for Non-Stop Performance
Advanced Thermal Management
An innovative heat control sensor and a fan-based cooling system actively manage temperatures, maintaining reliability 24/7. Exceeding temperature thresholds triggers alarms, preventing overheating for consistent performance.
Energy Efficiency
EcoSmart Technology dynamically adjusts backlighting based on environmental lighting, reducing power consumption by 30-50%. This feature not only saves energy but also supports sustainable operation, essential for businesses aiming to minimise their ecological impact while maintaining constant surveillance.
Optimal Image Quality Assurance for video surveillance
Consistent Clarity & Extended Lifespan
Anti-burn-in technology prevents static image degradation, preserving image quality over time and maintaining the clarity and accuracy of surveillance footage, critical for security analysis and decision-making.
4K Resolution for Unmatched Detail
Elevate your surveillance with our LCD display’s 4K resolution, providing brilliant clarity and detail. This high-definition feature ensures every surveillance footage pixel is sharp, facilitating the identification of fine details and critical visual information.
Night Surveillance Enhancement
Our LCD displays enhance black levels to reveal details in night-captured surveillance footage, ensuring even scenes recorded at night are presented with clarity, aiding in thorough monitoring and analysis.
Sharper Images & Improved Recognition
By increasing image sharpness and detail, the LCD display facilitates easier identification of texts, objects, and activities within the surveillance footage, a critical factor in accurate surveillance and security operations.
Seamless Integration and Enhanced Control for Superior Surveillance
Comprehensive Device Integration
A wide range of input options ensures compatibility with various surveillance devices, simplifying system integration for a cohesive and efficient setup.
Panel type: IPS
Display diagonal: 139.7 cm (55″)
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 400 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 5 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm
Horizontal scan range: 31 – 92 kHz
Vertical scan range: 48 – 76 Hz
Native refresh rate: 60 Hz
Haze rate: 1%
Surface hardness: 3H
Ports & interfaces
HDMI ports quantity: 1
HDMI version: 2.0
HDMI input ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
Feature: USB port
USB ports quantity: 1
USB version: 2.0
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 24 W
Design
Placement supported: Indoor
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 400 x 200 mm
Feature: Anti-glare screen
Power
Power consumption (typical): 112 W
Power consumption (standby): 0.5 W
Input voltage: 100-240 V
Power consumption (off): 0 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 111.5 kWh
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Energy efficiency scale: A to G
Weight & dimensions
Display width: 1270.4 mm
Display depth: 84.6 mm
Display height: 742.6 mm
Display weight: 29.6 kg
Packaging data
Package width: 1420 mm
Package depth: 870 mm
Package height: 220 mm
Package weight: 35.5 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -10 – 60 °C
Storage relative humidity (H-H): 10 – 80%
Other features
Power supply type: Internal
