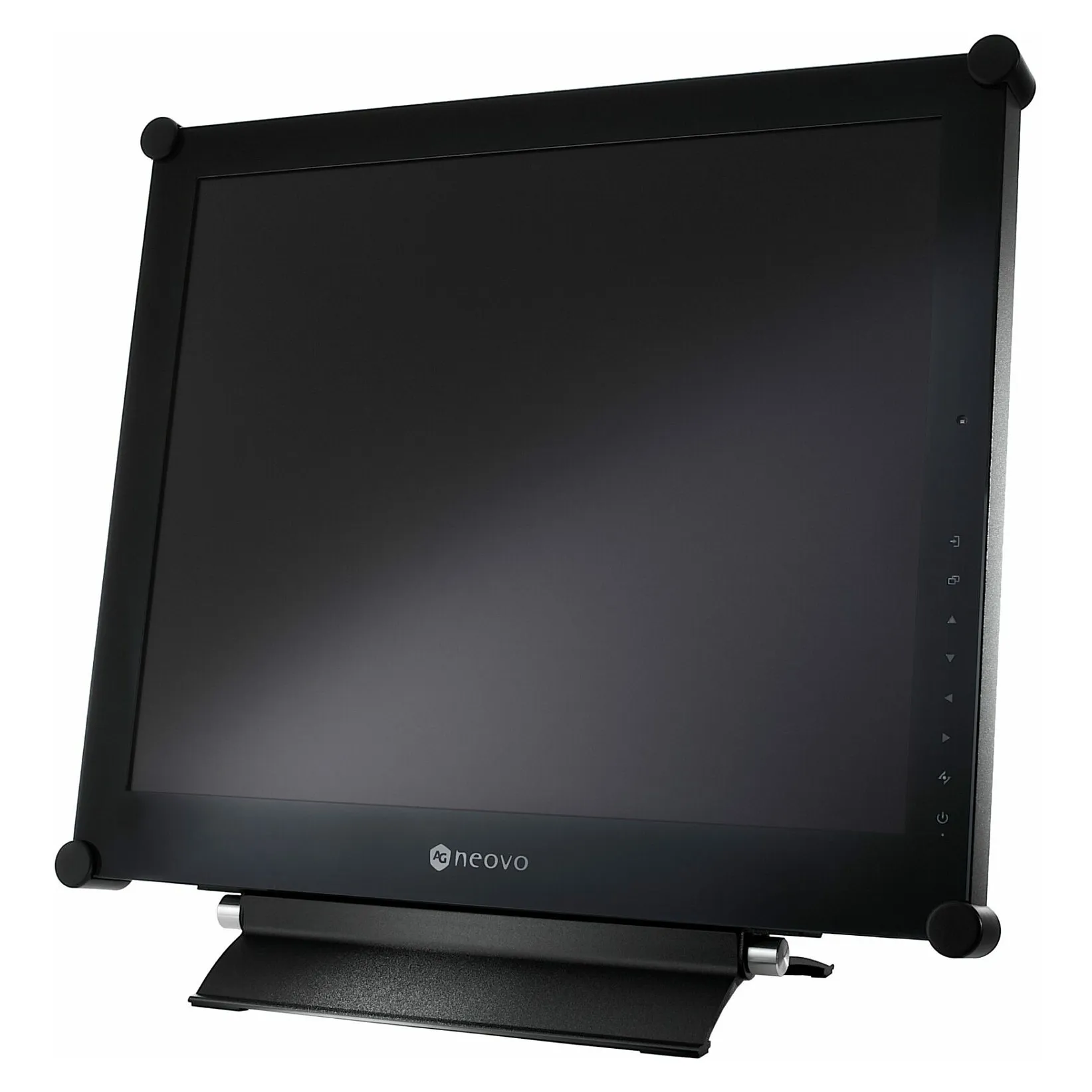

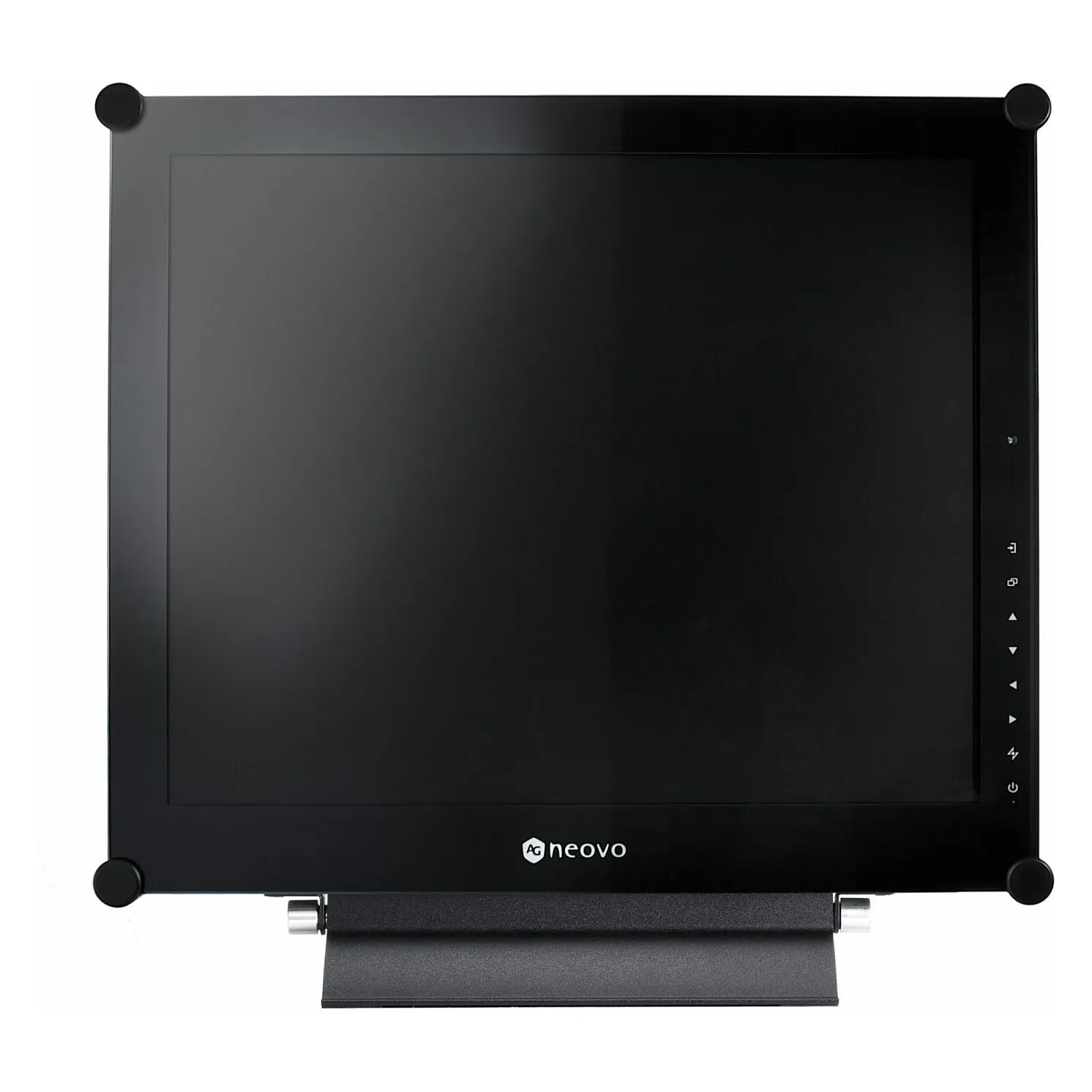

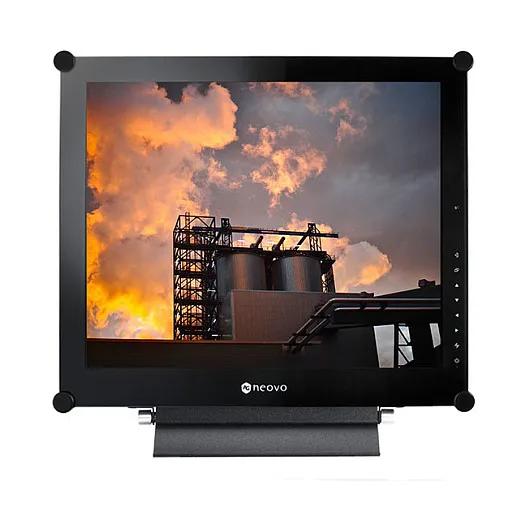

AG Neovo SX-19G. Product type: CCTV monitor, Mounting type: Freestanding/Wall-mounted, Product colour: Black. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display type: LCD. Speaker power: 2 W, Panel mounting interface: 75 x 75,100 x 100 mm, Cable lock slot type: Kensington. Power source type: DC, Power supply type: External, Power consumption (typical): 16 W. Weight: 6.1 kg, Height: 383.9 mm, Depth: 64.5 mm
Industry-leading Reliability
The SX-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-inTM technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoVTM Optical Glass not only protect the SX-Series from damage but also keep maintenance easy.
Optimised for Surveillance and Security
Built with cutting-edge super-resolution technology, the SX-Series can upscale images at a higher and more detailed resolution for better clearness. Besides, geared specifically for a surveillance control room, a user-friendly CCTV mode is pre-configured to maximise image clarity in the scenario of low light surveillance footage at night.
Highly Versatile and Compatible
The SX-Series supports multiple video input sources, from legacy video cameras to the latest HDMI and DisplayPort equipment. Its lockable Composite input and loop through Composite output make it easy to connect to other gear without the need for a splitter.
Product type: CCTV monitor
Mounting type: Freestanding/Wall-mounted
Product colour: Black
Feature: Tilt adjustment
Tilt angle: 20°
Tilt angle range: 0 – 20°
LED indicators: Yes
Certification: CB, CE, FCC, WEEE, REACH, BSMI
Display
Display diagonal: 48.3 cm (19″)
Display resolution: 1280 x 1024 pixels
Display type: LCD
Panel type: TN
Display brightness: 250 cd/m²
Backlight type: LED
Display aspect ratio: 5:4
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.78 million colours
Pixel pitch: 0.294 x 0.294 mm
Horizontal scan range: 24 – 83 kHz
Vertical scan range: 50 – 75 Hz
Contrast ratio (typical): 20000000:1
Response time: 3 ms
RGB colour space: NTSC
NTSC coverage (typical): 72%
Feature: Anti-glare screen
Glass thickness: 3 mm
Native refresh rate: 60 Hz
Performance
Feature: Built-in speaker(s)
Number of built-in speakers: 2
Speaker power: 2 W
Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington

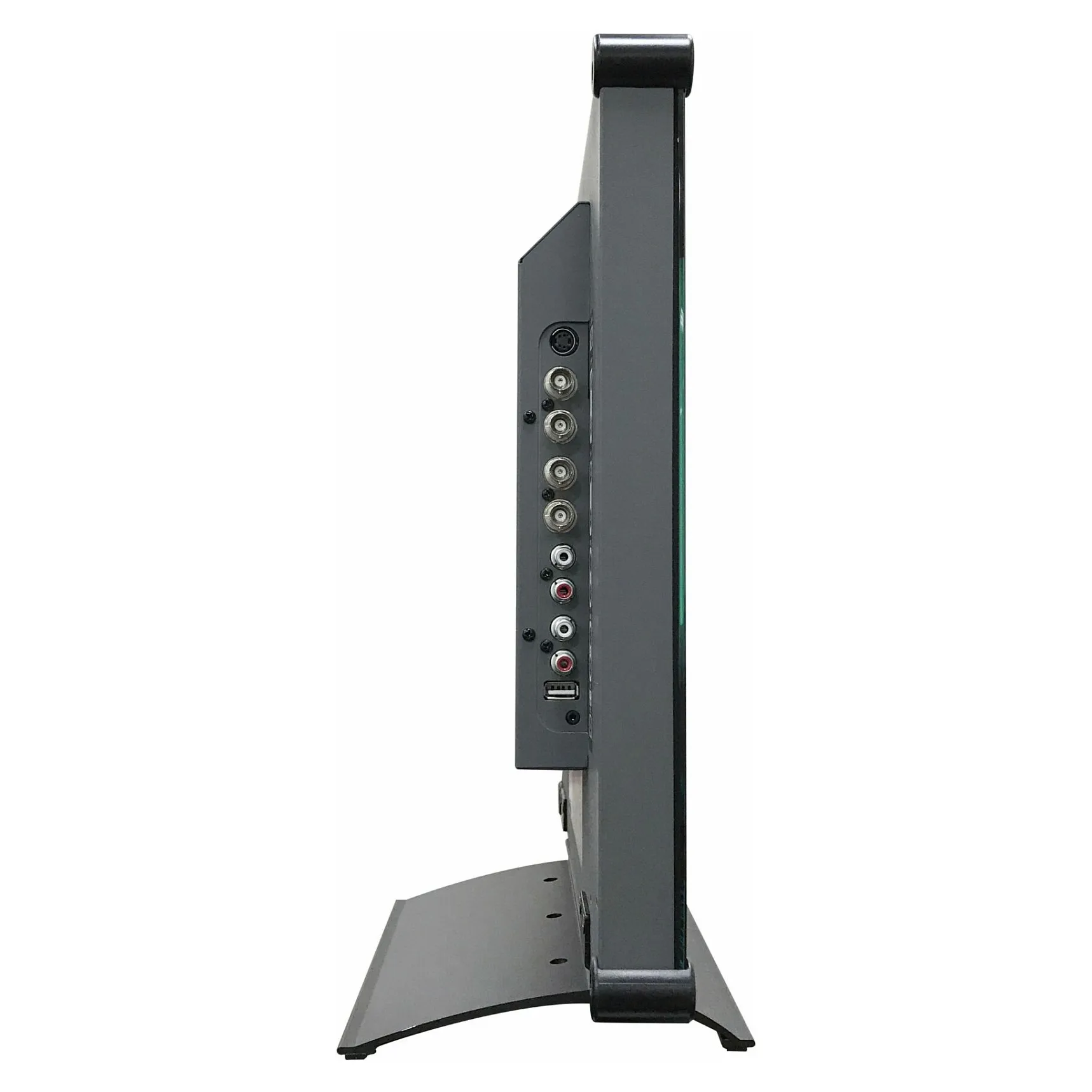

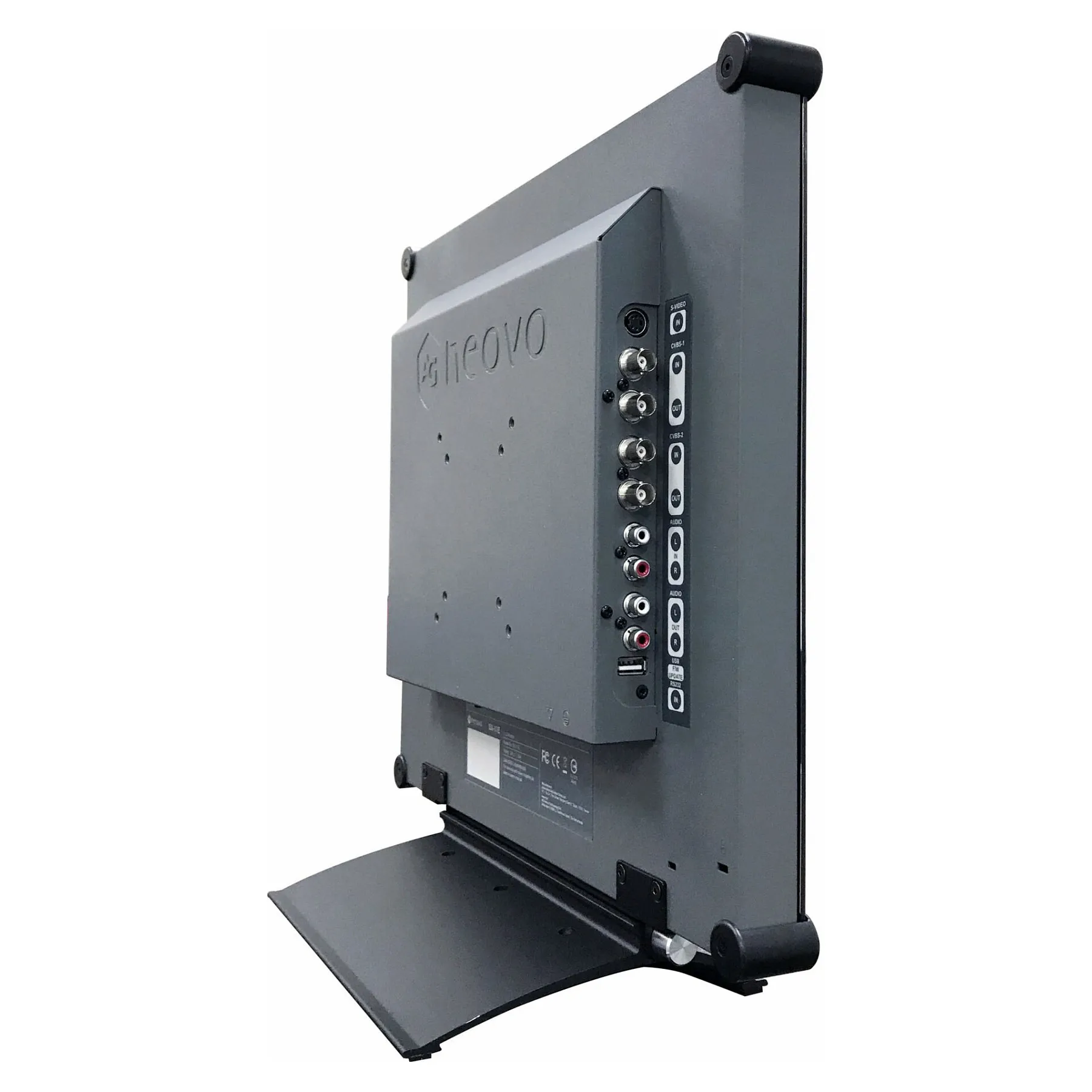

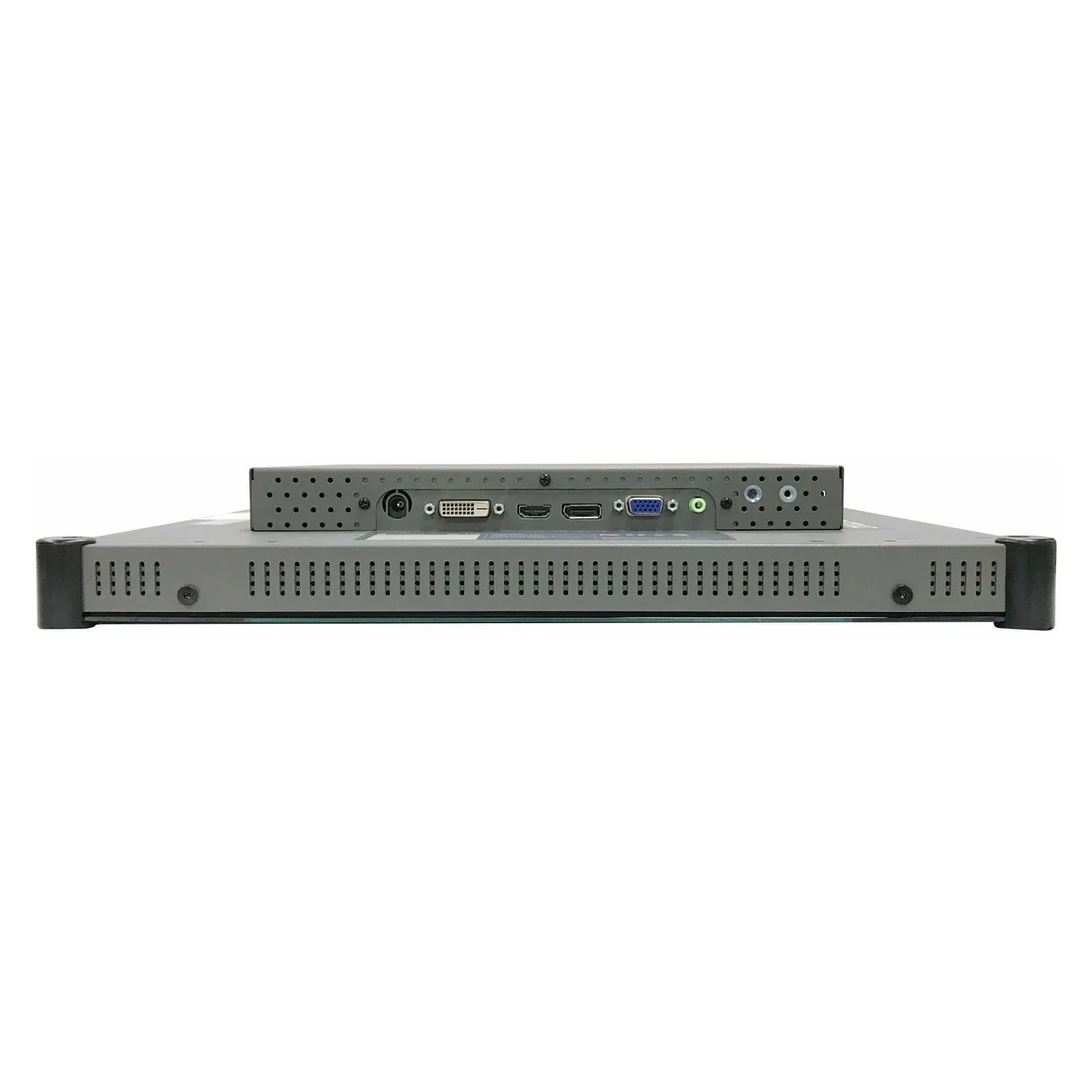

Ports & interfaces
HDMI ports quantity: 1
HDMI version: 1.4
DVI-D ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: USB port
USB 2.0 ports quantity: 1
Composite video in: 1
Composite video out: 1
Feature: 3.5 mm (1/8-inch) in
Feature: DC-in jack
Power
Power source type: DC
Power supply type: External
Power consumption (typical): 16 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
AC adapter output current: 1.75 A
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 95%
Technical details
Compliance certificates: CE, REACH, RoHS, WEEE
Weight & dimensions
Weight: 6.1 kg
Height: 383.9 mm
Depth: 64.5 mm
Width: 445.4 mm
Width (with stand): 445.4 mm
Depth (with stand): 175 mm
Height (with stand): 420.2 mm
Weight (with stand): 6.9 kg
Package type: Box
Package width: 552 mm
Package depth: 225 mm
Package height: 526 mm
Package weight: 93 kg
Packaging content
Feature: AC adapter included
Cables included: AC, Audio, VGA
Quantity: 1
