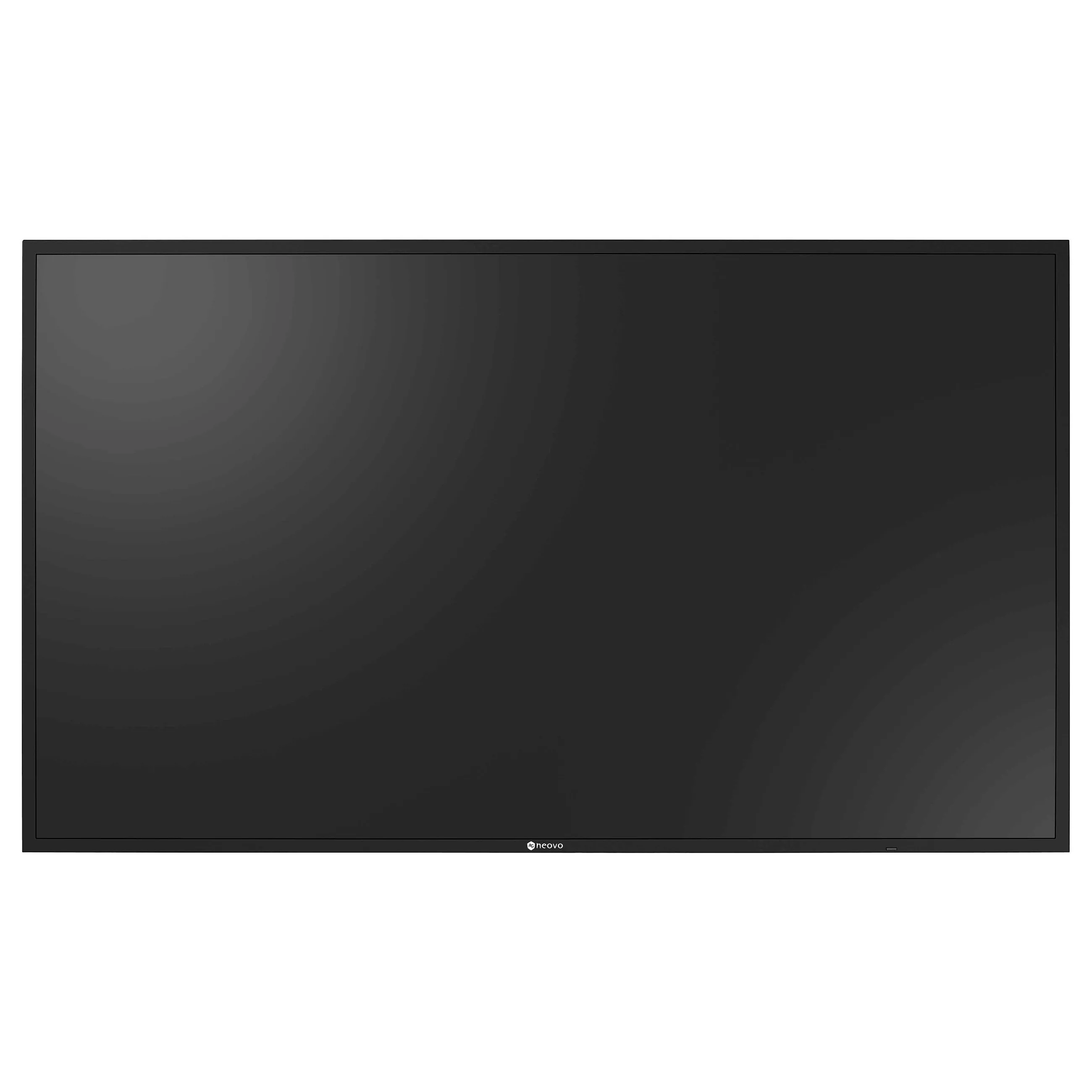

AG Neovo SMQ-4301. Product type: CCTV monitor, Mounting type: Wall-mounted, Product colour: Black. Display diagonal: 109.2 cm (43"), Display resolution: 3840 x 2160 pixels, Display type: LED. Speaker power: 10 W, Panel mounting interface: 400 x 200 mm. Power source type: AC, Power supply type: Internal, Power consumption (typical): 75 W. Weight: 9 kg, Height: 558.3 mm, Depth: 84.6 mm

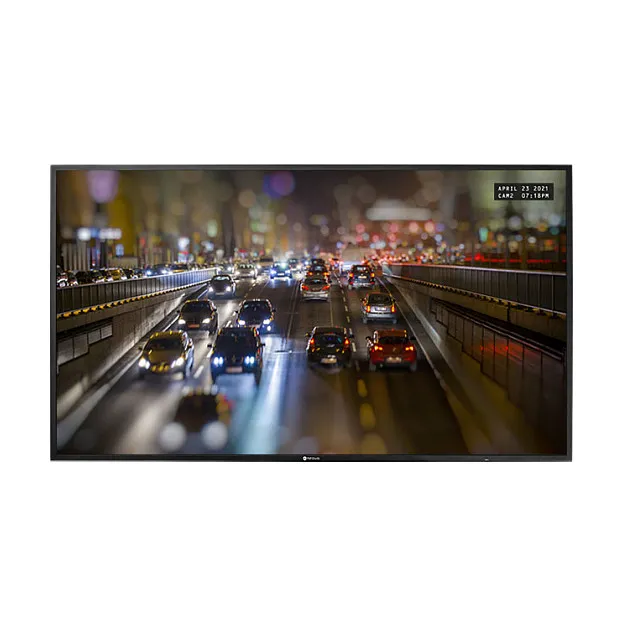

SEE INTRICATE DETAILS IN 4K
The SMQ-4301 features 3840 x 2160 pixels, offering finer video footage. The high resolution enables zoom-in with clear detail as CCTV evidence. As a result, the operator can zoom in on a license plate number or the lines on a face. Furthermore, the panel enables the operator to view smooth 4K video and graphics with a new level of detail and clarity.

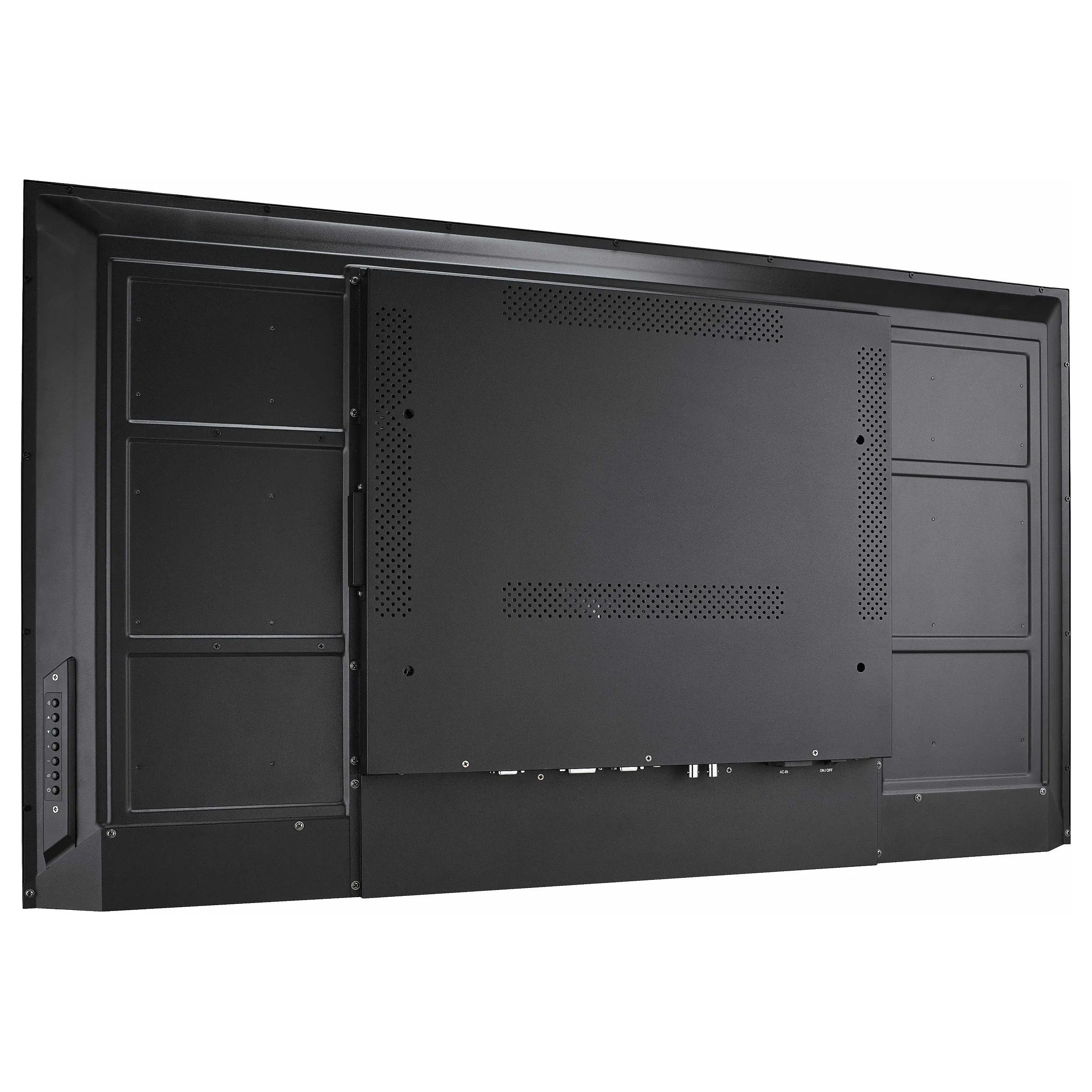

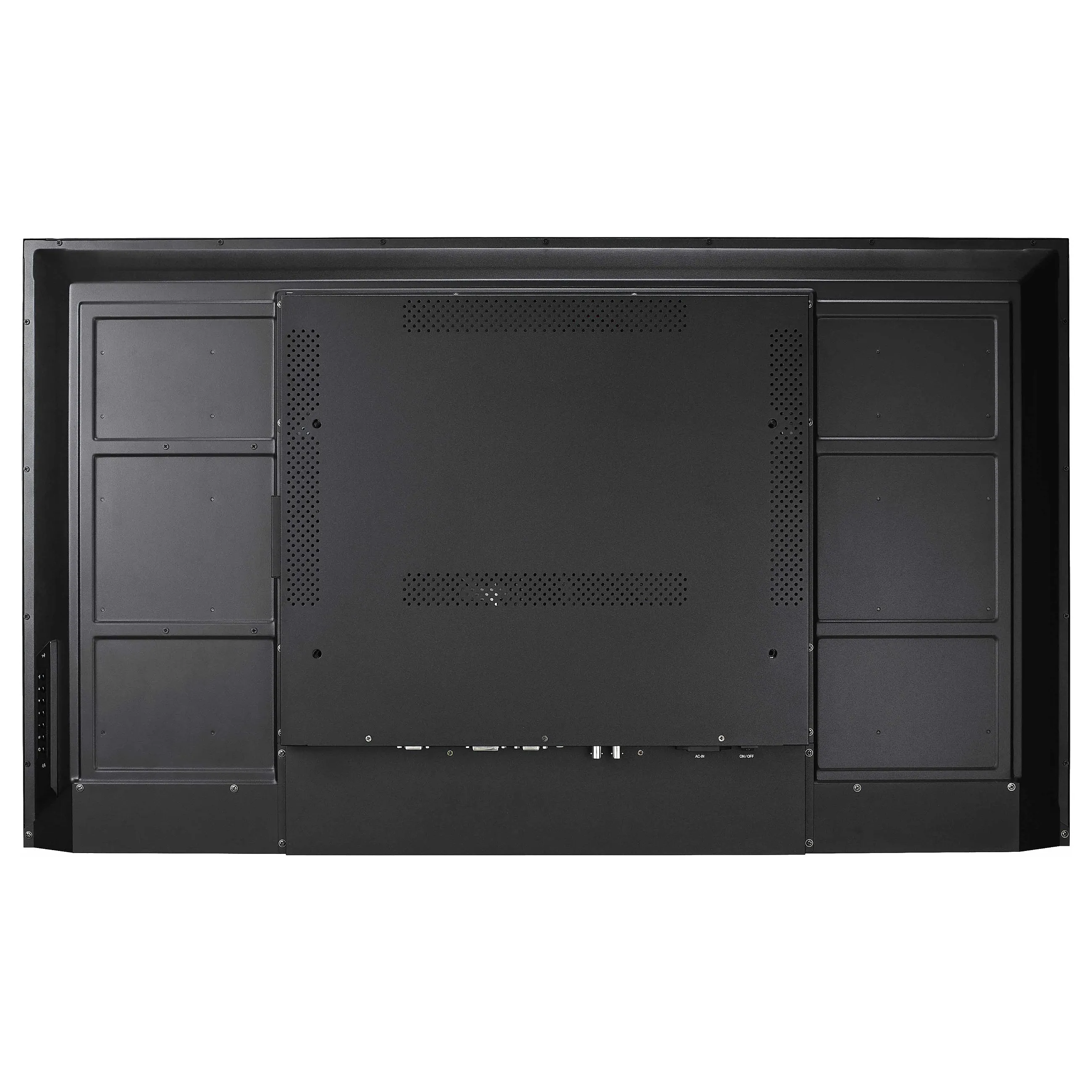

METAL CASING ENSURES RELIABLE MONITORING
The outer metal case provides enhanced heat dissipation, offering a high level of strength and durability. In turn, this improves the cooling performance to ensure 24/7 proper operation.
TAILOR-MADE FOR RELIABILITY
The SMQ-4301 security display adopts a commercial-grade panel and incorporates high-quality components to ensure 24/7 continuous operations. Furthermore, the patented Anti-burn-in™ Technology adds another protection level in mission-critical environments.
FINE-TUNE CCTV IMAGES FOR MAXIMUM CLARITY AND DETAIL
A special pre-configured CCTV Mode maximizes image clarity in low-light footage. You can make granular adjustments and quickly fine-tune your video footage with sharpness, saturation, contrast, brightness, and more. As a result, you don’t need to waste time constantly testing and re-adjusting because the SMQ-4301 already has it all figured out!
ENHANCED GAMMA SELECTION
Offering an enhanced gamma selection makes for excellent visual optimization. As a result, you can easily improve the light, shadow, and colour balance quality of your videos.
VISIBLE DETAILS IN DARK SCENES
The technology lets you make black-level adjustments, which facilitate the display of more details in video surveillance images captured in the nighttime or low-light environments.
EASY CONTROL AND INTEGRATION
The built-in RS232 / LAN connections and AG Neovo PID command & Ctrl software allow you to easily control, configure and maintain multiple-display installations in a simple and intuitive way. The software provides intuitive web and mobile interfaces for remote management and OSD-related settings.
SUPERIOR COMPATIBILITY
The SMQ-4301 is a large-scale 4K surveillance display with built-in BNC and HDMI connections that supports both legacy systems wired over BNC and the 4K digital CCTV systems to display videos.
Product type: CCTV monitor
Mounting type: Wall-mounted
Product colour: Black
LED indicators: Yes
Certification: EAC, UKCA
Display
Display diagonal: 109.2 cm (43″)
Display resolution: 3840 x 2160 pixels
Display type: LED
Display brightness: 350 cd/m²
Display aspect ratio: 16:9
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.245 x 0.245 mm
Horizontal scan range: 15 – 135 kHz
Vertical scan range: 24 – 86 Hz
Response time: 5 ms
Native refresh rate: 60 Hz
Performance
Feature: Built-in speaker(s)
Number of built-in speakers: 2
Speaker power: 10 W
Feature: VESA mounting
Panel mounting interface: 400 x 200 mm

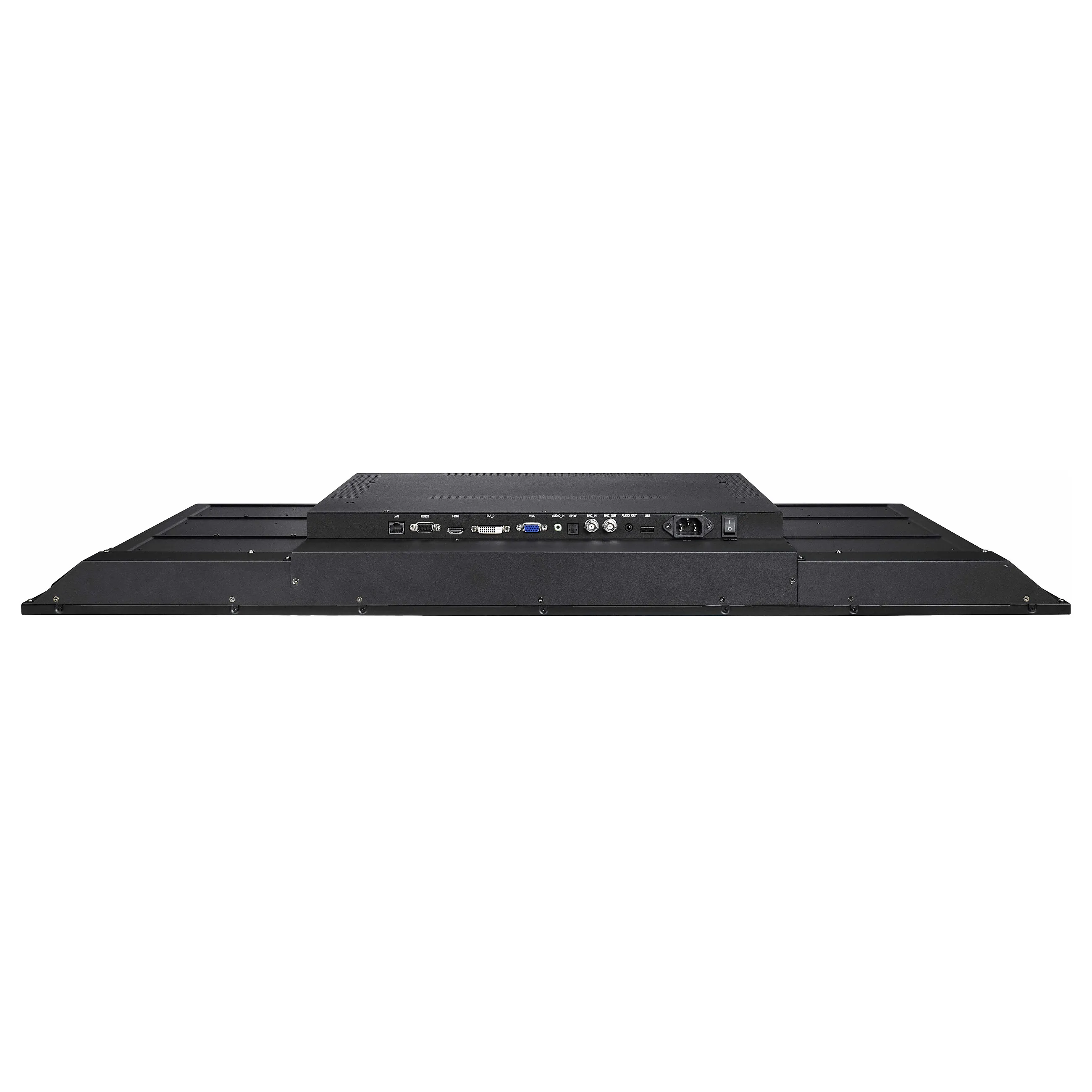

Ports & interfaces
HDMI ports quantity: 1
HDMI version: 2.0
DVI-D ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: Ethernet LAN
RJ-45 ports quantity: 1
Feature: USB port
USB 2.0 ports quantity: 1
Composite video in: 1
Composite video out: 1
Feature: 3.5 mm (1/8-inch) in
Feature: 3.5 mm (1/8-inch) out
Power
Power source type: AC
Power supply type: Internal
Power consumption (typical): 75 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 100 – 240 V
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 75 kWh
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -10 – 60 °C
Operating relative humidity (H-H): 20 – 85%
Storage relative humidity (H-H): 10 – 95%
Technical details
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Weight & dimensions
Weight: 9 kg
Height: 558.3 mm
Depth: 84.6 mm
Width: 969.9 mm
Package type: Box
Package width: 1070 mm
Package depth: 153 mm
Package height: 663 mm
Package weight: 11.7 kg
Packaging content
Feature: AC adapter included
Quantity: 1
