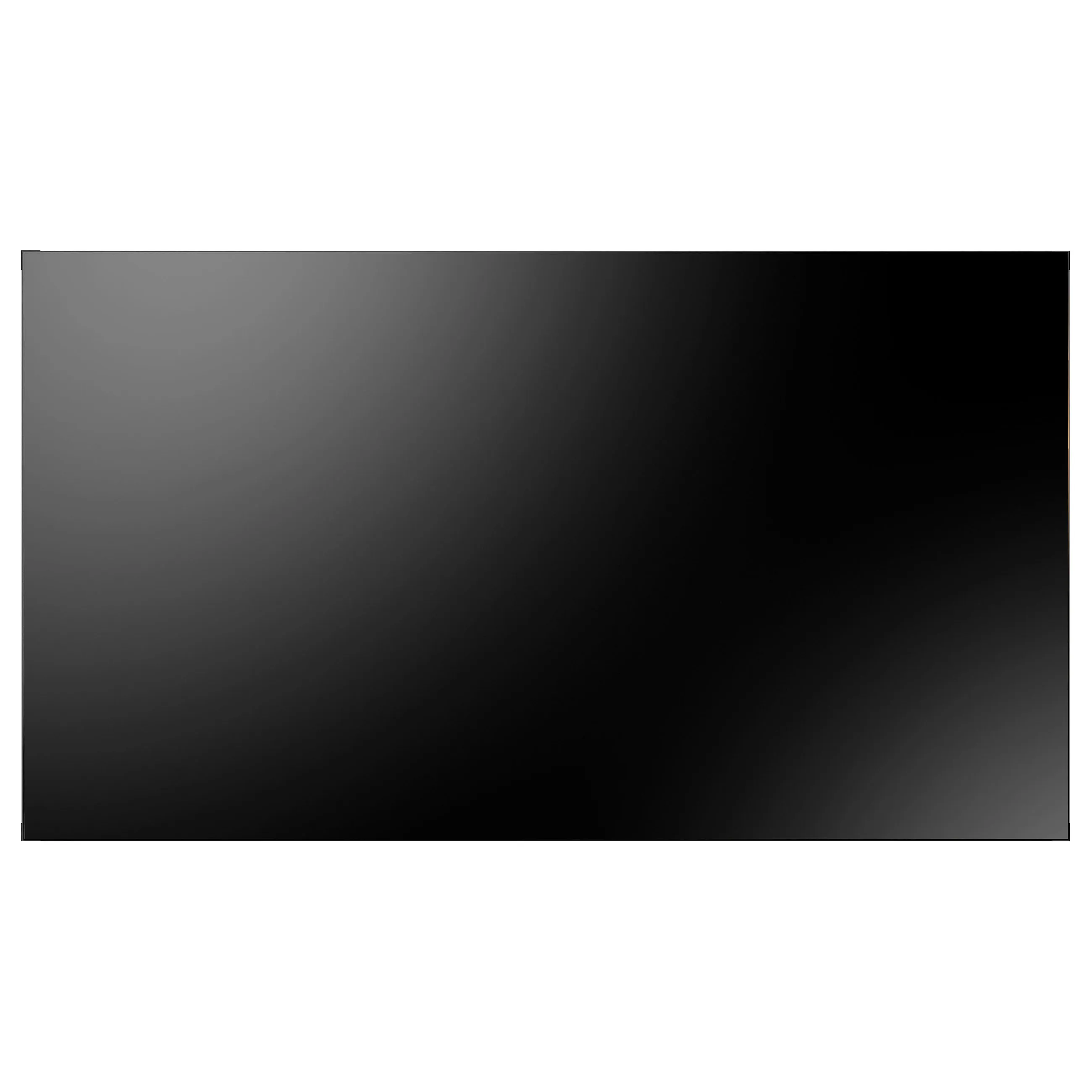

AG Neovo 55-Inch 1080p 500 Nits Ultra Narrow Bezel Video Wall Display. Product design: Digital signage flat panel. Display diagonal: 138.7 cm (54.6"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Product colour: Black
IMMERSIVE VISUAL EXPERIENCE
To ensure that viewers are presented with an uninterrupted visual experience, the PN-55D3 features IPS panel technology with 24/7 operation. The display is further enhanced by a minuscule 3.5 mm bezel-to-bezel transition to create immersive video walls.
ANTI-GLARE COATING WITH HIGH VISIBILITY
Anti-glare treatment with the haze of 28%, high contrast, wide viewing angles, and 500 nits brightness produce images with superior clarity and visibility under ambient light.
PATENTED ANTI-BURN-IN™ TECHNOLOGY
To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in™ Technology to prevent image burn-in and ensure an extended lifespan for displays.
GAMMA SETTINGS FOR CORRECTING COLOUR TONES
The PN-55D3 video wall displays can provide real-time adjustment on the spot. Additionally, multiple sets of Gamma settings produce smoother and more consistent colour tones.
COLOUR CALIBRATION FOR VIDEO WALL SETUP
Screen colour varies due to temperature changes or after long-term use. Fortunately, AG Neovo offers a colour calibration tool, which detects each area using on-screen sensors and automatically fine-tunes colours and details for large-scale display installations.
* This requires consultation with an AG Neovo sales representative.
15×15 LARGE-SCALE VIDEO WALLS
The UniWall™ feature allows the PN-55D3 to natively support video walls of up to 15×15 displays, which can easily be connected to external sources.
DISPLAYPORT 1.2 MULTISTREAM AND IR/RS232 CONTROL CAPABILITY
The DisplayPort 1.2 Multistream functionality allows users to set up, configure, and maintain a 2×2 4K video wall with ease. Users can also easily control multiple PN-55D3 displays via IR or RS232 connections to external devices.
POWERFUL OPS SLOT-IN OPTION
The embedded OPS slot is ready for standardised OPS module installation. Accordingly, the PN-55D3 video wall displays can be seamlessly upgraded to powerful digital signage that is tailor-made for various user scenarios.
LANDSCAPE/PORTRAIT CAPABILITY
The PN-55D3 video wall displays are signage-friendly and can perfectly fit in landscape or portrait mode for complete screen orientation flexibility and to fulfil the needs of various scenarios.
PID COMMAND & CTRL SOFTWARE
PID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers the easy creation of video wall displays. The software also features simple colour calibration, temperature checks, IR/key-locking options, and usage monitoring for daily maintenance.
Display diagonal: 138.7 cm (54.6″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
HD type: Full HD
Native aspect ratio: 16:9
Response time: 5 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.63 x 0.63 mm
Display diagonal (metric): 138.68 cm
Horizontal scan range: 31 – 92 kHz
Vertical scan range: 49 – 85 Hz
Native refresh rate: 60 Hz
Haze rate: 28%
Surface hardness: 2H
Ports & interfaces
HDMI ports quantity: 1
HDMI version: 2.0
Feature: DVI port
DVI-D ports quantity: 1
VGA (D-Sub) input ports: 1
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 1
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1
Remote (IR) output: 1
Feature: OPS module slot
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Feature: Anti-glare screen
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Power
Power consumption (typical): 79 W
Power consumption (standby): 0.5 W
Power consumption (off): 0 W
Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 79 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Energy efficiency scale: A to G
Weight & dimensions
Display width: 1213.4 mm

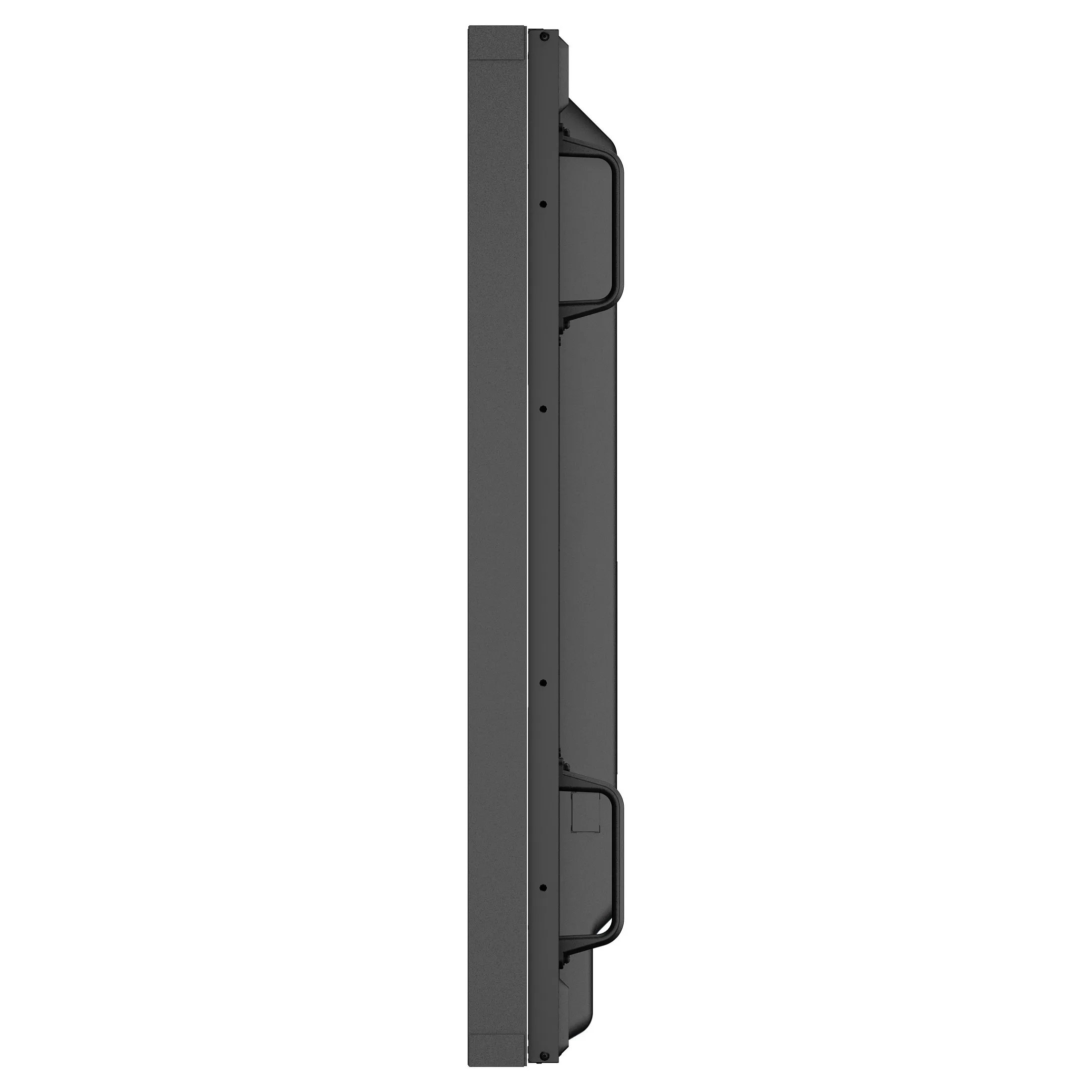

Display depth: 102.7 mm
Display height: 684.2 mm
Display weight: 26.6 kg
Packaging data
Package width: 1395 mm
Package depth: 280 mm
Package height: 838 mm
Package weight: 35.3 kg
Packaging content
Feature: Remote control included
Cables included: DVI, HDMI, IR sensor, RS-232
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 90%
Certificates
Certification: CE ,LVD, WEEE, RoHS, REACH, UKCA, EAC, BSMI
Logistics data
Harmonized System (HS) code: 85285210
Network
Feature: Ethernet LAN
Technical details
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Other features
Feature: Manual
Feature: Power cord included
RS-232 input ports: 1
RS-232 output ports: 1
Power supply type: Internal
