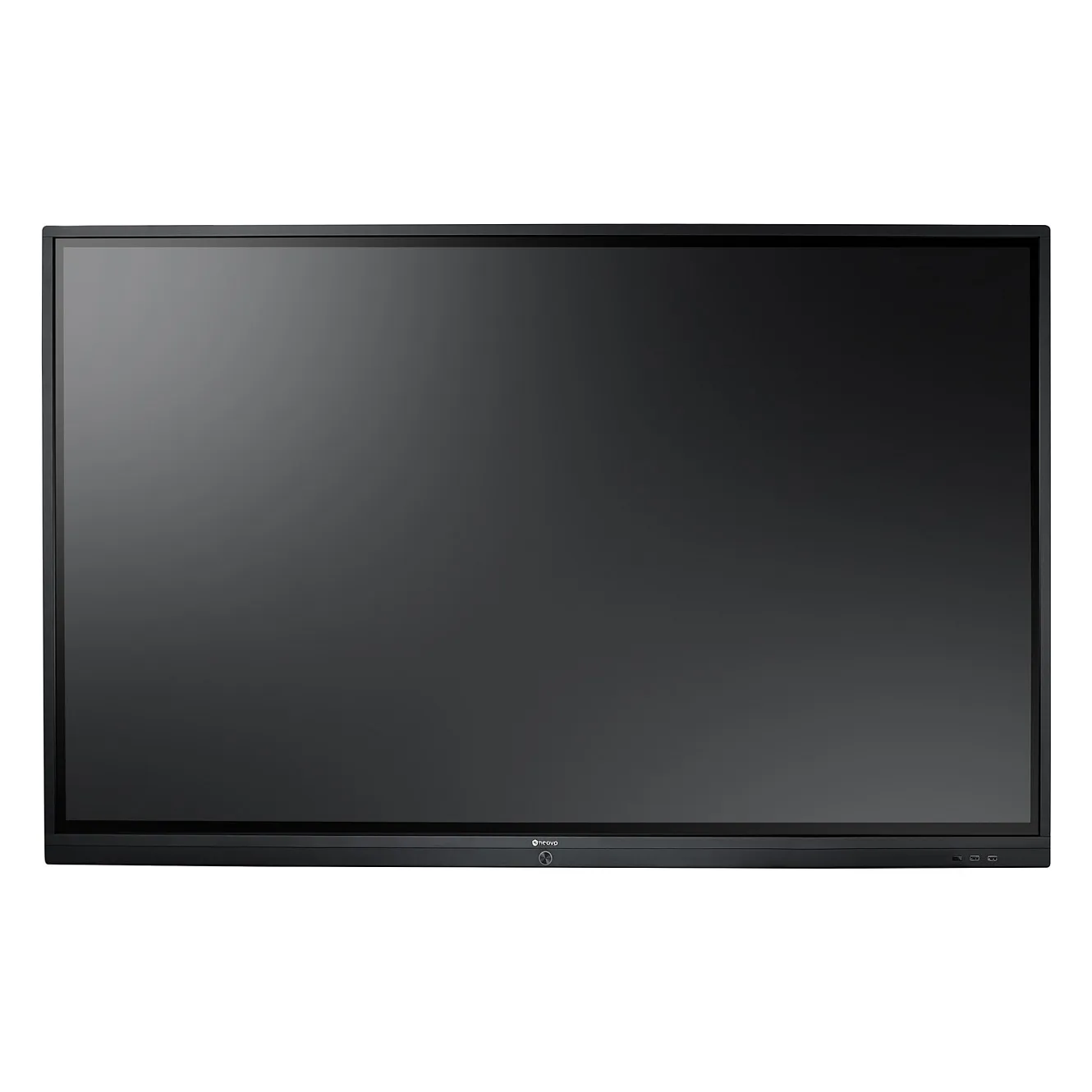

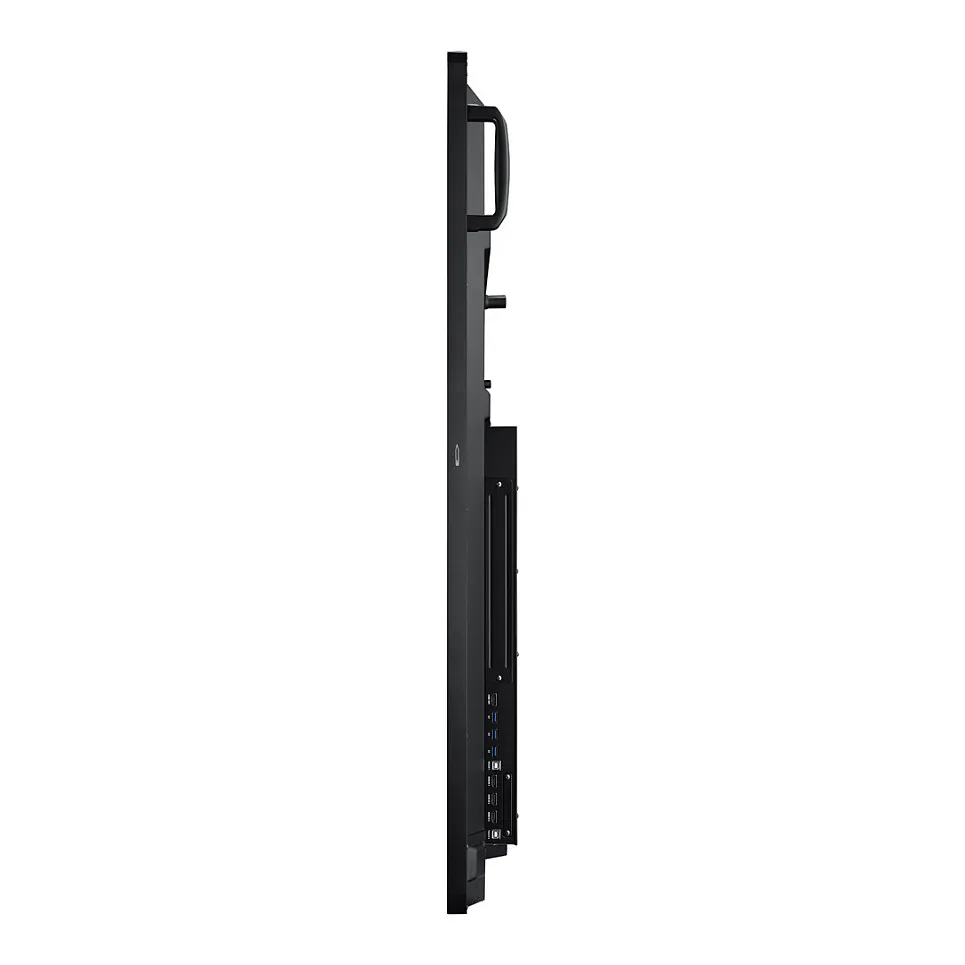

AG Neovo IFP-7502. Product design: Interactive flat panel. Display diagonal: 189.2 cm (74.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android 8.0. Product colour: Black
4K RESOLUTION WITH IPS TECHNOLOGY
Meetboard IFP-7502 delivers visual content to be compelling and sharp on the 4K UHD resolution with IPS panel technology and ensures that colour is consistent and accurate from 178-degree wide viewing angles.
20-POINT MULTI-TOUCH & DUAL PENS
Multiple participants, using fingers or included styluses, can simultaneously draw and annotate on the 20-point touch-enabled screen, making mind-mapping and brainstorming as intuitive as using a whiteboard.
ANDROID OS PLATFORM
Android OS, the most widely-used OS around the globe, provides a steady and intelligent open-source platform that gives you a robust user experience and flexible third-party installation options.
INTUITIVE USER INTERFACE & USEFUL APPS
Simplified and aesthetic Android UI design makes Meetboard more user-friendly and intuitive. Meetboard offers useful applications you needed most for productive meetings, such as browser, file manager app, WPS office, Meetboard whiteboard app, etc.
CLOUD STORAGE ACCESSIBILITY
You can easily access, upload, and download folders and files with a finger of touch on Meetboard cloud storage via Google Drive and Microsoft OneDrive configuration.
SCREEN MIRRORING VIA AIRPLAY, MIRACAST, CHROMECAST AND MORE
Meetboard supports AirPlay, Miracast, Chromecast and also embeds ScreenShare Pro screen mirroring app. You can wirelessly present, share and control multi-media content from either iOS or Android devices on the screen.
AN ALL-IN-ONE VIDEO CONFERENCING SOLUTION
Meetboard IFP-7502 can be easily connected to an all-in-one webcam via a USB cable and is also compatible with preferable mainstream video conferencing apps, like Zoom, Google Meet, Teams, Webex, GoToMeeting, etc.
VERSATILE CONNECTIVITY
This 75-inch interactive flat panel display supports 802.11ac Wi-Fi, Bluetooth, HDMI, USB, VGA and RS232 for fast and seamless connections among the keyboards, webcams, and all the devices your team needs to get their ideas across.
Panel type: IPS
Feature: LED backlight
Display diagonal: 189.2 cm (74.5″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 350 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Infrared
Number of simultaneous touchpoints: 20
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 5 ms
Contrast ratio (typical): 1100:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.43 x 0.43 mm
Display diagonal (metric): 189 cm
Horizontal scan range: 30 – 80 kHz
Vertical scan range: 50 – 76 Hz
Haze rate: 28%
Surface hardness: 8H
RGB colour space: NTSC
Ports & interfaces
HDMI ports quantity: 4
HDMI version: 2.0
HDMI input ports quantity: 3
HDMI output ports quantity: 1
VGA (D-Sub) input ports: 1
Feature: USB port
USB ports quantity: 6
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 32 W
Design
Product design: Interactive flat panel
Placement supported: Indoor
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 800 x 400 mm
Mounting type: Wall
Performance
Purpose: Commercial
Power
Power consumption (typical): 165 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): A
Energy efficiency class (HDR): A
Energy consumption (SDR) per 1000 hours: 240 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Energy efficiency scale: A+++ to D
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Processor architecture: ARM Cortex-A53+Cortex-A73
Processor cores: 4
Internal memory: 3 GB
Internal storage capacity: 16 GB
Operating system installed: Android 8.0
Windows operating systems supported: Windows 2000, Windows 10, Windows 8, Windows 7, Windows XP, Windows Vista, Windows 11
Mac operating systems supported: Yes
Weight & dimensions
Display width: 1710 mm
Display depth: 86 mm
Display height: 1020 mm
Display weight: 50.6 kg
Packaging data
Package width: 1860 mm
Package depth: 280 mm
Package height: 1140 mm
Package weight: 72.9 kg
Packaging content
Feature: Remote control included
Remote control type: IR
Feature: Batteries included
Cables included: AC, HDMI, USB
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 90%
Certificates
Certification: CE, LVD, FCC, WEEE, REACH
Logistics data
Harmonized System (HS) code: 85285210
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Features
Feature: Wall mountable
Technical details
Compliance certificates: RoHS
