Ubiquiti UniFi Flex 2.5G PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 60 Gbit/s. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Form factor: Desktop/Wall-Mounting
Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter*.
*AC power adapter sold separately.
Management features
Switch type: Managed
Switch layer: L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
10G Ethernet (copper) ports quantity: 1
SFP+ module slots quantity: 1
Power connector: DC-in jack
Network
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Data transmission
Switching capacity: 60 Gbit/s
Throughput: 30 Gbit/s
Forwarding rate: 44.64 Mpps
Feature: Jumbo frames support
Security
Feature: Loop protection
Multicast features
Feature: Multicast support
Design
Form factor: Desktop/Wall-Mounting
Product colour: White
Housing material: Polycarbonate (PC)
Feature: Reset button
LED indicators: Activity, Link, PoE, Power, Status

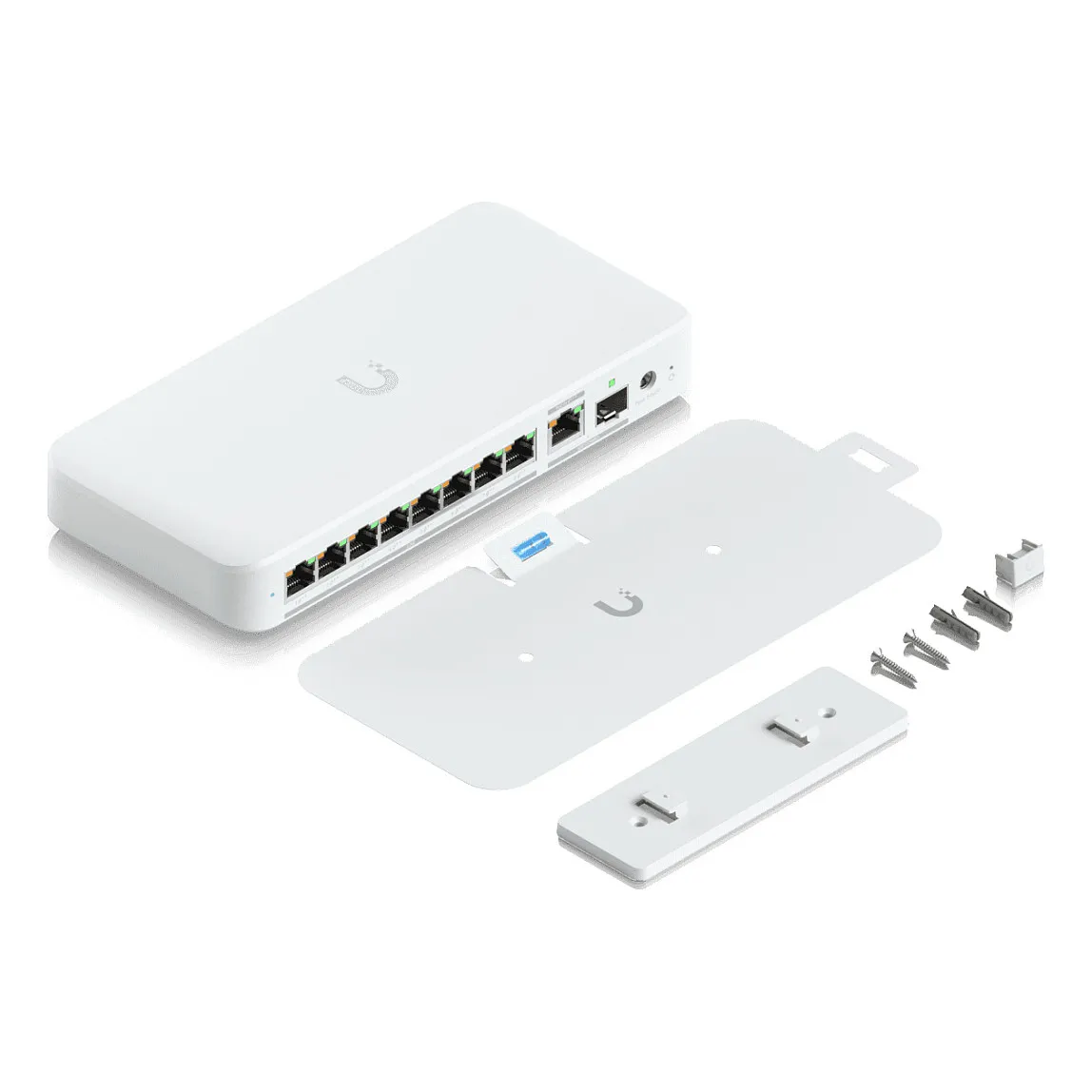

Feature: Wall mountable
Feature: DIN rail mounting
Power
Power source: AC/DC/PoE
DC input voltage: 54 V
Input current: 3.9 A
Power consumption (max): 17 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet 4PPoE (PoE++) ports quantity: 1
Power over Ethernet (PoE) voltage: 57 V
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 196 W
Operational conditions
Operating temperature (T-T): -20 – 45 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 212.9 mm
Depth: 99.4 mm
Height: 33.5 mm
Weight: 567 g
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
Switch type: Managed
Switch layer: L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
10G Ethernet (copper) ports quantity: 1
SFP+ module slots quantity: 1
Power connector: DC-in jack
Network
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Data transmission
Switching capacity: 60 Gbit/s
Throughput: 30 Gbit/s
Forwarding rate: 44.64 Mpps
Feature: Jumbo frames support
Security
Feature: Loop protection
Multicast features
Feature: Multicast support
Design
Form factor: Desktop/Wall-Mounting
Product colour: White
Housing material: Polycarbonate (PC)
Feature: Reset button
LED indicators: Activity, Link, PoE, Power, Status
Feature: Wall mountable
Feature: DIN rail mounting
Power
Power source: AC/DC/PoE
DC input voltage: 54 V
Input current: 3.9 A
Power consumption (max): 17 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet 4PPoE (PoE++) ports quantity: 1
Power over Ethernet (PoE) voltage: 57 V
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 196 W
Operational conditions
Operating temperature (T-T): -20 – 45 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 212.9 mm
Depth: 99.4 mm
Height: 33.5 mm
Weight: 567 g
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
