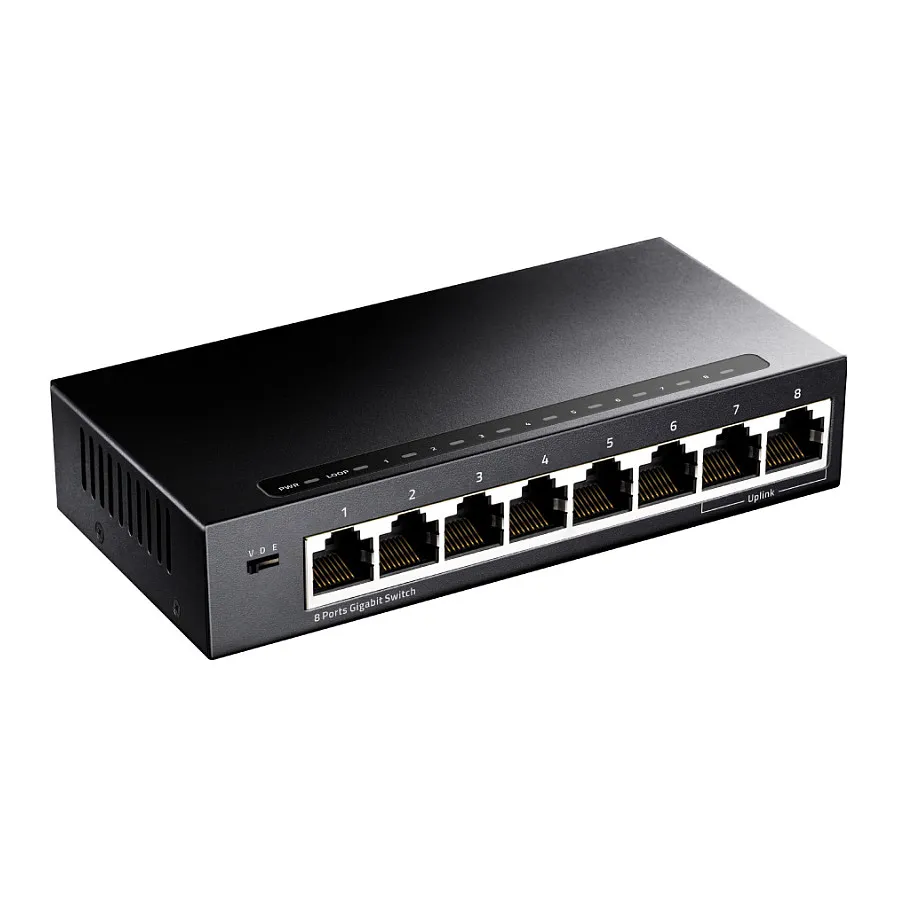

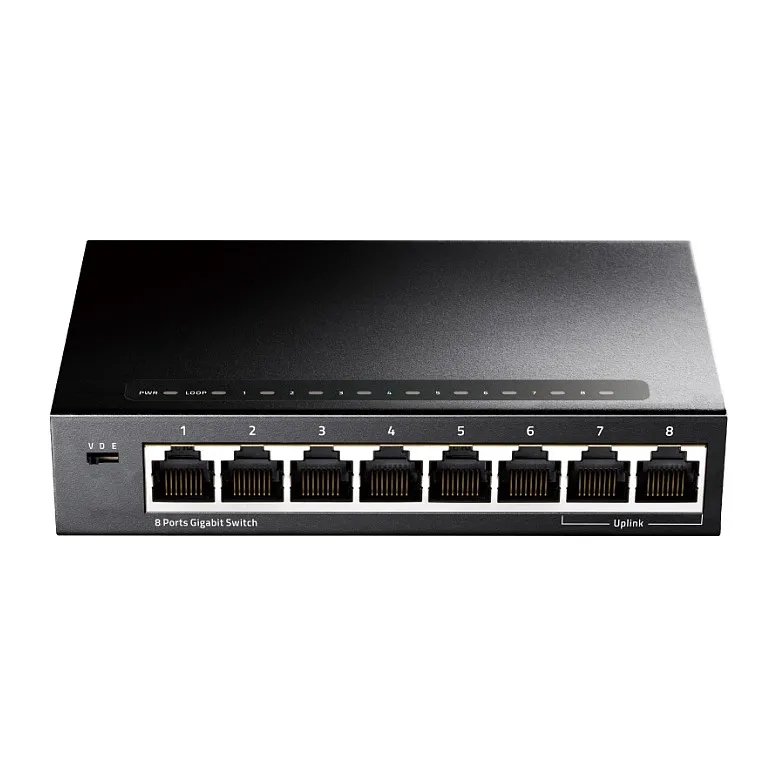

Cudy GS108. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4096 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack
Super-Fast Gigabit
Eight 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.
Extra Transmission Distance
170 meters of Gigabit transmission adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises.
Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.
Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.
A Plug and Play Network Hub
Connect Office Computers to Wired Network
Boost Home Devices with Stable Ethernet
Robust Metal. Compact Size.
Compact enough to fit in most home network distribution boxes. Metal casing delivers simplicity and protection for your network hub.
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

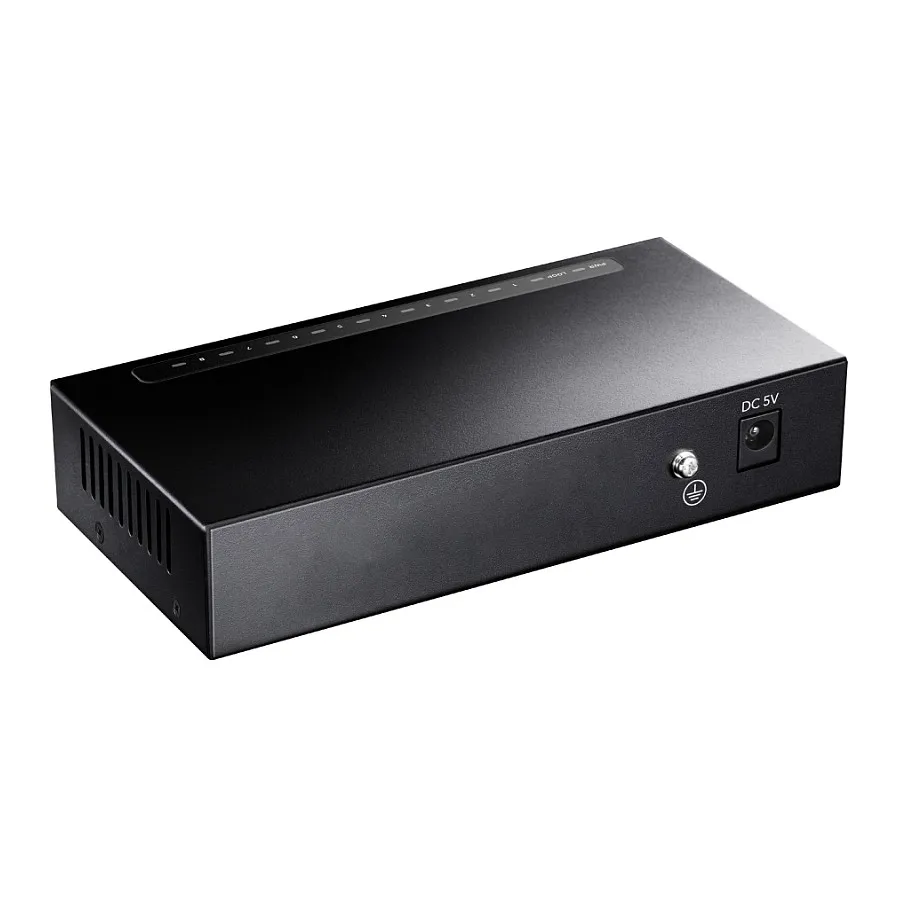

Power connector: DC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat5, Cat5e
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.904 Mpps
MAC address table: 4096 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 0.18 MB
Design
Product colour: Black
LED indicators: Loop, Link, Power
Performance
Mean time between failures (MTBF): 100000 h
Power
Power source: DC
Feature: Power supply included
DC input voltage: 5 V
Input current: 0.55 A
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 0 – 100%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3048 m
Weight & dimensions
Width: 138 mm
Depth: 78 mm
Height: 25 mm
Weight: 300 g

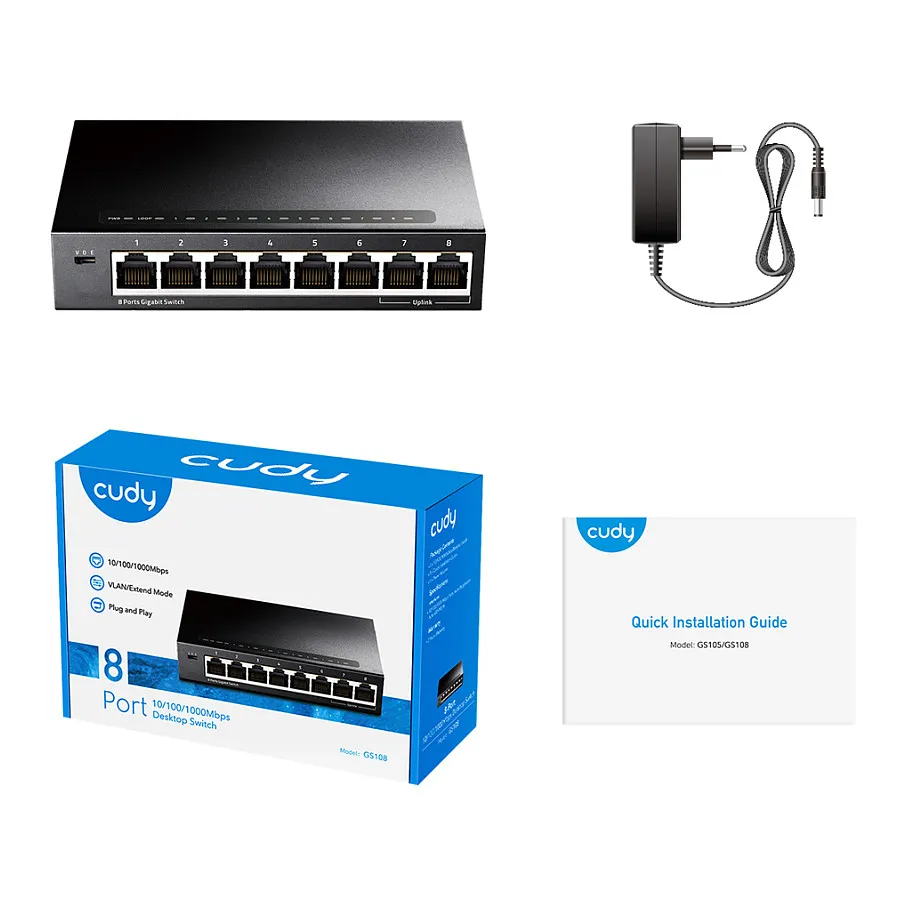

Packaging content
Cables included: DC
Feature: Quick start guide
Packaging data
Package type: Box
Package width: 175 mm
Package depth: 120 mm
Package height: 63 mm
Package weight: 500 g
Logistics data
Master (outer) case width: 505 mm
Master (outer) case length: 320 mm
Master (outer) case height: 400 mm
Master (outer) case gross weight: 21 kg
Products per master (outer) case: 40 pc(s)
