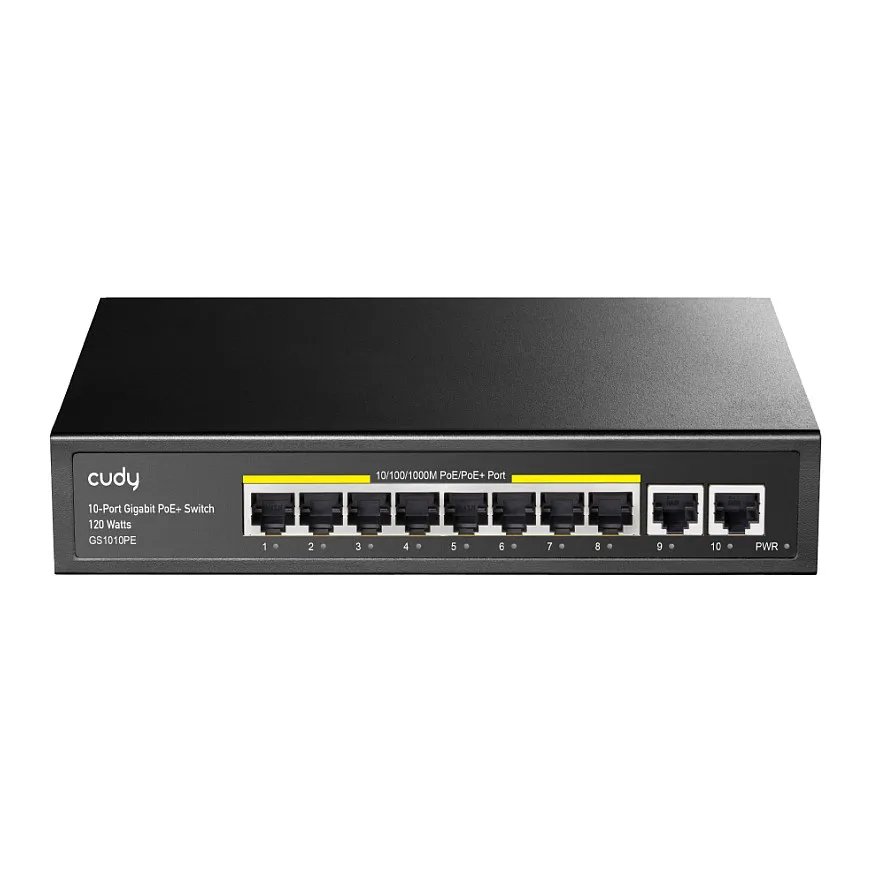

Cudy GS1010PE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 2048 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3i, IEEE 802.1ab. Power connector: AC-in jack. Power over Ethernet (PoE). Wall mountable
IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.
PoE Auto Recovery
Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.
Streamlined PoE Management Loved by Installers
Built-In Modes for Practical Use Cases
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
Exceptional Built-Quality for Stable Operation
Build Robust Systems with Outstanding EMC
Improves service reliability and reduces downtime caused by power surges and ESD.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Shielded Ports. Solid Metal Casing.
Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Uplink ports quantity: 2

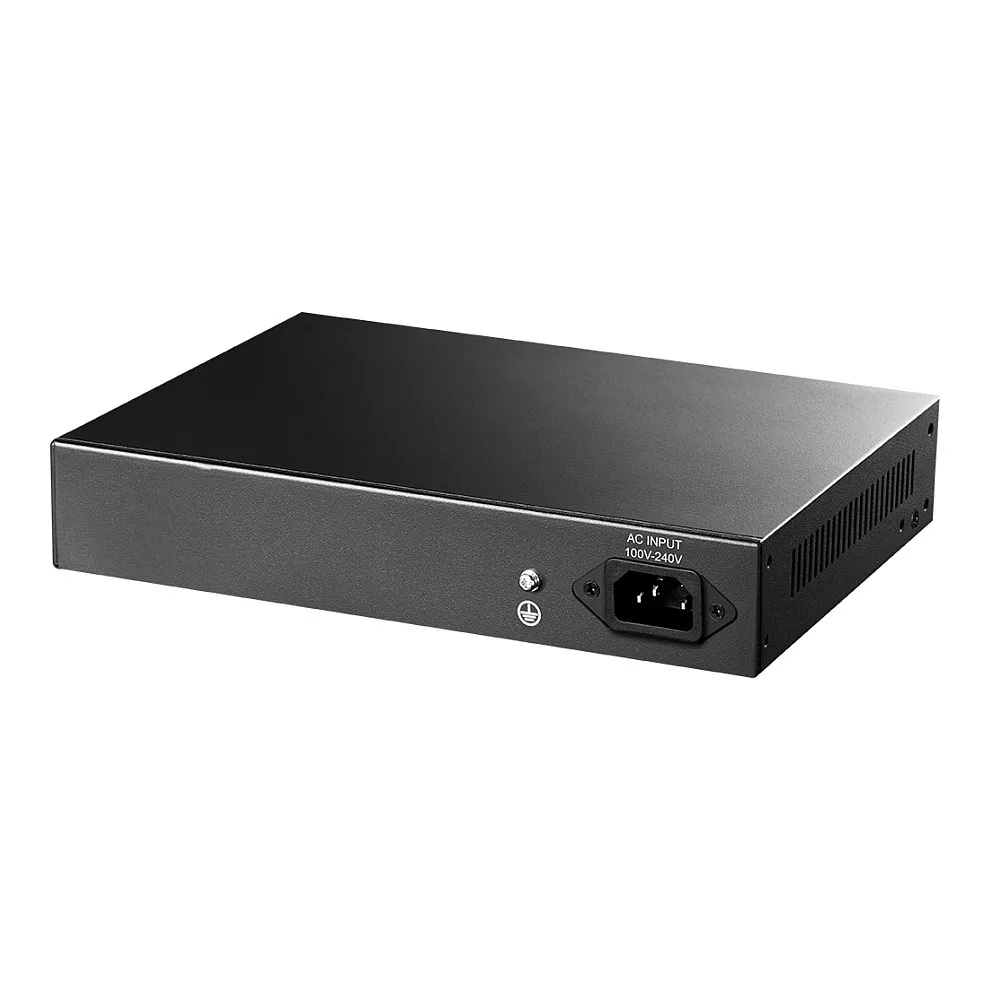

Power connector: AC-in jack
Network
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3i, IEEE 802.1ab
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat5, Cat5e
Feature: Flow control support
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Number of VLANs: 4096
Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 2048 entries
Feature: Store-and-forward
Packet buffer memory: 0.25 MB
Design
Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power
Feature: Wall mountable
Performance
Feature: Plug and Play
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 10 W
Power consumption (max): 120 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 95%
Weight & dimensions
Width: 220 mm
Depth: 163 mm
Height: 40 mm
Weight: 785 g
Packaging content
Cables included: AC
Packaging data
Package width: 303 mm
Package depth: 190 mm
Package height: 60 mm
Package weight: 1.04 kg
