Thermaltake Toughpower Gt. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,450 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Certification: CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK
The fully modular Toughpower GT Snow series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2×6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT Snow series meets the needs of value-oriented users seeking a new power supply with reliable performance.
ATX 3.1 Ready
Toughpower GT Snow series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.
PCIe Gen 5.1 Ready
Toughpower GT Snow series comes with a PCIe 12V-2×6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT Snow 850W can deliver up to 600W for PCIe 12+4pin graphics cards.
Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12+4pin cable.
Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

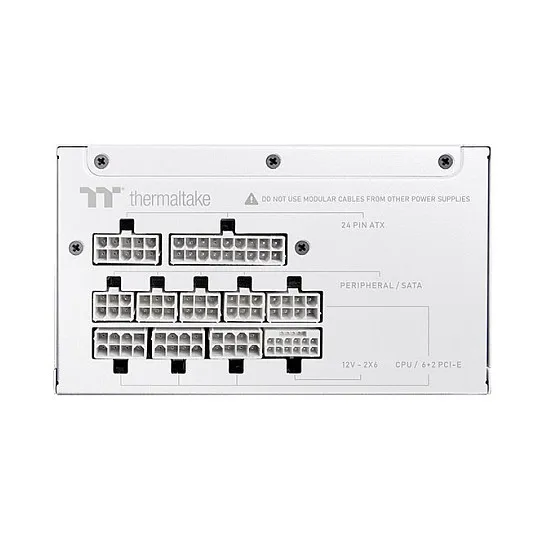

Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile white cables make cable management easier, reduces clutter and increases airflow inside the chassis.
Built-in Industrial Grade Protection
To protect the hardware, Toughpower GT Snow series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
80 PLUS Gold Certified
Toughpower GT Snow series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold.
Total power: 850 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 850 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 17 ms
Power Good signal delay range: 100 – 250 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 150,450 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150,400 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 600 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Hydraulic
Mean time between failures (MTBF): 100000 h
Design
Product colour: White
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 85%
Storage relative humidity (H-H): 5 – 95%
Certificates
Certification: CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
