Thermaltake Toughpower GF A3 Gold 850W – TT Premium Edition power supply unit

Power
Total power: 850 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 849.6 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 17 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

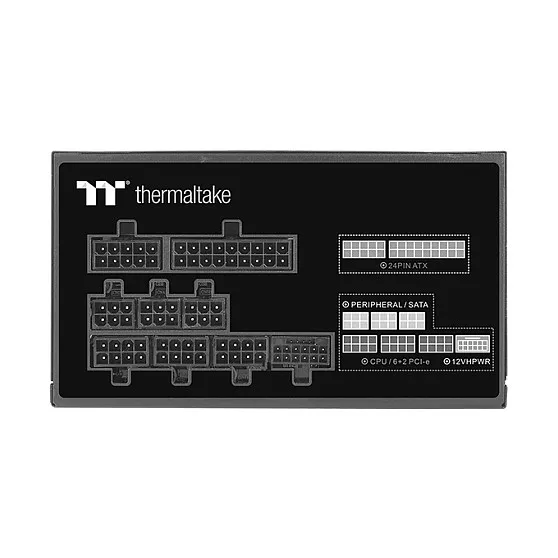

Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 500,650,800,950 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12+4 pin): 1
Feature: CPU power connector (4+4 pin)
Feature: ATX Power connector (24-pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Floppy disk drive cable length: 15 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 85%
Storage relative humidity (H-H): 5 – 95%
Certificates
Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), cTUVus, UKCA
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Logistics data
Warranty period: 10 year(s)
