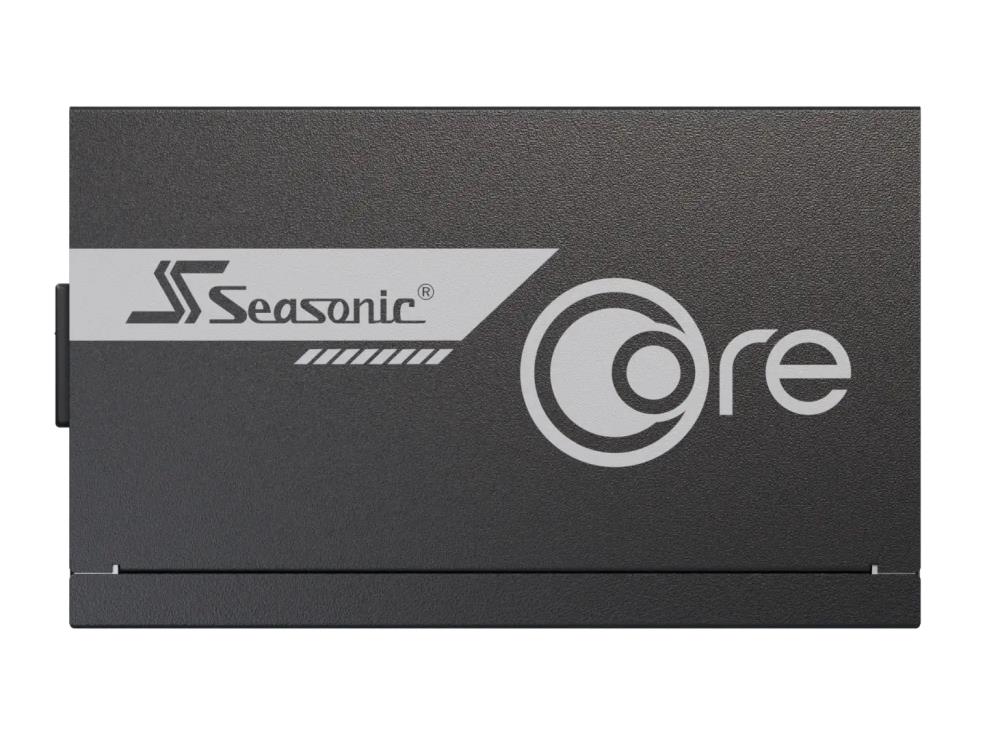

Seasonic SRP-CGX851-A5A32SF. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, Peripheral (Molex) to SATA 3.3, CPU, PCIe, SATA
New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GXATX 3 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.
By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.
Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.
Total power: 850 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 9 A
Combined power (+3.3V): 100 W
Combined power (+12V): 840 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Under voltage, Over total voltage, Over voltage, Short circuit
Ports & interfaces
Number of PATA power connectors: 2
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes
Operational conditions
Operating temperature (T-T): 0 – 50 °C

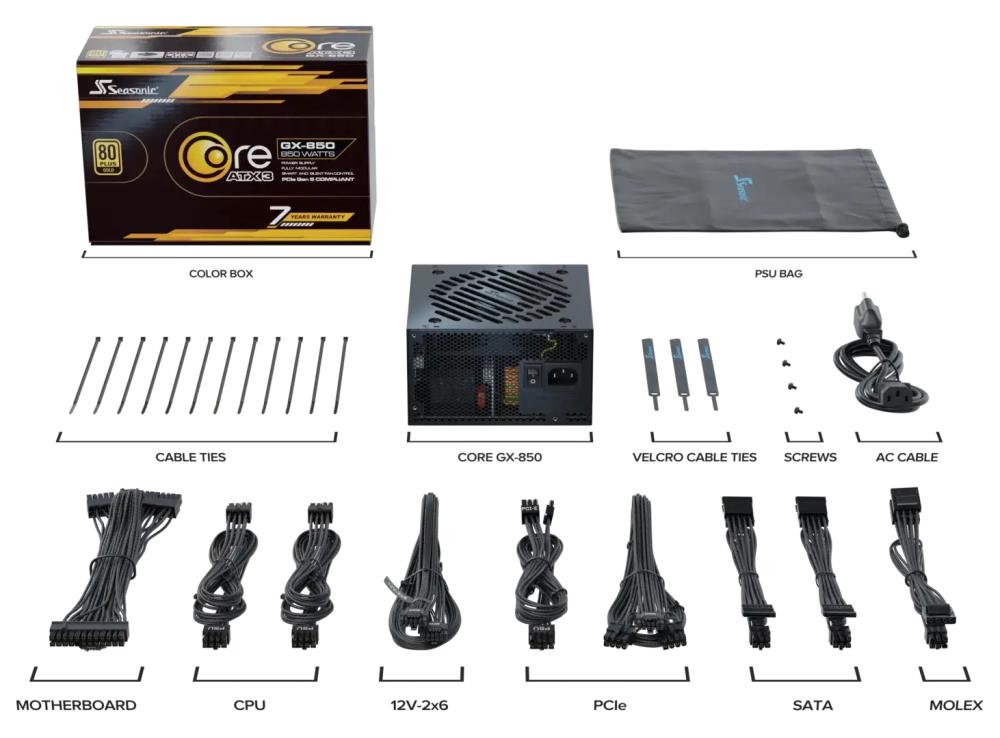

Packaging content
Cables included: AC, Peripheral (Molex) to SATA 3.3, CPU, PCIe, SATA
Certificates
Certification: BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
