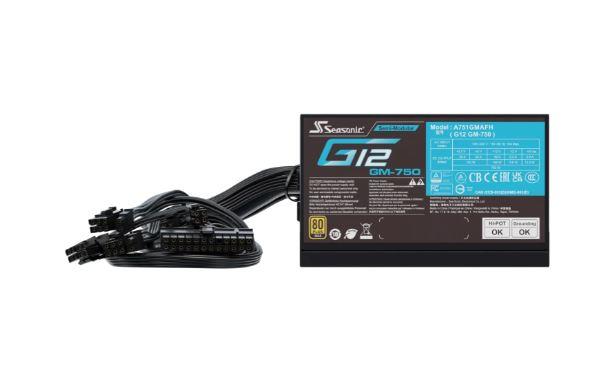

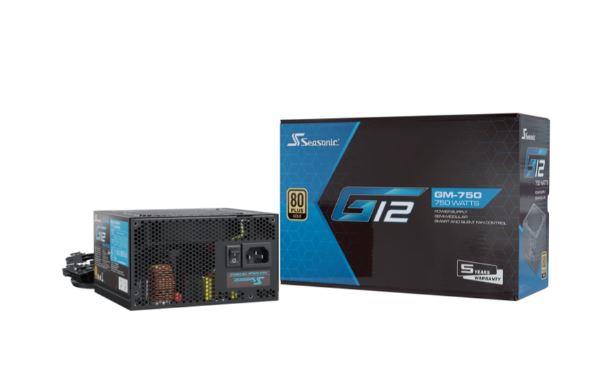

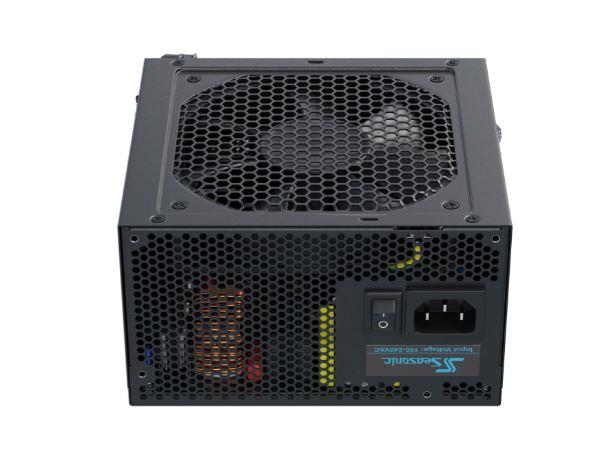

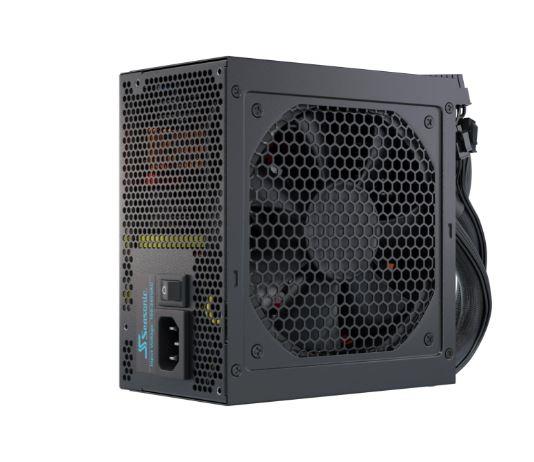

Name: Seasonic G12-GM-750 power supply unit
SKU: K-SSR-750FM
Availability: InStock

Seasonic G12-GM-750 power supply unit

Produkto kodas: K-SSR-750FM

Barkodas: 4711173878506

79,60 €

Atsiėmimas parduotuvėje – 6 d.d.

Pristatymas kurjeriu – 10 d.d.

Garantija – 24 mėn.

Pridėkite likusią sumą (300,00 €) ir pristatysime nemokamai!

Seasonic G12-GM-750. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, Peripheral (Molex) power cable length: 690 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, PCIe, Peripheral (Molex), SATA

The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).

80 PLUS GOLD
The G12 GC achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.

S2FC – SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

Power
Total power: 750 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 10 A
Combined power (+3.3V): 100 W
Combined power (+12V): 744 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over current, Over voltage, Short circuit
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 690 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 70 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
Cabling type: Semi-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Bearing technology: Sleeve
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes
Operational conditions
Operating temperature (T-T): 0 – 50 °C

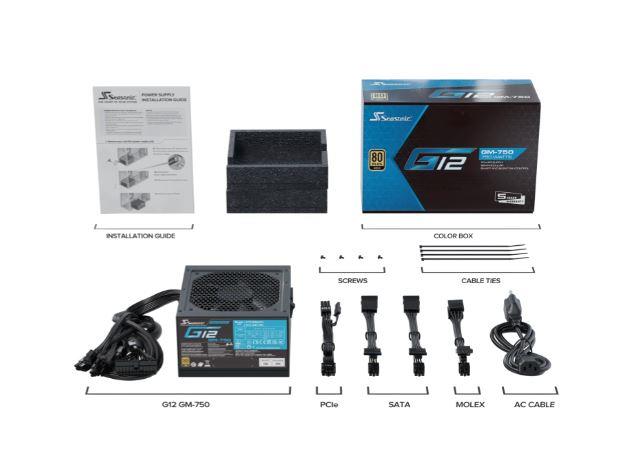

Packaging content
Cables included: AC, PCIe, Peripheral (Molex), SATA
Cable tie(s) included: Yes
Certificates
Certification: cTUVus, TUV, CB, CCC, BSMI, CE, FCC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
