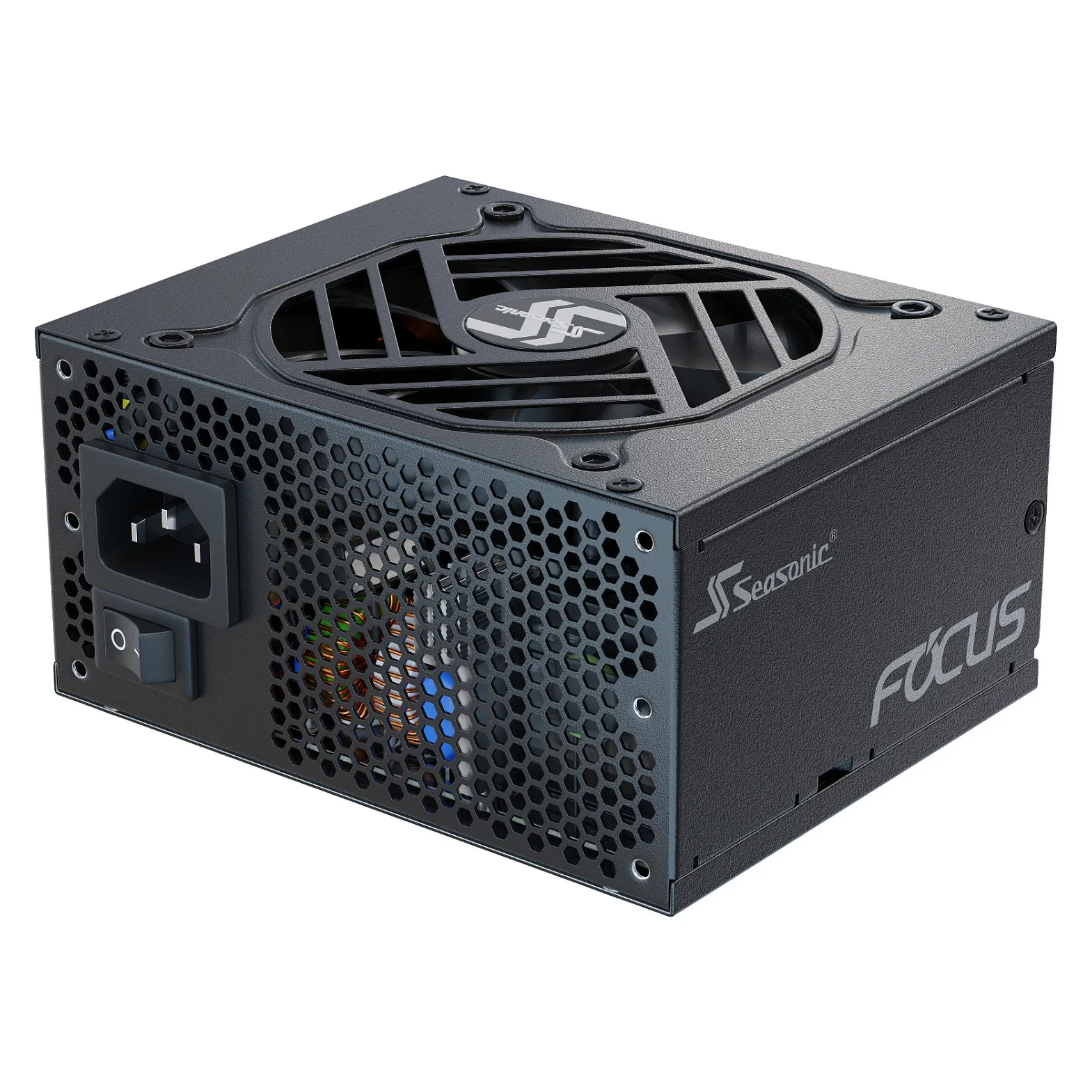

Seasonic FOCUS-SPX-750. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: CFX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Cables included: AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
80 PLUS PLATINUM
The PRIME Platinum Series achieves 80 PLUS Platinum certification with its 92 % efficiency at 50 % system load.
STANDARD SFX SIZE
The 2021 version of the FOCUS SPX measures at 125 and 100 mm in length and width. This super-compact size allows it to fit into various sized computer cases.

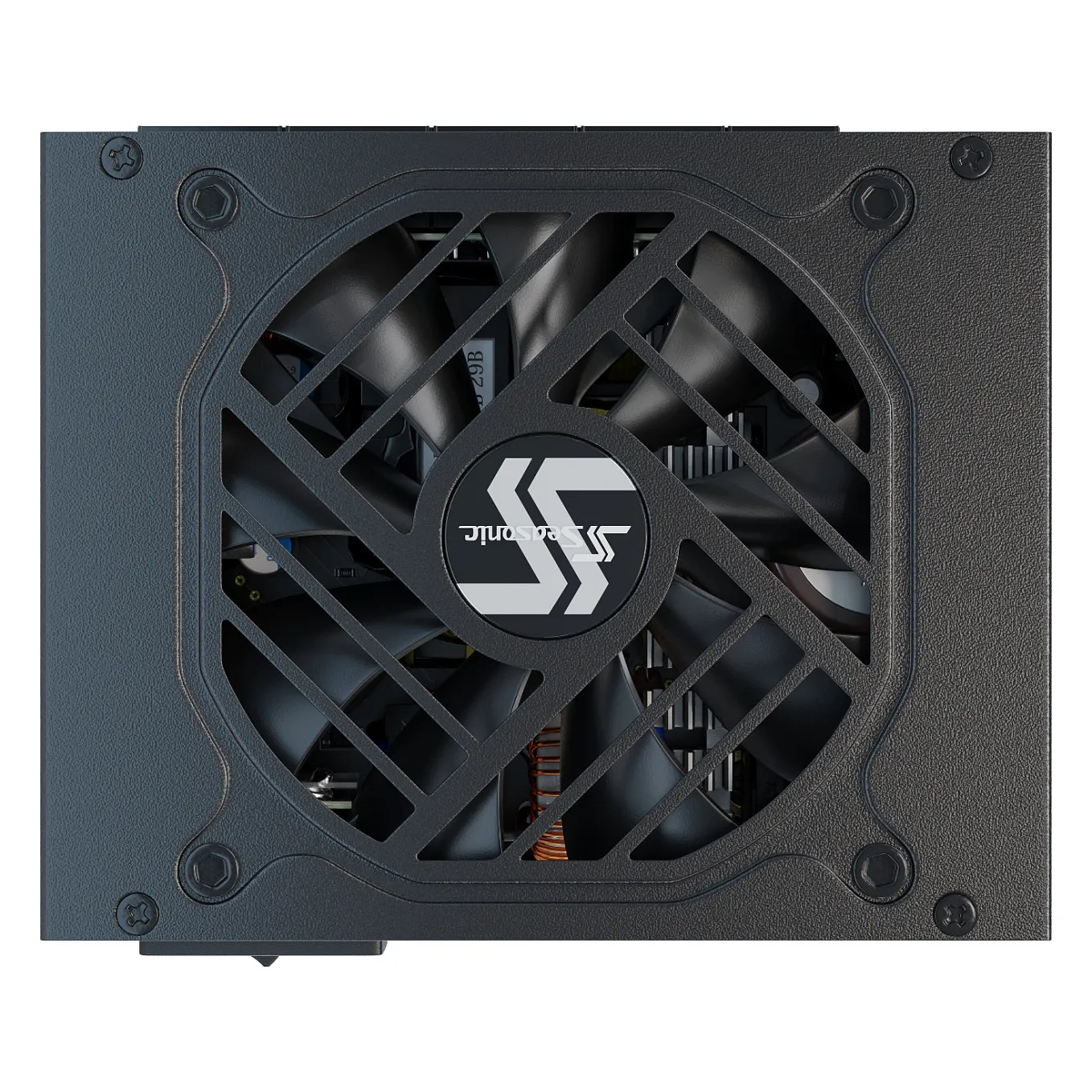

SMART AND SILENT FAN CONTROL
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Total power: 750 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 10 – 5 A
Combined power (+3.3V): 130 W
Combined power (+12V): 744 W
Combined power (+5V): 130 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over voltage, Short circuit
Ports & interfaces

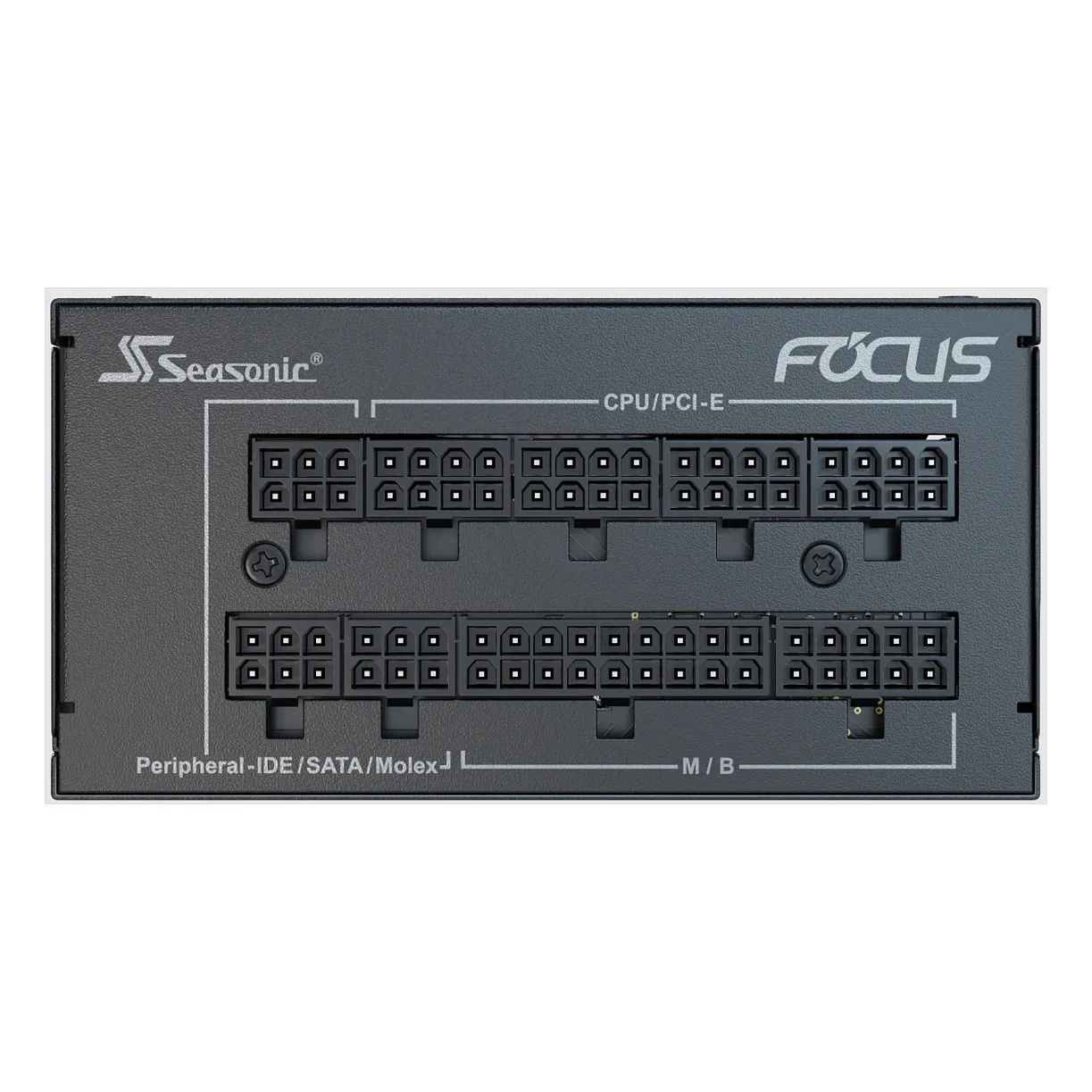

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (8-pin): 4
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: CFX
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 1 fan(s)
On/off switch: Yes
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Packaging content
Cables included: AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Cable tie(s) included: Yes
Certificates
Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Weight & dimensions
Width: 125 mm
Depth: 100 mm
Height: 63.5 mm
Packaging data
Package type: Box
