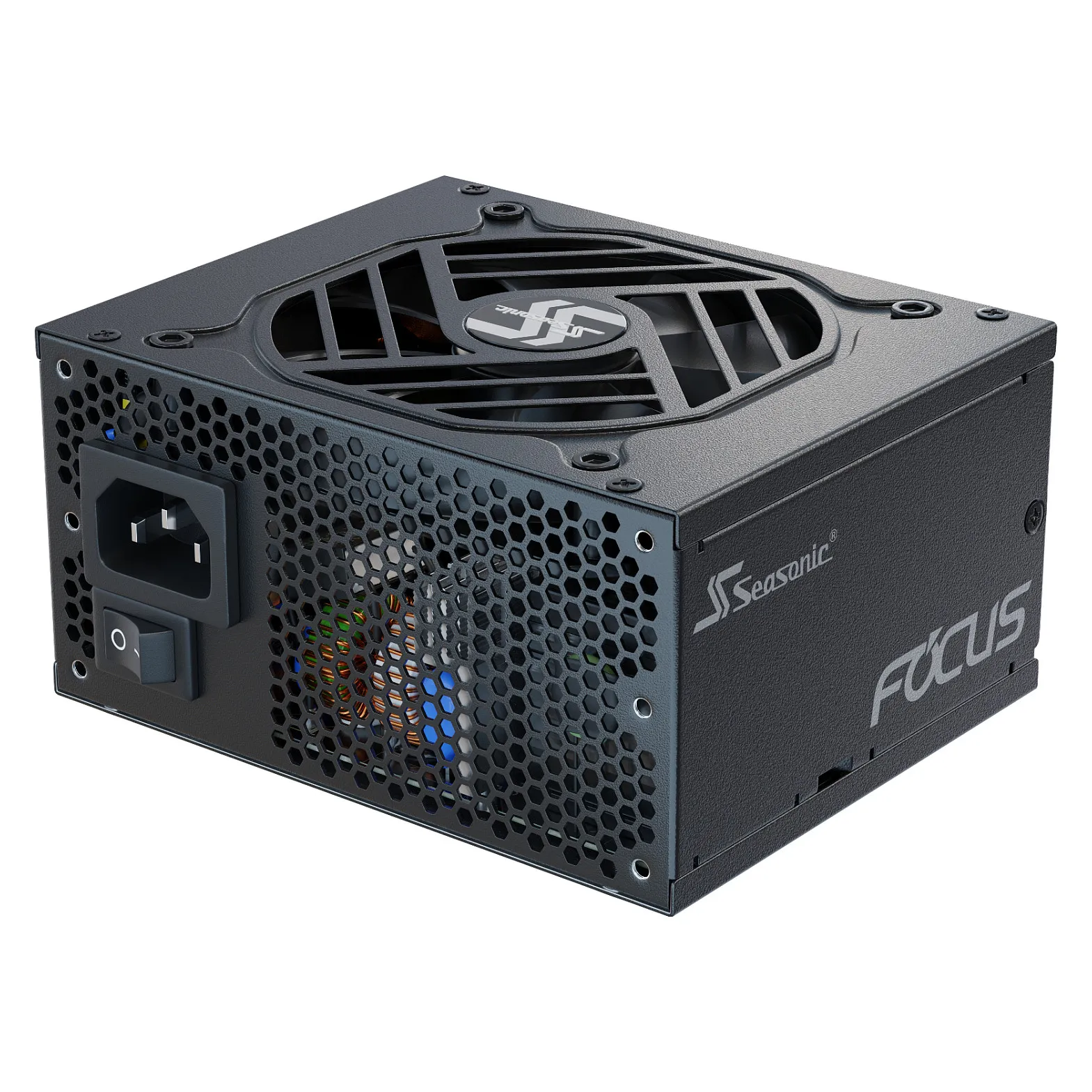

Seasonic FOCUS SGX-750 (2021). Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 600 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Width: 125 mm, Depth: 100 mm, Height: 63.5 mm
FOCUS SGX (2021)

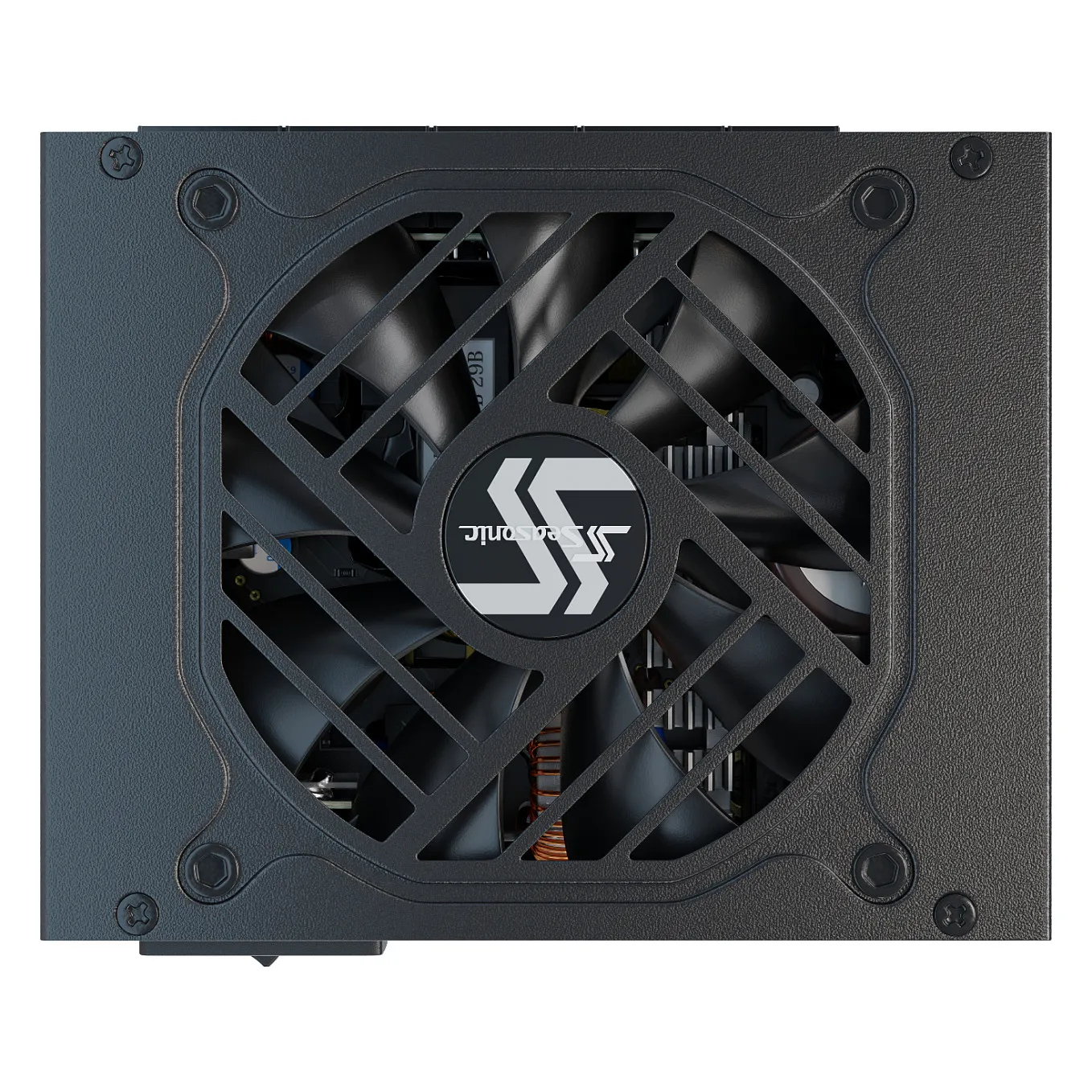

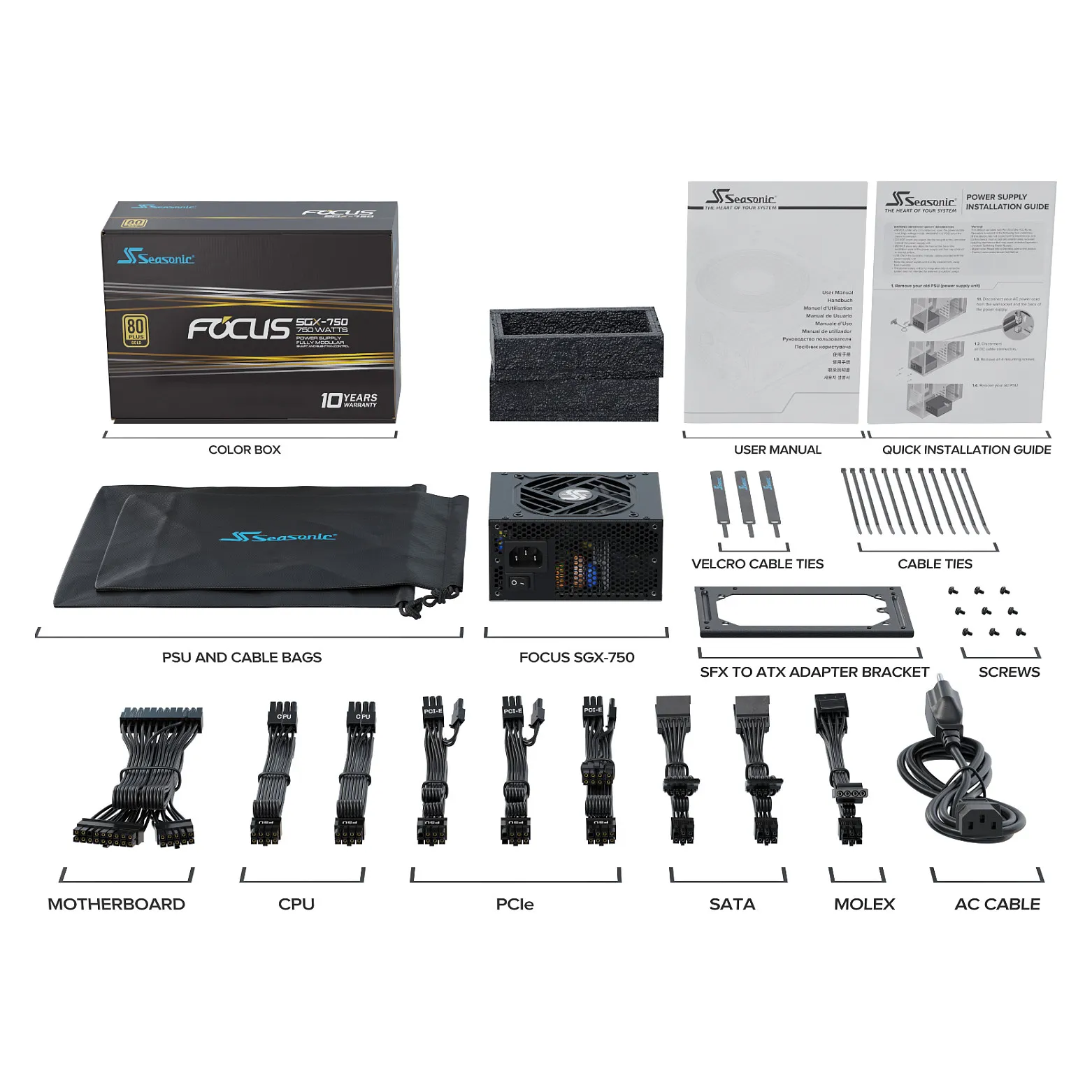

The new line of Seasonic’s FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
The new line of Seasonic’s FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
Power
Total power: 750 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Combined power (+3.3V): 100 W
Combined power (+12V): 744 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 6
SATA power cable length: 600 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 470,700 mm
CPU power connector (4+4 pin): Yes
CPU power cable length: 40 cm

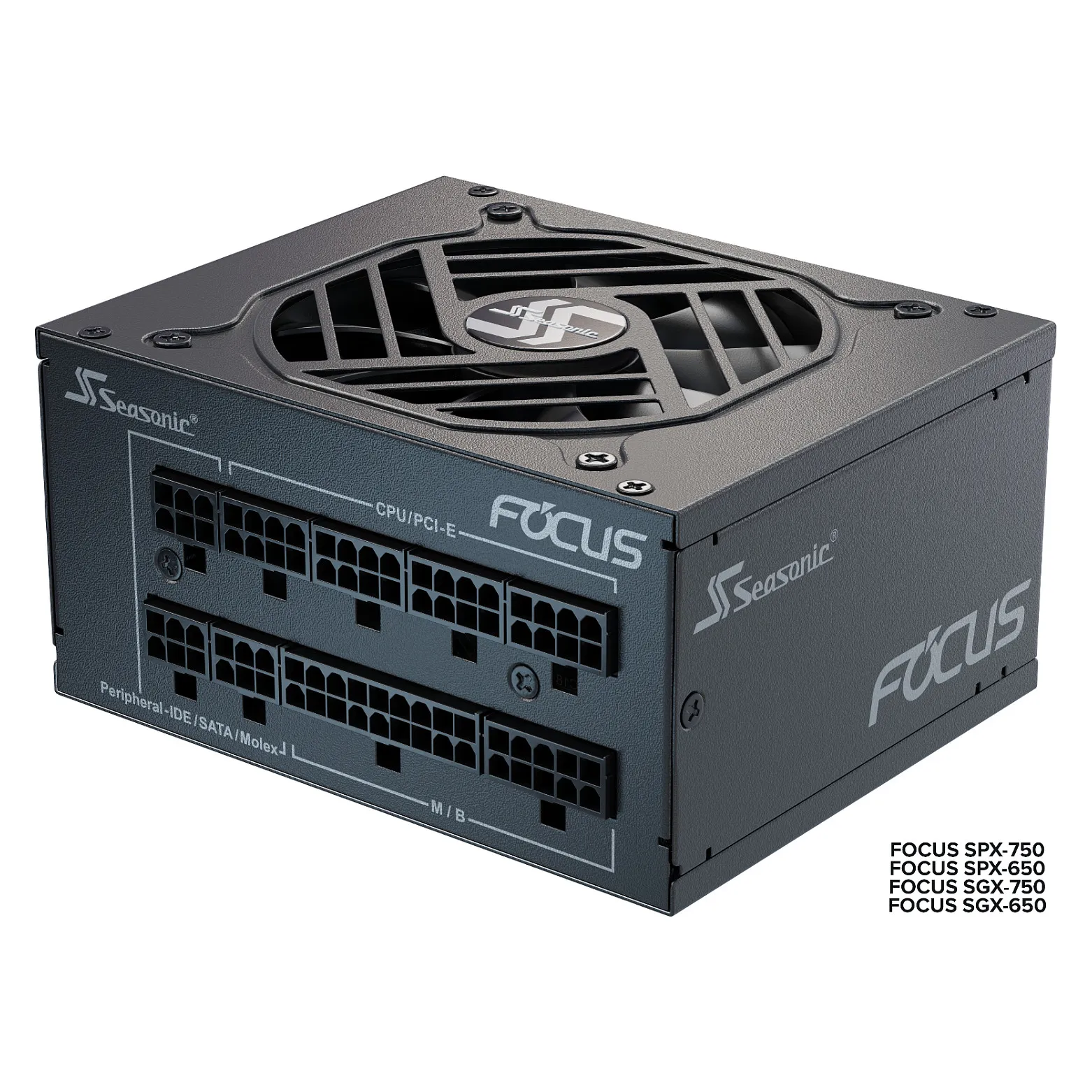

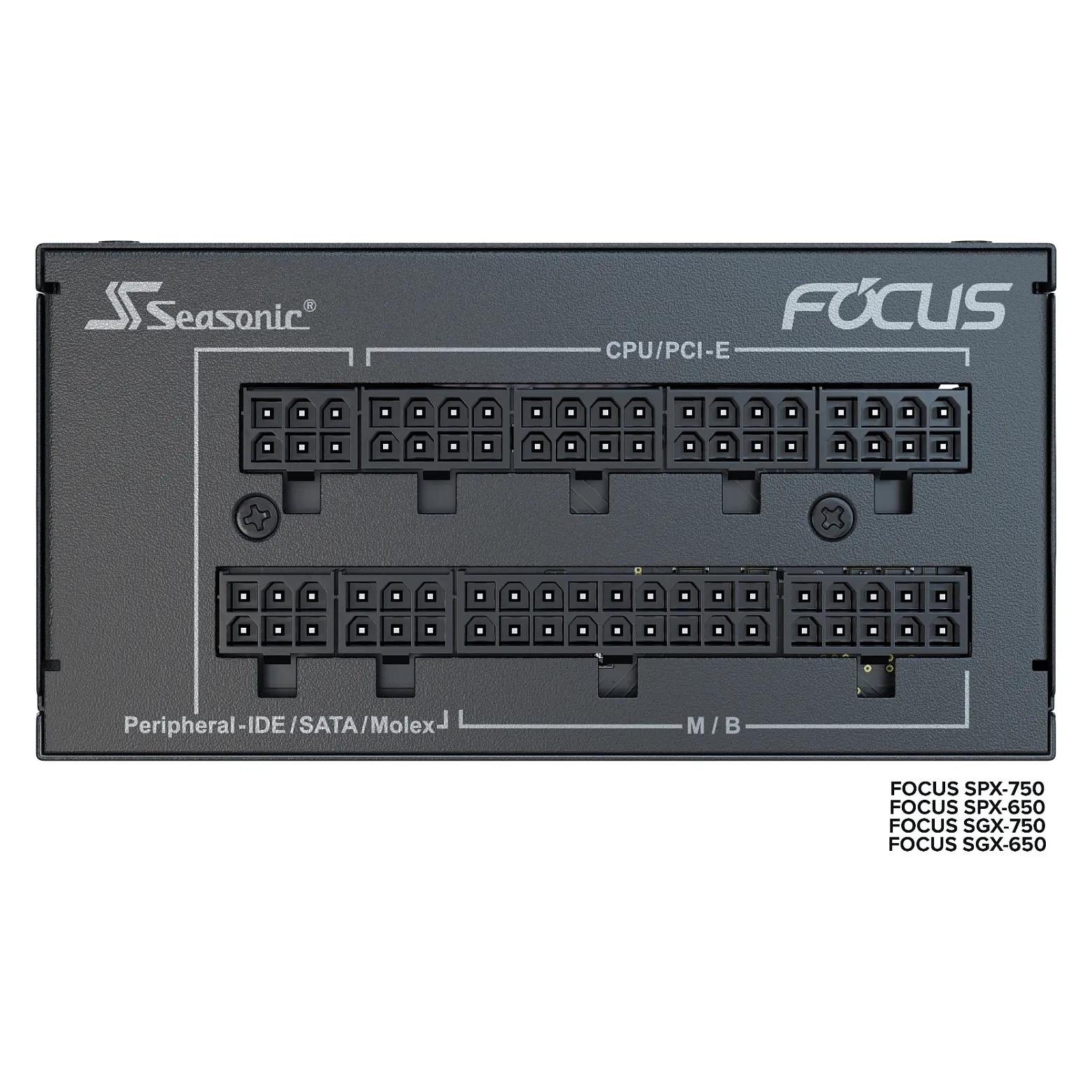

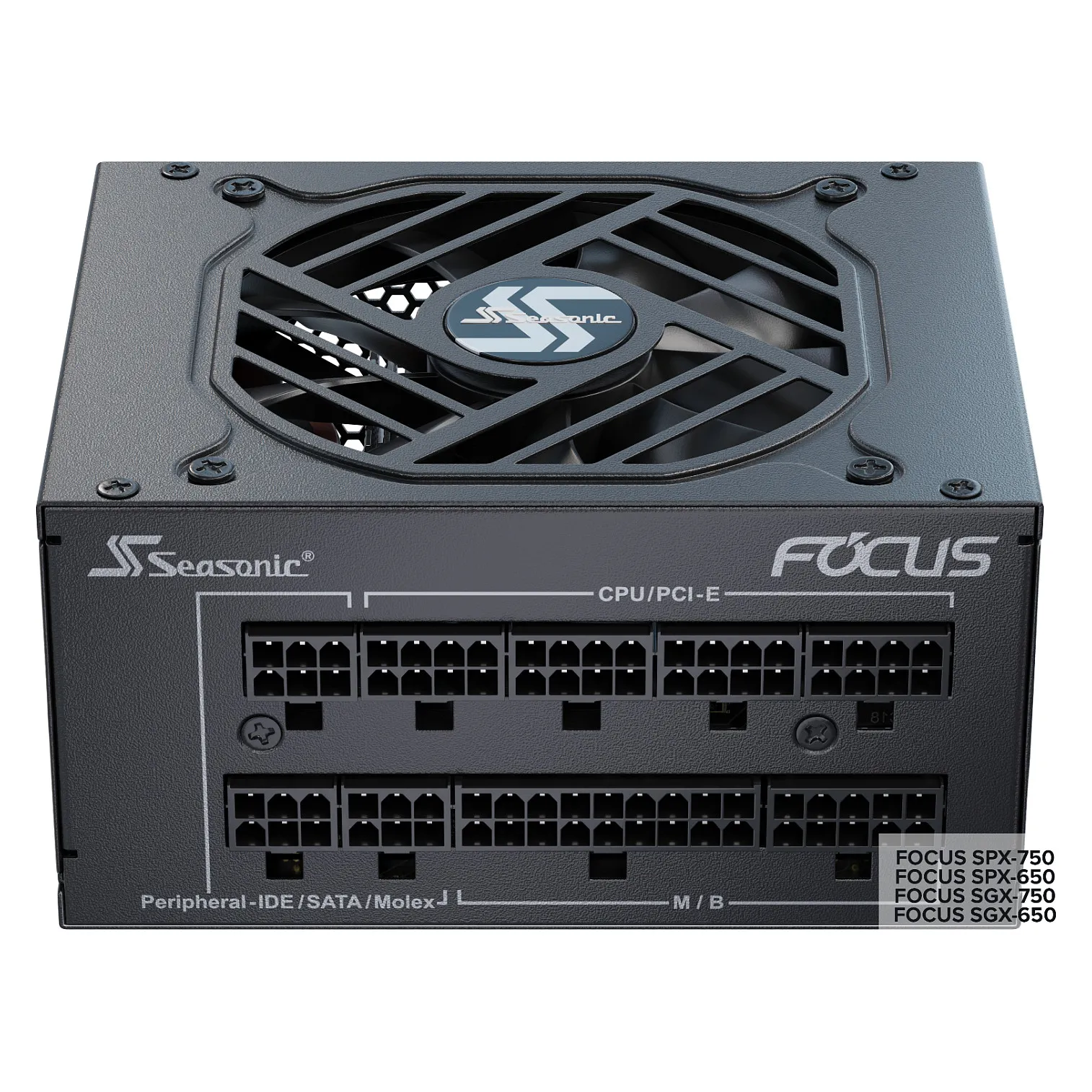

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: SFX
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black

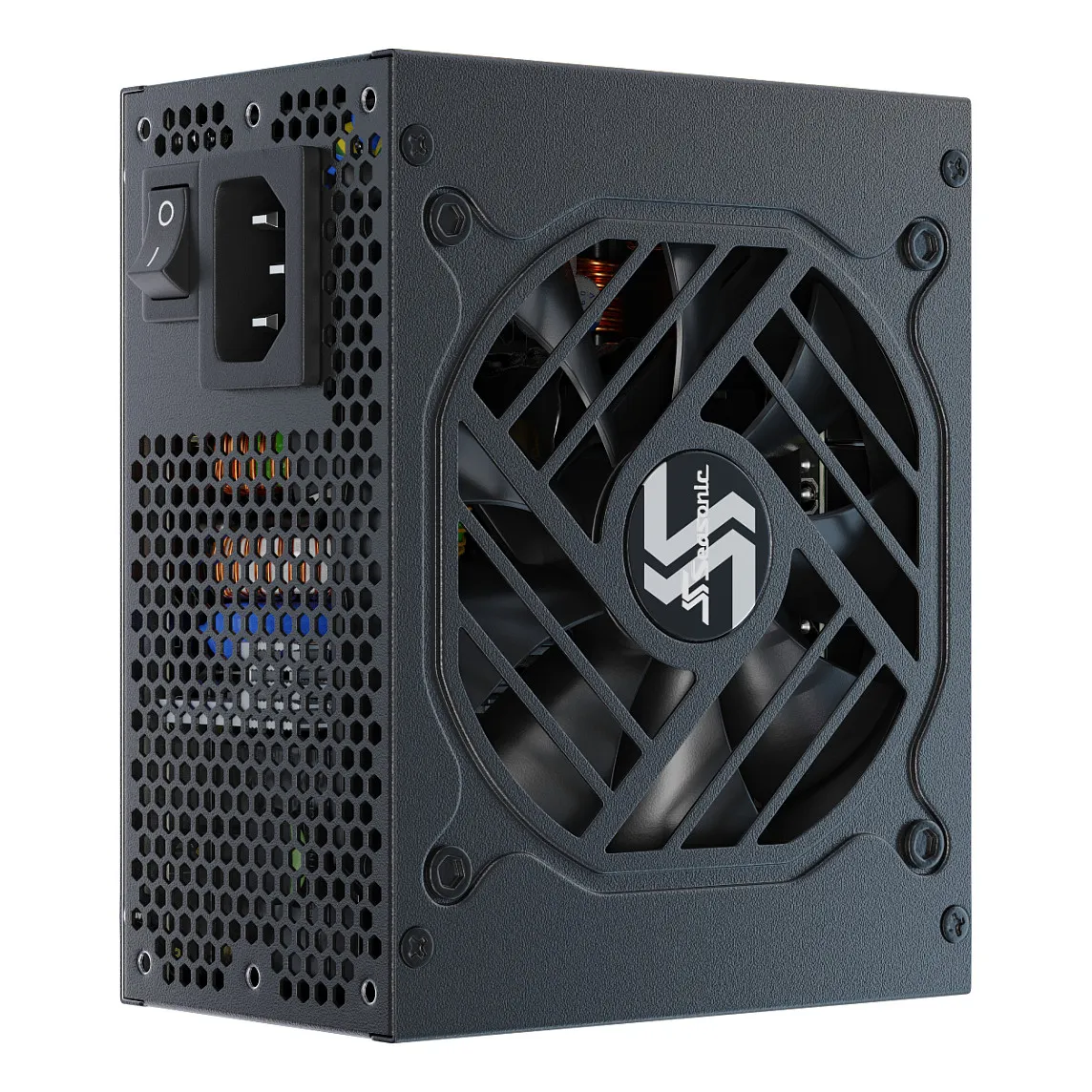

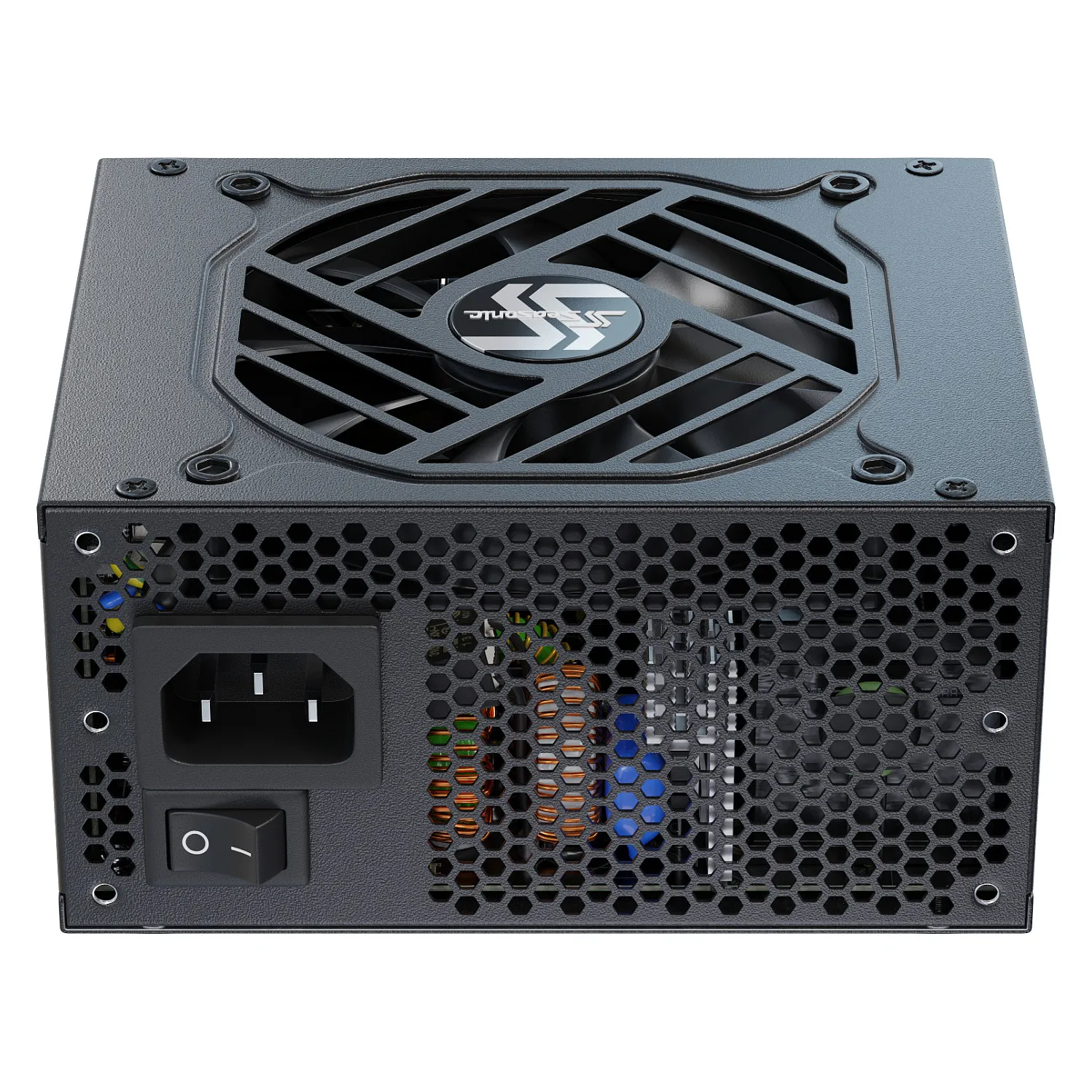

Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 1 fan(s)
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Weight & dimensions
Width: 125 mm
Depth: 100 mm
Height: 63.5 mm
Packaging data

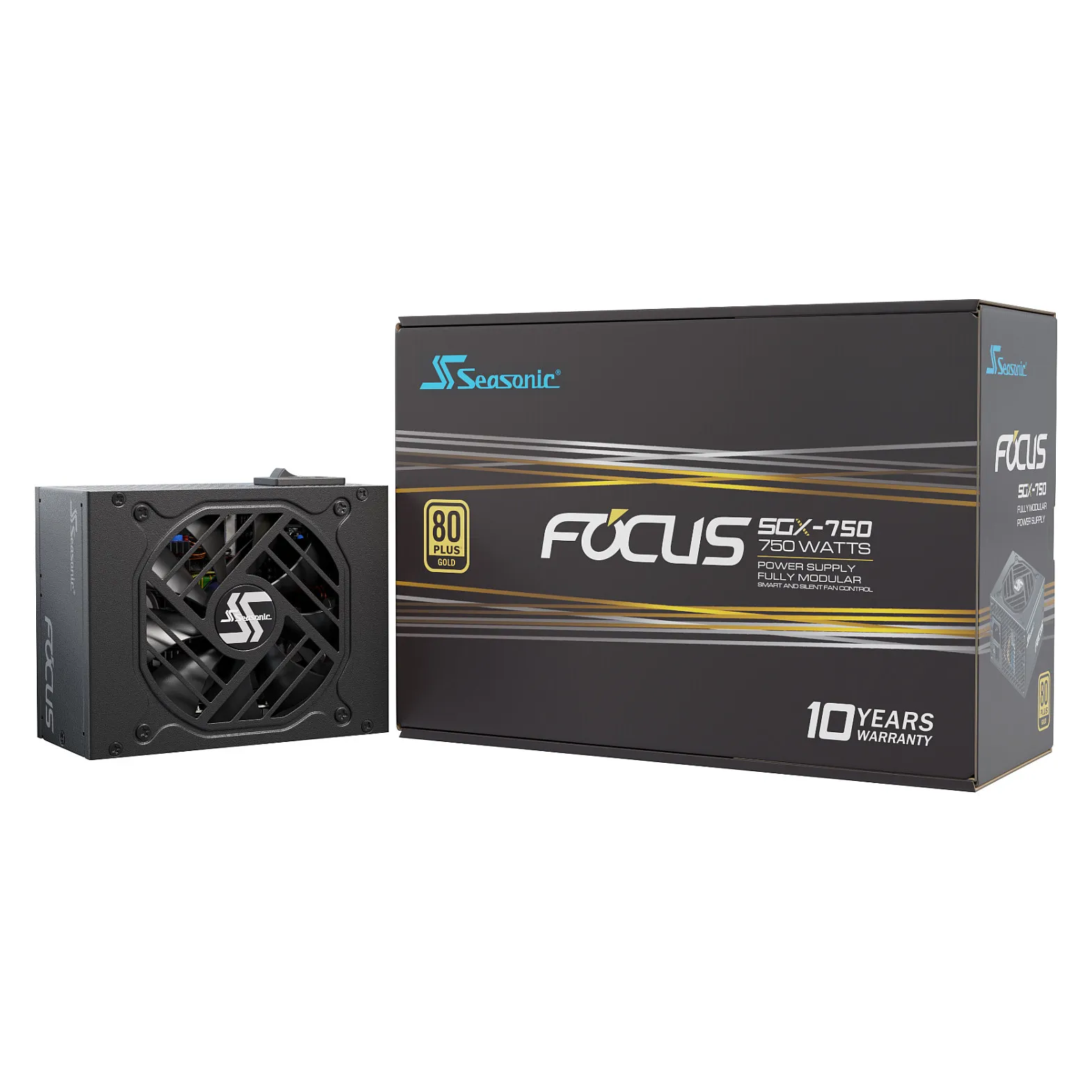

Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Total power: 750 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Combined power (+3.3V): 100 W
Combined power (+12V): 744 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 6
SATA power cable length: 600 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 470,700 mm
CPU power connector (4+4 pin): Yes
CPU power cable length: 40 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: SFX
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 1 fan(s)
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Weight & dimensions
Width: 125 mm
Depth: 100 mm
Height: 63.5 mm
Packaging data
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
