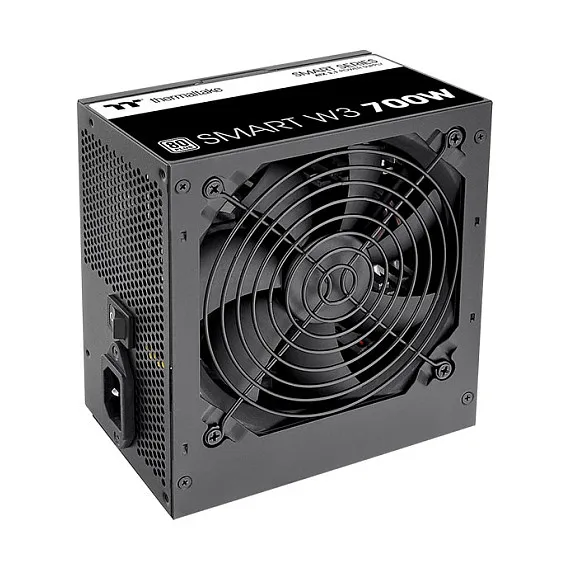

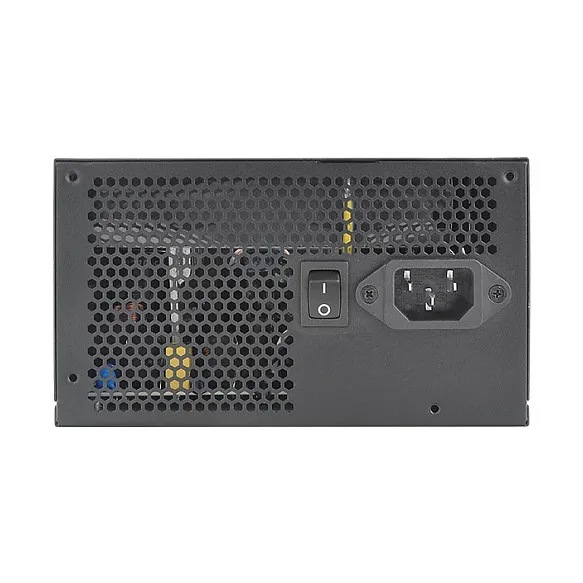

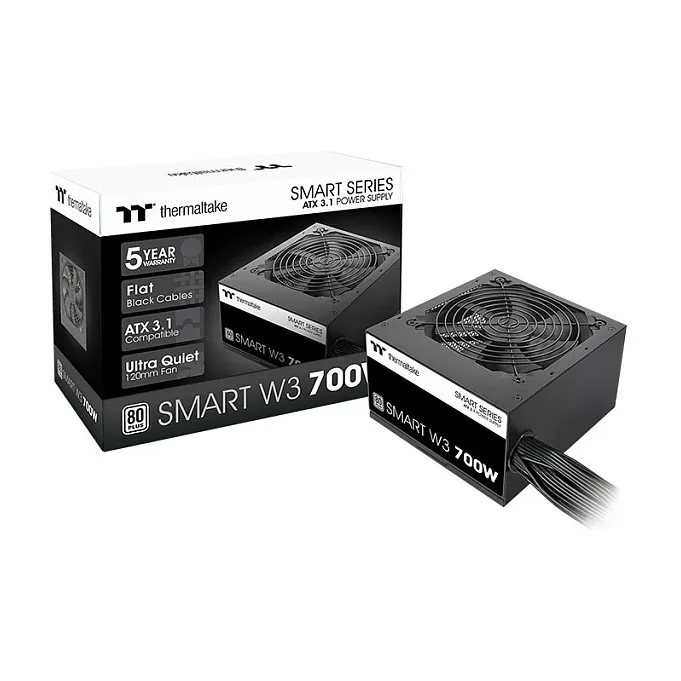

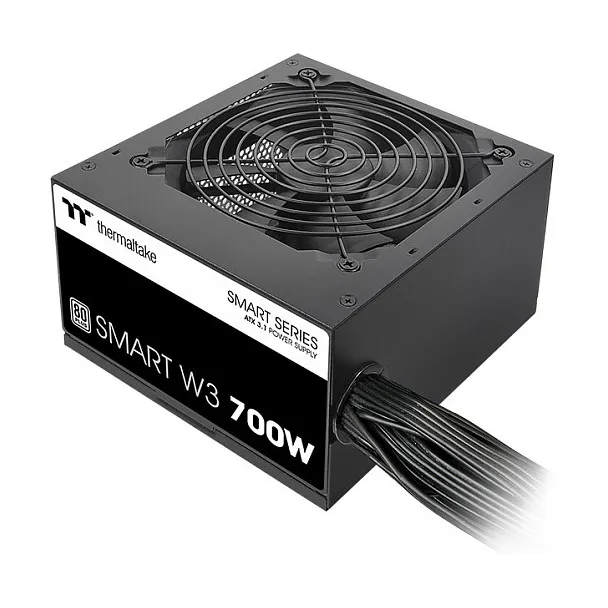

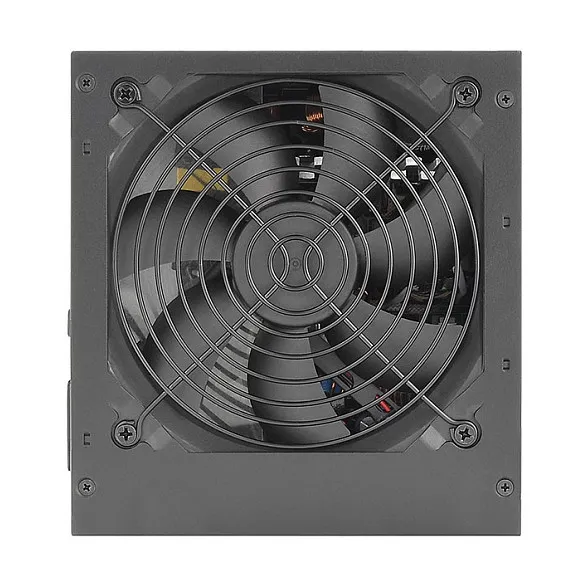

Thermaltake Smart W3 power supply unit

Power
Total power: 700 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 12 – 6 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 700 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 18 A
Max output current (+12V): 58.33 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 17 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 4
SATA power cable length: 500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 500,650,800,950 mm
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 65 cm
ATX Power connector (24-pin): Yes
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes
Operational conditions
Operating temperature (T-T): 5 – 40 °C
Storage temperature (T-T): -40 – 55 °C
Operating relative humidity (H-H): 20 – 85%
Storage relative humidity (H-H): 10 – 95%
Certificates
Certification: CB/FCC/cTUVus/ICES
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
