Xilence XP650R6.2. Total power: 650 W, AC input voltage: 200 – 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm
The C+Series is a power supply series with the ATX standard 2.52 and black ribbon cables. The power supplies are designed for office and home computers, but can also be installed in PCs that are occasionally used for gaming.

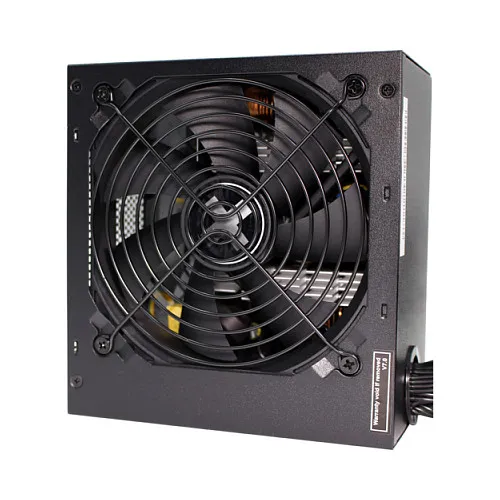

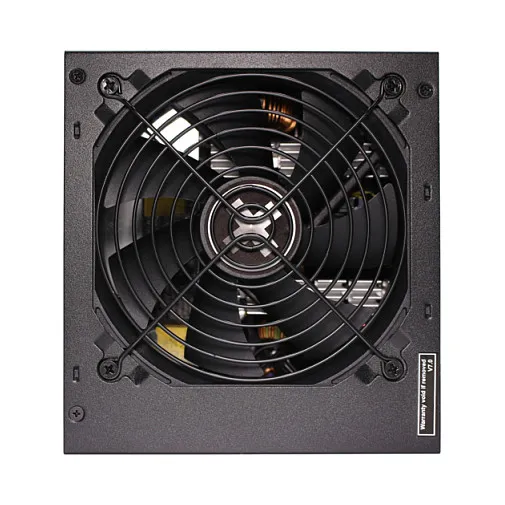

The black design of the power supplies and the elegant flat ribbon cables blend visually into any PC build. The power supplies deliver stable voltages with high efficiency (80+ Standard) to meet the ErP2014 standard. The integrated black 120mm fan provides silent cooling. Four integrated safety circuits ensure safe operation at all times.
The black design of the power supplies and the elegant flat ribbon cables blend visually into any PC build. The power supplies deliver stable voltages with high efficiency (80+ Standard) to meet the ErP2014 standard. The integrated black 120mm fan provides silent cooling. Four integrated safety circuits ensure safe operation at all times.

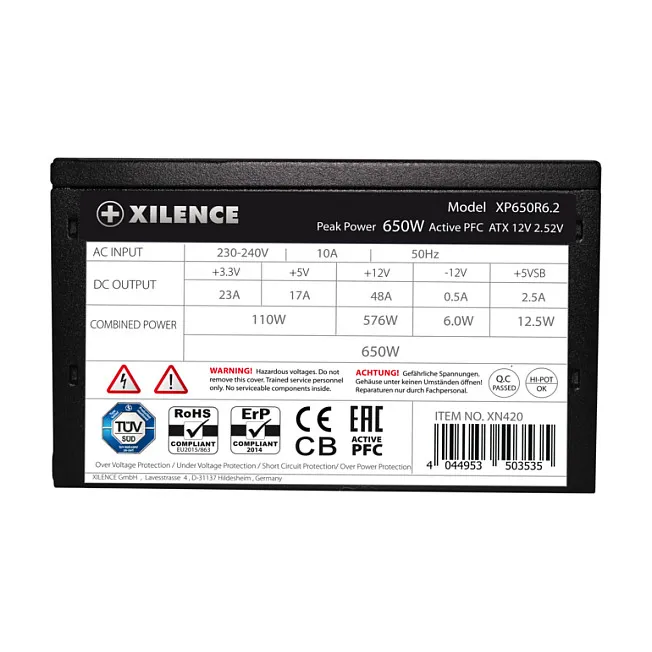

Power
Total power: 650 W
AC input voltage: 200 – 240 V
AC input frequency: 50 Hz
Input current: 10 A
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 23 A
Max output current (+12V1): 48 A
Max output current (+5V): 17 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Efficiency: 82%
Power protection features: Over voltage, Overload, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 5
Number of PATA power connectors: 3
PCI Express power connectors (6+2 pin): 2

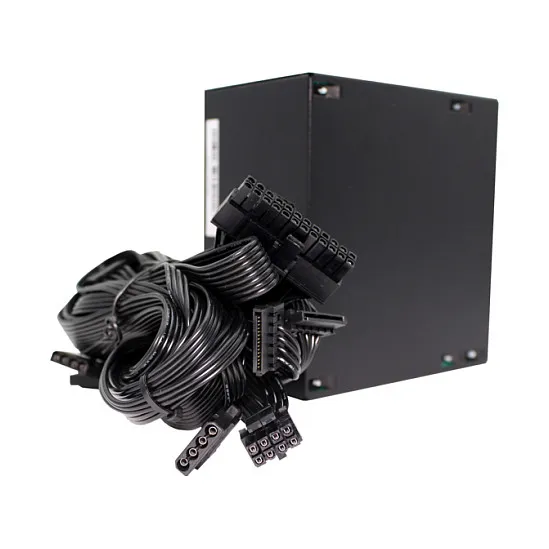

Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Bearing technology: Hypro Bearing
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Total power: 650 W
AC input voltage: 200 – 240 V
AC input frequency: 50 Hz
Input current: 10 A
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 23 A
Max output current (+12V1): 48 A
Max output current (+5V): 17 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Efficiency: 82%
Power protection features: Over voltage, Overload, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 5
Number of PATA power connectors: 3
PCI Express power connectors (6+2 pin): 2
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Bearing technology: Hypro Bearing
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
