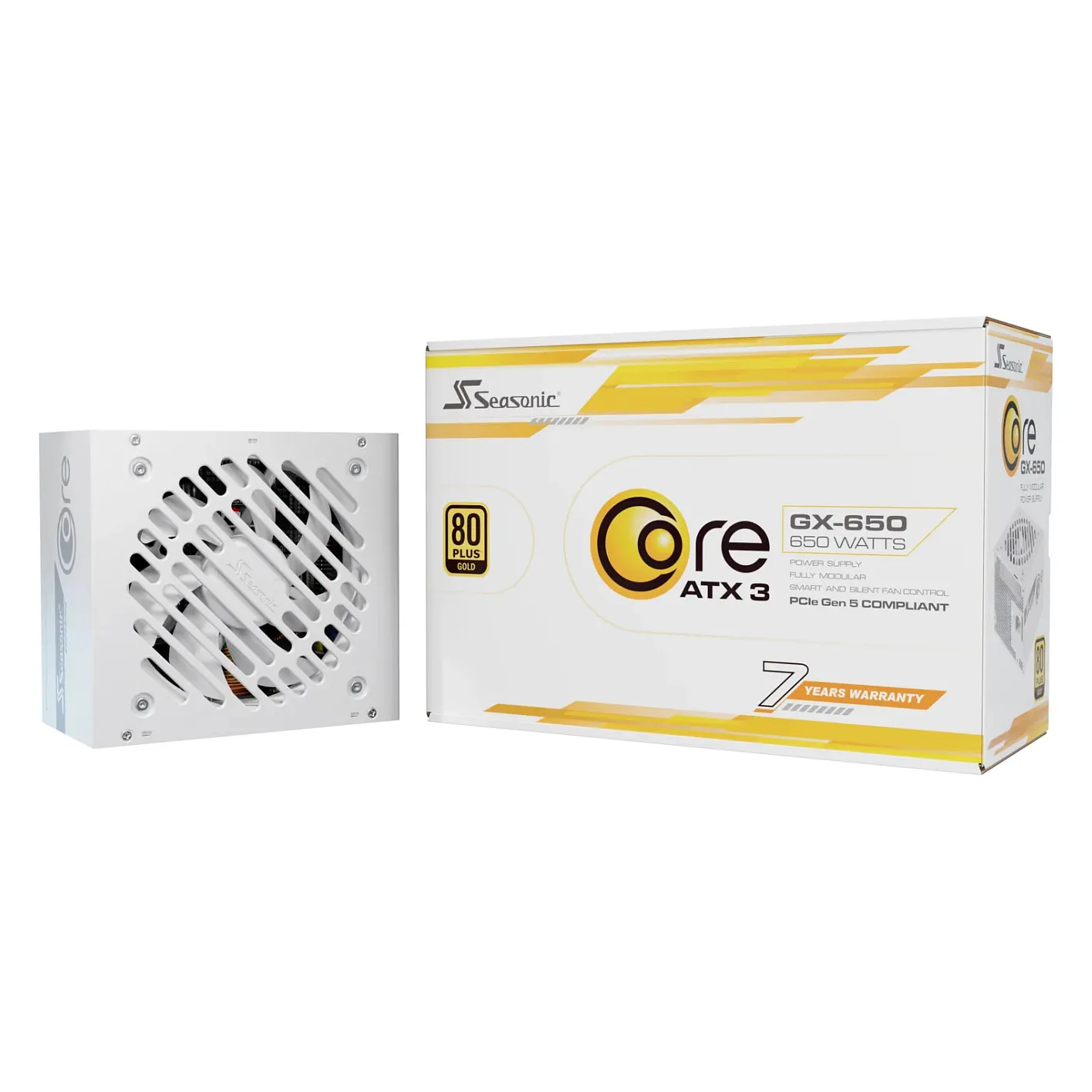

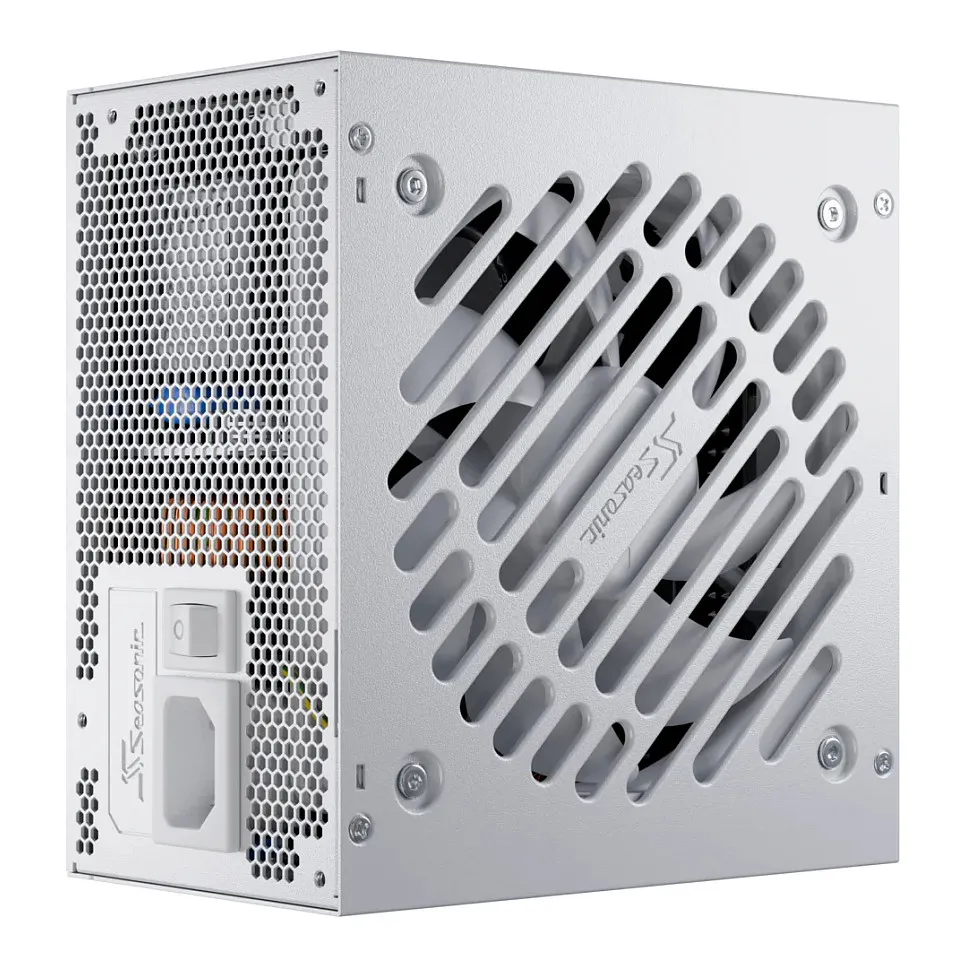

Seasonic CORE GX-650. Total power: 650 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 750 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
The updated Seasonic CORE GX White ATX 3.1 Series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX White line is a fully modular design equipped with white cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.
New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GX White ATX 3.1 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.
By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.
The eightfold increase in heat dissipation keeps the internals of the power supply cooler, eventually leading to improved product quality, long-term reliability, and more efficient operation.
The redesigned layout of the power supply components and its improved thermal performance creates versatility and allows the power supply to be safely installed in any orientation.
The OptiSink design is an eco-friendly solution that not only lowers the costs of material usage and production but also leads to energy savings in the long run.

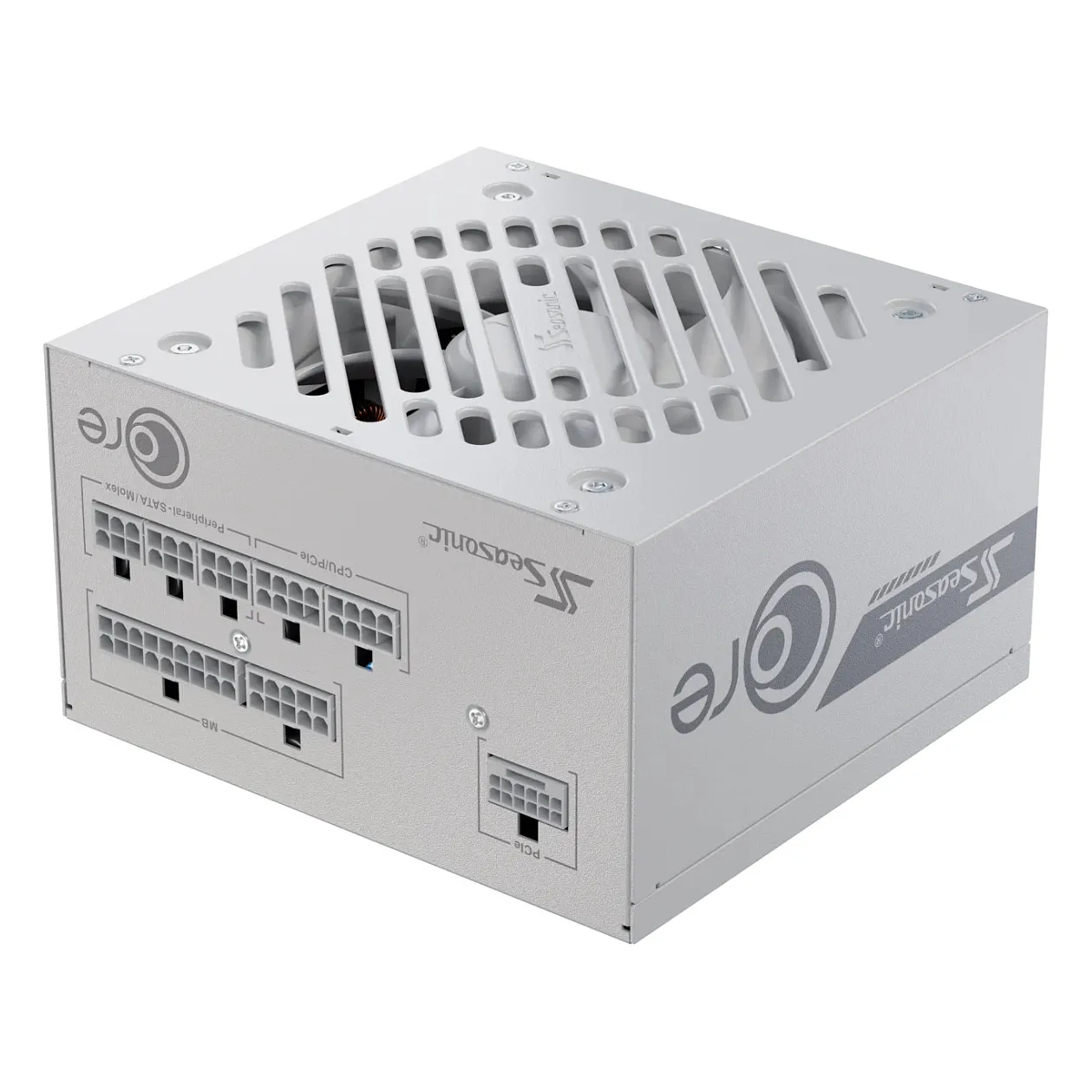

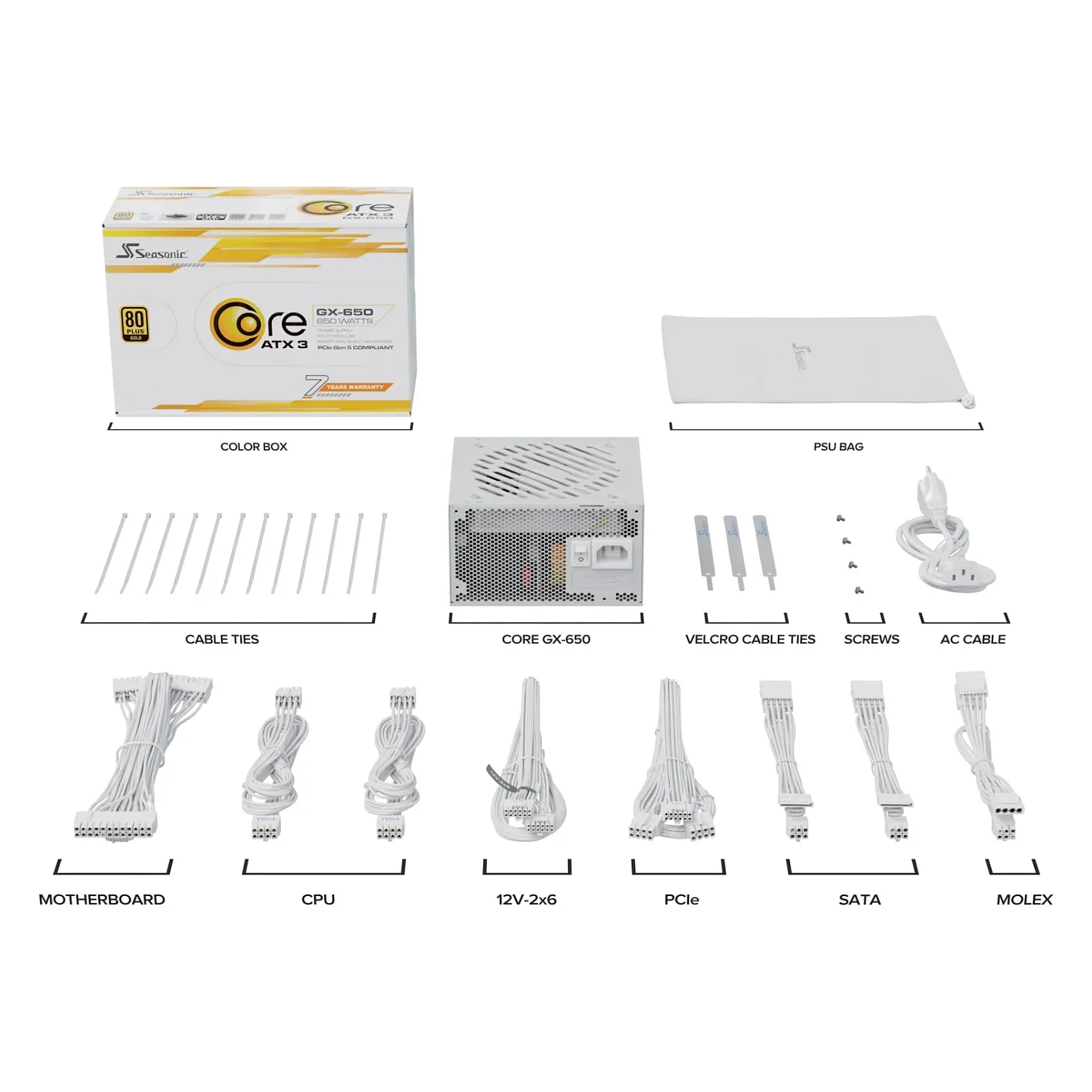

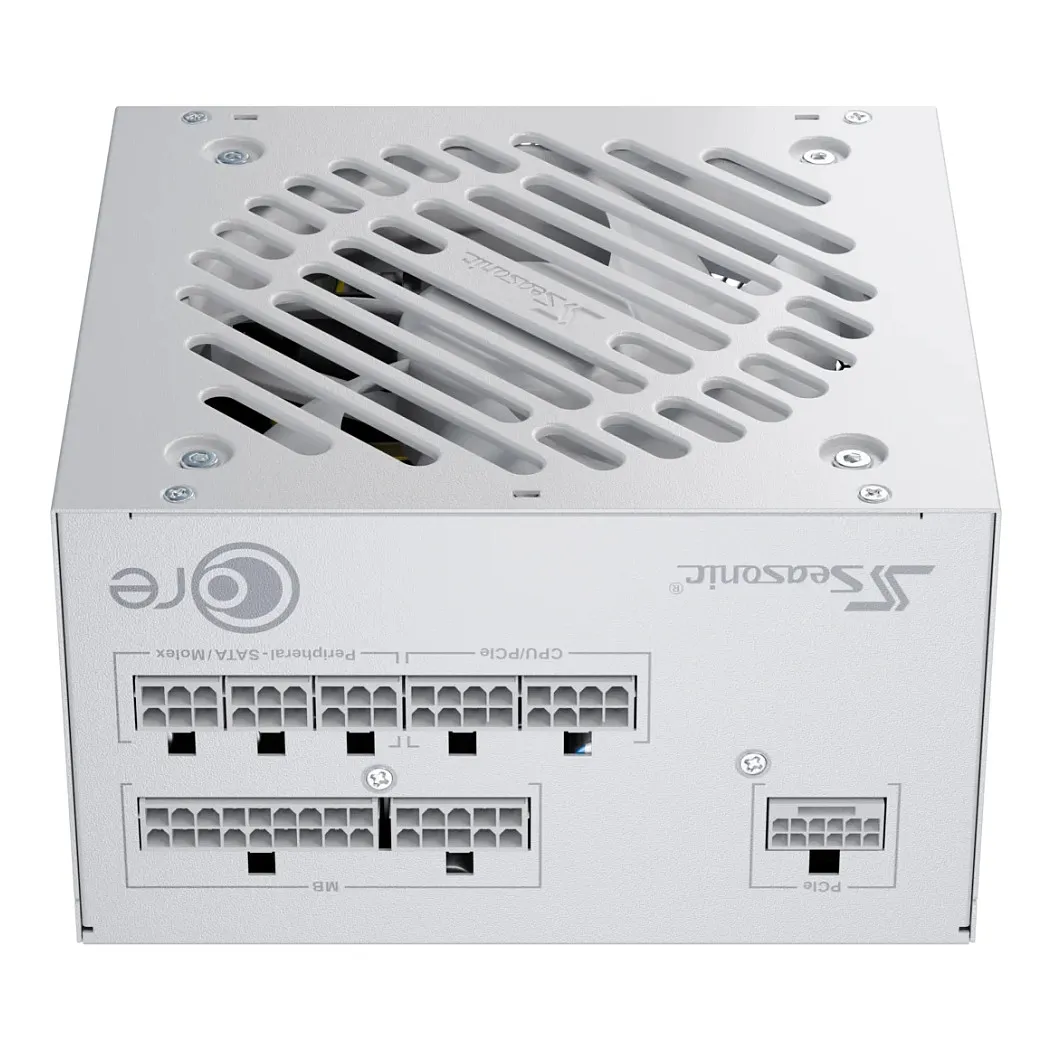

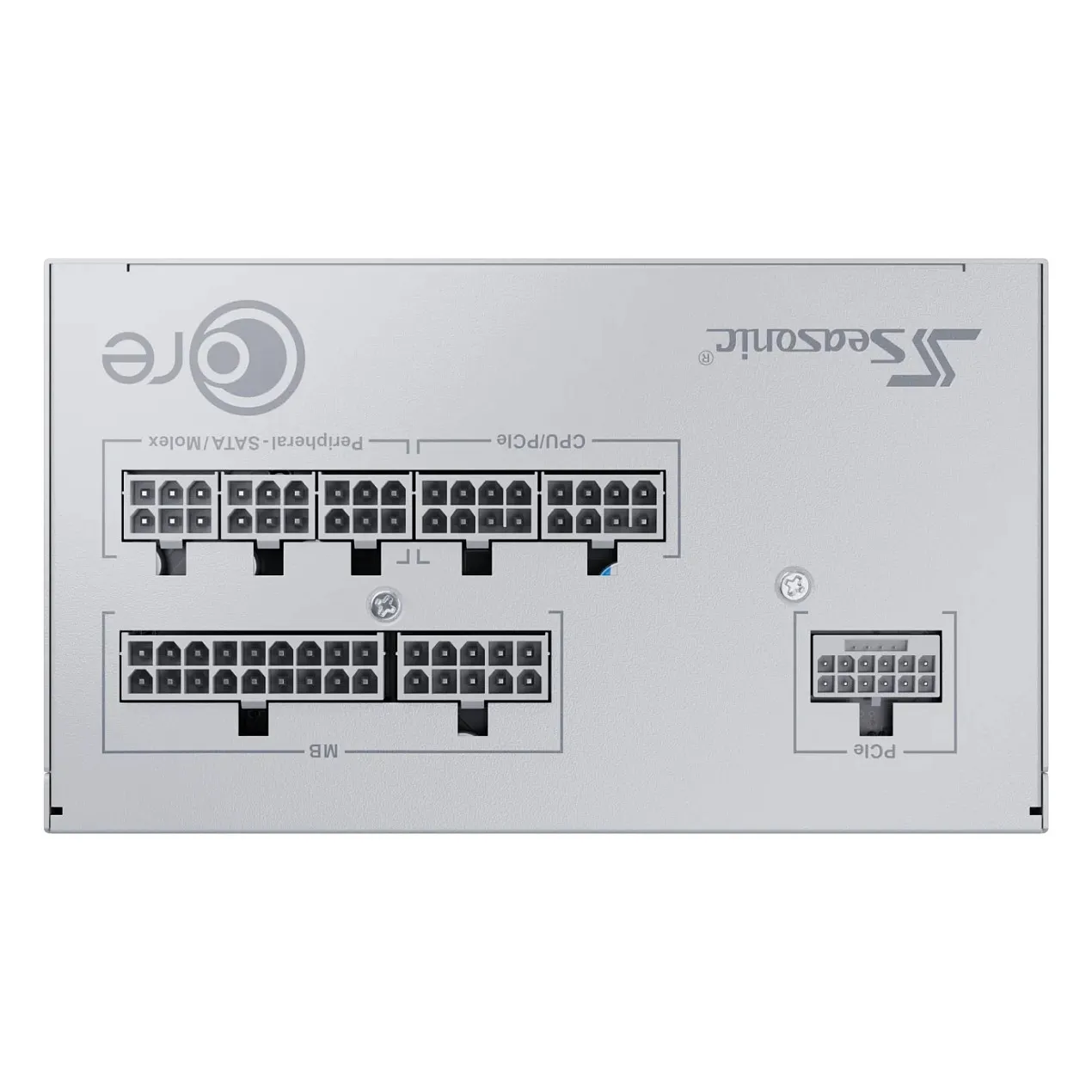

Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.

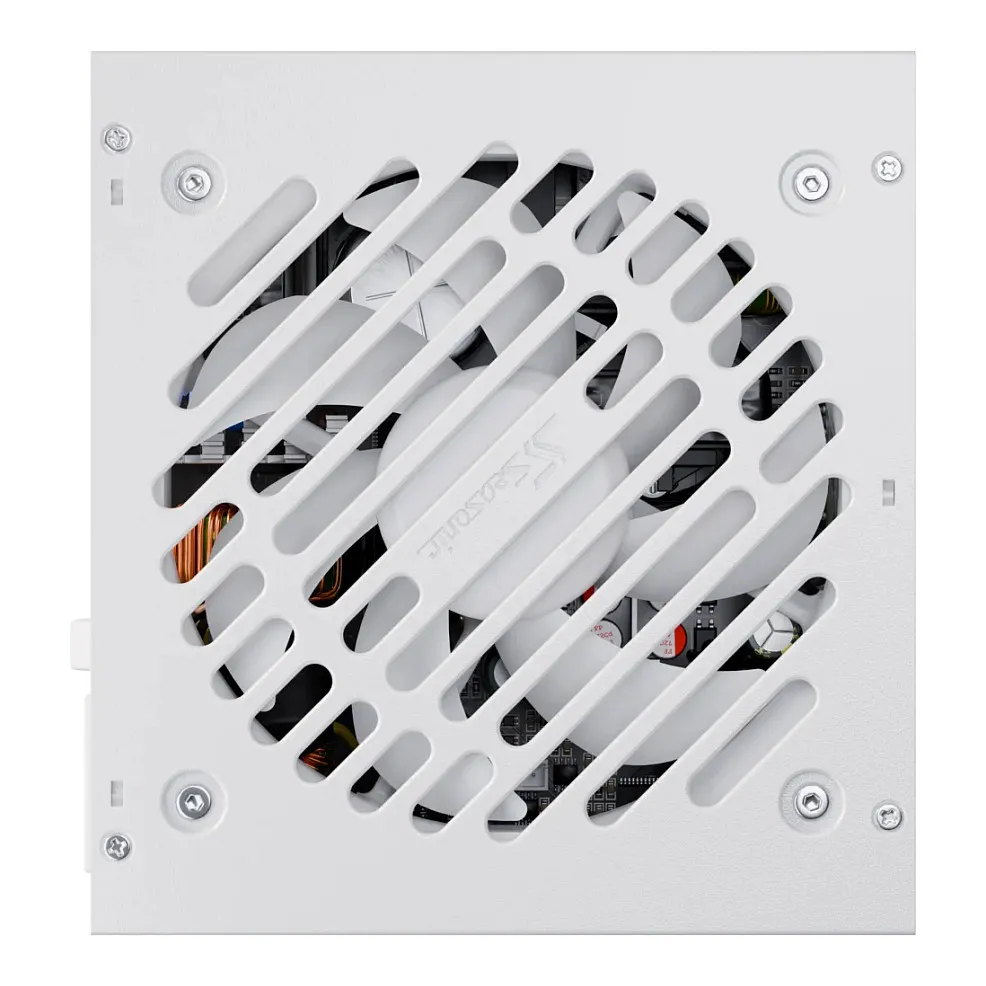

S2FC – Smart And Silent Fan Control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
Total power: 650 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 11 – 5.5 A
Combined power (+3.3V): 100 W
Combined power (+12V): 648 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 3
SATA power cable length: 750 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 690 mm
PCI Express power connectors (6+2 pin): 1
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 700 mm
CPU power connector (4+4 pin): Yes
CPU power cable length: 75 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Hypro Bearing
Mean time between failures (MTBF): 100000 h
Design
Product colour: White
Cooling type: Active
Fan diameter: 12 cm
On/off switch: Yes
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 86 mm
