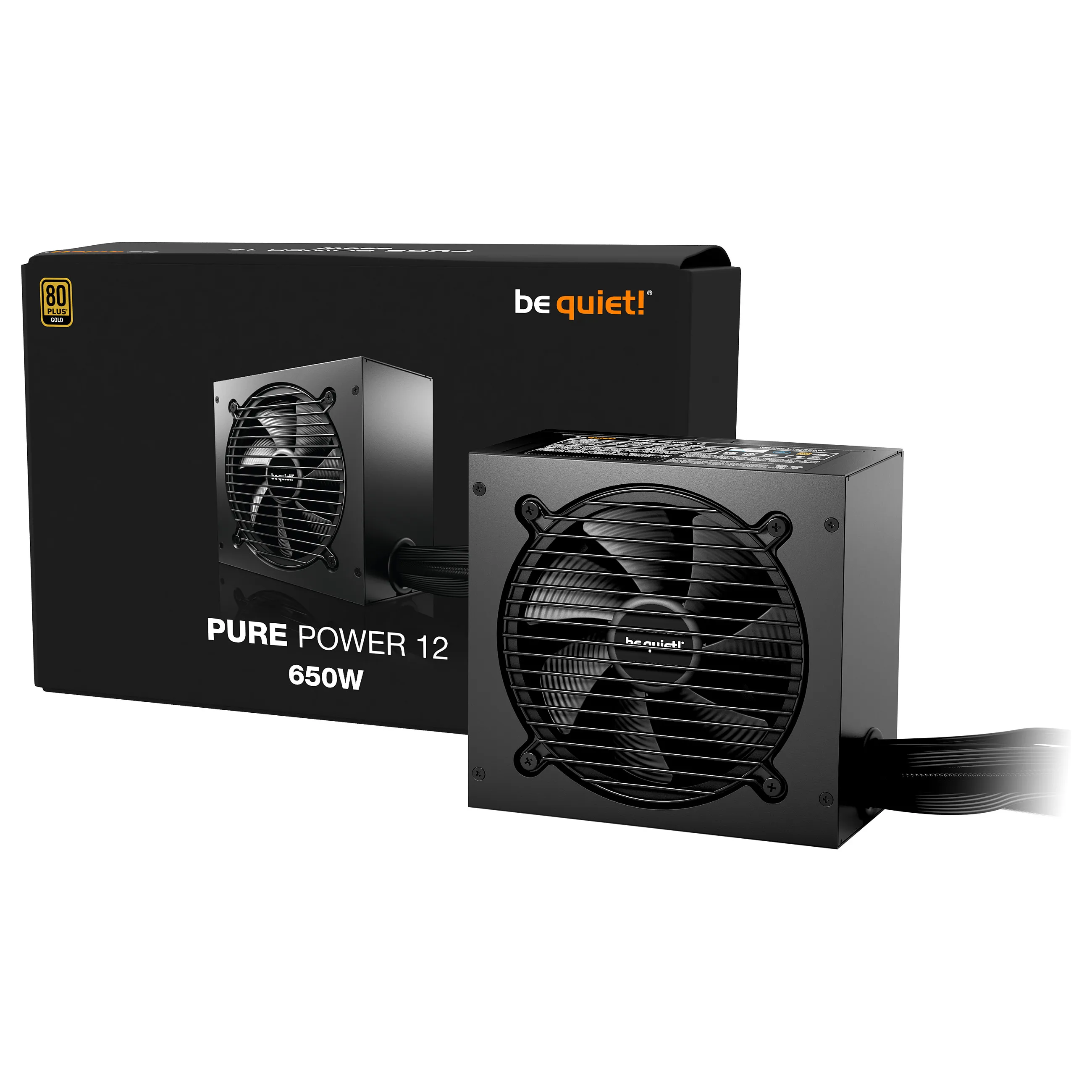

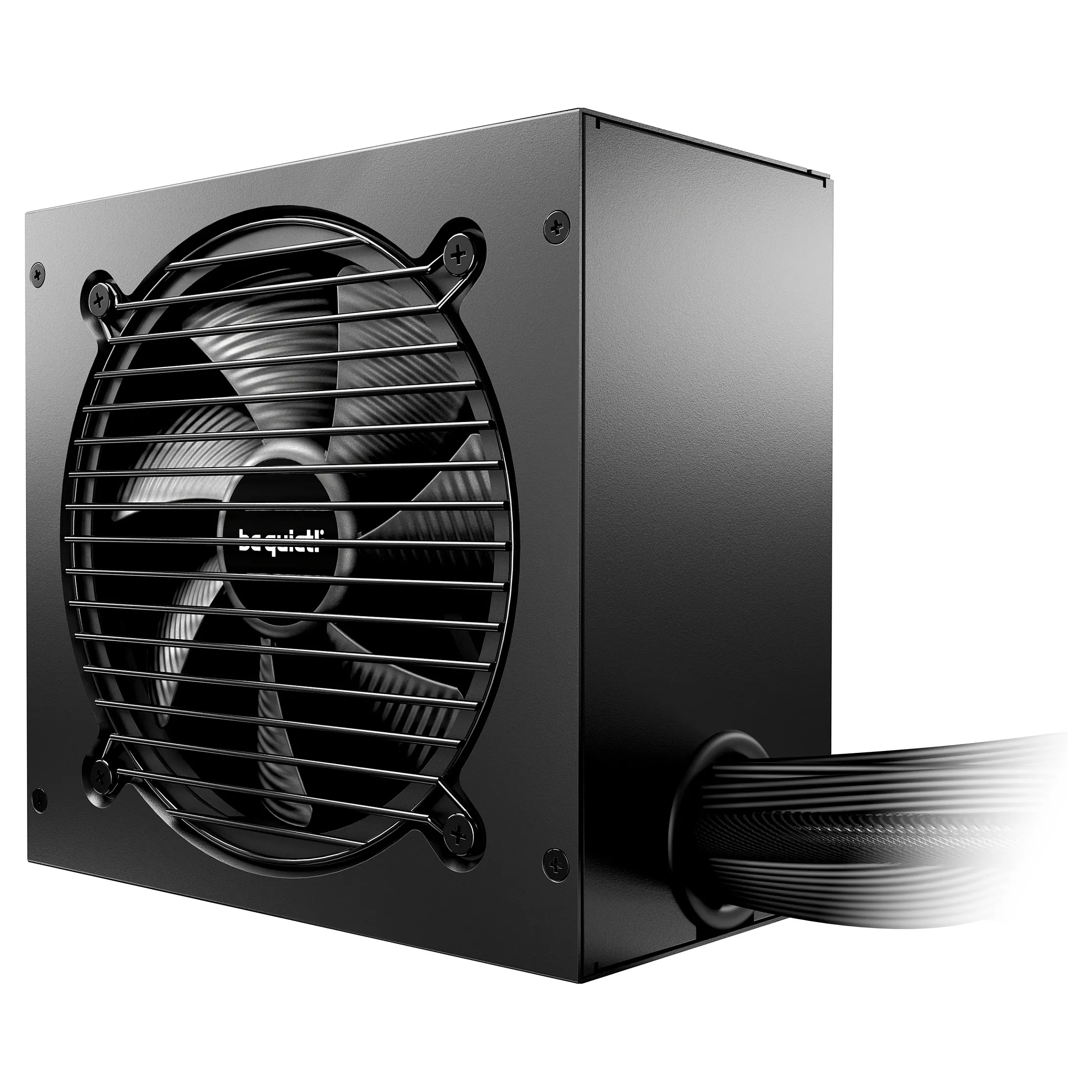

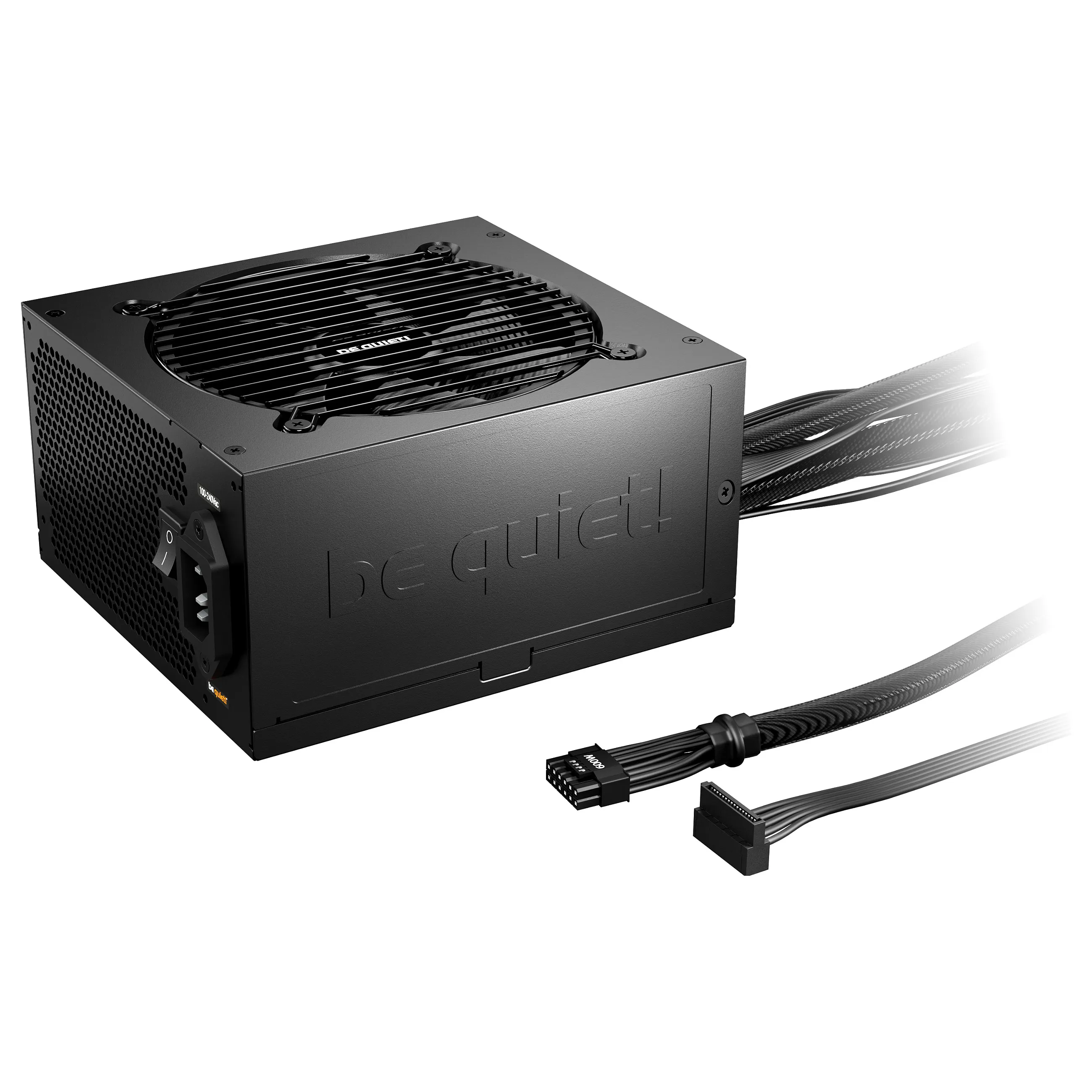

be quiet! PURE POWER 12 650W. Total power: 650 W, AC input voltage: 100 – 240 V, Peak power: 720 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Exceptional quiet, superior features
Pure Power 12 650W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Pure Power 12 650W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Power
Total power: 650 W
Peak power: 720 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 650 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 54.1 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16.86 ms
Efficiency: 91%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces

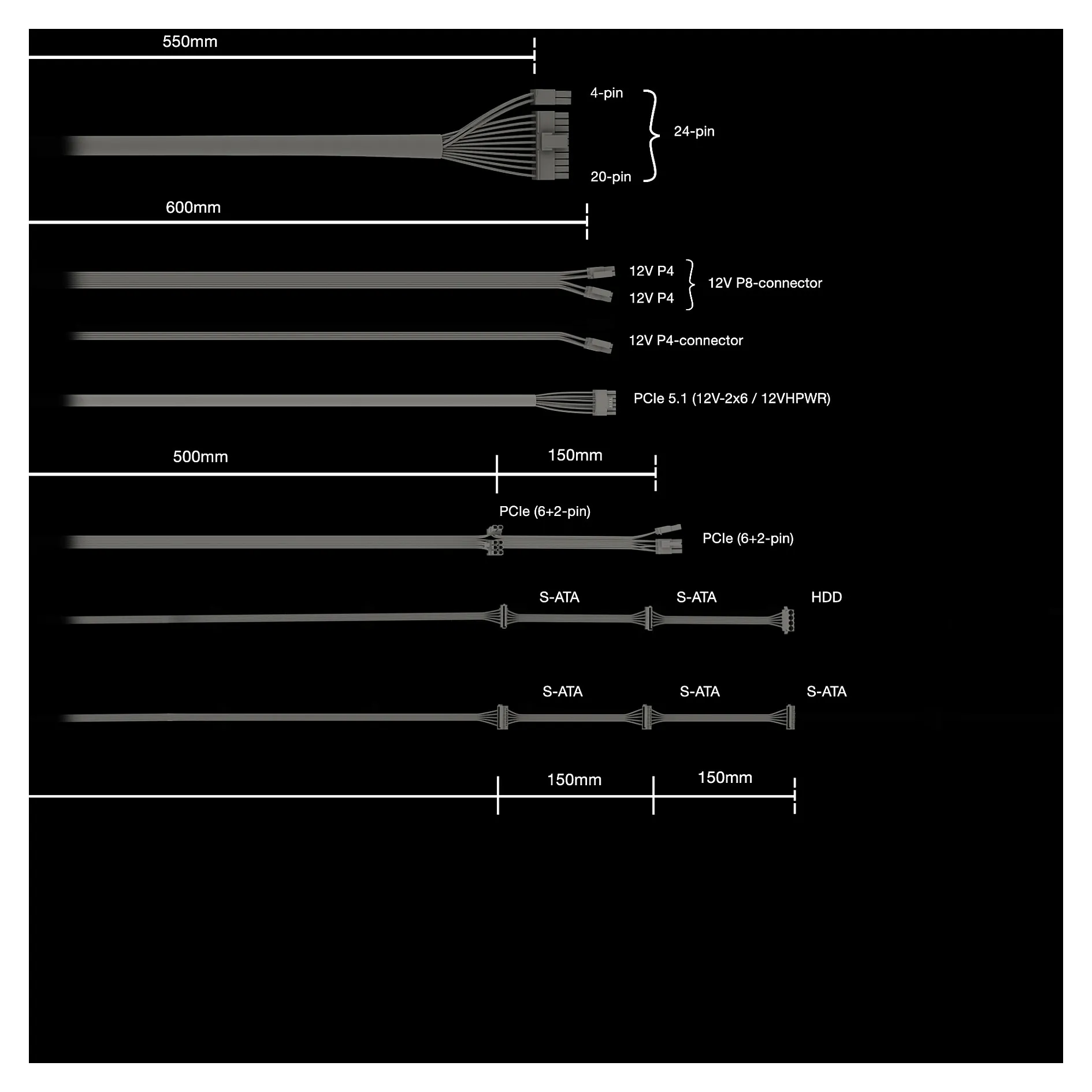

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 5
SATA power cable length: 500,650,800 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 800 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12-pin): 1
PCI Express power cable length: 60 cm
CPU P4 connector (4-pin): 1
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
PCI Express connector: Yes
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

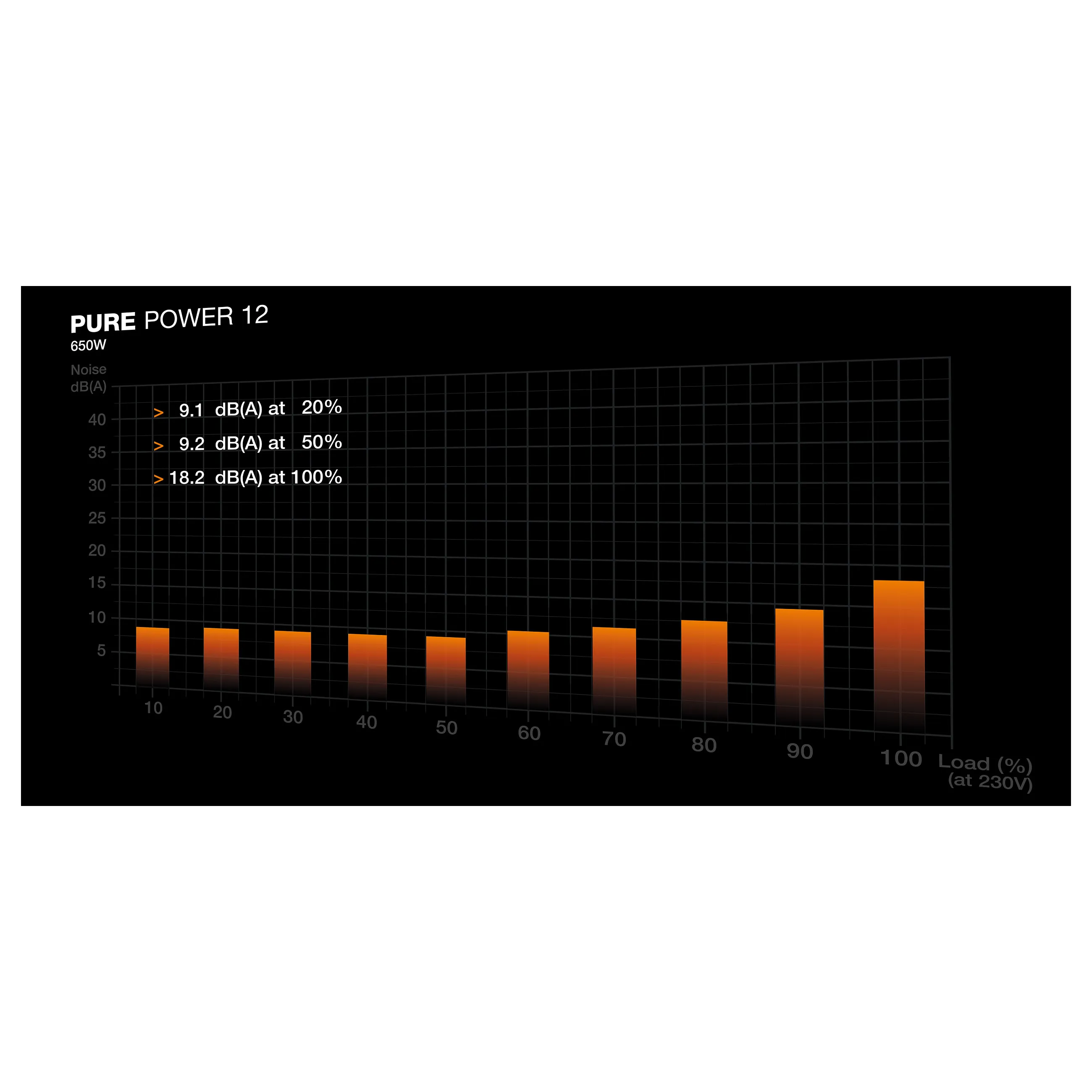

Noise level: 18.2 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Illumination: No
On/off switch: Yes
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 90%
Storage relative humidity (H-H): 0 – 95%

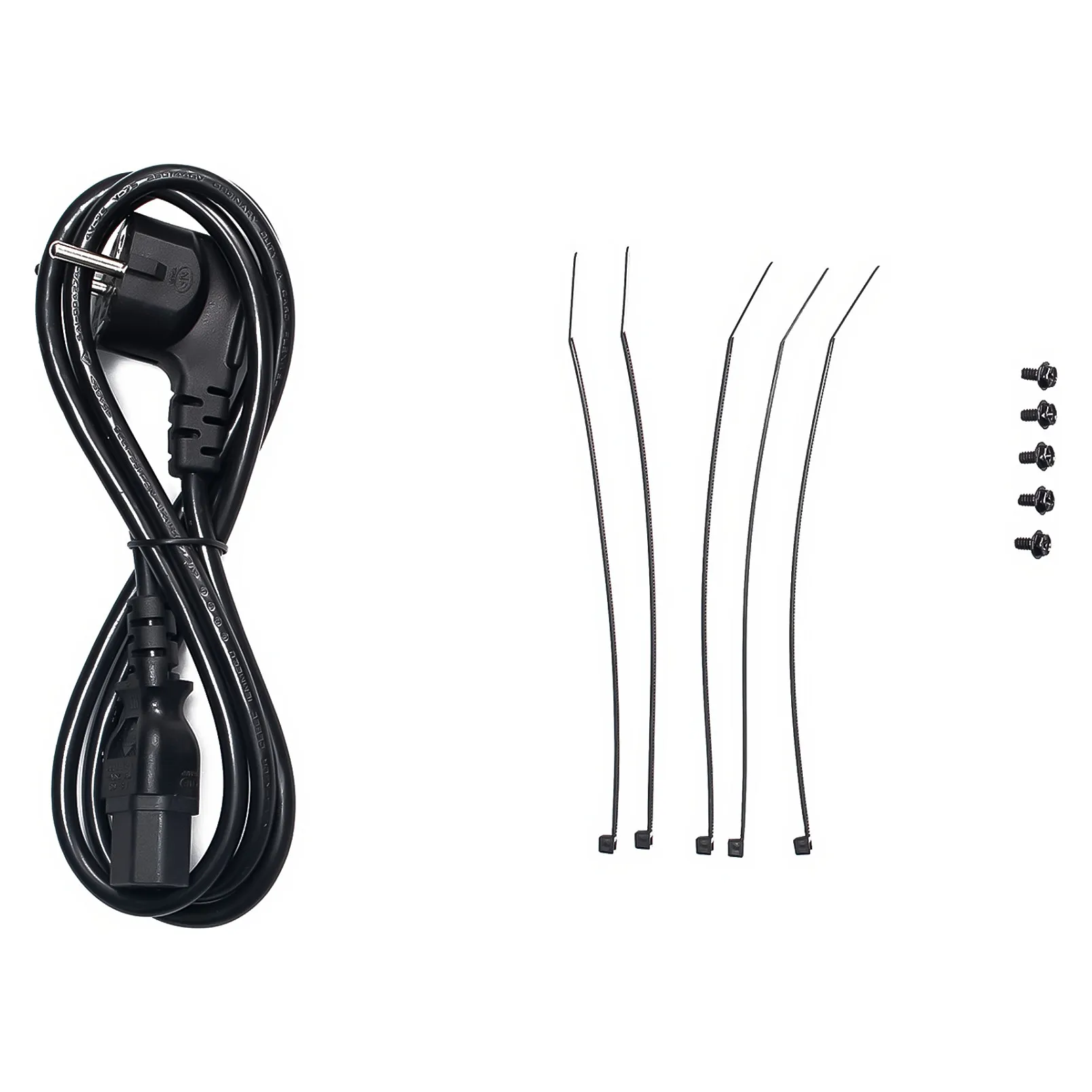

Packaging content
Cables included: AC
Cable tie(s) included: Yes
Certificates
Compliance certificates: CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus
Weight & dimensions
Width: 86 mm
Depth: 160 mm
Height: 150 mm
Weight: 2.4 kg
Packaging data
Package width: 133 mm
Package depth: 320 mm
Package height: 210 mm
Package weight: 2.8 kg
Technical details
Sustainability certificates: ENERGY STAR, ErP, Triman
Logistics data
Shipping (inner) case length: 42 cm
Shipping (inner) case width: 34.5 cm
Shipping (inner) case height: 41.3 cm
Shipping (inner) case net weight: 18.1 kg
Products per shipping (inner) case: 6 pc(s)
Warranty period: 10 year(s)
Other features
Screws included: Yes
Total power: 650 W
Peak power: 720 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 650 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 54.1 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16.86 ms
Efficiency: 91%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 5
SATA power cable length: 500,650,800 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 800 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12-pin): 1
PCI Express power cable length: 60 cm
CPU P4 connector (4-pin): 1
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
PCI Express connector: Yes
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 18.2 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Illumination: No
On/off switch: Yes
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 90%
Storage relative humidity (H-H): 0 – 95%
Packaging content
Cables included: AC
Cable tie(s) included: Yes
Certificates
Compliance certificates: CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus
Weight & dimensions
Width: 86 mm
Depth: 160 mm
Height: 150 mm
Weight: 2.4 kg
Packaging data
Package width: 133 mm
Package depth: 320 mm
Package height: 210 mm
Package weight: 2.8 kg
Technical details
Sustainability certificates: ENERGY STAR, ErP, Triman
Logistics data
Shipping (inner) case length: 42 cm
Shipping (inner) case width: 34.5 cm
Shipping (inner) case height: 41.3 cm
Shipping (inner) case net weight: 18.1 kg
Products per shipping (inner) case: 6 pc(s)
Warranty period: 10 year(s)
Other features
Screws included: Yes
