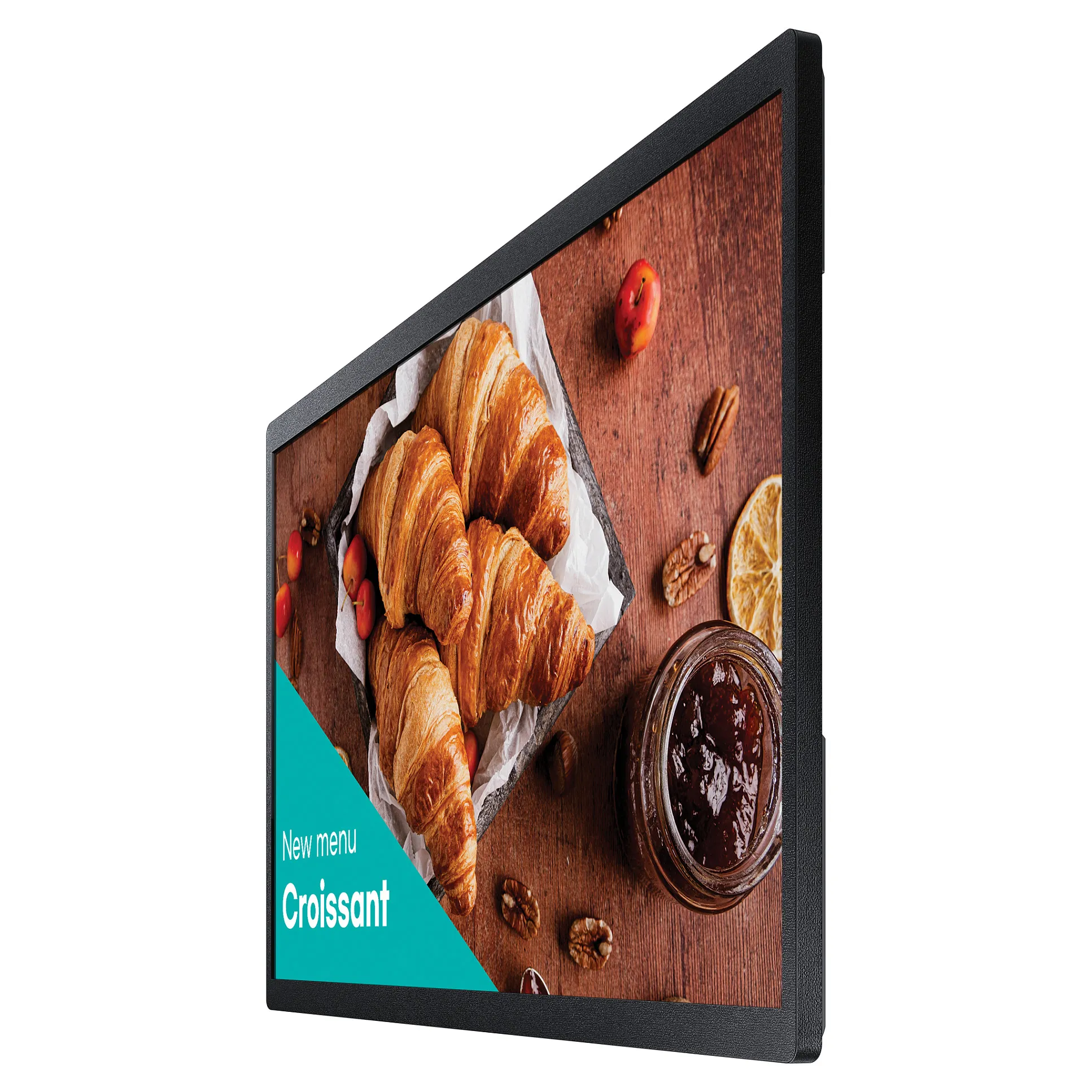

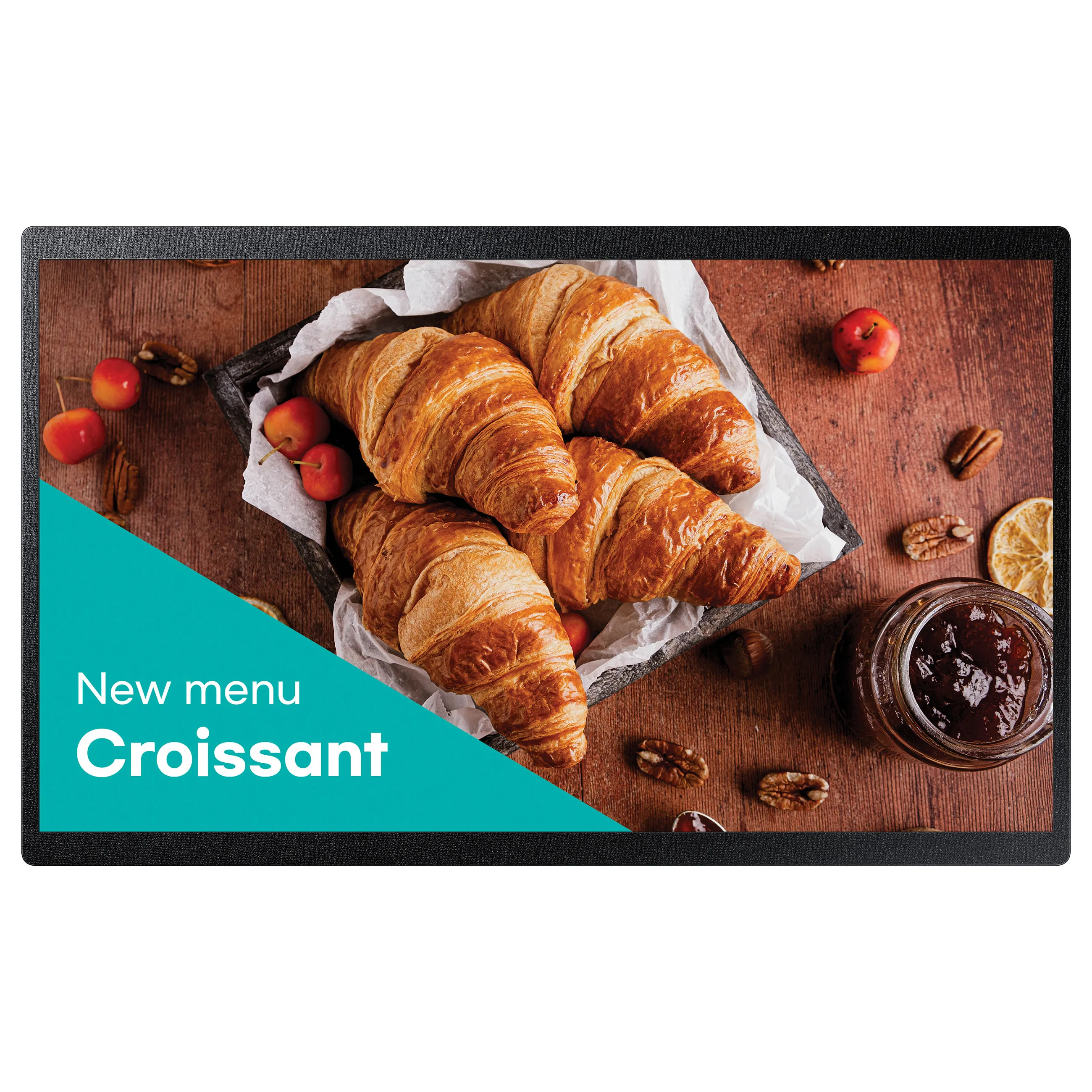

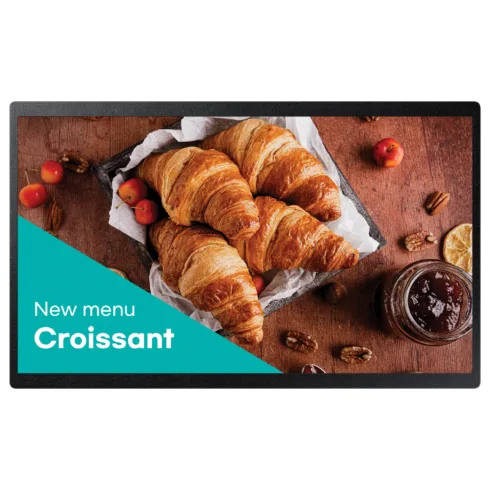

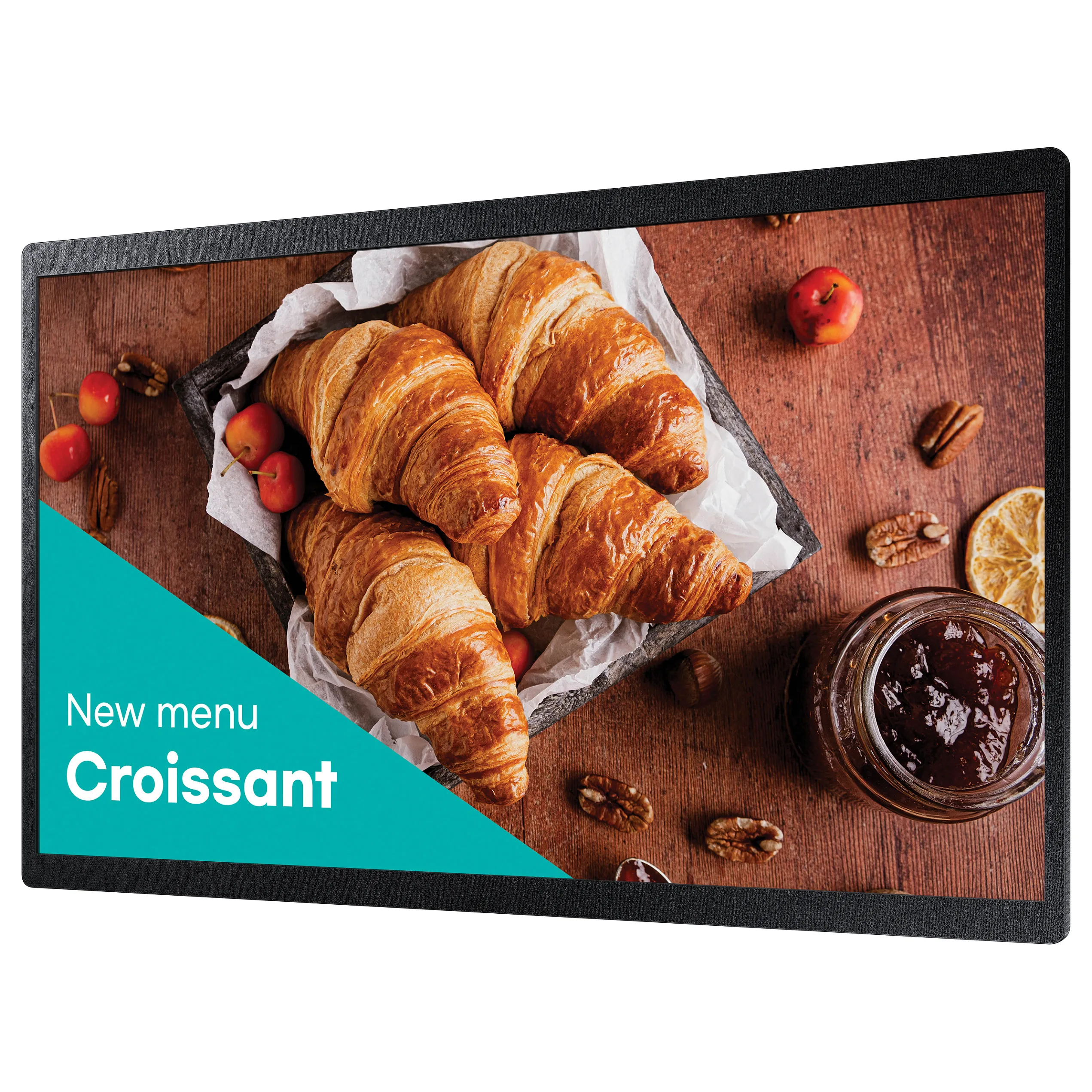

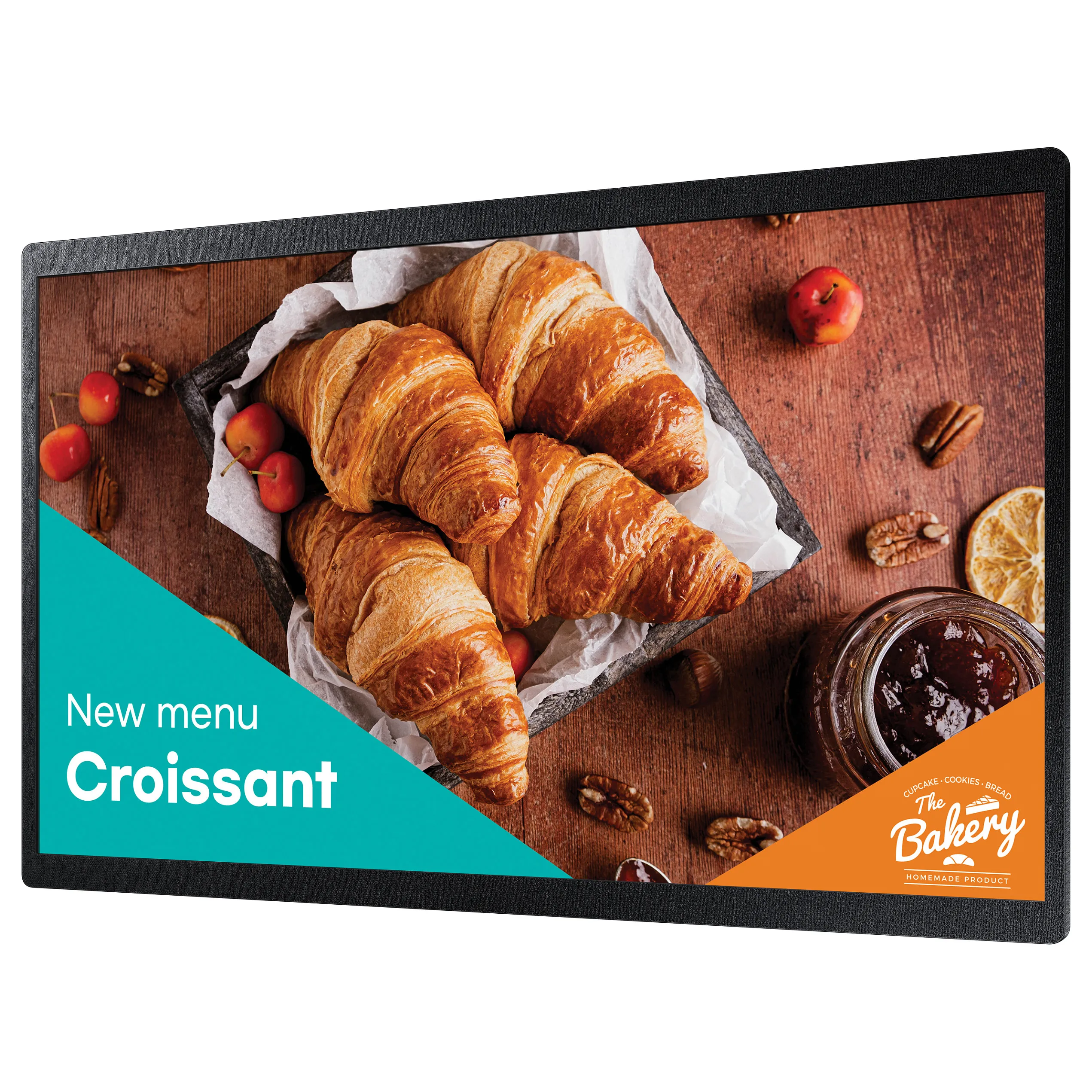

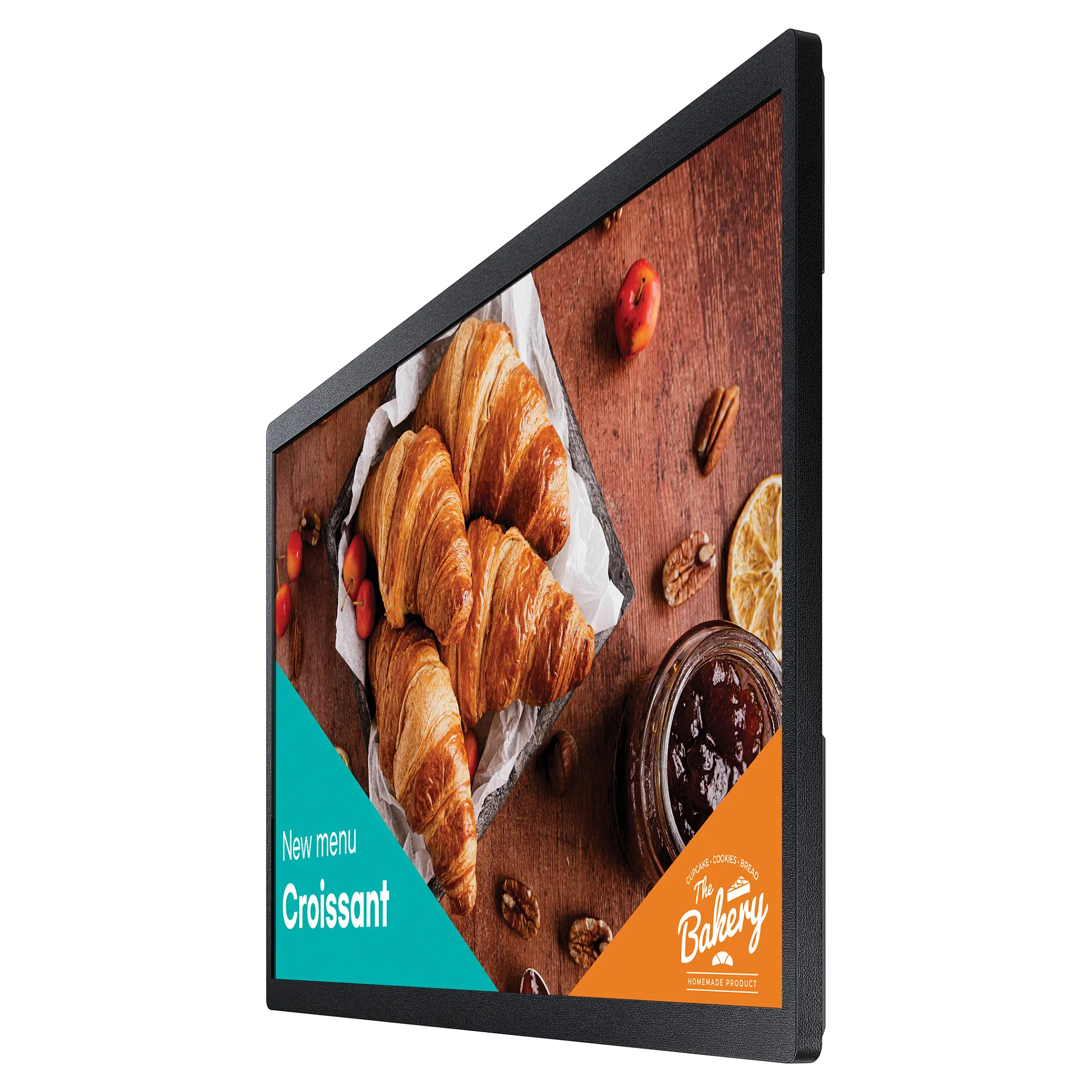

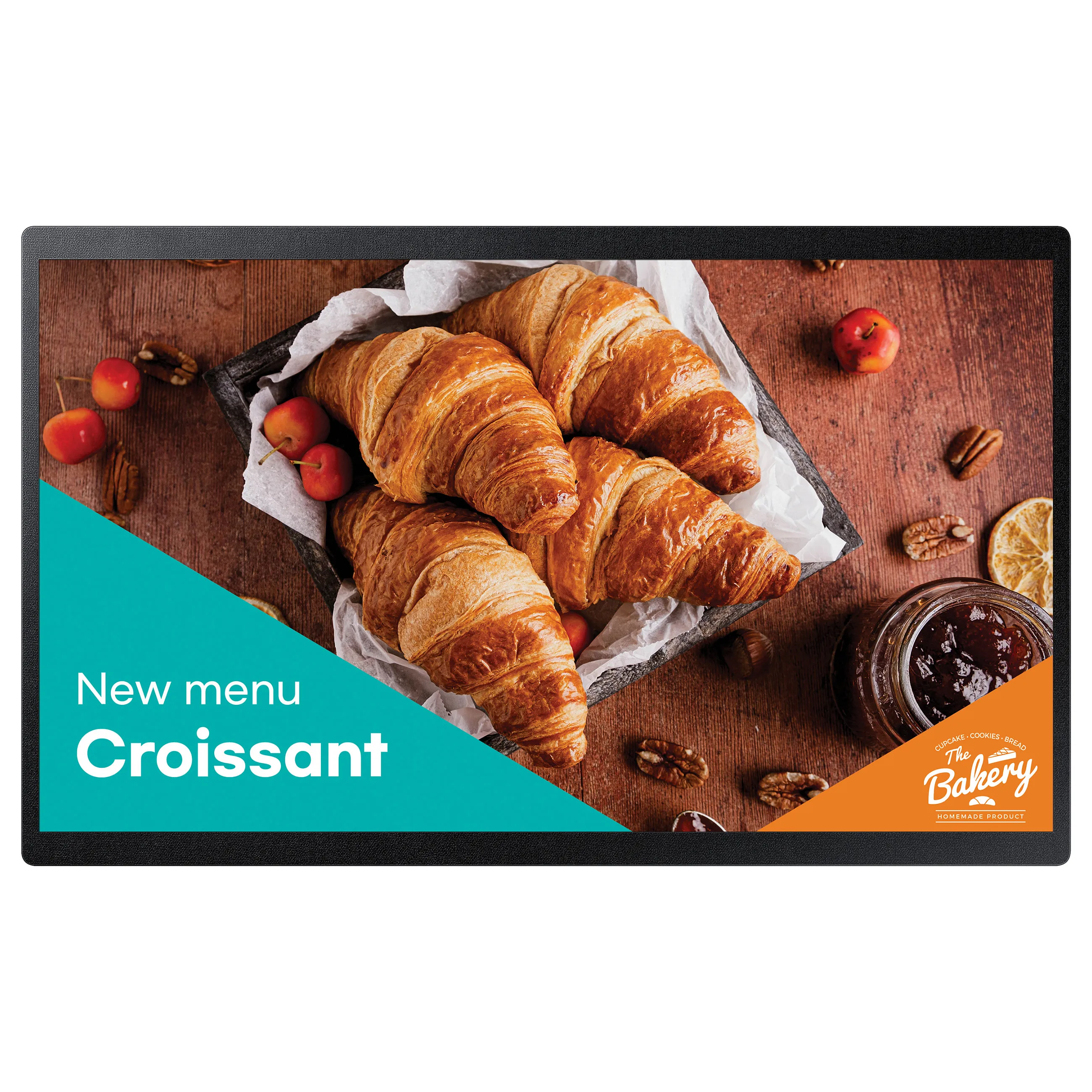

Samsung QB24C. Product design: Digital signage flat panel. Display diagonal: 61 cm (24"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen. Product colour: Black
Get the most out of every space with Samsung QB24C small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.
Hold sizable opportunities in small spaces
Compact Design

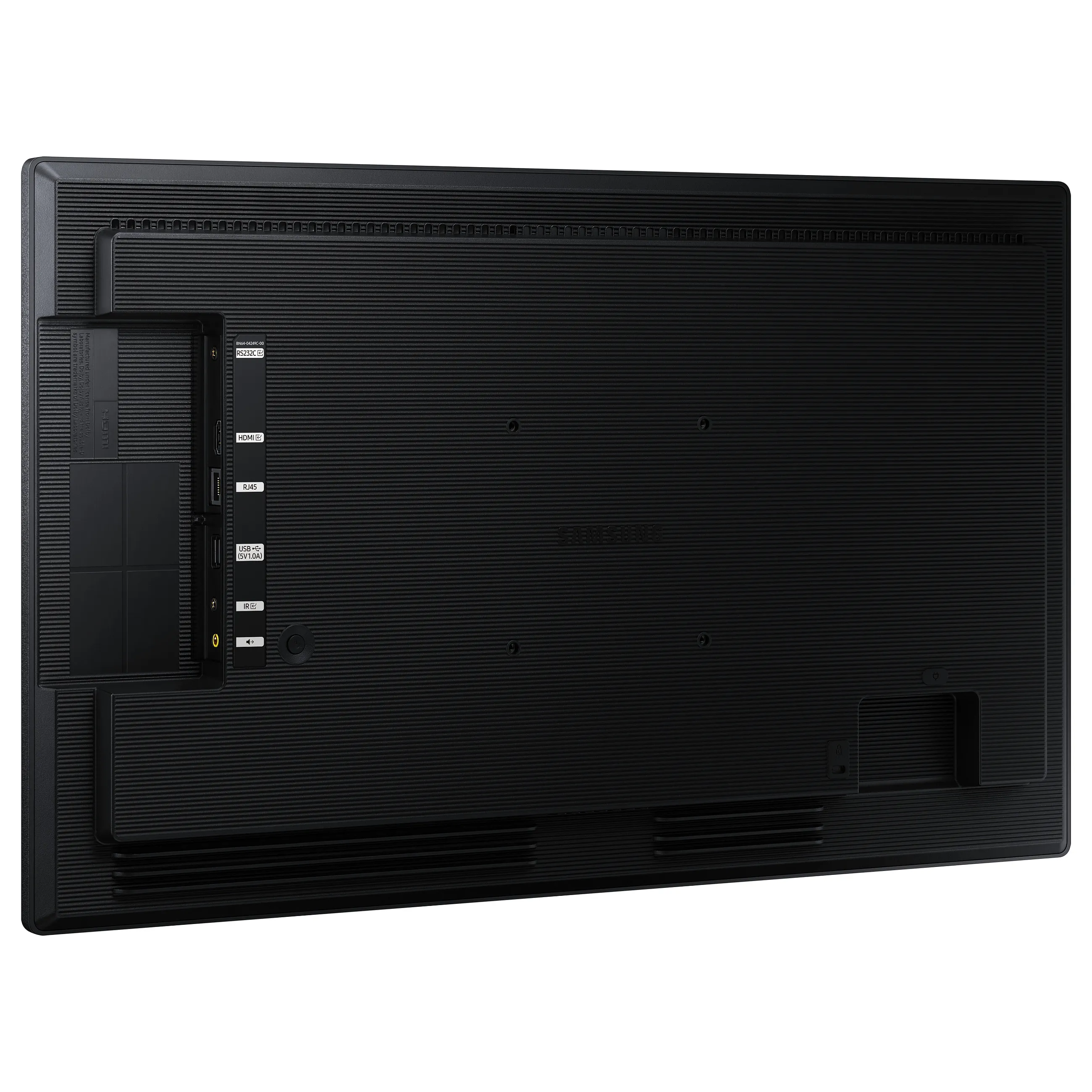

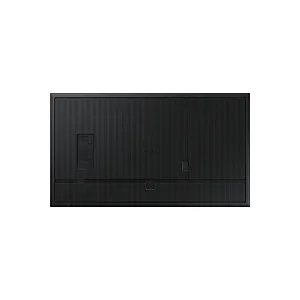

The compact design of the QB24C allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.
Connect with convenience
Home UI
QB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control
Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn’t require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
IP5X / EMC Class B
QB24C is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display’s IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
Panel type: ADS
Display diagonal: 61 cm (24″)
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 250 cd/m²
HD type: Full HD
Response time: 14 ms
Contrast ratio (typical): 1000:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.2745 x 0.2745 mm
Horizontal scan range: 56 – 84.5 kHz
Vertical scan range: 48 – 75 Hz
Haze rate: 25%
RGB colour space: NTSC
Colour gamut: 72%

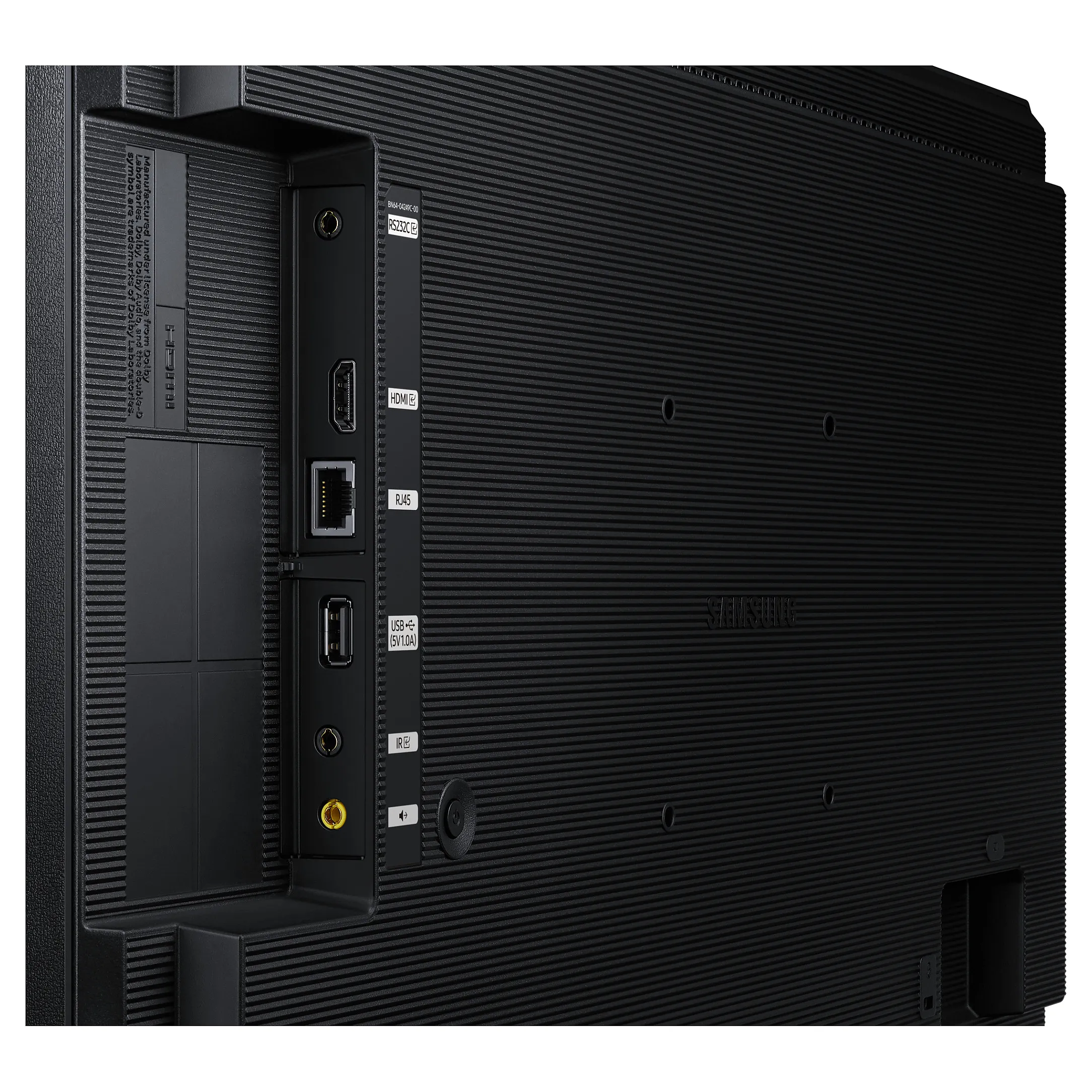

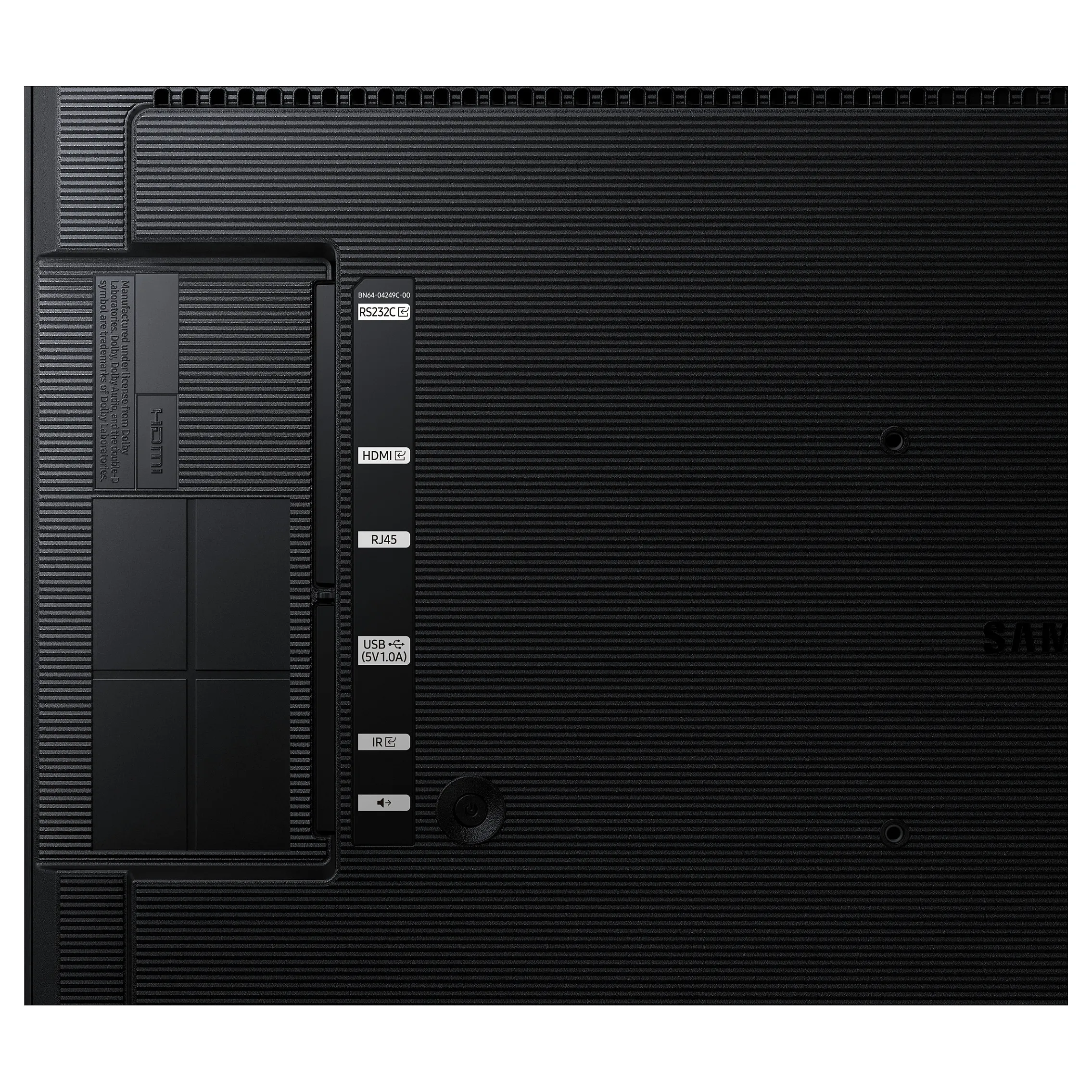

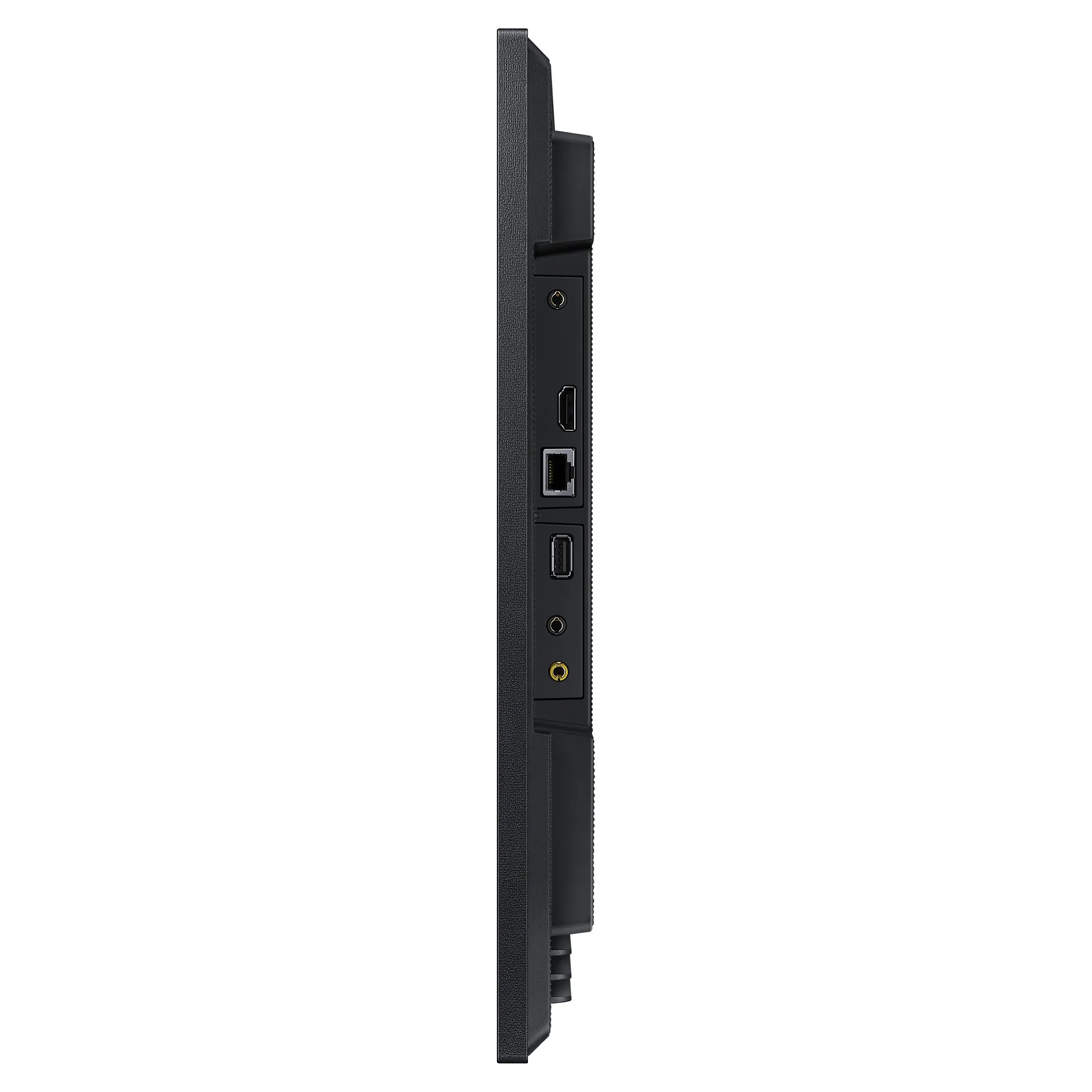

Ports & interfaces
HDMI ports quantity: 1
HDMI version: 1.4
HDMI input ports quantity: 1
Feature: USB port
USB ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1
Design
Product design: Digital signage flat panel
Product colour: Black
Screen shape: Flat

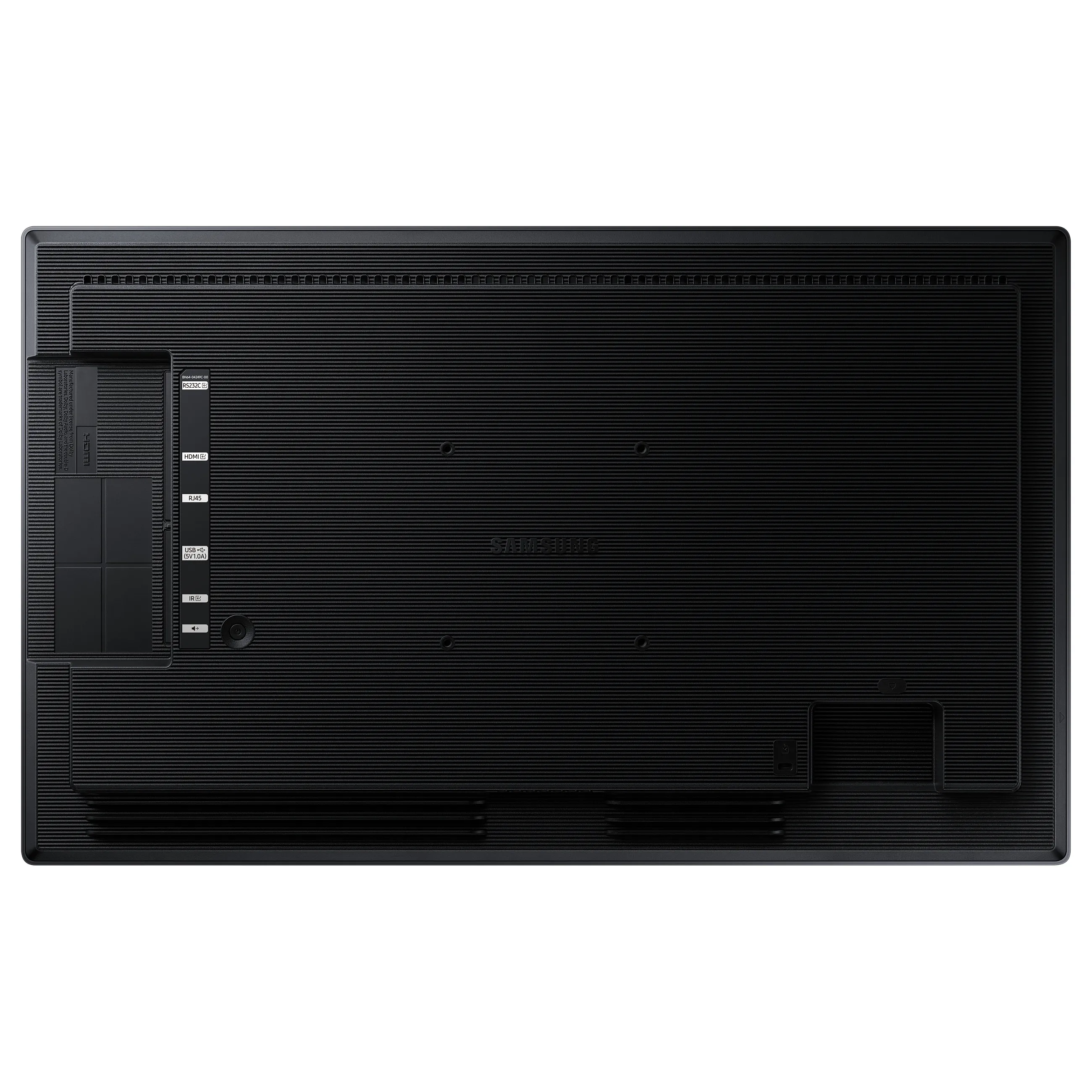

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel width (bottom): 1.79 cm
Bezel width (side): 9.4 mm
Bezel width (top): 1.79 cm
Bezel colour: Black
Performance
Purpose: Universal
Operating hours (hours/days): 16/7
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 38.5 W
Power consumption (sleep): 0.5 W
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen
Operating system version: 7.0
Weight & dimensions
Display width: 547.9 mm

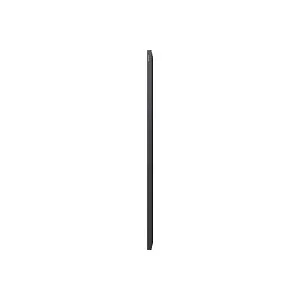

Display depth: 31.8 mm
Display height: 334.4 mm
Display weight: 3 kg
Packaging data
Package width: 620 mm
Package depth: 122 mm
Package height: 419 mm
Package volume: 4100 cm³
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Certificates
Certification: Class B
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Audio out (mini jack): 1
Other features
Feature: Bluetooth
Flash memory: 8000 MB
RS-232 input ports: 1
RJ-45 input ports: 1
