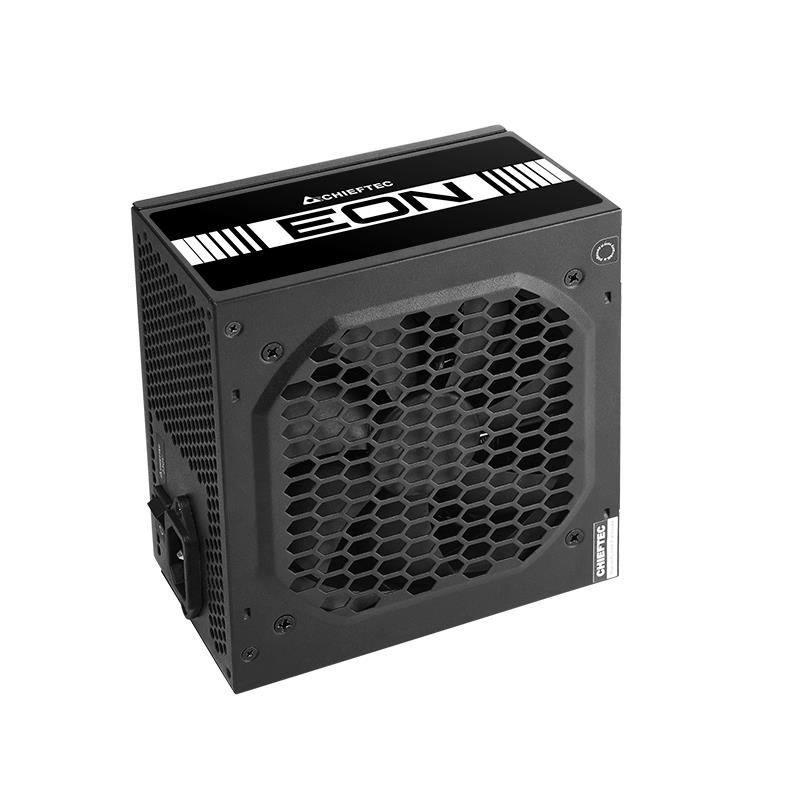

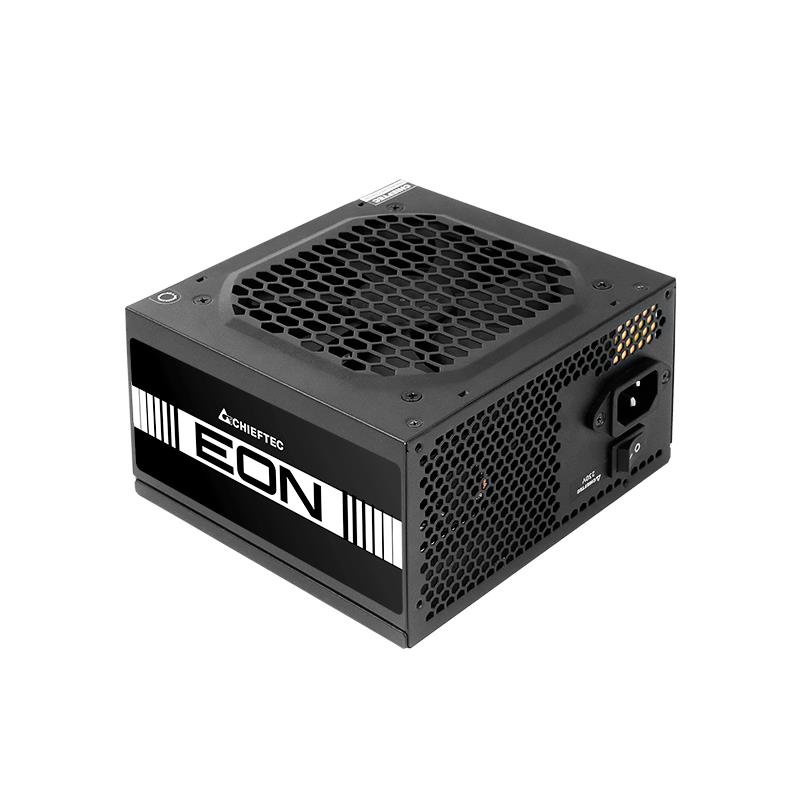

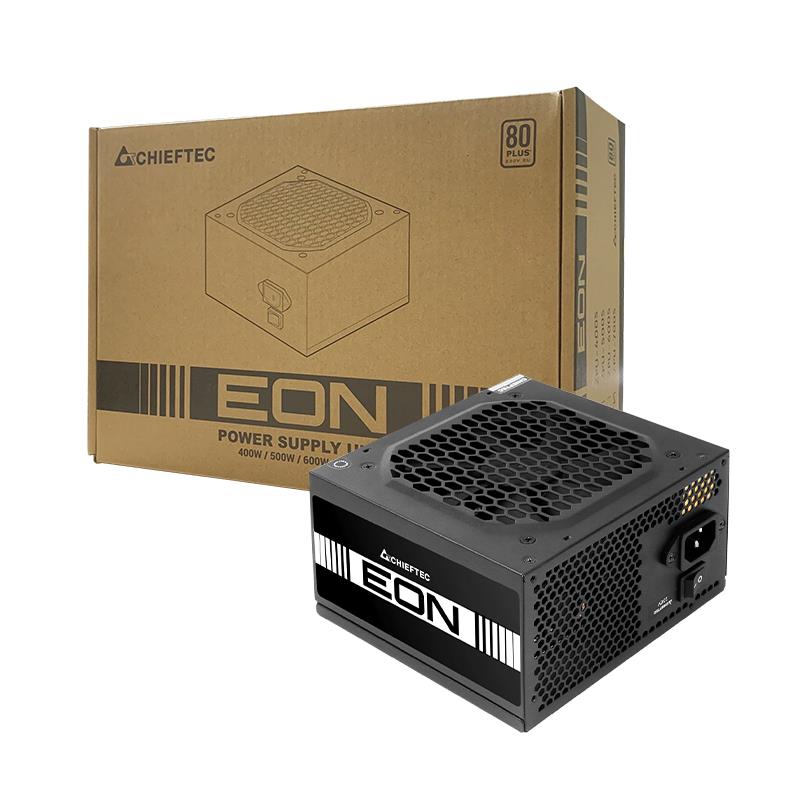

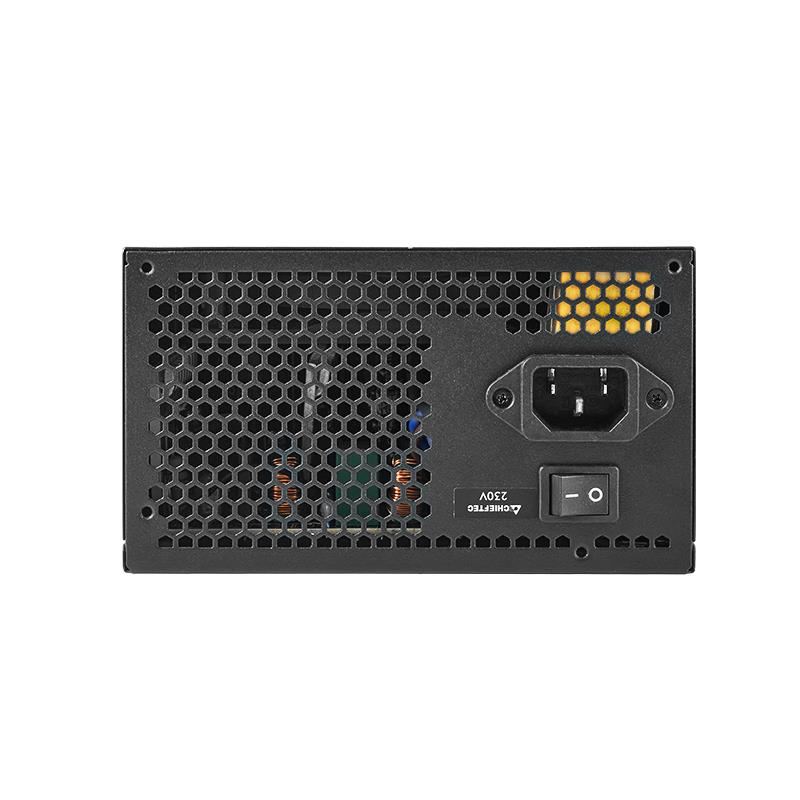

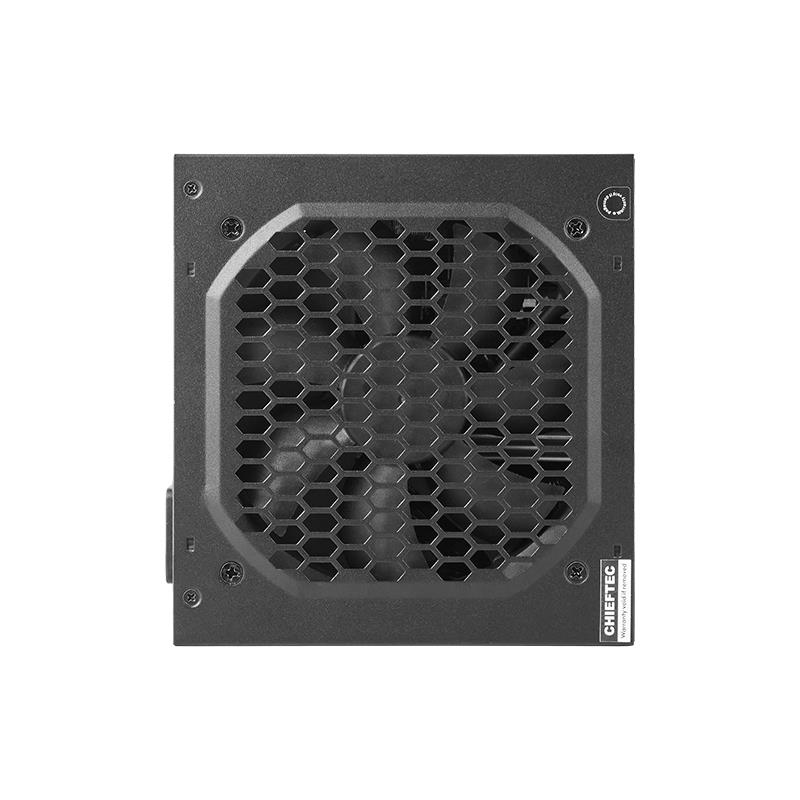

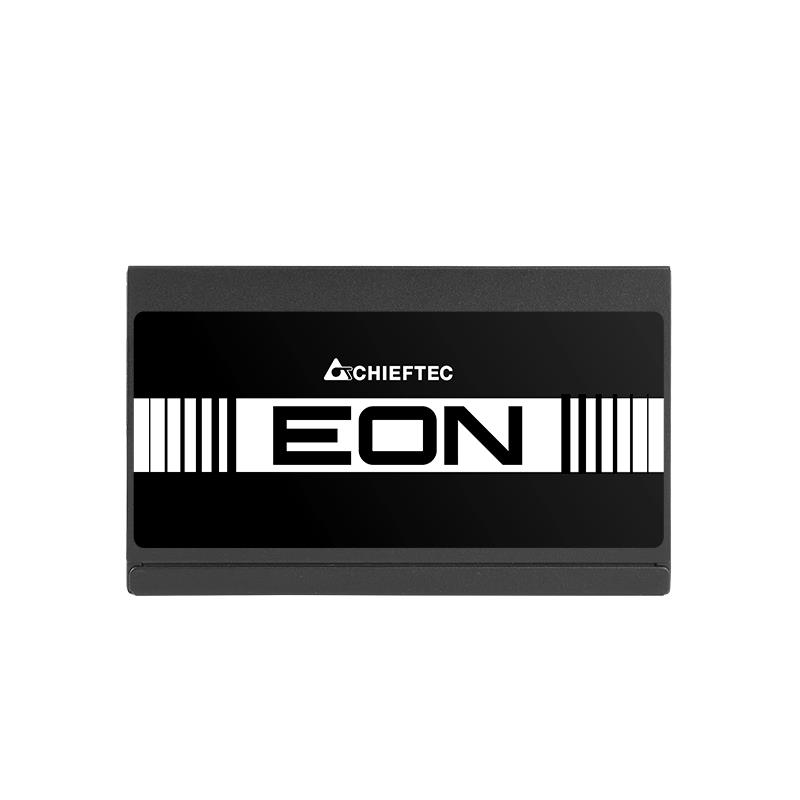

Chieftec EON . Total power: 600 W, AC input voltage: 200 – 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly
competitive pricing, equipped with silent 120mm fans.
competitive pricing, equipped with silent 120mm fans.
The power supplies are fully built from steel, coated in elegant black, and

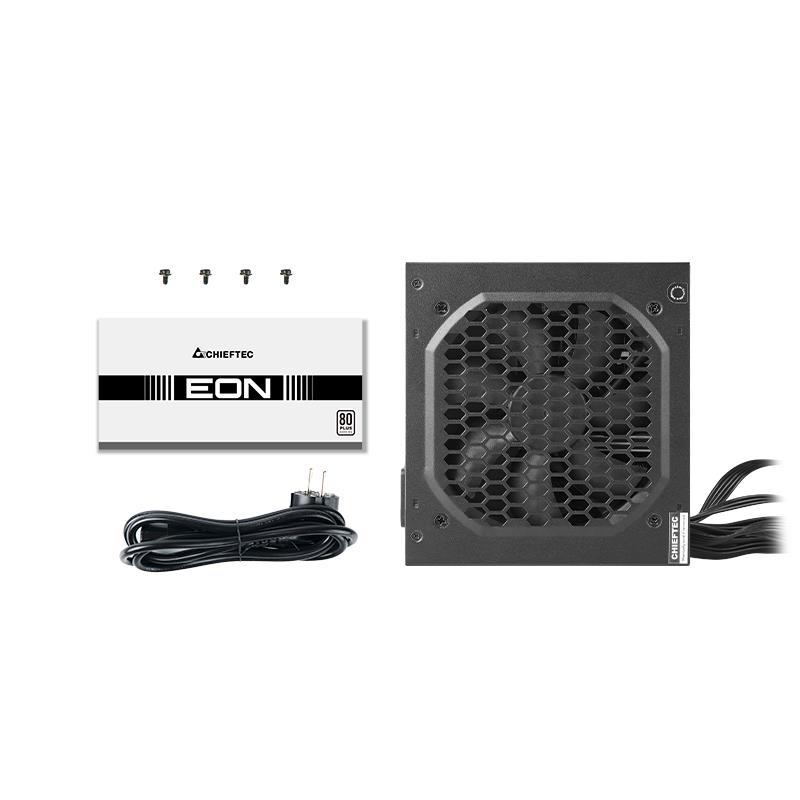

equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.
Power
Total power: 600 W
AC input voltage: 200 – 240 V
AC input frequency: 50 Hz
Input current: 4.5 A
Maximum input current (@220V): 4.5 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (-12V): 4.8 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 45 A
Max output current (+5V): 20 A
Max output current (-12V): 0.4 A
Max output current (+5Vsb): 2.5 A
Power protection features: Short circuit, Surge and inrush, Surge protection
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 4
SATA power cable length: 450,600,750 mm
Peripheral (Molex) power cable length: 450,600,750 mm
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS
Supported motherboard form factors: ATX
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Design
Product colour: Black
Fan diameter: 12 cm
On/off switch: Yes
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.34 kg
Logistics data
Warranty period: 2 year(s)
