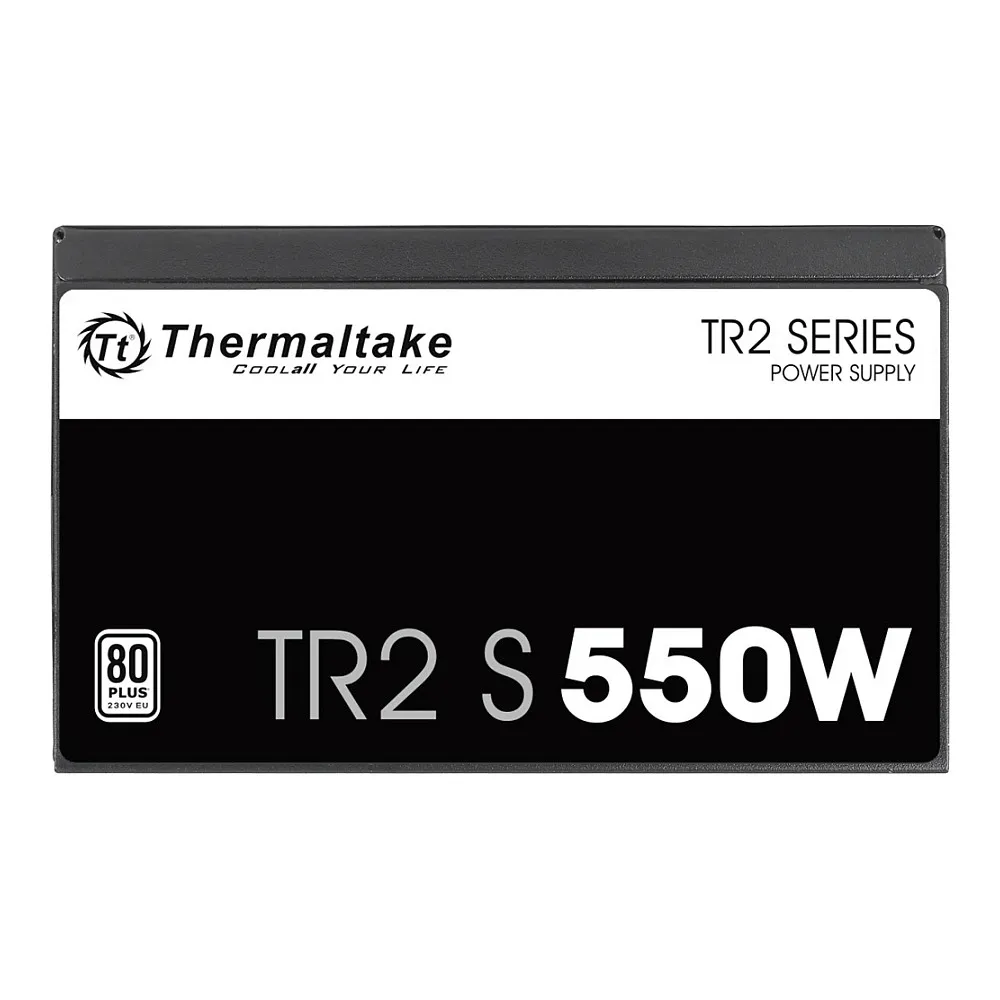

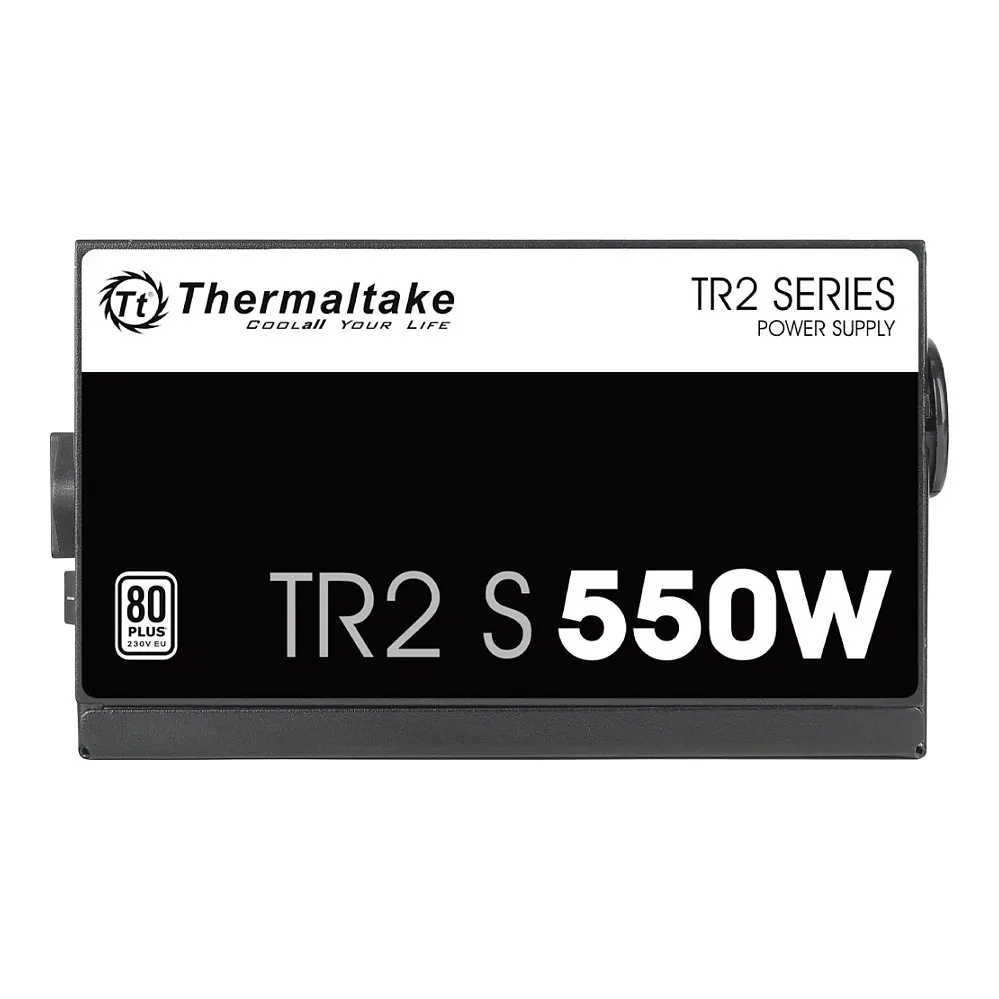

Thermaltake TR2 S 550W. Total power: 550 W, AC input voltage: 200 – 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: FCC/ICES/CB/cTUVus
The TR2 S Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance.

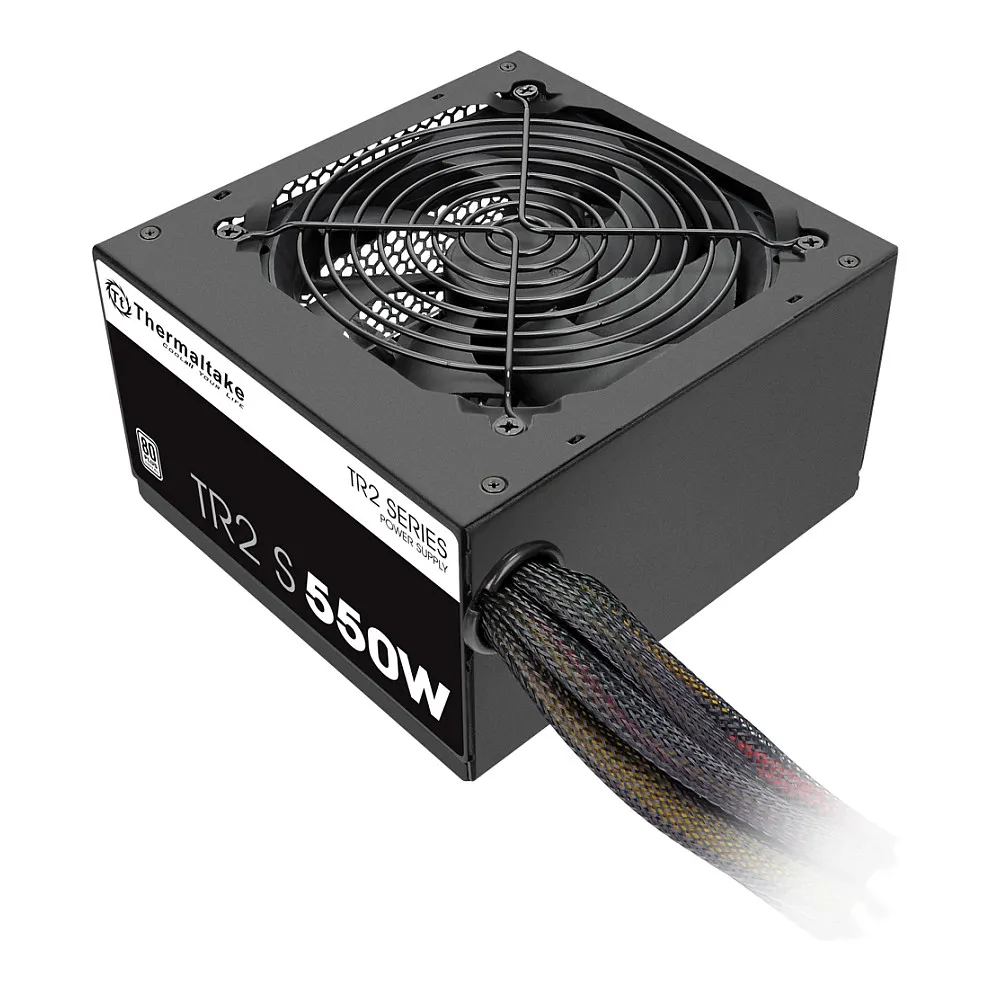

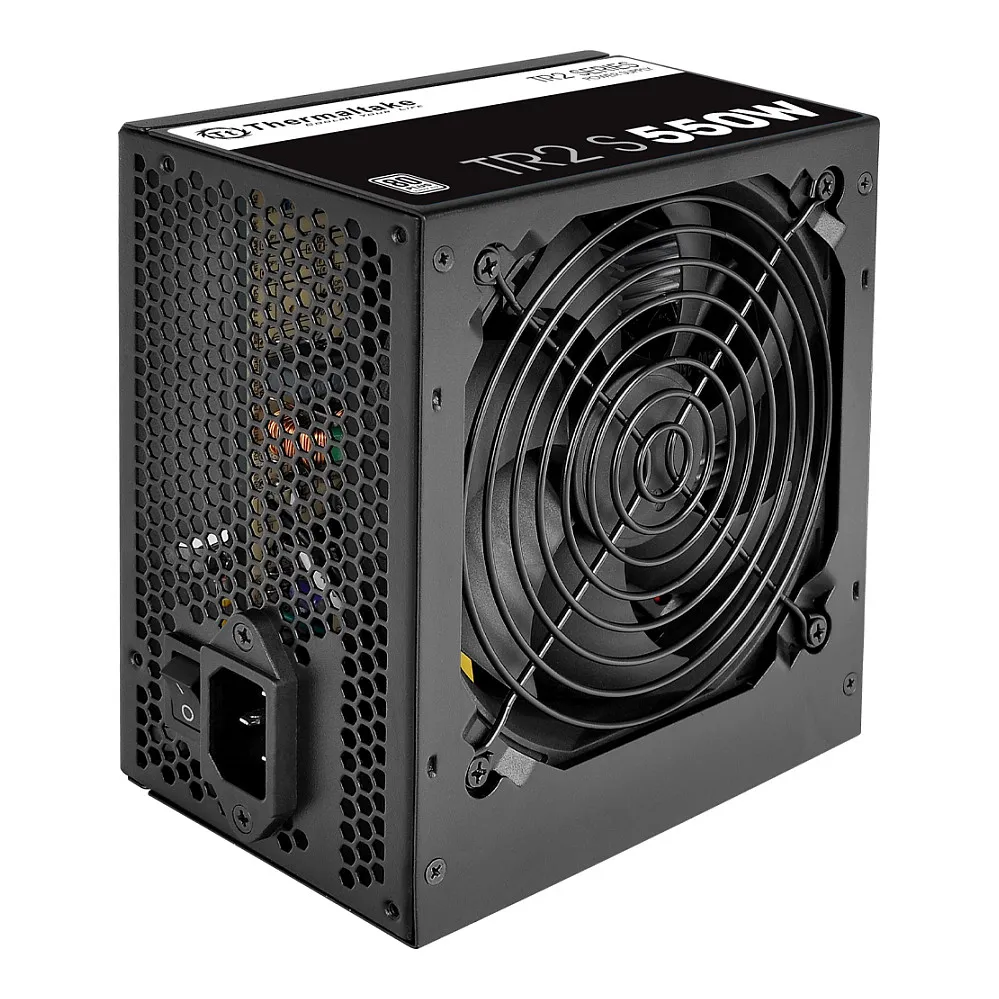

Ultra Quiet 120mm Fan
TR2 S Series adopts 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.

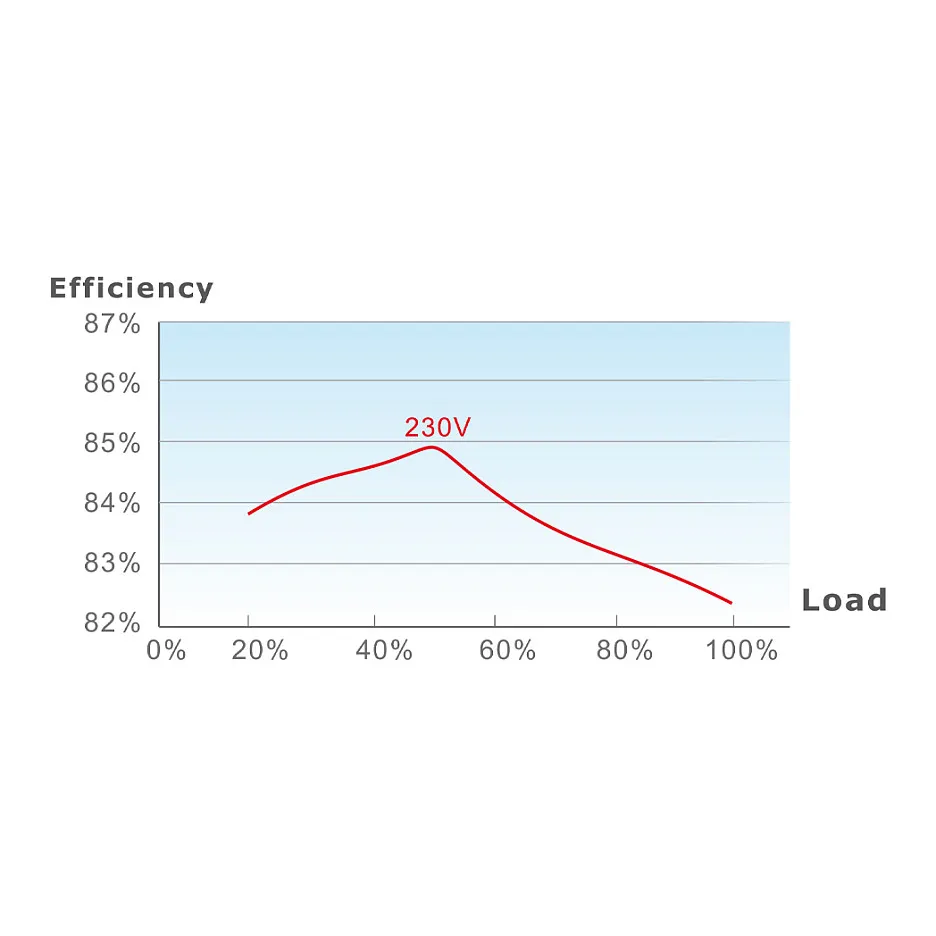

80 PLUS 230V EU Certified
TR2 S Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified.
Multiple Connectors
The cables used for TR2 S Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.

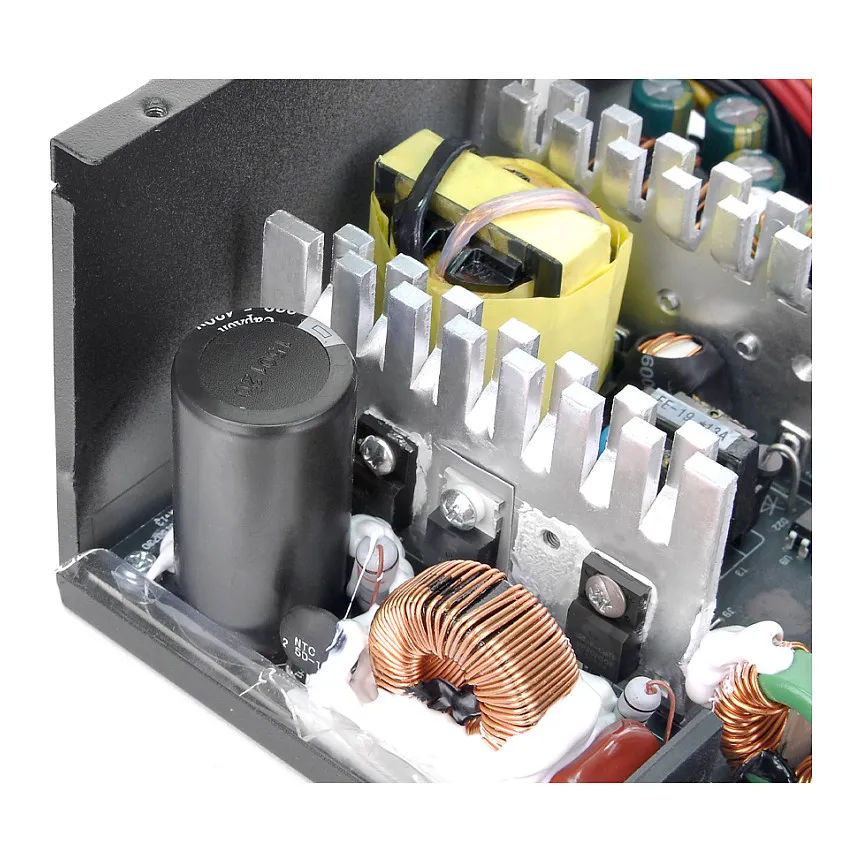

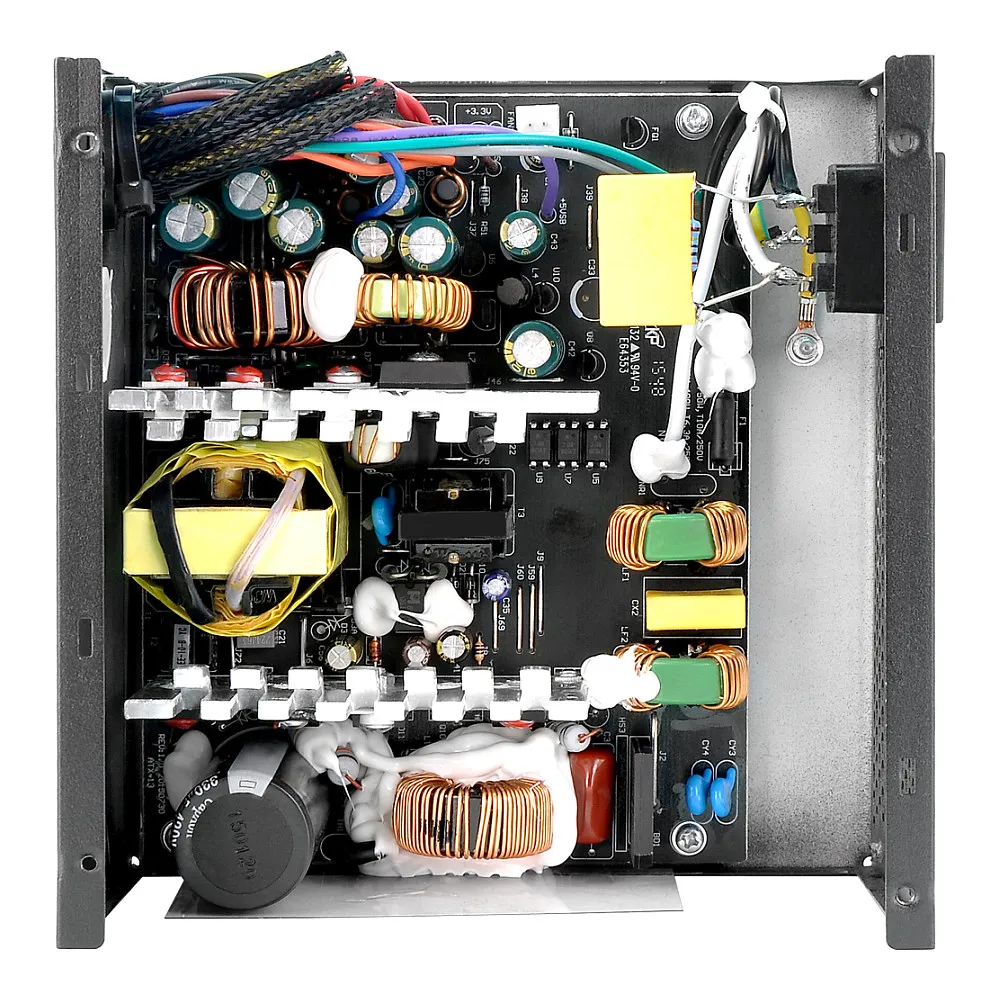

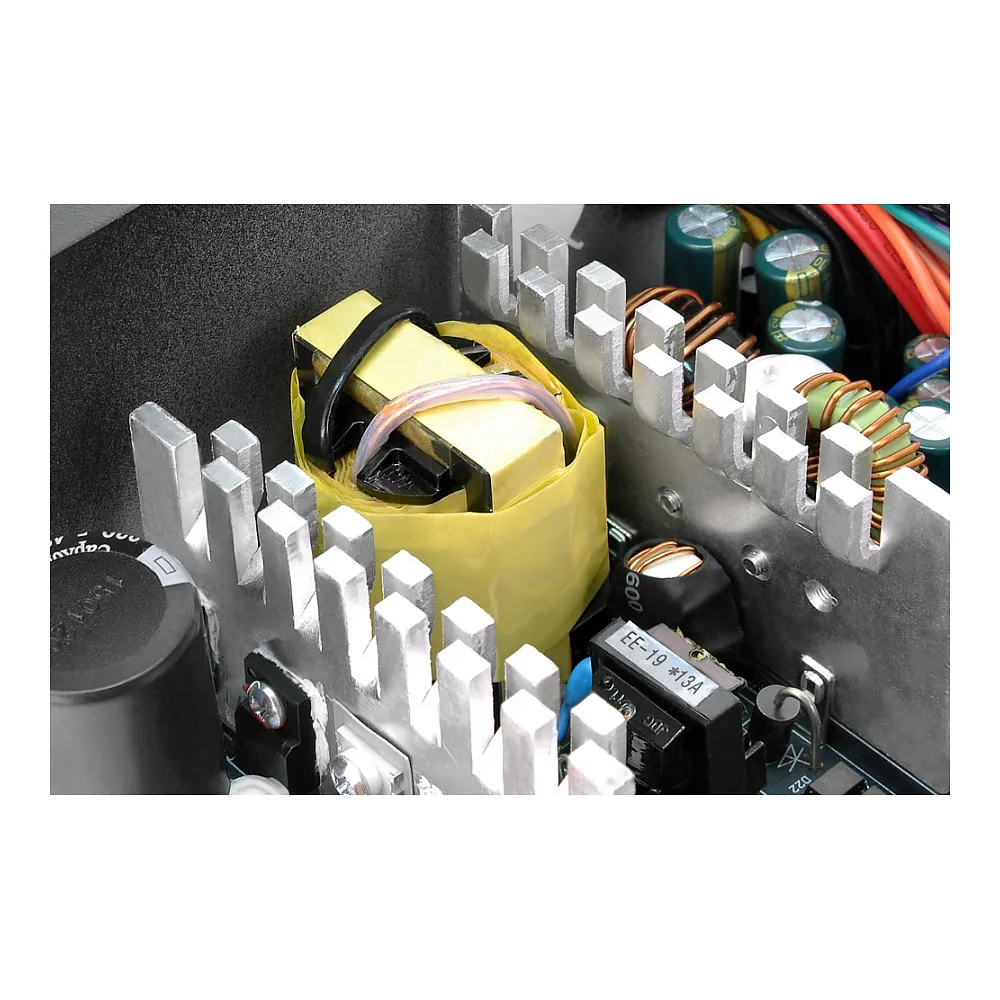

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail & DC to DC Design
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
To protect the hardware, TR2 S series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

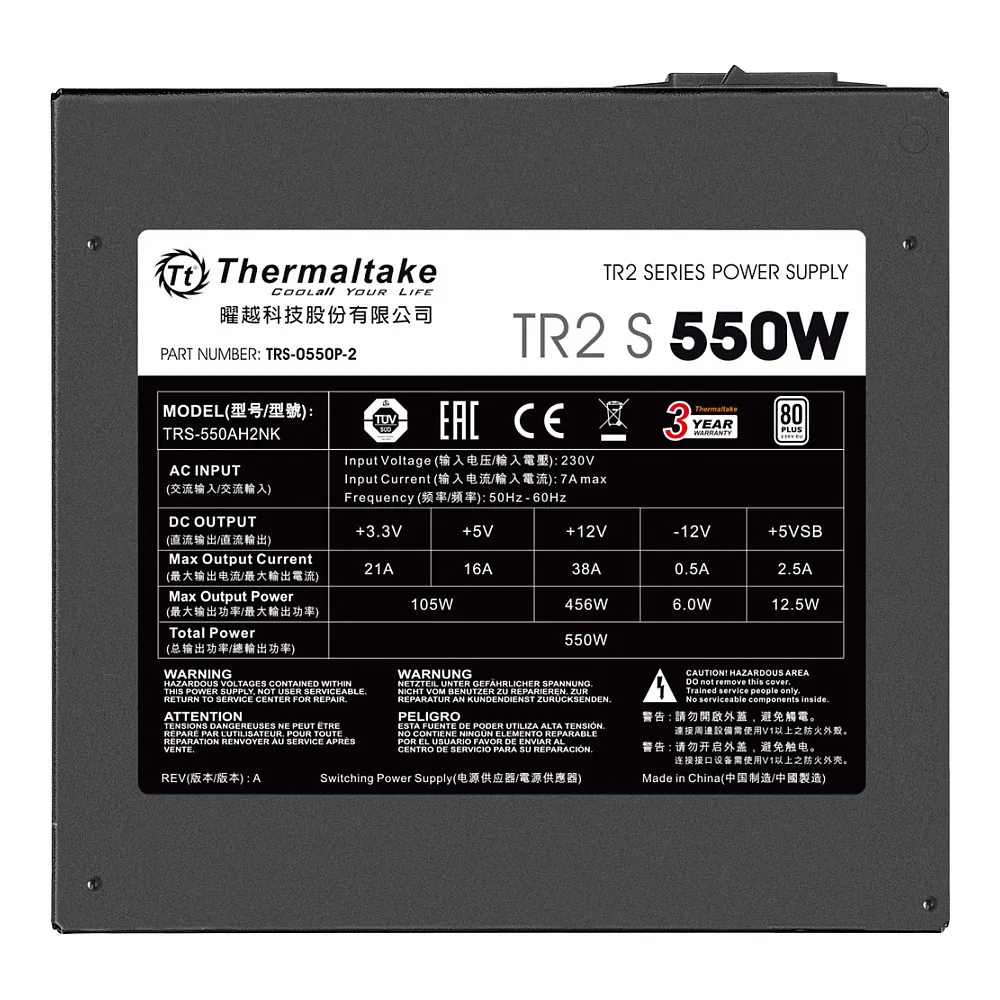

Total power: 550 W
AC input voltage: 200 – 240 V
AC input frequency: 50 Hz
Input current: 8 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 550 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 18 A
Max output current (+12V): 45.8 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Hold time: 17 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 4
SATA power cable length: 500 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 500 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 50 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
Bearing technology: Hydraulic
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 5 – 40 °C
Storage temperature (T-T): -40 – 55 °C
Operating relative humidity (H-H): 20 – 85%
Storage relative humidity (H-H): 10 – 95%
Certificates
Certification: FCC/ICES/CB/cTUVus
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data

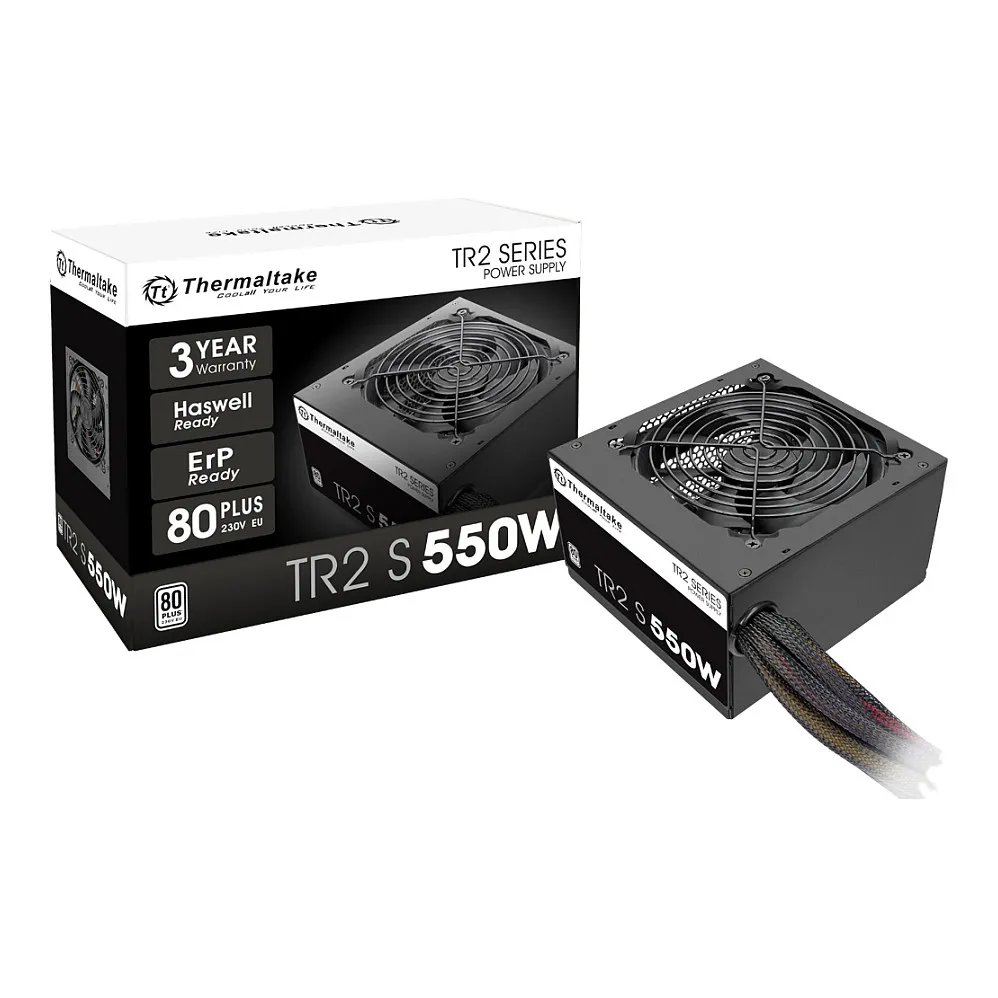

Package type: Box
