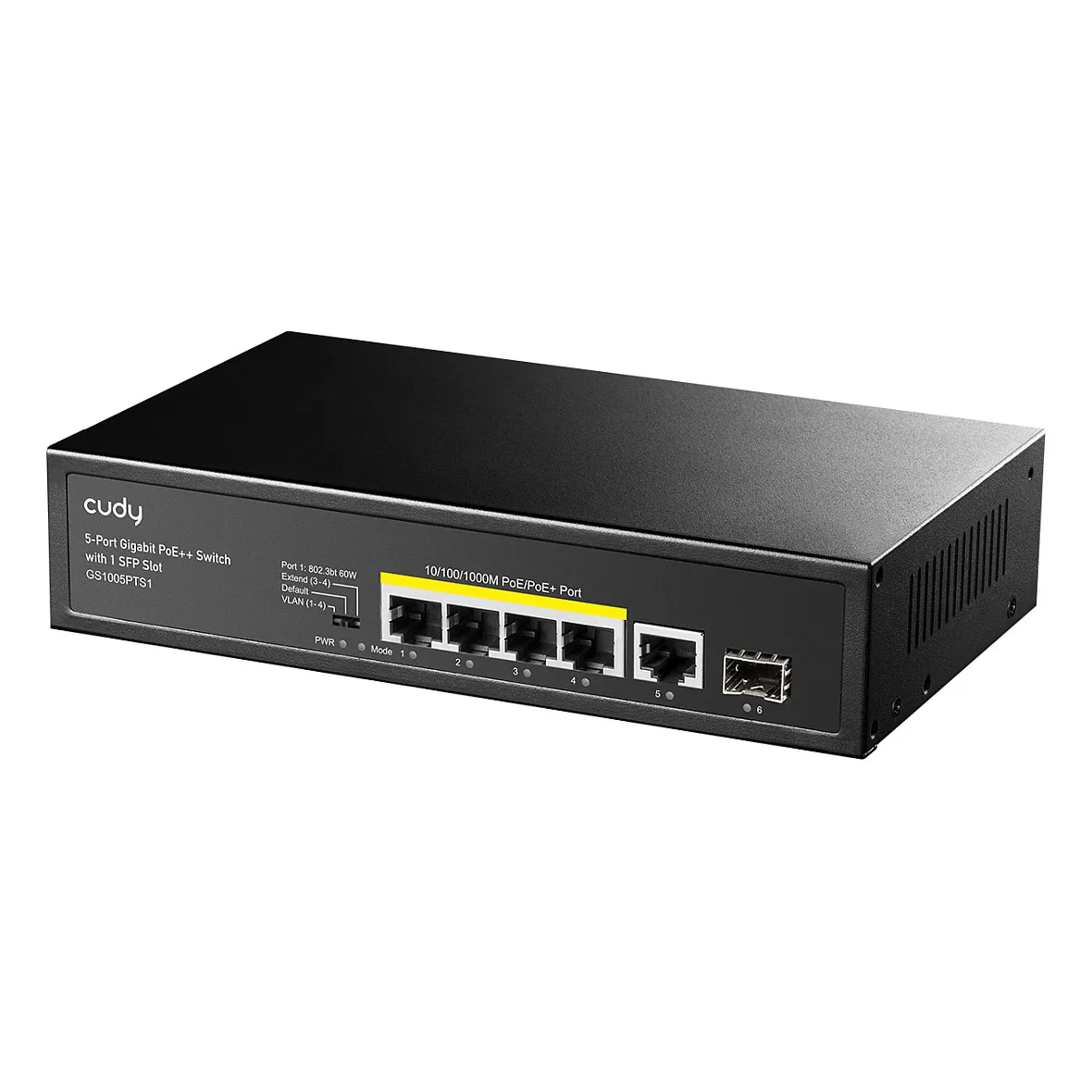

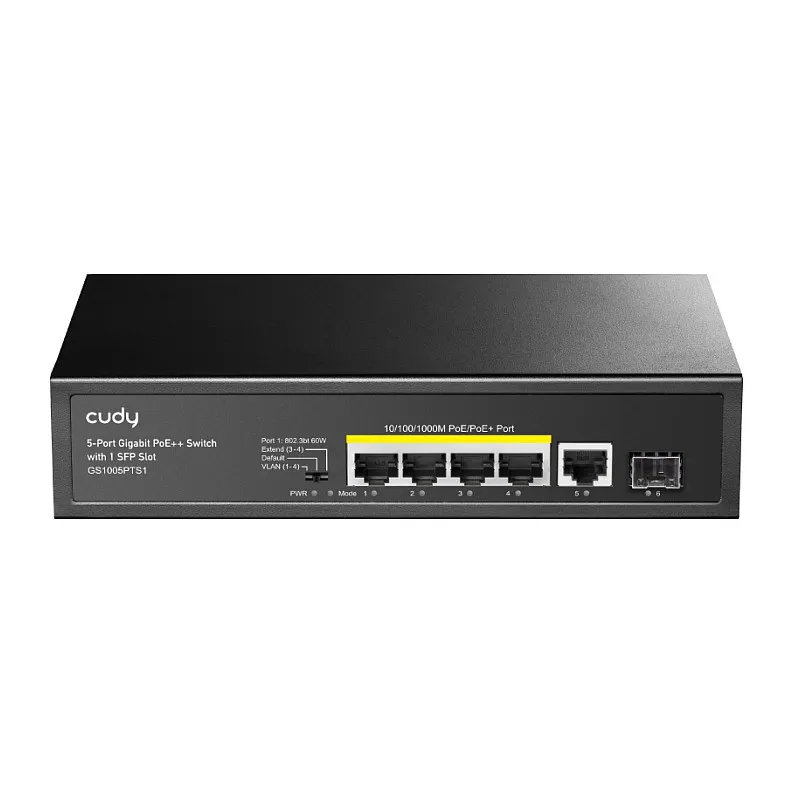

Cudy GS1005PTS1. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Switching optical modules type: Gigabit Ethernet. Full duplex. MAC address table: 2048 entries, Switching capacity: 12.5 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: AC-in jack. Power over Ethernet (PoE). Wall mountable, Rack mounting
IEEE 802.3at/af with 60W Port Enhancement.
Port 1 delivers up to 60W and the other PoE ports delivers up to 30W of power, making it suitable for camera with heater, access points, IP cameras, digital signage, and most other PoE devices.
PoE Auto Recovery
Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.
Streamlined PoE Management Loved by Installers
Built-In Modes for Practical Use Cases
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
Exceptional Built-Quality for Stable Operation
Build Robust Systems with Outstanding EMC
Improves service reliability and reduces downtime caused by power surges and ESD.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Shielded Ports. Solid Metal Casing.
Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.
Versatile Scenarios
Surveillance
Office Networking
Campuses Wi-Fi
Accesses and Signages
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 1
Uplink ports quantity: 1
Power connector: AC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Optical fiber
Switching optical modules type: Gigabit Ethernet
Data transmission
Switching capacity: 12.5 Gbit/s
Forwarding rate: 8.929 Mpps
MAC address table: 2048 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 1 MB
Security
Feature: Password protection
Design
Feature: Rack mounting
Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power
Feature: Wall mountable
Performance
Flash memory: 8 MB
Feature: Plug and Play
Feature: Fanless
Mean time between failures (MTBF): 100000 h
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 1.25 A
Output voltage: 52 V
Output current: 1.25 A
Power consumption (max): 120 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 3
Power over Ethernet plus (PoE+) ports quantity: 1
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W
Other features
Warranty period: 1 year(s)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 95%
Weight & dimensions
Width: 200 mm
Depth: 145 mm
Height: 44 mm
Weight: 645 g

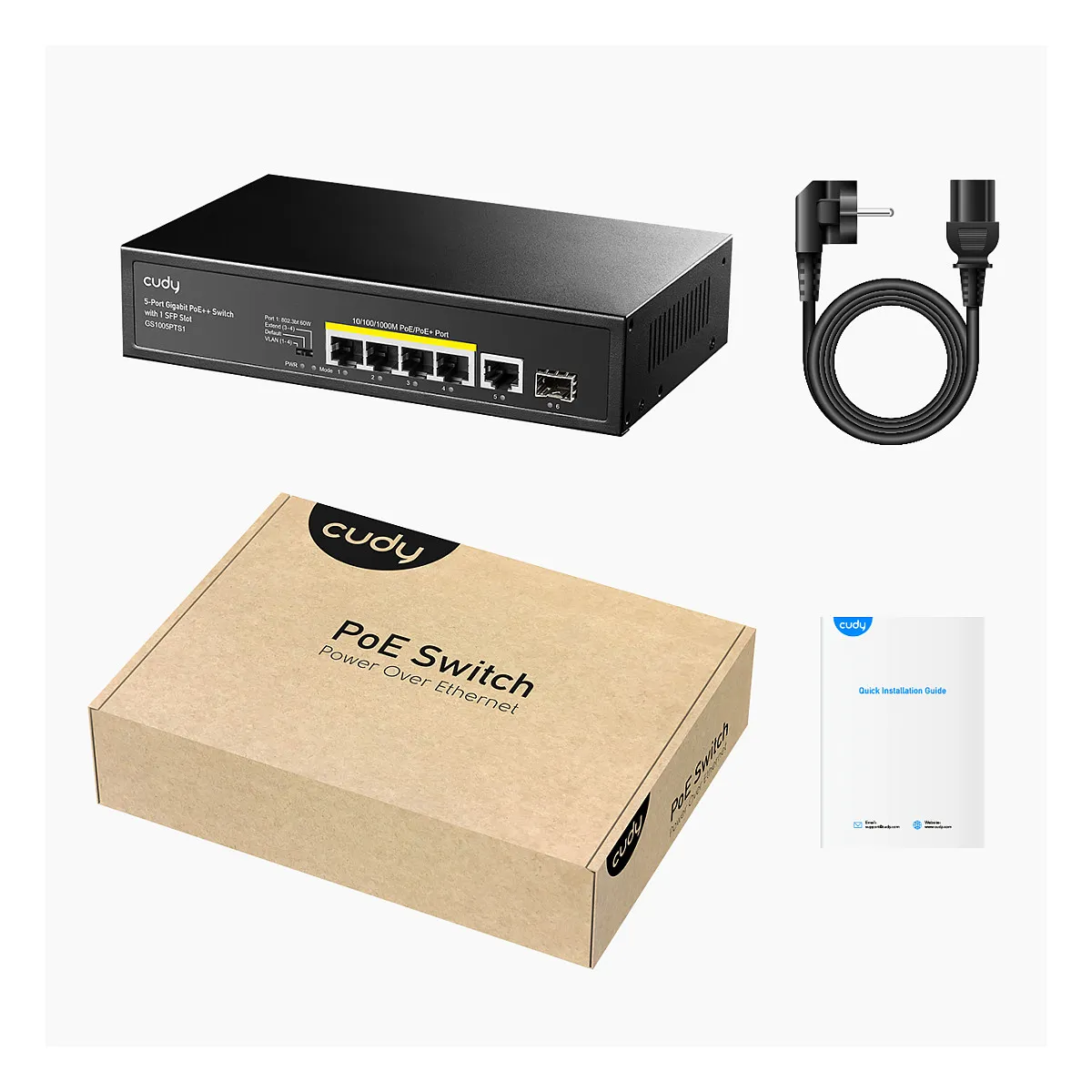

Packaging content
Cables included: AC
Feature: Manual
Packaging data
Package type: Box
Package width: 245 mm
Package depth: 190 mm
Package height: 60 mm
Package weight: 952 g
Logistics data
Master (outer) case net weight: 19 kg
Country of origin: China
Master (outer) case width: 505 mm
Master (outer) case length: 320 mm
Master (outer) case height: 402 mm
Products per master (outer) case: 20 pc(s)
