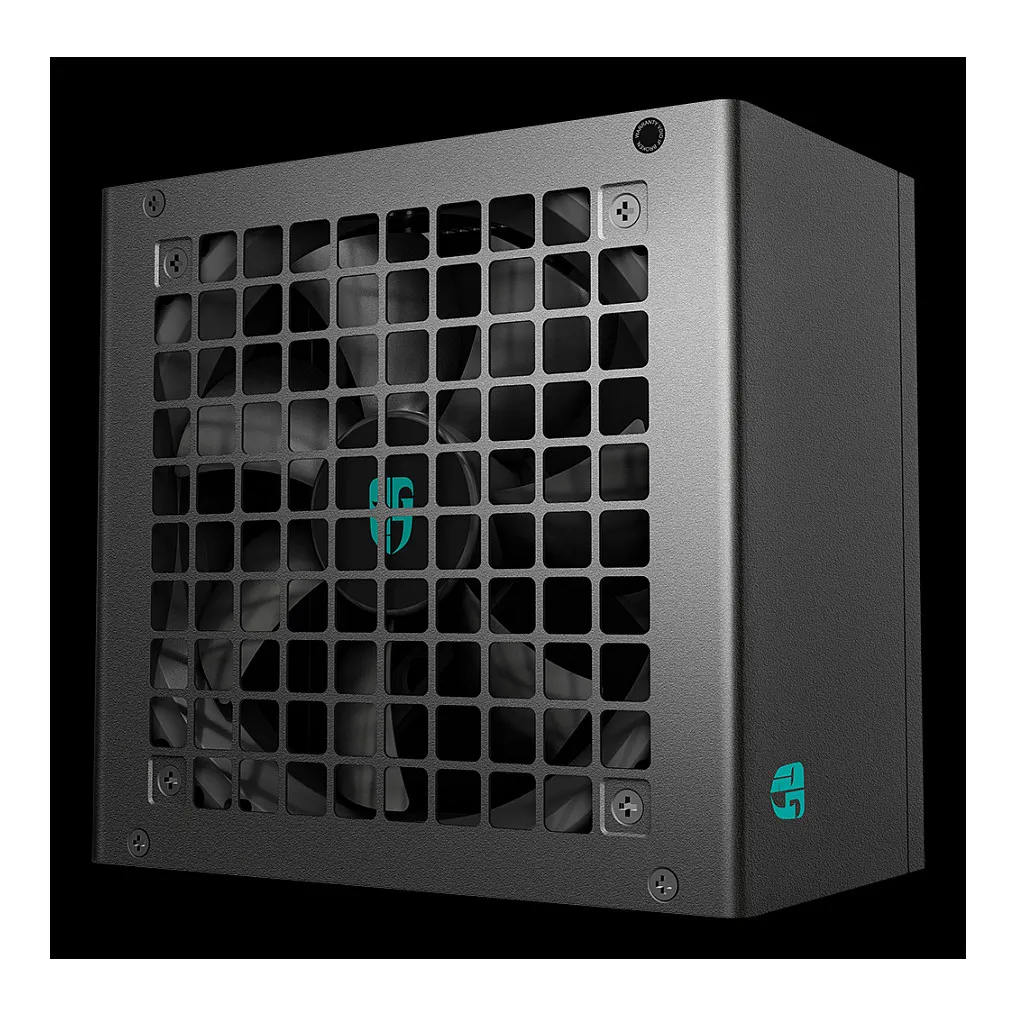

DeepCool PF500X. Total power: 500 W, AC input voltage: 200 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,600,750 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
The *bronze efficiency obtained from 80 PLUS, Cybenetics, and PPLP, ensuring 88% efficiency under typical loads (50%), significantly reduced energy loss and heat generation while extending the service life of the PSU.
TAIWANESE + JAPANESE PREMIUM CAPACITORS
By using the Taiwanese premium solid and electrolytic capacitors, the PF-X series can ensure a hold-up time ≥ 16ms under 75% load, which provides reliable protection for abnormal power outages.
The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands, which have a four-fold life span compared with normal, ensuring stable standby throughout the day.
RELIABLE TOPOLOGY

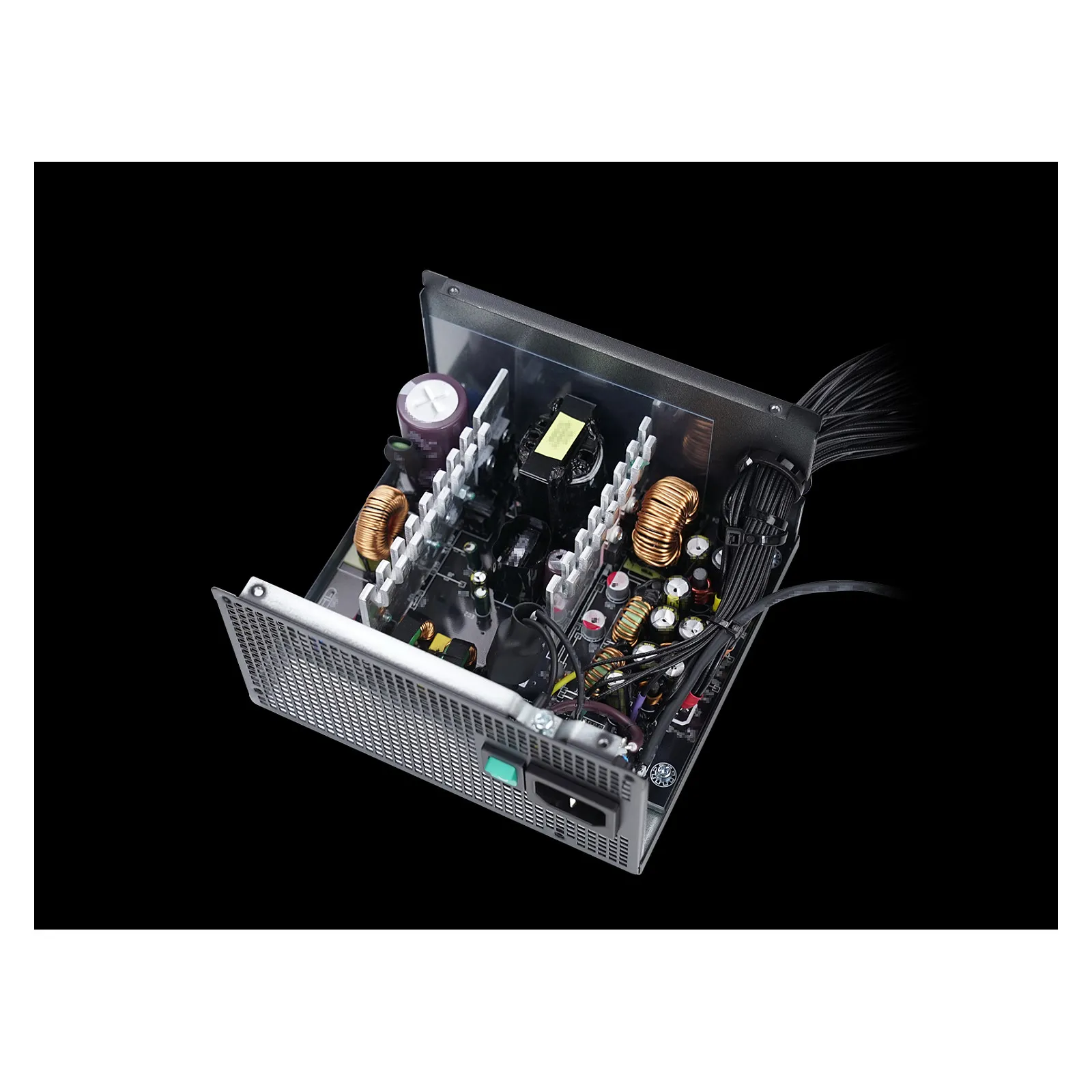

To meet the Intel ATX 2.52 standard, using Active PFC + Double Forward + DC to DC, combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation, providing better electrical performance and compatibility.
WIDE VOLTAGE ADAPTATION
Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown.
Strict Safety Standard
Strictly following global safety standards, beyond competitors, including the 40℃ and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas.

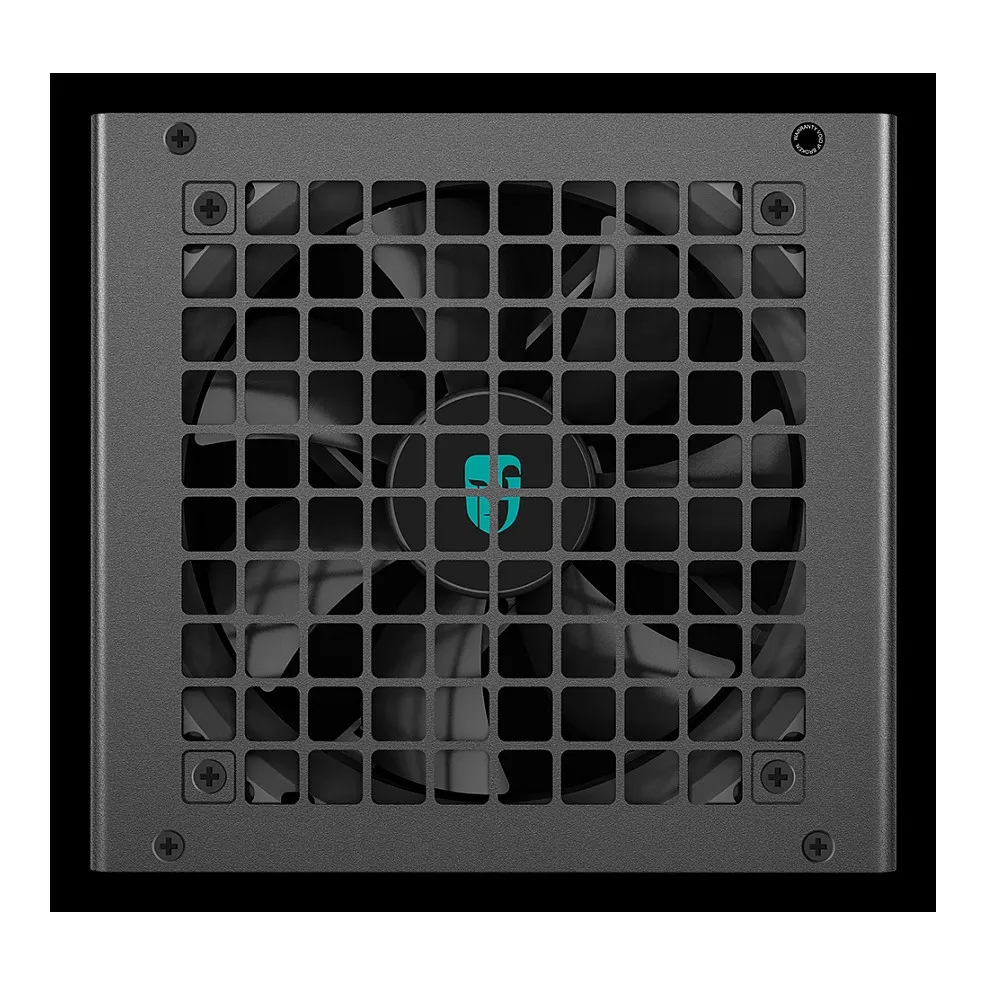

40K HRS MTBF LONG-LIFE FAN
A high-quality long-life bearing fan extends operational life by 30% compared to a normal fan and can continuously function for 7×24 hrs in a 40℃ environment. Meanwhile, the aerodynamic design based on PCB layout and flow resistance offers superior stability and quiet operation.
High-Grade Configurations
Equipped with GAMER STORM’s custom-molded sleeved cables significantly enhances the installation and wiring experience.
Peace of Mind
The PF-X is equipped with eight protection IC providing comprehensive safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.
Total power: 500 W
AC input voltage: 200 – 240 V
AC input frequency: 50/60 Hz
Input current: 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 499.2 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 16 A
Max output current (+12V): 41.6 A
Max output current (+5V): 16 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 88%
Power protection features: No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 3
SATA power cable length: 450,600,750 mm
Number of SATA power cables: 2
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 900 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 55 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 62 cm
Feature: ATX power connector (20+4 pin)
Feature: PCI Express connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.52
Bearing technology: HYB
Mean time between failures (MTBF): 40000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 – 40 °C

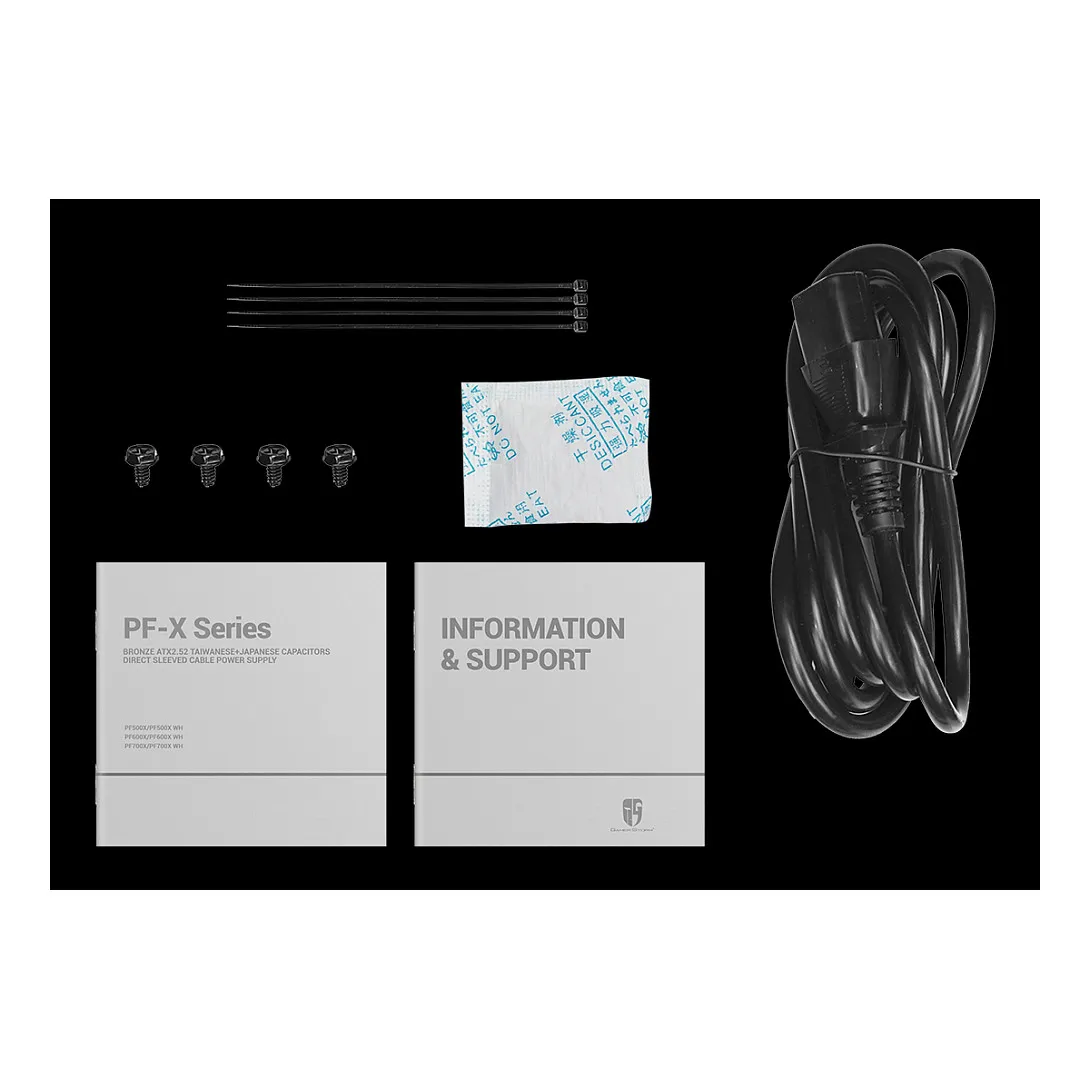

Packaging content
Cables included: AC
Certificates
Compliance certificates: CCC, CE, KC, RCM, TÜV mark, WEEE
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
Technical details
Sustainability certificates: ErP, Triman
Logistics data
Warranty period: 3 year(s)
Other features
Feature: Screws included
Feature: Cable ties included
