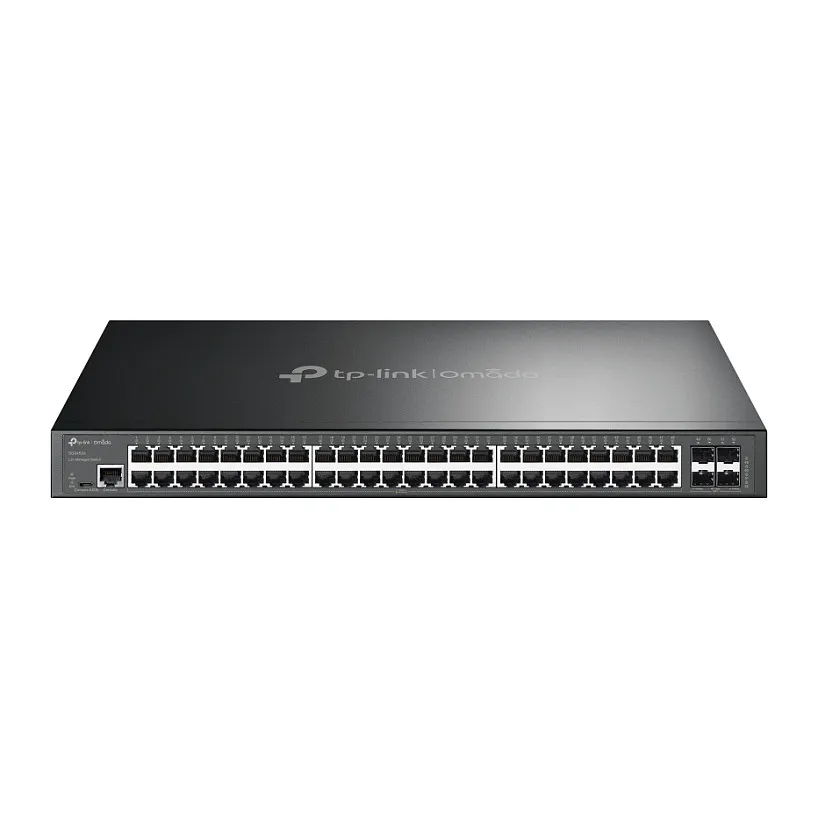

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad. Power connector: AC-in jack. Rack mounting, Form factor: 1U
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Management features
Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Public MIB: Y
Huawei-proprietary MIB: Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Console port: RJ-45/Micro-USB
Power connector: AC-in jack
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
10G support: Yes
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
IPv4 routes: 48
IPv6 routes: 48
VLAN support: Yes
Virtual LAN features: Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs: 4000
Data transmission
Switching capacity: 176 Gbit/s
Forwarding rate: 130.9 Mpps
MAC address table: 16000 entries
Static route: Yes
Number of static routes: 48
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 12 MB
Security
DHCP features: DHCP client, DHCP relay, DHCP server
Access Control List (ACL): Yes
IGMP snooping: Yes
IGMP proxy: Yes
MAC address filtering: Yes
Static port security: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Password protection: Yes
Authentication type: AAA, RADIUS, TACACS+
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
Protocols
Management protocols: SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 0 fan(s)
Power
Power source: AC
Power supply included: Yes
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 32.72 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 111.65 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 220 mm
Height: 44 mm
Packaging content
Cables included: AC
Quick start guide: Yes
Rack mount kit: Yes
Packaging data
Rack rails: Yes
Package type: Box
Certificates
Certification: CE, FCC, RoHS
Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Public MIB: Y
Huawei-proprietary MIB: Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Console port: RJ-45/Micro-USB
Power connector: AC-in jack
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
10G support: Yes
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
IPv4 routes: 48
IPv6 routes: 48
VLAN support: Yes
Virtual LAN features: Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs: 4000
Data transmission
Switching capacity: 176 Gbit/s
Forwarding rate: 130.9 Mpps
MAC address table: 16000 entries
Static route: Yes
Number of static routes: 48
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 12 MB
Security
DHCP features: DHCP client, DHCP relay, DHCP server
Access Control List (ACL): Yes
IGMP snooping: Yes
IGMP proxy: Yes
MAC address filtering: Yes
Static port security: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Password protection: Yes
Authentication type: AAA, RADIUS, TACACS+
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
Protocols
Management protocols: SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 0 fan(s)
Power
Power source: AC
Power supply included: Yes
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 32.72 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 111.65 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 220 mm
Height: 44 mm
Packaging content
Cables included: AC
Quick start guide: Yes
Rack mount kit: Yes
Packaging data
Rack rails: Yes
Package type: Box
Certificates
Certification: CE, FCC, RoHS
