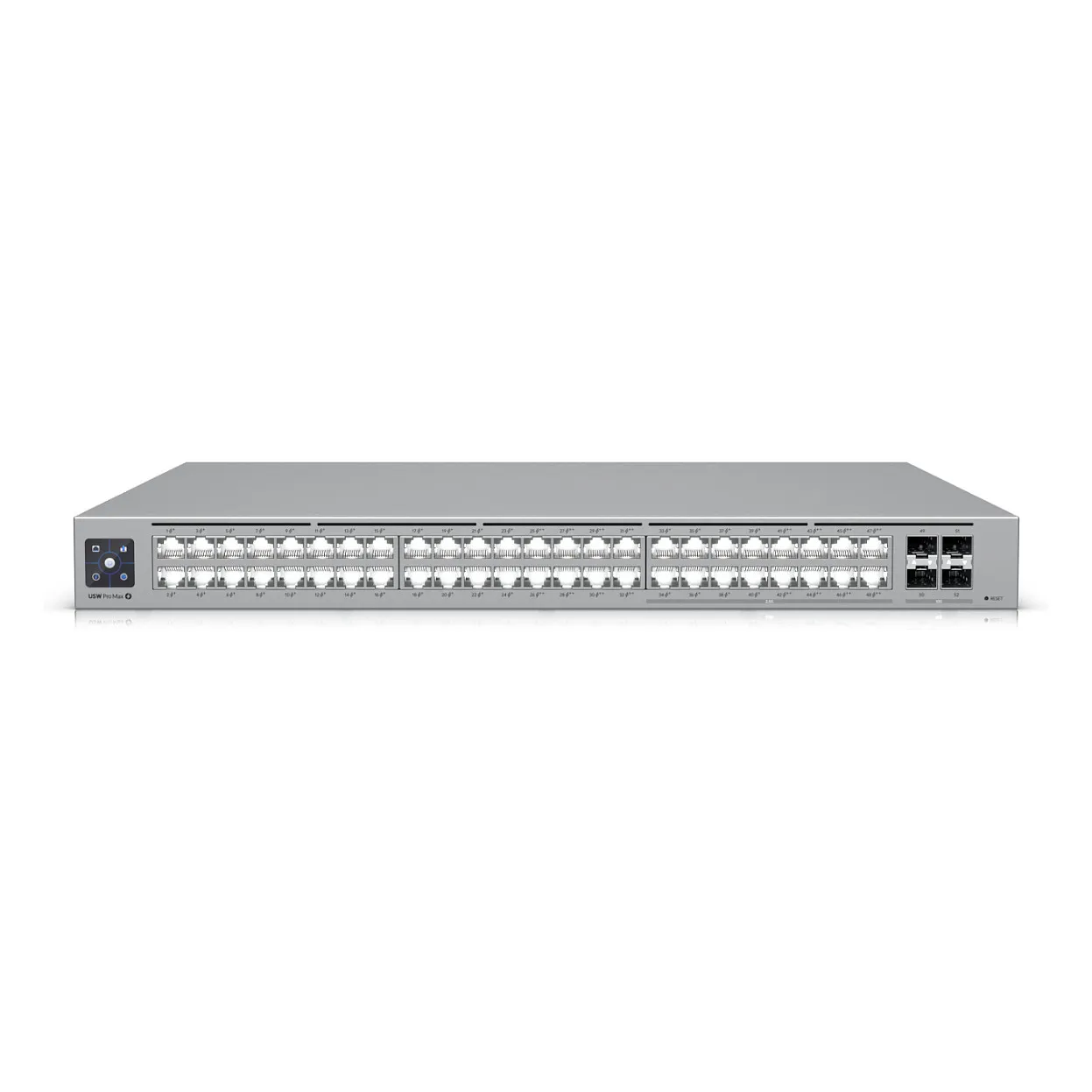

Ubiquiti UniFi Pro Max 48 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
Management features
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 32
2.5G Ethernet (copper) ports quantity: 16
SFP+ module slots quantity: 4
Power connector: AC-in jack
Network
Networking standards: IEEE 802.1x
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
IPv4 routes: 12000
Feature: VLAN support
Virtual LAN features: Voice VLAN
Number of VLANs: 1000
Data transmission
Switching capacity: 224 Gbit/s
Throughput: 112 Gbit/s
Forwarding rate: 167 Mpps
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Packet buffer memory: 2 MB
Security
DHCP features: DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
Feature: IGMP snooping
Feature: Loop protection
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
LED indicators: System
Display type: LCM
Feature: Backlight display
Power
Power source: AC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 820 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
Power over Ethernet plus (PoE+) ports quantity: 32
Power over Ethernet 4PPoE (PoE++) ports quantity: 16
Power over Ethernet (PoE) voltage: 57 V
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 720 W
Operational conditions
Operating temperature (T-T): -5 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Heat dissipation: 341.2 BTU/h
Weight & dimensions
Width: 442.4 mm
Depth: 399.6 mm
Height: 43.7 mm
Weight: 6.2 kg

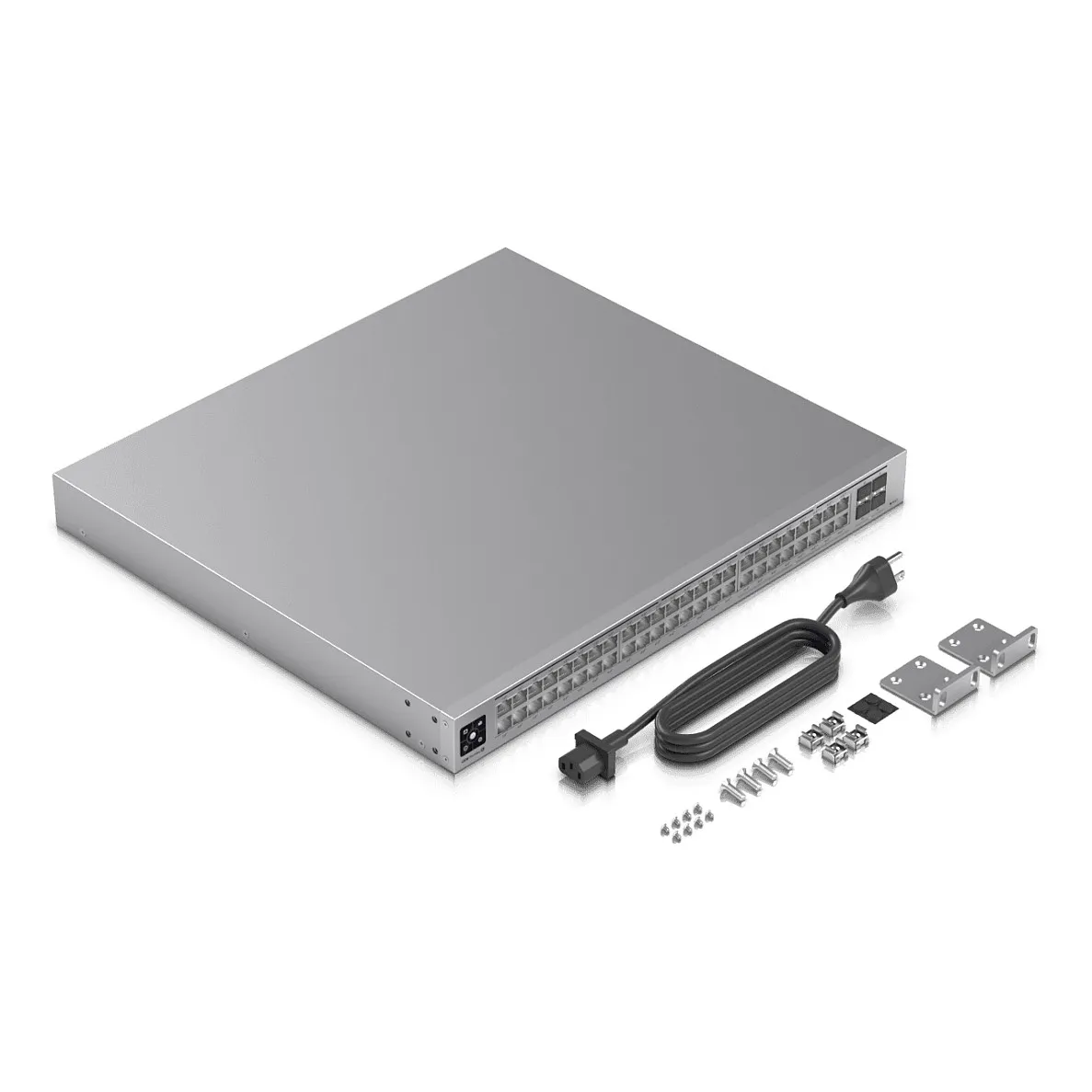

Packaging content
Cables included: Power
Feature: Manual
Feature: Rack mount kit
Sustainability
Feature: Sustainability compliance
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 32
2.5G Ethernet (copper) ports quantity: 16
SFP+ module slots quantity: 4
Power connector: AC-in jack
Network
Networking standards: IEEE 802.1x
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
IPv4 routes: 12000
Feature: VLAN support
Virtual LAN features: Voice VLAN
Number of VLANs: 1000
Data transmission
Switching capacity: 224 Gbit/s
Throughput: 112 Gbit/s
Forwarding rate: 167 Mpps
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Packet buffer memory: 2 MB
Security
DHCP features: DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
Feature: IGMP snooping
Feature: Loop protection
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
LED indicators: System
Display type: LCM
Feature: Backlight display
Power
Power source: AC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 820 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
Power over Ethernet plus (PoE+) ports quantity: 32
Power over Ethernet 4PPoE (PoE++) ports quantity: 16
Power over Ethernet (PoE) voltage: 57 V
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 720 W
Operational conditions
Operating temperature (T-T): -5 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Heat dissipation: 341.2 BTU/h
Weight & dimensions
Width: 442.4 mm
Depth: 399.6 mm
Height: 43.7 mm
Weight: 6.2 kg
Packaging content
Cables included: Power
Feature: Manual
Feature: Rack mount kit
Sustainability
Feature: Sustainability compliance
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
