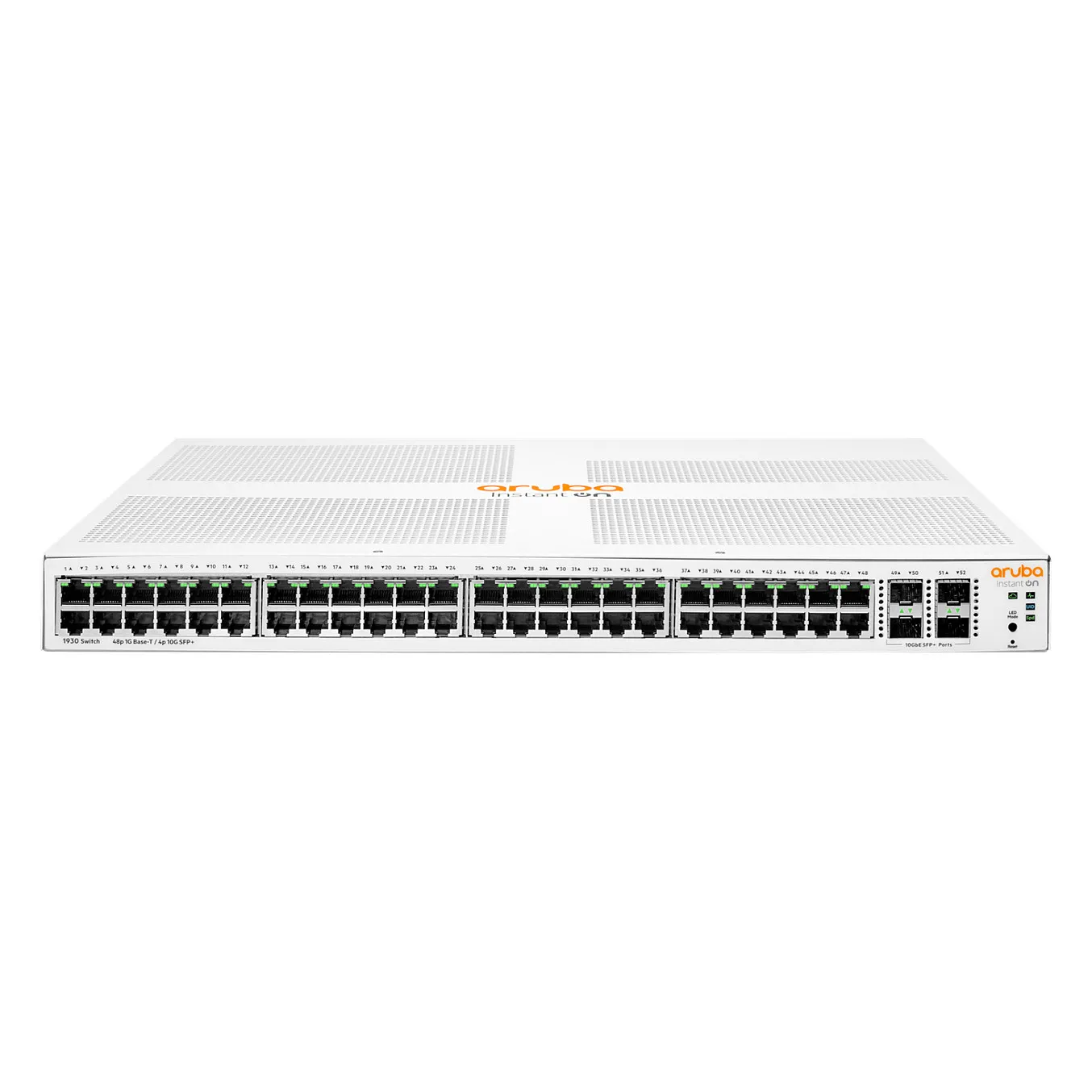

HPE Aruba Networking Aruba Instant On 1930. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U
Features
Simplify Network Deployment and Management for Small Organizations
– The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
– The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
– The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
– The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Keep Your Business Protected with Integrated Security Features
– The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
– Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
– Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
– Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
Deliver High Perfomance
– The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
– 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
– The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
– The switch series is covered by the Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.
Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Network
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-sensing
Feature: VLAN support
Number of VLANs: 256
Data transmission
Switching capacity: 176 Gbit/s
Throughput: 130.95 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 4.5 µs
Latency (1 Gbps): 2.2 µs
Latency (10 Gbps): 1.2 µs
Packet buffer memory: 1.5 MB
Security
Feature: IGMP snooping
Feature: SSH/SSL support
Design
Feature: Rack mounting
Form factor: 1U
Product colour: White
Performance
Processor model: ARM Cortex-A9
Processor frequency: 800 MHz
Memory type: SDRAM
Internal memory: 512 MB
Flash memory: 256 MB
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (max): 36.9 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 15 – 95%
Storage relative humidity (H-H): 15 – 95%
Weight & dimensions
Width: 442.5 mm
Depth: 282.4 mm
Height: 43.9 mm
Weight: 3.13 kg
Logistics data
Harmonized System (HS) code: 85176990
