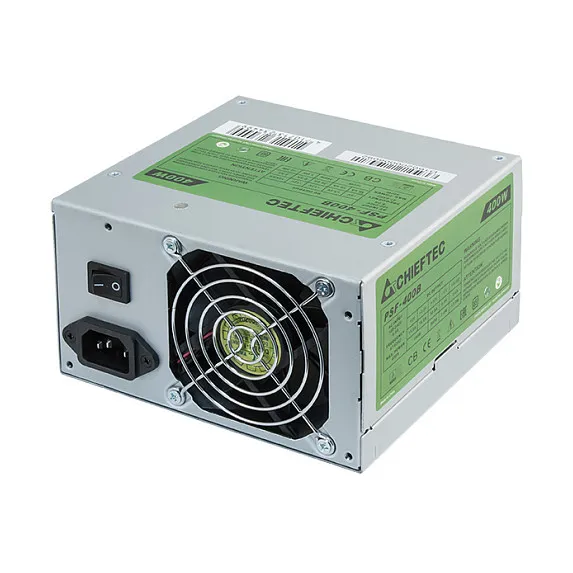

Chieftec PSF-400B. Total power: 400 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 45 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Metallic, Cooling type: Active, Fan diameter: 8 cm. Compliance certificates: RoHS
The PSF-400B from its layout may remind on “fore gone” ATX standards but, compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the PSF-400B is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.
Dedicated majorly to the 19” IPC / UNC solutions ranging between 2U ~ 4U where the PSU position is delicate and/or tricky and the cooling fan MUST blow out the rear owing to highly limited height issues of the related chassis.
Power
Total power: 400 W
AC input voltage: 100 – 240 V
AC input frequency: 47 – 63 Hz
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 360 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 16 A
Max output current (+12V1): 30 A
Max output current (+5V): 15 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 87%
Power protection features: Overload, Short circuit
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 45 cm
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 3
EPS power connector (8-pin): Yes
PCI Express power connectors (6-pin): 1
Floppy drive power connector: 1
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Design
Product colour: Metallic
Cooling type: Active
Fan diameter: 8 cm
Number of fans: 1 fan(s)
Fan location: Side
Certificates
Compliance certificates: RoHS
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 87 mm
Technical details
Sustainability certificates: ENERGY STAR
Logistics data
Harmonized System (HS) code: 84733020
