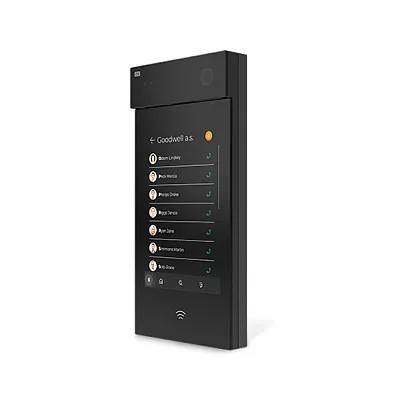

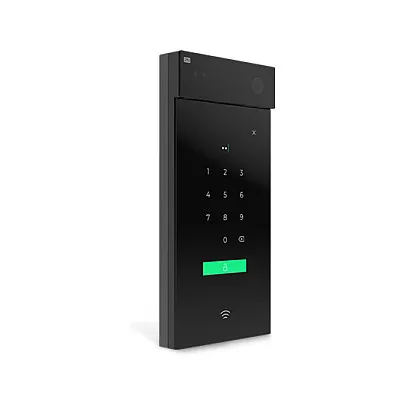

2N IP Style. Display diagonal: 25.6 cm (10.1"), Display technology: TFT/IPS, Display resolution: 1280 x 800 pixels. Maximum image resolution: 2560 x 1920 pixels, Maximum video resolution: 2560 x 1920 pixels, Maximum frame rate: 30 fps. Speaker power: 4 W, Voice codecs: G.711, G.722, G.729. Product colour: Black, International Protection (IP) code: IP65, IK code: IK08. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3at
Enhance your projects with an intercom which can handle multiple simultaneous full HD streams and has a 5 MPx chip. It supports WDR and provides colour image, even in low light conditions.
FASTEST MOBILE ACCESS CONTROL
Rely on our evolutionary WaveKey technology. We successfully opened the door 15,000 times using 100 different phones. So we are sure that in 98% of cases we open the door in less than 1 second.
PREMIUM 10″ DISPLAY
The extreme brightness of the display guarantees excellent readability, even in direct sunlight. You will also captivate users with the immediate response and smooth animations.
IP65 AND IK08 CERTIFIED DURABILITY
Don’t be fooled by the fully glazed surface. The 2N® IP Style can easily resist heavy rain, a dusty environment, and even attacks by vandals.
PLEASURE TO INSTALL
Together with you, we developed a new installation mechanism. Thanks to a patented tilt-out system, you have both hands free to work with the cables.
CUSTOMISE UI TO YOUR PROJECT
Select from 2 different ways of displaying the intercom’s user interface. You’ll satisfy the specifics of apartment or office buildings and tweak the user experience to perfection.
Connectivity technology: Wired & Wireless
Feature: Colour
Feature: Speakerphone
Number of displays supported: 1
Maximum number of cameras supported: 1
Maximum indoor range: 0.5 m
Maximum outdoor range: 10 m
VoIP protocols: SIP (UDP, TCP, TLS)
Feature: Wall mountable
Feature: Built-in microphone
Viewing angle: 170°
Display
Display diagonal: 25.6 cm (10.1″)
Display technology: TFT/IPS
Display resolution: 1280 x 800 pixels
Display aspect ratio: 16:10
Feature: Touchscreen
Video formats supported: H.264, MJPG
Camera
Maximum image resolution: 2560 x 1920 pixels
Maximum video resolution: 2560 x 1920 pixels
Maximum frame rate: 30 fps
Viewing angle, horizontal: 144°
Viewing angle, vertical: 126°
Audio
Feature: Built-in speaker(s)
Number of speakers: 2
Speaker power: 4 W
Voice codecs: G.711, G.722, G.729
Design
Product colour: Black
International Protection (IP) code: IP65
IK code: IK08
Network
Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3at
Power
AC adapter output voltage: 30 V
AC adapter output current: 1 A
Operational conditions
Operating temperature (T-T): -30 – 60 °C
Storage temperature (T-T): -30 – 70 °C
Operating relative humidity (H-H): 10 – 95%
Weight & dimensions
Width: 170 mm
Depth: 40 mm
Height: 355 mm
Weight: 1.95 kg
