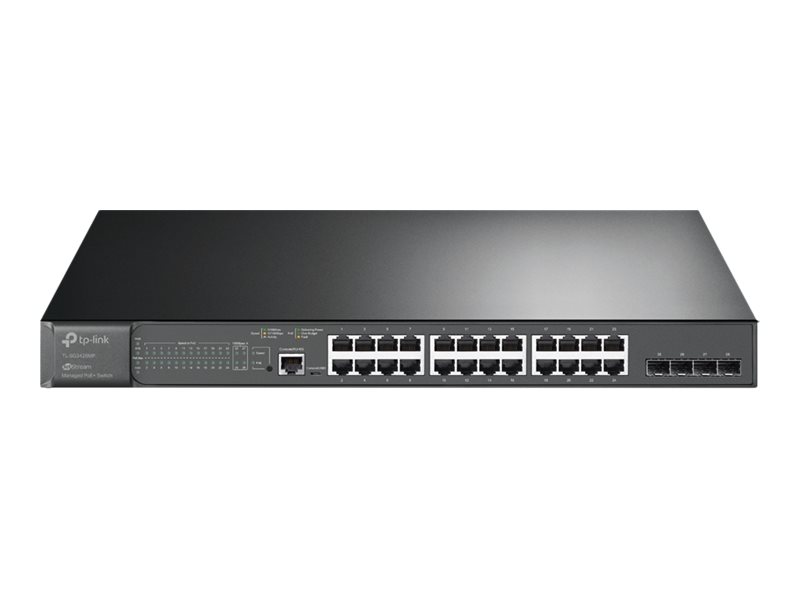

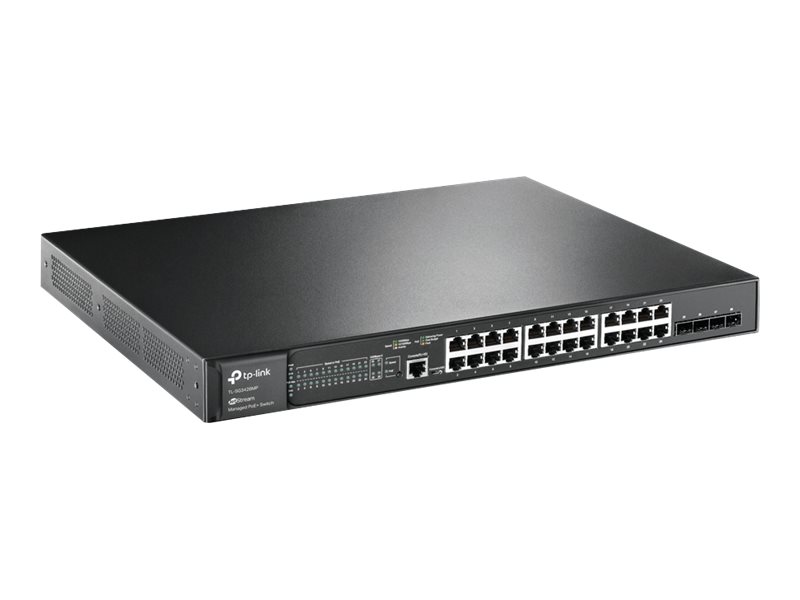

TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Management features
Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP module slots quantity: 4
Console port: RJ-45/Micro-USB

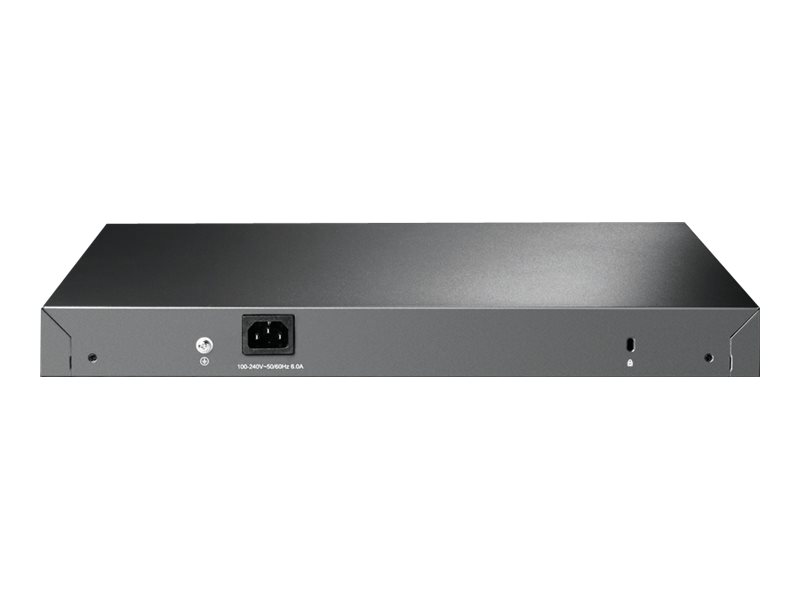

Power connector: AC-in jack
Network
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support: No
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T
Port mirroring: Yes
IP routing: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Active link detection: Yes
VLAN support: Yes
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000
Data transmission
Switching capacity: 56 Gbit/s
Forwarding rate: 41.66 Mpps
MAC address table: 16000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 12 MB
Security
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: SSH, SSL/TLS
MAC address filtering: Yes
Static port security: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
Multicast features
Multicast support: Yes
Protocols
Management protocols: SNMPv1/v2c/v3, LLDP/LLDP-MED
GARP VLAN Registration Protocol (GVRP): Yes
Design
Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)
Performance
Export Control Classification Number (ECCN): EAR99
Power
Power source: AC
Power supply included: Yes
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 480.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 384 W
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 1637.14 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 330 mm
Height: 44 mm
Packaging content
Quick start guide: Yes
User guide: Yes
Certificates
Certification: CE, FCC, RoHS
Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP module slots quantity: 4
Console port: RJ-45/Micro-USB
Power connector: AC-in jack
Network
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support: No
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T
Port mirroring: Yes
IP routing: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Active link detection: Yes
VLAN support: Yes
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000
Data transmission
Switching capacity: 56 Gbit/s
Forwarding rate: 41.66 Mpps
MAC address table: 16000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 12 MB
Security
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: SSH, SSL/TLS
MAC address filtering: Yes
Static port security: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
Multicast features
Multicast support: Yes
Protocols
Management protocols: SNMPv1/v2c/v3, LLDP/LLDP-MED
GARP VLAN Registration Protocol (GVRP): Yes
Design
Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)
Performance
Export Control Classification Number (ECCN): EAR99
Power
Power source: AC
Power supply included: Yes
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 480.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 384 W
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 1637.14 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 330 mm
Height: 44 mm
Packaging content
Quick start guide: Yes
User guide: Yes
Certificates
Certification: CE, FCC, RoHS
